INLET TUBE GROUP - EX60H-T736A

Kioti TRACTOR | DK Series | DK60CHSE

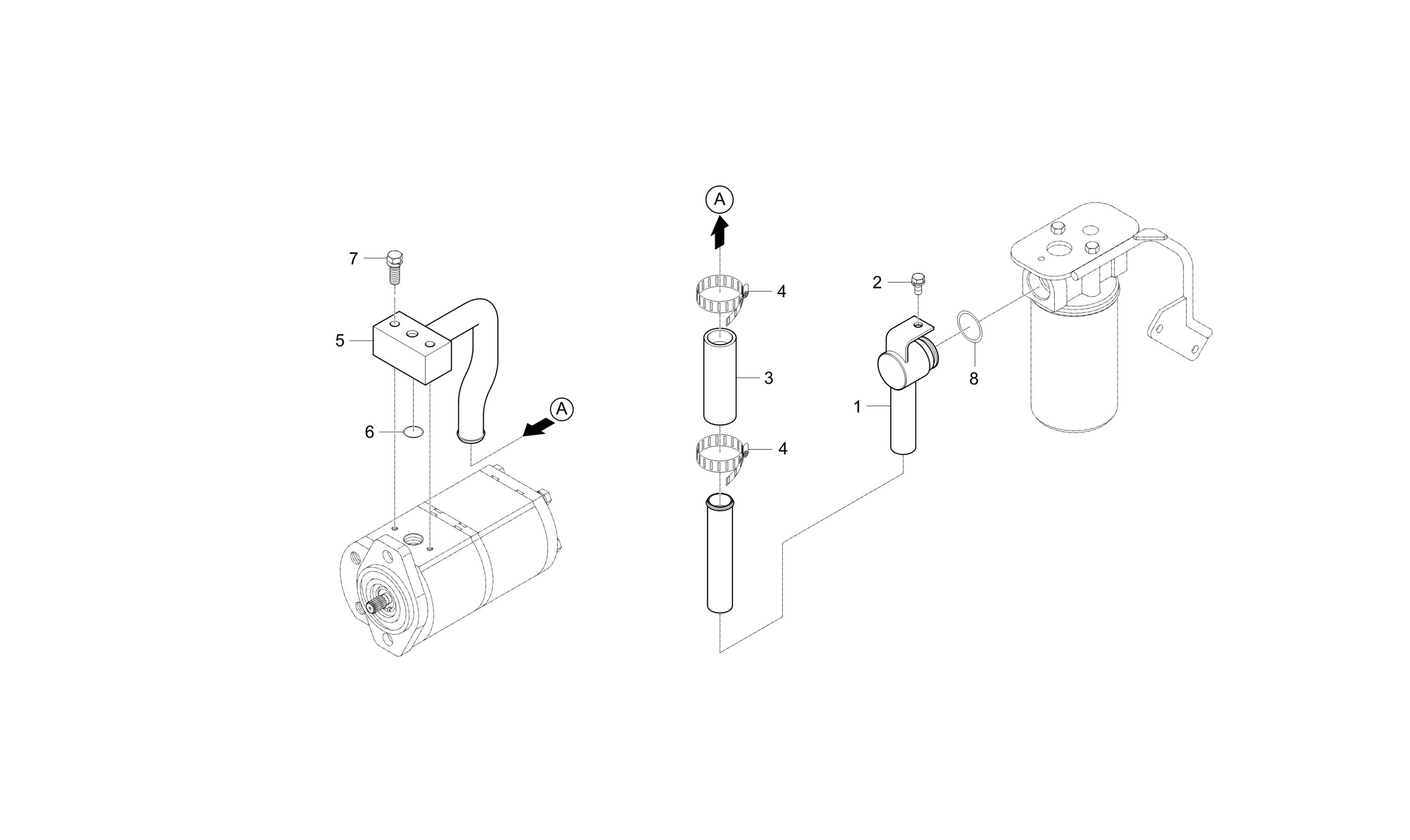

Diagram for INLET TUBE GROUP - EX60H-T736A

1
TUBE 2, INLET obs v
- Part No. T5515-38012
- 1 shown on diagram
$85.99

TUBE 2, INLET obs v quantity
2
Bolt With Washers, M8 P1.25 x 14mm
- Part No. 01125-50814
- M8XP1.25
- 1 shown on diagram
$2.49

Bolt With Washers, M8 P1.25 x 14mm quantity
3
HOSE, INLET
- Part No. T4520-38151
- 1 shown on diagram
$13.99

HOSE, INLET quantity
4
BAND, HOSE
- Part No. T4340-38231
- ??45#
- 2 shown on diagram
$4.49

BAND, HOSE quantity
5
TUBE 3, INLET obs v
- Part No. T5515-38021
- 1 shown on diagram
$85.99

TUBE 3, INLET obs v quantity
6
O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220
- Part No. 04810-00220
- DIA21.8
- 1 shown on diagram
$1.19

O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220 quantity
7
Bolt With Washer, M8 P1.25 x 55mm
- Part No. 01123-50855
- M8XP1.25
- 2 shown on diagram
$3.49

Bolt With Washer, M8 P1.25 x 55mm quantity
8
O-ring
- Part No. 04810-00320
- 1 shown on diagram
$1.39

O-ring quantity
