PTO HYDRAULIC TUBE GROUP - EX45CH-T746A

Kioti TRACTOR | DK Series | DK60CHSE

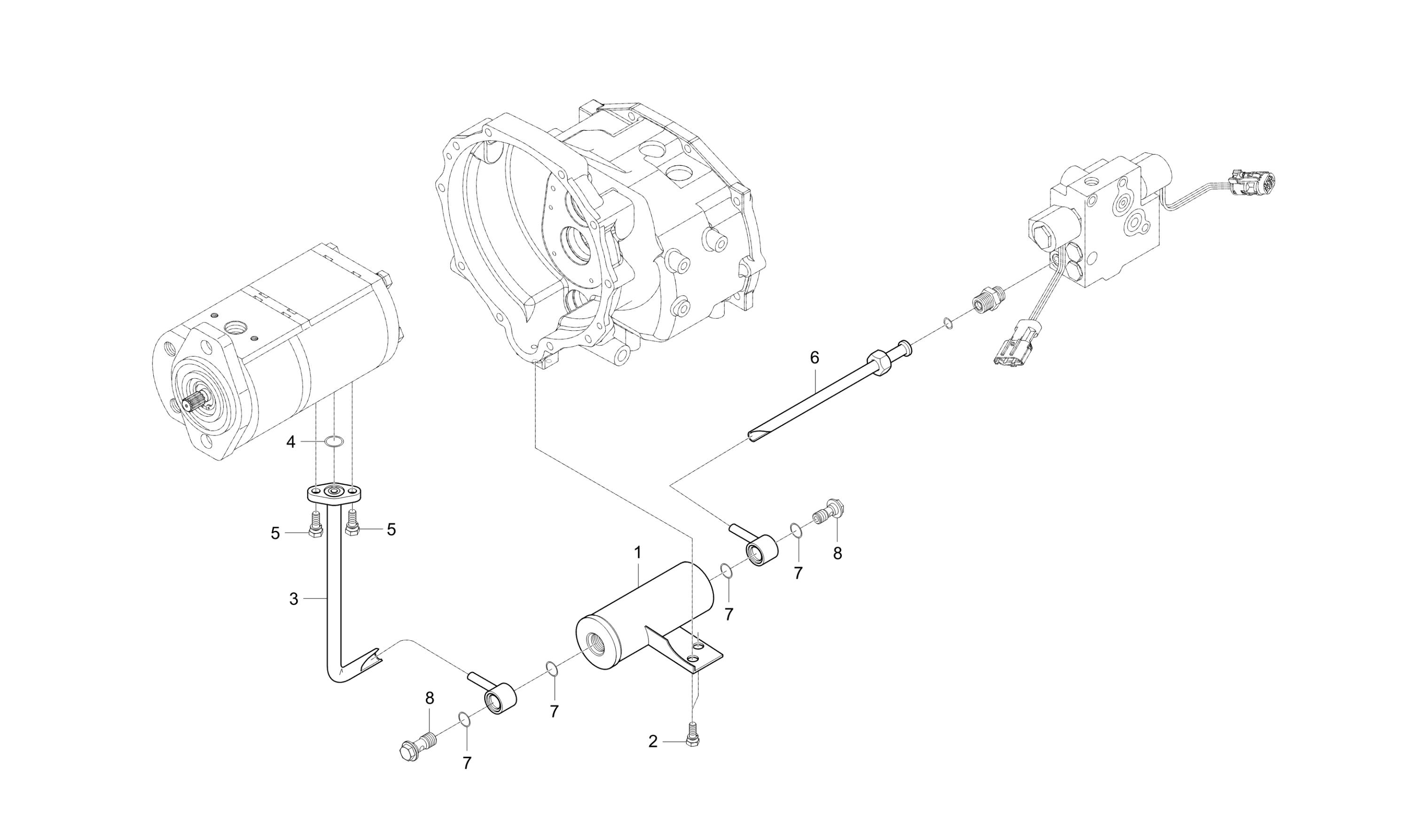

Diagram for PTO HYDRAULIC TUBE GROUP - EX45CH-T746A
  • 1

    ATTENUATOR

    • Part No. T4145-45871BB
    • 1 shown on diagram
    $189.99
  • 2 Bolt w/Lock Washer M10 P1.25x16mm

    Bolt w/Lock Washer M10 P1.25x16mm

    • Part No. 01133-51016
    • M10*P1.25
    • 2 shown on diagram
    $2.49
  • 3

    PTO HYDRAULIC TUBE 1

    • Part No. T4145-34062BB
    • Applied Dates 2008-09-12 to 2008-11-10
    • 1 shown on diagram
    $194.99
  • 4 O RING

    O RING

    • Part No. 04810-00180
    • 1 shown on diagram
    $1.09
  • 5 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 6

    PTO HYDRAULIC TUBE 2

    • Part No. T4145-34071BB
    • 1 shown on diagram
    $114.99
  • 7 O-ring, Use 330-MOR-19.8X2.4-90D

    O-ring, Use 330-MOR-19.8X2.4-90D

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $0.00
  • 8 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 2 shown on diagram
    $21.99
