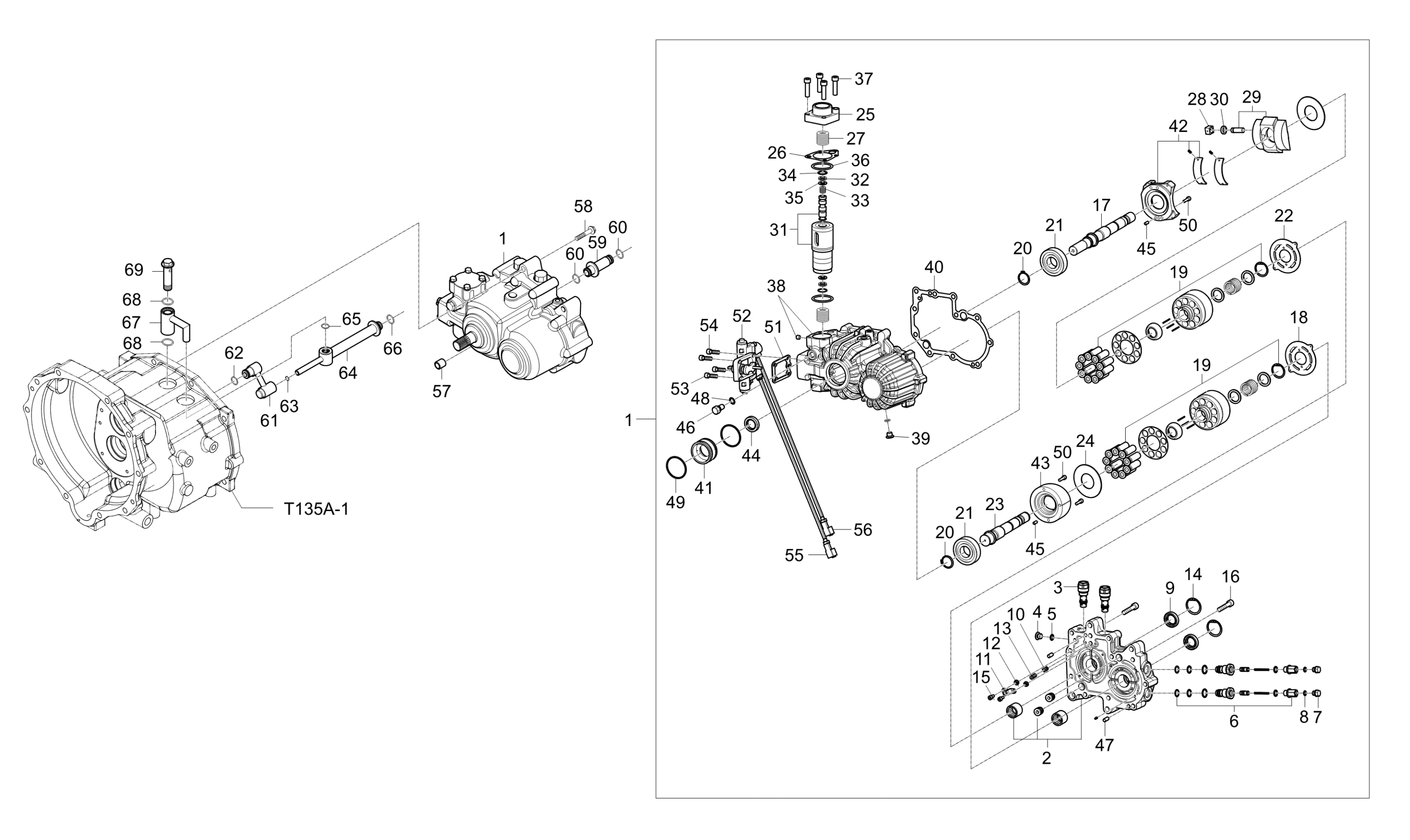

ASSY,HST GROUP - EX60H-T195A
Kioti TRACTOR | DK Series | DK60CHSE
-
HST (T-23C)
- Part No. T5515-30011
- 1 shown on diagram
$7,114.99 -
ASSY HST
- Part No. 568HR0-29001
- 1 shown on diagram
$0.00 -
ASSY, RELIEF VALVE
- Part No. 568HR0-29120
- 2 shown on diagram
$0.00 -
PLUG
- Part No. 178076-12400
- 1 shown on diagram
$14.99 -
O-RING
- Part No. 24315-000110
- 1 shown on diagram
$5.99 -
ASSY NEUTRAL VALVE
- Part No. 168HQ1-29131
- 2 shown on diagram
$1,229.99 -
PLUG
- Part No. 168HQ1-29180
- 1 shown on diagram
$0.01 -
O-RING
- Part No. 24365-090400
- 1 shown on diagram
$0.01 -
SEAL,OIL
- Part No. 158836-85420
- 2 shown on diagram
$85.99 -
VALVE
- Part No. 168HQ0-85710
- 1 shown on diagram
$0.00 -
RETAINER
- Part No. 158802-85720
- 1 shown on diagram
$8.49 -
SPRING
- Part No. 158830-85731
- 1 shown on diagram
$26.99 -
SPACER
- Part No. 158830-85740
- 2 shown on diagram
$13.99 -
RING SNAP
- Part No. 22252-000420
- 2 shown on diagram
$5.49 -
SCREW
- Part No. 26450-060122
- 2 shown on diagram
$1.89 -
SCREW
- Part No. 26450-100502
- 11 shown on diagram
$3.49 -
SHAFT, PUMP
- Part No. 168HQ1-29210
- 1 shown on diagram
$1,174.99 -
PLATE, VALVE
- Part No. 168HQ1-29250
- 1 shown on diagram
$159.99 -
ASSY BLOCK,CYLINDER
- Part No. 568HR0-29610
- 2 shown on diagram
$0.00 -
RING SNAP
- Part No. 22242-000300
- 2 shown on diagram
$3.49 -
BEARING 2″
- Part No. 24101-063060
- 2 shown on diagram
$45.99 -
PLATE M, VALVE
- Part No. 168HQ1-29350
- 1 shown on diagram
$164.99 -
MOTOR SHAFT
- Part No. 168HQ0-85060
- 1 shown on diagram
$0.00 -
PLATE,THRUST
- Part No. 568HR0-29440
- 2 shown on diagram
$0.00 -
COVER
- Part No. 568HR0-29410
- 1 shown on diagram
$0.00 -
PACKING obs v
- Part No. 168HQ1-29420
- 1 shown on diagram
$18.99 -
FRICTION SPRING
- Part No. 568HQ2-29440
- 2 shown on diagram
$0.00 -
RETAINER
- Part No. 119192-54650
- 1 shown on diagram
$81.99 -
CRADLE ASS’Y
- Part No. 568HR0-29420
- 1 shown on diagram
$0.00 -
SPACER obs v
- Part No. 158830-85370
- 1 shown on diagram
$9.99 -
POWER PISTON ASS’Y
- Part No. 168HP0-87140
- 1 shown on diagram
$0.00 -
PIECE
- Part No. 158830-87160
- 2 shown on diagram
$19.99 -
SPRING
- Part No. 158830-87170
- 1 shown on diagram
$6.49 -
RING SNAP
- Part No. 22252-000200
- 2 shown on diagram
$3.49 -
O Ring
- Part No. 24351-190150
- 2 shown on diagram
$5.99 -
O-RING obs v
- Part No. 146673-53900
- 2 shown on diagram
$38.99 -
LENCH BOLT
- Part No. 26450-080352
- M8X35L
- 5 shown on diagram
$0.00 -
ASSY,HOUSING
- Part No. 568HR0-29800
- 1 shown on diagram
$0.00 -
PLUG
- Part No. 178076-12400
- 1 shown on diagram
$14.99 -
PACKING [NLA]
- Part No. 168HQ1-29530
- 1 shown on diagram
$0.00 -
COLLAR v
- Part No. 168HQ1-29550
- 1 shown on diagram
$189.99 -
CRADLE HOLDER ASS’Y
- Part No. 568HR0-29530
- 1 shown on diagram
$0.00 -
PLATE
- Part No. 568HR0-29560
- 1 shown on diagram
$0.00 -
SEAL,OIL
- Part No. 158836-85420
- 1 shown on diagram
$85.99 -
PIN
- Part No. 158802-85880
- 2 shown on diagram
$2.49 -
SCREW
- Part No. 158830-87450
- 1 shown on diagram
$39.99 -
PIN
- Part No. 22312-080160
- 2 shown on diagram
$2.99 -
O-RING
- Part No. 24315-000110
- 2 shown on diagram
$5.99 -
O RING
- Part No. 24321-000550
- 2 shown on diagram
$9.99 -
SCREW
- Part No. 26450-060202
- 6 shown on diagram
$1.89 -
GASKET
- Part No. 168HQ0-87020
- 1 shown on diagram
$0.00 -
SERVO ASS’Y
- Part No. 568HR0-29900
- 1 shown on diagram
$0.00 -
BOLT
- Part No. 26450-080252
- M8X25L
- 2 shown on diagram
$0.00 -
LENCH BOLT
- Part No. 26450-080352
- M8X35L
- 2 shown on diagram
$0.00 -
BINDER
- Part No. 178076-05550
- 1 shown on diagram
$0.00 -
BINDER
- Part No. 178076-05570
- 1 shown on diagram
$0.00 -
PIN v
- Part No. T4520-43191
- 1 shown on diagram
$18.99 -
BOLT,UBS v
- Part No. T4125-31051
- 4 shown on diagram
$8.99 -
TUBE, HST INLET v
- Part No. T4125-31063
- 1 shown on diagram
$49.99 -
O RING
- Part No. 04811-05170
- DIA16.8
- 2 shown on diagram
$1.19 -
TUBE v
- Part No. T4125-37062
- 1 shown on diagram
$66.99 -
O-Ring 15.8 mm
- Part No. 04811-00160
- DIA15.8
- 1 shown on diagram
$1.09 -
O RING
- Part No. 04811-10120
- DIA11.5
- 1 shown on diagram
$0.68 -
TUBE
- Part No. T4125-37072
- 1 shown on diagram
$76.99 -
O RING
- Part No. 04811-00150
- DIA14.8
- 2 shown on diagram
$1.09 -
O RING
- Part No. 04811-05170
- DIA16.8
- 1 shown on diagram
$1.19 -
TUBE v
- Part No. T4125-37082
- 1 shown on diagram
$79.99 -
O-ring, Use 330-MOR-19.8X2.4-90D
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$0.00 -
BOLT 2, JOINT
- Part No. T4520-37372
- M18*1.5
- 1 shown on diagram
$29.99
