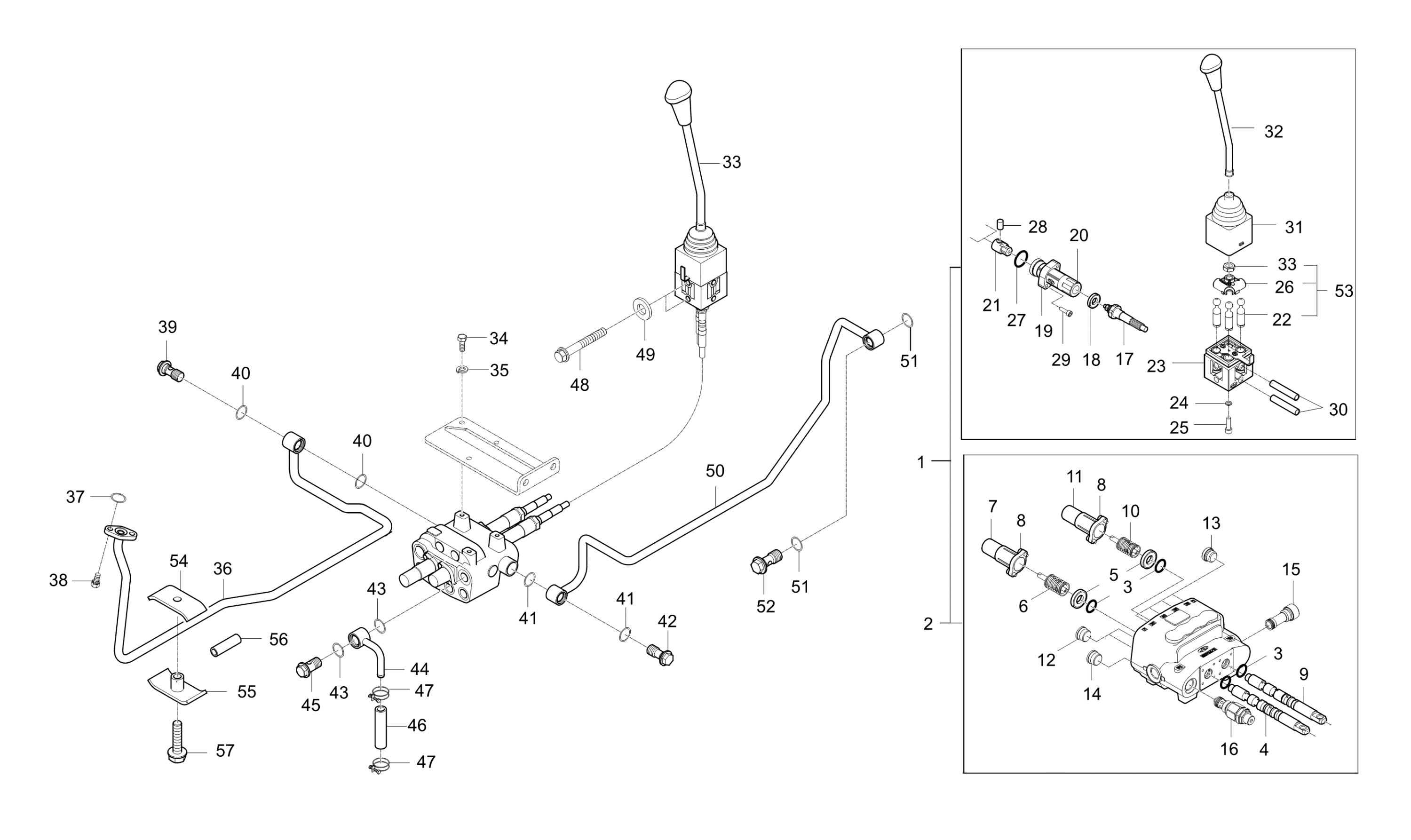

JOYSTICK VALVE GROUP - EX60CH-T760A

Kioti TRACTOR | DK Series | DK60CHSE

1
JOYSTICK VALVE ASSY obs v
- Part No. T4345-90201
- 1 shown on diagram
$2,379.99

JOYSTICK VALVE ASSY obs v quantity
2
VALVE ASSY v
- Part No. 26002-0002
- 1 shown on diagram
$1,949.99

VALVE ASSY v quantity
3
ORING v
- Part No. 36001-0042
- 4 shown on diagram
$5.99

ORING v quantity
4
SPOOL, 1
- Part No. 36001-0041
- 1 shown on diagram
$129.99

SPOOL, 1 quantity
5
COLLAR v
- Part No. 36001-0062
- 2 shown on diagram
$24.99

COLLAR v quantity
6
ASSY 1 SPRING KIT
- Part No. 36001-0049
- 1 shown on diagram
$36.99

ASSY 1 SPRING KIT quantity
7
ASSY 1 END CAP, Replaced by V001-104
- Part No. 36001-0043
- 1 shown on diagram
$0.00

ASSY 1 END CAP, Replaced by V001-104 quantity
8
BOLT HEXAGEN
- Part No. 36001-0097
- 4 shown on diagram
$0.85

BOLT HEXAGEN quantity
9
SPOOL, 2 v
- Part No. 36001-0054
- 1 shown on diagram
$134.99

SPOOL, 2 v quantity
10
ASSY 2 SPRING KIT
- Part No. 36001-0058
- 1 shown on diagram
$36.99

ASSY 2 SPRING KIT quantity
11
ASSY 2 END CAP
- Part No. 36001-0055
- 1 shown on diagram
$37.99

ASSY 2 END CAP quantity
12
CHECK VAVLE ASSY
- Part No. 36001-0077
- 2 shown on diagram
$49.99

CHECK VAVLE ASSY quantity
13
THERMOSRT PLUG
- Part No. 36001-1063
- 4 shown on diagram
$0.00

THERMOSRT PLUG quantity
14
PLUG ASSY, M18XP1.5
- Part No. 36001-0066
- 1 shown on diagram
$15.99

PLUG ASSY, M18XP1.5 quantity
15
JOINT ASSY,
- Part No. 36001-0072
- 1 shown on diagram
$24.99

JOINT ASSY, quantity
16
LEVER, MAIN SHIFT obs v
- Part No. 36002-0082
- 1 shown on diagram
$199.99

LEVER, MAIN SHIFT obs v quantity
17
CABLE,PUSH-PULL
- Part No. 36001-0340
- 690
- 2 shown on diagram
$144.99

CABLE,PUSH-PULL quantity
18
WASHER, SEAL
- Part No. 04717-01600
- 2 shown on diagram
$1.99

WASHER, SEAL quantity
19
FLANGE
- Part No. 36001-0130
- 2 shown on diagram
$12.99

FLANGE quantity
20
ENDCAP
- Part No. 36001-0120
- 2 shown on diagram
$22.99

ENDCAP quantity
21
JOINT
- Part No. 36001-0150
- 2 shown on diagram
$13.99

JOINT quantity
22
Ball End, Replaced by 36001-0170
- Part No. 36001-0160
- 3 shown on diagram
$0.00

Ball End, Replaced by 36001-0170 quantity
23
BODY ASS’Y v
- Part No. 26001-0050
- 1 shown on diagram
$72.99

BODY ASS'Y v quantity
24
WASHER, SPRING v
- Part No. 36001-0100
- 1 shown on diagram
$1.09

WASHER, SPRING v quantity
25
BOLT SHCS M6 P1.00×20 v
- Part No. 36001-0080
- (M6x20)
- 1 shown on diagram
$1.09

BOLT SHCS M6 P1.00x20 v quantity
26
Selector, 3 Socket
- Part No. 36001-0140
- 1 shown on diagram
$24.99

Selector, 3 Socket quantity
27
O RING v
- Part No. 36001-0030
- 21.95x1.78
- 2 shown on diagram
$1.19

O RING v quantity
28
PIN, CONNECT V
- Part No. 36001-0010
- 2 shown on diagram
$8.99

PIN, CONNECT V quantity
29
SOCKET HEAD CAP SCREW M5 P.80×18
- Part No. 36001-0060
- M5x18
- 4 shown on diagram
$0.85

SOCKET HEAD CAP SCREW M5 P.80x18 quantity
30
Tube
- Part No. 36001-0050
- 2 shown on diagram
$8.99

Tube quantity
31
Rubber Boot
- Part No. 36001-0180
- 1 shown on diagram
$22.99

Rubber Boot quantity
32
ASSY HANDLE
- Part No. 26001-0020
- 1 shown on diagram
$52.99

ASSY HANDLE quantity
33
NUT
- Part No. 02072-50140
- 1 shown on diagram
$1.29

NUT quantity
34
Bolt, Replaced by T2350-90331
- Part No. T2350-90311
- 1 shown on diagram
$2.49

Bolt, Replaced by T2350-90331 quantity
35
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 1 shown on diagram
$0.61

Spring Lock Washer M8 quantity
36
TUBE J1, HYD V, Replaced by T4125-90254BB
- Part No. T4125-90254
- *multiple options for # 36
- 1 shown on diagram
$0.00

TUBE J1, HYD V, Replaced by T4125-90254BB quantity
36
TUBE J1 , HYD, Replaced by T4125-90255BB
- Part No. T4125-90255
- Compatibility New Replaces Old
- *multiple options for # 36
- 1 shown on diagram
$0.00

TUBE J1 , HYD, Replaced by T4125-90255BB quantity
37
O RING
- Part No. 04810-00180
- 1 shown on diagram
$1.09

O RING quantity
38
Bolt With Washer, M8 P1.25 x 25mm
- Part No. 01123-50825
- M8XP1.25
- 2 shown on diagram
$1.99

Bolt With Washer, M8 P1.25 x 25mm quantity
39
JOINT BOLT M18 P1.5 V
- Part No. T4620-37092
- 1 shown on diagram
$21.99

JOINT BOLT M18 P1.5 V quantity
40
O-ring, Use 330-MOR-19.8X2.4-90D
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$0.00

O-ring, Use 330-MOR-19.8X2.4-90D quantity
41
O-ring, Use 330-MOR-19.8X2.4-90D
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$0.00

O-ring, Use 330-MOR-19.8X2.4-90D quantity
42
JOINT BOLT M18 P1.5 V
- Part No. T4620-37092
- 1 shown on diagram
$21.99

JOINT BOLT M18 P1.5 V quantity
43
O-ring, Use 330-MOR-19.8X2.4-90D
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$0.00

O-ring, Use 330-MOR-19.8X2.4-90D quantity
44
TUBE, RETURN
- Part No. T5515-90211
- 1 shown on diagram
$134.99

TUBE, RETURN quantity
45
JOINT BOLT M18 P1.5 V
- Part No. T4620-37092
- 1 shown on diagram
$21.99

JOINT BOLT M18 P1.5 V quantity
46
HOSE 1, RETURN
- Part No. T5515-38401
- 1 shown on diagram
$12.99

HOSE 1, RETURN quantity
47
CLMAP, HOSE
- Part No. 09318-87032
- 2 shown on diagram
$3.99

CLMAP, HOSE quantity
48
Bolt With Washer, M8 P1.25 x 80mm
- Part No. 01123-50880
- M8XP1.25
- 2 shown on diagram
$3.99

Bolt With Washer, M8 P1.25 x 80mm quantity
49
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79

Flat Washer M8 quantity
50
TUBE J2, HYD, Replaced by T4125-90262BB
- Part No. T4125-90262
- 1 shown on diagram
$0.00

TUBE J2, HYD, Replaced by T4125-90262BB quantity
51
O-ring, Use 330-MOR-19.8X2.4-90D
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$0.00

O-ring, Use 330-MOR-19.8X2.4-90D quantity
52
JOINT BOLT M18 P1.5 V
- Part No. T4620-37092
- 1 shown on diagram
$21.99

JOINT BOLT M18 P1.5 V quantity
53
Cinematic Loader Valve repl. ball-socket kit [NLA]
- Part No. 26001-0090
- 1 shown on diagram
$0.00

Cinematic Loader Valve repl. ball-socket kit [NLA] quantity
54
HOLDER, TUBE
- Part No. T4125-34211
- T3.2
- 1 shown on diagram
$4.49

HOLDER, TUBE quantity
55
HOLDER, TUBE
- Part No. T4125-34221
- 1 shown on diagram
$13.99

HOLDER, TUBE quantity
56
CUSHION
- Part No. T4125-34231
- 2 shown on diagram
$2.99

CUSHION quantity
57
FLANGE BOLT, HEX HEAD M8
- Part No. 01754-50820
- M8XP1.25
- 1 shown on diagram
$1.19

FLANGE BOLT, HEX HEAD M8 quantity
