OIL PAN GROUP - EC1-G142001

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

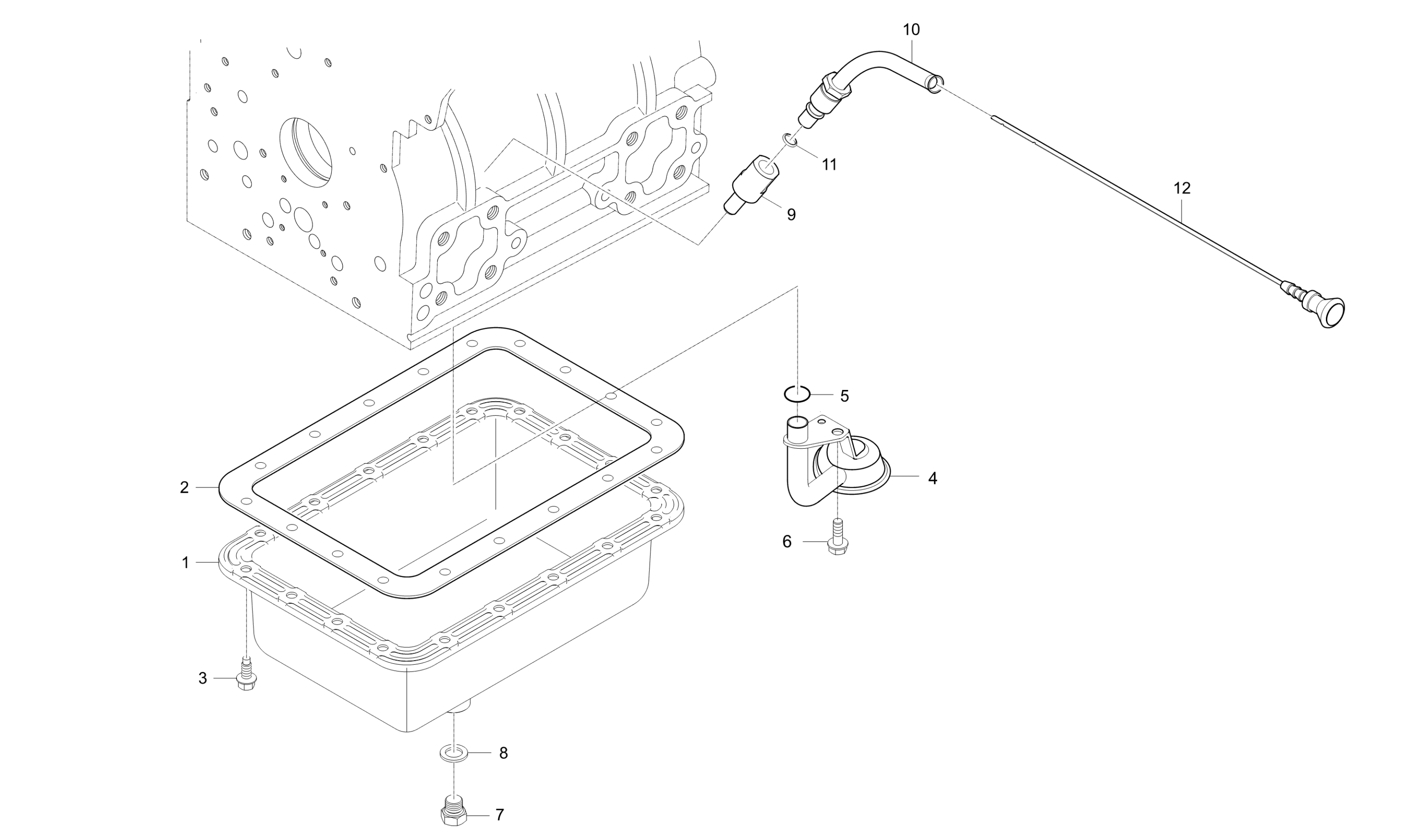

Diagram for OIL PAN GROUP - EC1-G142001
  • 1

    PAN, OIL

    • Part No. EC14-0012A
    • 1 shown on diagram
    $.00

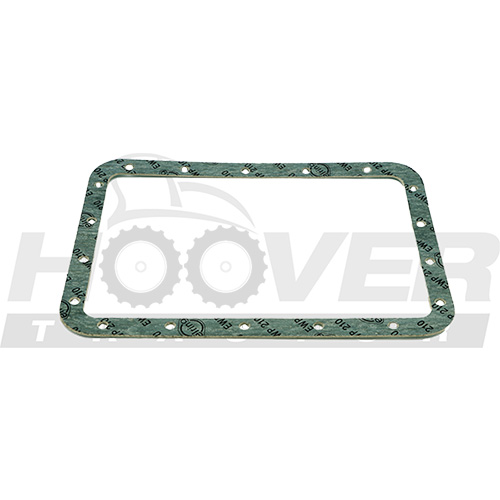

  • 2 GASKET, OIL PAN

    GASKET, OIL PAN

    • Part No. E5700-01624
    • T2.0
    • 1 shown on diagram
    $31.99
  • 3

    BOLT

    • Part No. E5700-91094
    • HEX10,M6*1.0
    • * multiple options for #3
    • 18 shown on diagram
    $4.49
  • 3

    Flange Bolt w/ Pin (01654-50618)

    • Part No. 01654-50618
    • Compatibility Interchngable
    • * multiple options for #3
    • 18 shown on diagram
    $1.09
  • 4

    FILTER1 OIL

    • Part No. E5700-32112
    • 1 shown on diagram
    $24.99
  • 5 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $.90
  • 6

    BOLT, FLANGE WITH PIN

    • Part No. 01654-50820
    • 1 shown on diagram
    $1.89
  • 7

    PLUG, M12 P1.25×15.5mm, 17mm Hex

    • Part No. E6303-33752
    • 1 shown on diagram
    $5.49
  • 8 GASKET, ALUMINUM WASHER

    GASKET, ALUMINUM WASHER

    • Part No. E6303-33661
    • 2.0t
    • 1 shown on diagram
    $3.49
  • 9

    Oil Gauge Guide

    • Part No. E5752-35692
    • 1 shown on diagram
    $21.99
  • 10

    GUIDE PIPE, OIL GAUGE

    • Part No. E5752-36423
    • 1 shown on diagram
    $29.99

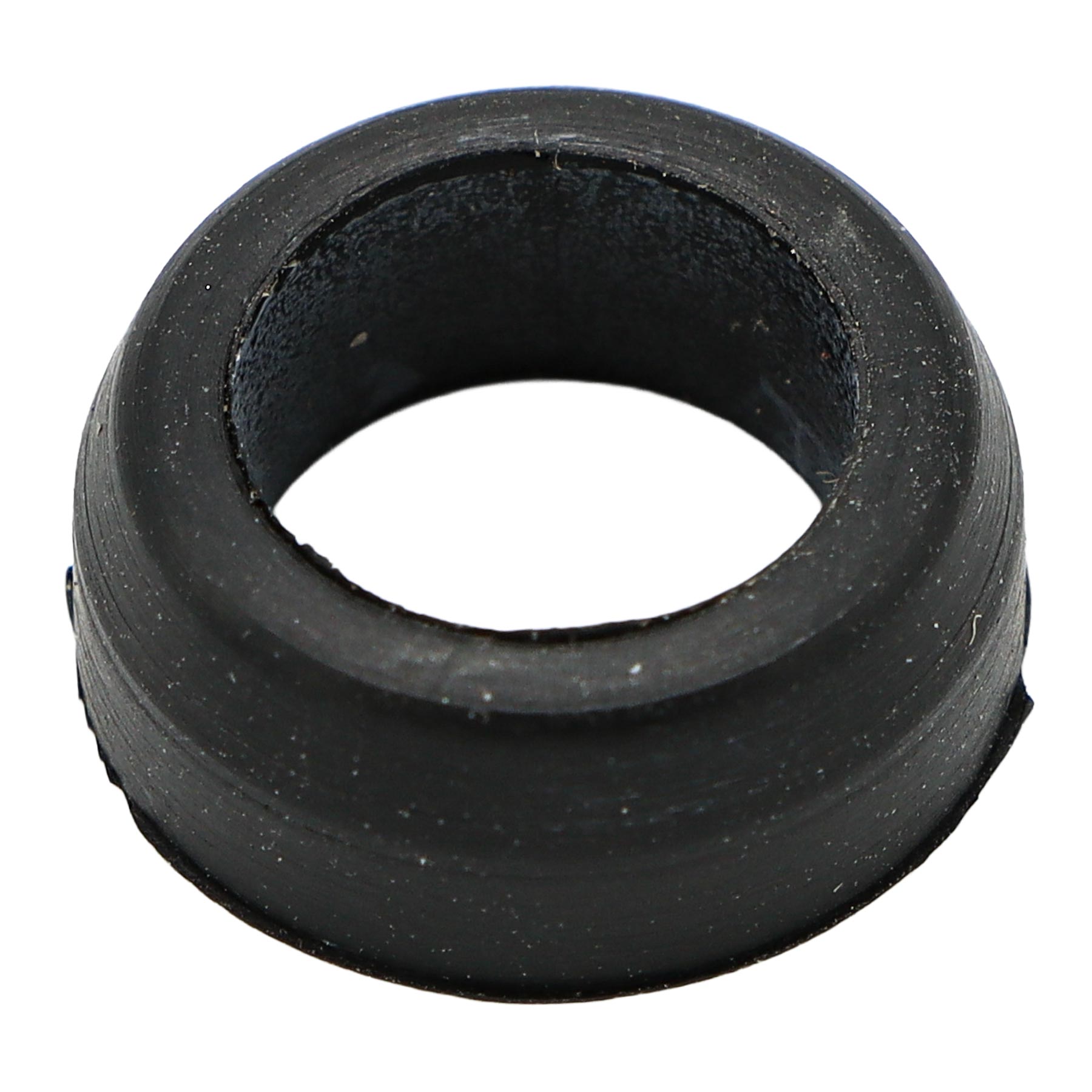

  • 11 PACKING

    PACKING

    • Part No. E7310-36431
    • 1 shown on diagram
    $1.79

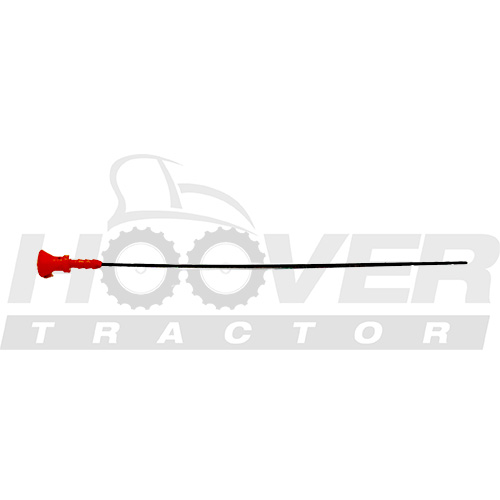

  • 12 OIL GAUGE V

    OIL GAUGE V

    • Part No. E5752-36413
    • 1 shown on diagram
    $21.99
