PISTON, CRANKSHAFT GROUP - S773-E020

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

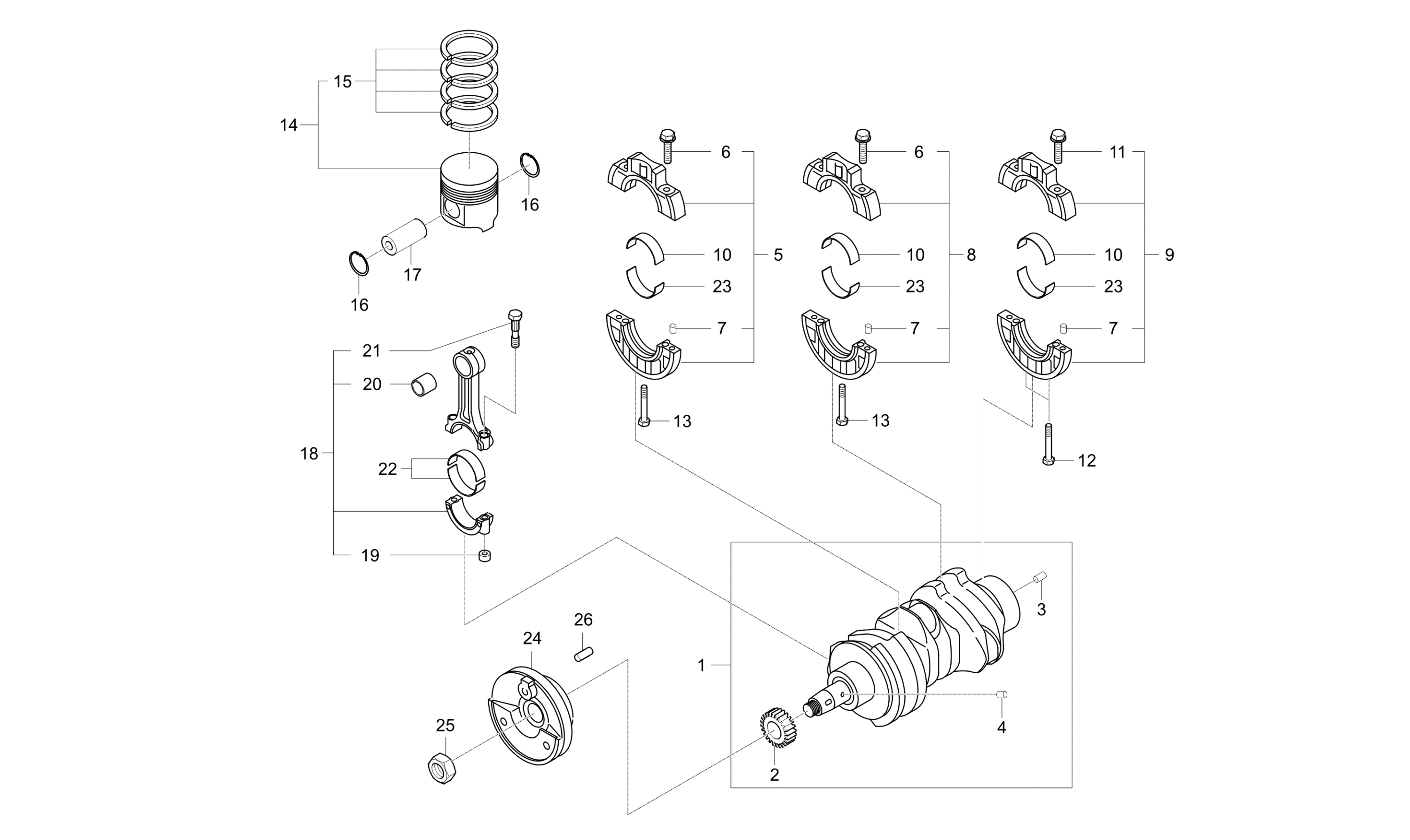

Diagram for PISTON, CRANKSHAFT GROUP - S773-E020
  • 1

    CRANK SHAFT ASSY

    • Part No. 115256830
    • 1 shown on diagram
    $2654.99
  • 2

    GEAR, CRANK SHAFT

    • Part No. 115276180
    • 1 shown on diagram
    $194.99
  • 3

    PIN, SPRING

    • Part No. 30300816
    • 1 shown on diagram
    $3.49
  • 4

    PIN, DOWEL

    • Part No. 30509020
    • 1 shown on diagram
    $3.99
  • 5

    BEARING HOLDER ASSY

    • Part No. 110156400
    • 1 shown on diagram
    $234.99
  • 6

    BOLT

    • Part No. 10810840
    • 4 shown on diagram
    $3.49
  • 7

    PIN, DOWEL

    • Part No. 30500612
    • 6 shown on diagram
    $3.99
  • 8

    BEARING HOLDER ASSY

    • Part No. 110156410
    • 1 shown on diagram
    $234.99
  • 9

    BEARING HOLDER ASSY

    • Part No. 110156420
    • 1 shown on diagram
    $234.99
  • 10

    METAL UPPER

    • Part No. 198517572
    • 3 shown on diagram
    $96.99
  • 11

    BOLT

    • Part No. 10810845
    • 2 shown on diagram
    $7.99
  • 12

    BOLT

    • Part No. 10700845
    • 2 shown on diagram
    $3.99
  • 13

    BOLT

    • Part No. 11510850
    • 2 shown on diagram
    $3.49
  • 14

    PISTON KIT dnr v

    • Part No. 115017620
    • 3 shown on diagram
    $424.99
  • 15

    RING KIT

    • Part No. 115104090
    • 3 shown on diagram
    $274.99
  • 16

    RING, SNAP

    • Part No. 36500021
    • 6 shown on diagram
    $2.99
  • 17

    PIN, PISTON

    • Part No. 115326231
    • 3 shown on diagram
    $84.99
  • 18

    CONNECTING ROD ASSY

    • Part No. 115026340
    • 3 shown on diagram
    $409.99
  • 19

    Nut

    • Part No. 20109075
    • 6 shown on diagram
    $16.99
  • 20

    BUSH

    • Part No. 198517125
    • 3 shown on diagram
    $43.99
  • 21

    BOLT

    • Part No. 115176150
    • 6 shown on diagram
    $19.99
  • 22

    METAL

    • Part No. 198517602
    • 6 shown on diagram
    $34.99
  • 23

    METAL LOWER

    • Part No. 198517582
    • 3 shown on diagram
    $95.99
  • 24

    CRANKSHAFT PULLEY

    • Part No. 115397910
    • 1 shown on diagram
    $294.99
  • 25

    NUT

    • Part No. 20800018
    • 1 shown on diagram
    $11.99
  • 26

    KEY

    • Part No. 34100508
    • 1 shown on diagram
    $5.49
