CYLINDER HEAD GROUP - S773-E030

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

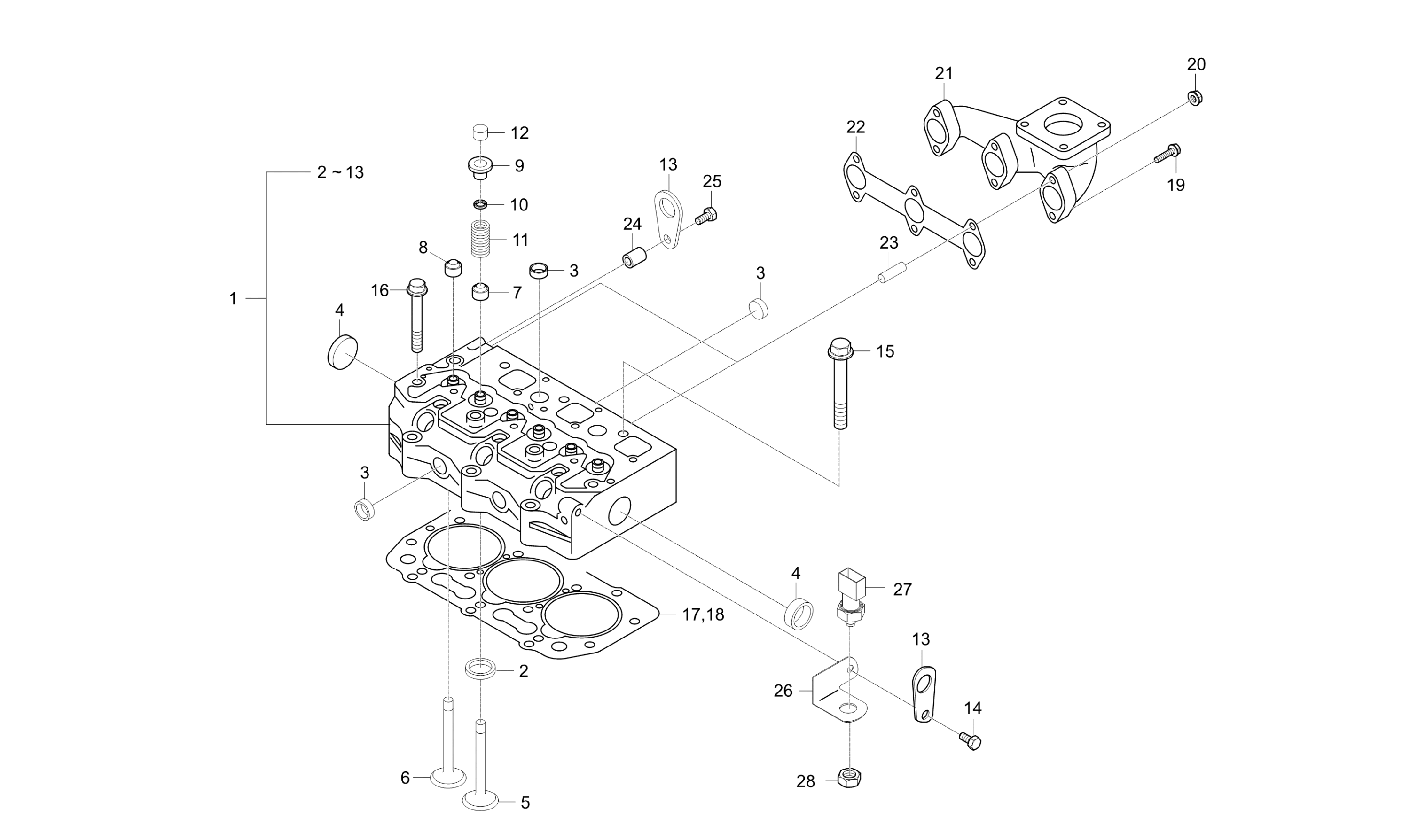

Diagram for CYLINDER HEAD GROUP - S773-E030
  • 1

    CYLINDER HEAD ASSY

    • Part No. 111011440
    • * multiple options for #1
    • 1 shown on diagram
    $2074.99
  • 1

    CYLINDER HEAD ASSY

    • Part No. 111011870
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $1479.99
  • 2

    VALVE SEAT, IN

    • Part No. 110136435
    • 3 shown on diagram
    $67.99
  • 3

    CAP, SEALING

    • Part No. 64210018
    • 8 shown on diagram
    $6.49
  • 4

    CAP, SEALING

    • Part No. 64210030
    • 2 shown on diagram
    $11.99
  • 5

    VALVE, INTAKE

    • Part No. 120166360
    • 3 shown on diagram
    $59.99
  • 6

    VALVE, EXHAUST

    • Part No. 120176250
    • 3 shown on diagram
    $88.99
  • 7

    SEAL, VALVE GUIDE

    • Part No. 120406070
    • 3 shown on diagram
    $39.99
  • 8

    SEAL, VALVE GUIDE

    • Part No. 120406050
    • 3 shown on diagram
    $35.99
  • 9

    RETAINER

    • Part No. 120186080
    • 6 shown on diagram
    $39.99
  • 10

    COTTER

    • Part No. 120226070
    • 12 shown on diagram
    $11.99
  • 11

    SPRING

    • Part No. 198216700
    • 6 shown on diagram
    $15.99
  • 12

    VALVE, CAP

    • Part No. 120216041
    • 6 shown on diagram
    $12.99
  • 13

    HANGER

    • Part No. 195816200
    • 2 shown on diagram
    $9.99
  • 14

    BOLT

    • Part No. 11510820
    • 1 shown on diagram
    $1.89
  • 15

    BOLT, HEAD

    • Part No. 111136440
    • 11 shown on diagram
    $36.99
  • 16

    BOLT, HEAD

    • Part No. 111136450
    • 3 shown on diagram
    $35.99
  • 17

    HEAD GASKET (T=1.2)

    • Part No. 111147560
    • 1 shown on diagram
    $329.99
  • 18

    HEAD GASKET(T=1.3)

    • Part No. 111147570
    • 1 shown on diagram
    $329.99
  • 19

    BOLT

    • Part No. 11310625
    • 4 shown on diagram
    $3.49
  • 20

    NUT

    • Part No. 23100006
    • 2 shown on diagram
    $3.49

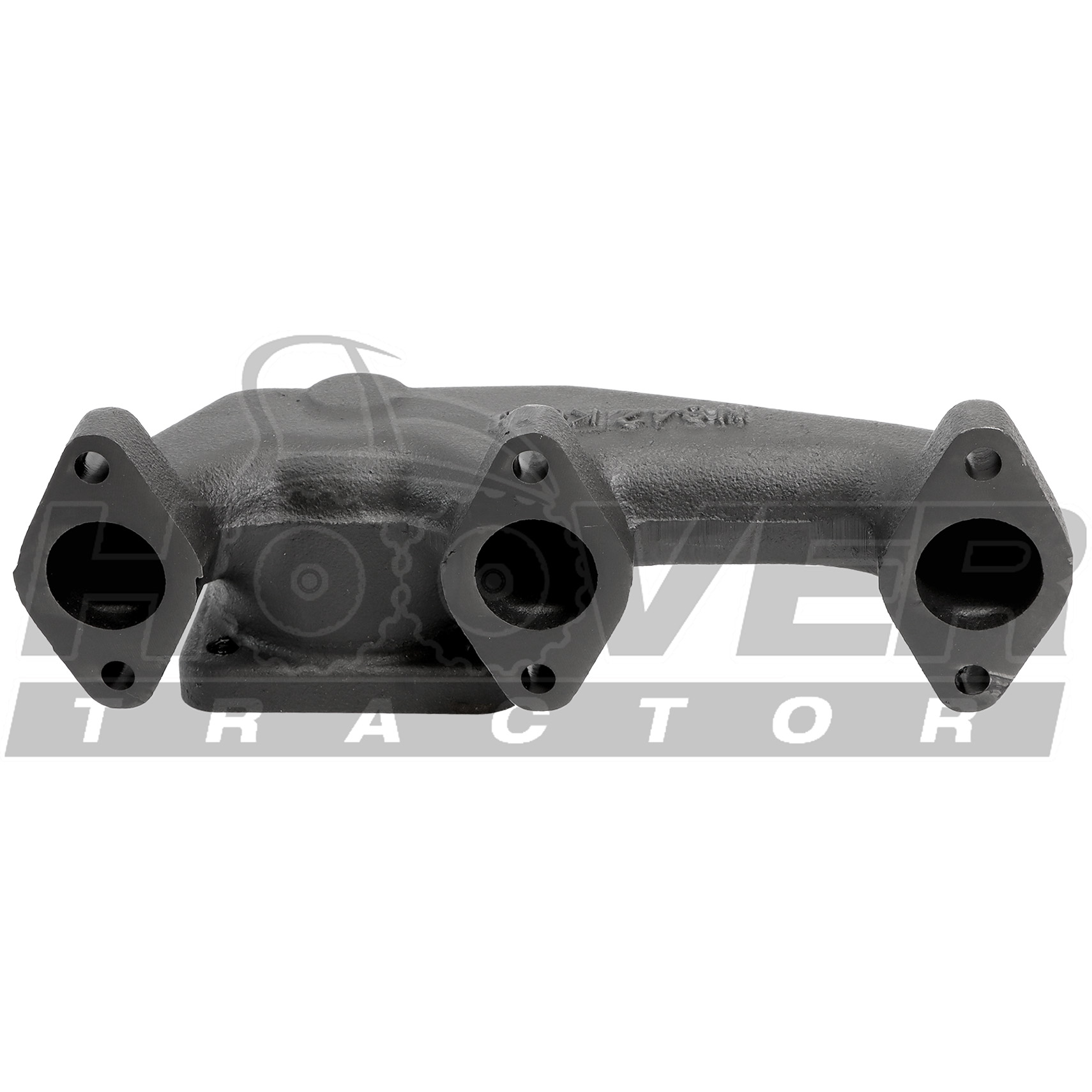

  • 21 EXHAUST, MANIFOLD

    EXHAUST, MANIFOLD

    • Part No. 135616342
    • 1 shown on diagram
    $464.99
  • 22 GASKET

    GASKET

    • Part No. 135996541
    • 1 shown on diagram
    $39.99
  • 23

    BOLT, STUD

    • Part No. 12110625
    • 2 shown on diagram
    $16.99
  • 24

    COTTER

    • Part No. 199236680
    • 1 shown on diagram
    $56.99
  • 25

    BOLT

    • Part No. 11510830
    • 1 shown on diagram
    $1.79
  • 26

    BRACKET

    • Part No. 185977810
    • 1 shown on diagram
    $16.99
  • 27

    SENSOR, AMBIENT PRESSURE obs

    • Part No. U85746210
    • 1 shown on diagram
    $309.99
  • 28

    NUT

    • Part No. 20109248
    • 1 shown on diagram
    $3.99

Related Diagrams
