GEAR CASE GROUP - TB2-GE12001

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

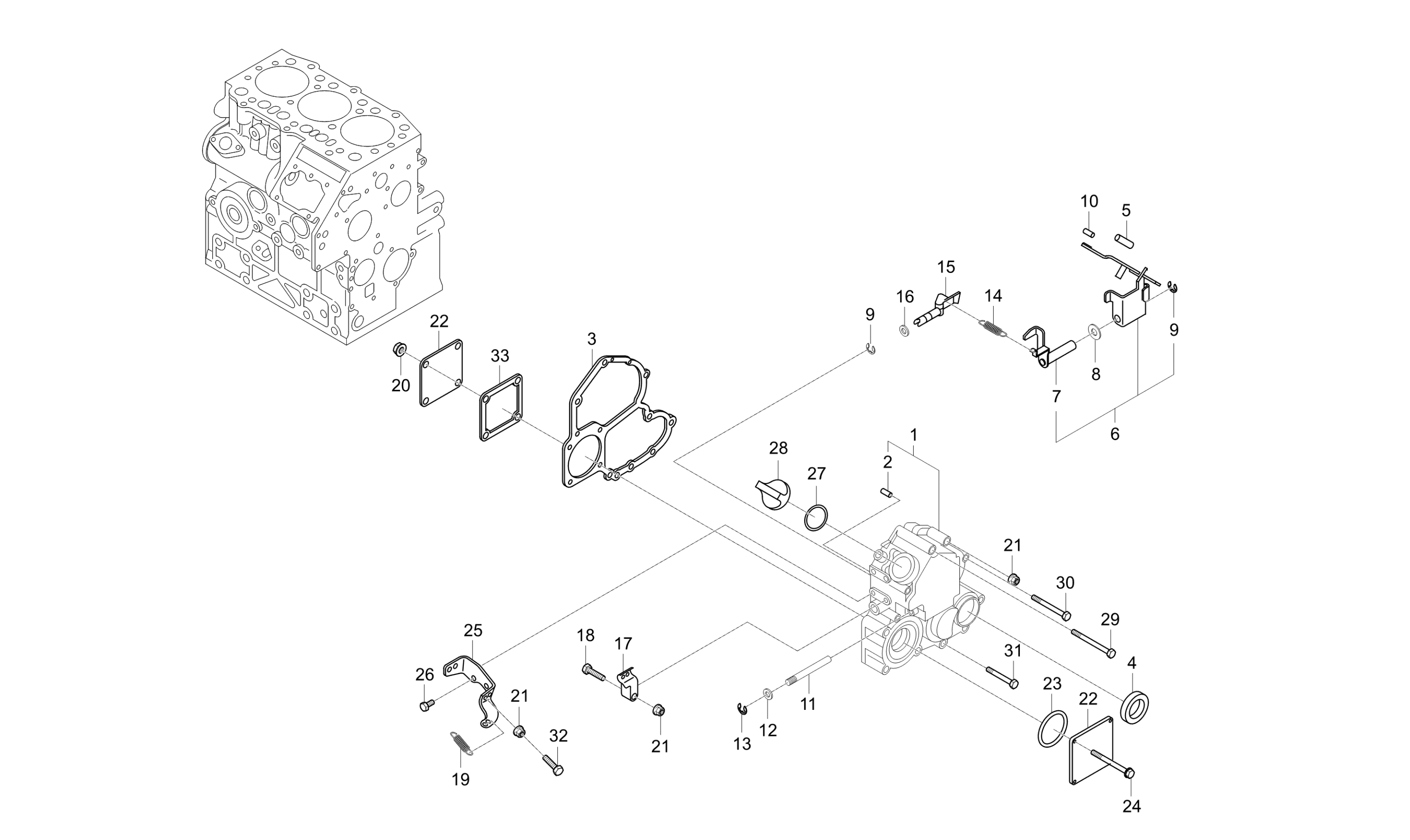

Diagram for GEAR CASE GROUP - TB2-GE12001
  • 1

    TIMING GEAR CASE

    • Part No. 165106880
    • 1 shown on diagram
    $709.99
  • 2

    PIN, SPRING

    • Part No. 30300414
    • 1 shown on diagram
    $1.89
  • 3

    GASKET, GEAR CASE

    • Part No. 165996530
    • 1 shown on diagram
    $48.99
  • 4

    SEAL, OIL

    • Part No. 198636090
    • 1 shown on diagram
    $69.99
  • 5

    SPRING

    • Part No. 198217420
    • 1 shown on diagram
    $9.49
  • 6

    GOVENOR LEVER ASSY

    • Part No. 125046260
    • 1 shown on diagram
    $109.99
  • 7

    LEVER ASSY

    • Part No. 125406071
    • 1 shown on diagram
    $114.99
  • 8

    WASHER

    • Part No. 26200010
    • 1 shown on diagram
    $3.49
  • 9

    RING, SNAP

    • Part No. 36800008
    • 2 shown on diagram
    $3.49
  • 10

    PIN, SNAP

    • Part No. 31100004
    • 1 shown on diagram
    $3.99
  • 11

    SHAFT

    • Part No. 125116131
    • 1 shown on diagram
    $29.99
  • 12

    O RING

    • Part No. 52109108
    • 2 shown on diagram
    $15.99
  • 13

    RING, SNAP

    • Part No. 36800005
    • 1 shown on diagram
    $3.49
  • 14

    SPRING, MAIN

    • Part No. 198217140
    • 1 shown on diagram
    $12.99
  • 15

    ARM

    • Part No. 125156170
    • 1 shown on diagram
    $44.99
  • 16

    O RING

    • Part No. 52109110
    • 1 shown on diagram
    $4.49
  • 17

    LEVER, GOVENOR

    • Part No. 125416090
    • 1 shown on diagram
    $45.99
  • 18

    BOLT

    • Part No. 10110630
    • 1 shown on diagram
    $2.49
  • 19

    SPRING

    • Part No. 398210070
    • 1 shown on diagram
    $7.49
  • 20

    NUT

    • Part No. 23100008
    • 4 shown on diagram
    $1.39
  • 21

    NUT

    • Part No. 23100006
    • 3 shown on diagram
    $3.49
  • 22

    COVER

    • Part No. 165206700
    • 2 shown on diagram
    $39.99
  • 23

    O RING

    • Part No. 52300600
    • 1 shown on diagram
    $17.99
  • 24

    BOLT

    • Part No. 10310865
    • 4 shown on diagram
    $2.99
  • 25

    STAY

    • Part No. 125976100
    • 1 shown on diagram
    $39.99
  • 26

    BOLT

    • Part No. 11310614
    • 2 shown on diagram
    $11.99
  • 27

    O RING

    • Part No. 52100280
    • 1 shown on diagram
    $4.99
  • 28

    PLUG, OIL

    • Part No. 398430630
    • 1 shown on diagram
    $46.99
  • 29

    BOLT

    • Part No. 11310660
    • 3 shown on diagram
    $11.99
  • 30

    BOLT

    • Part No. 11310680
    • 2 shown on diagram
    $11.99
  • 31

    BOLT

    • Part No. 11310640
    • 5 shown on diagram
    $1.79
  • 32

    BOLT

    • Part No. 10109695
    • 1 shown on diagram
    $1.59
  • 33

    GASKET, COVER

    • Part No. 165996610
    • 1 shown on diagram
    $15.99
