CAMSFAFT,OIL PUMP GROUP - S773-E070

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

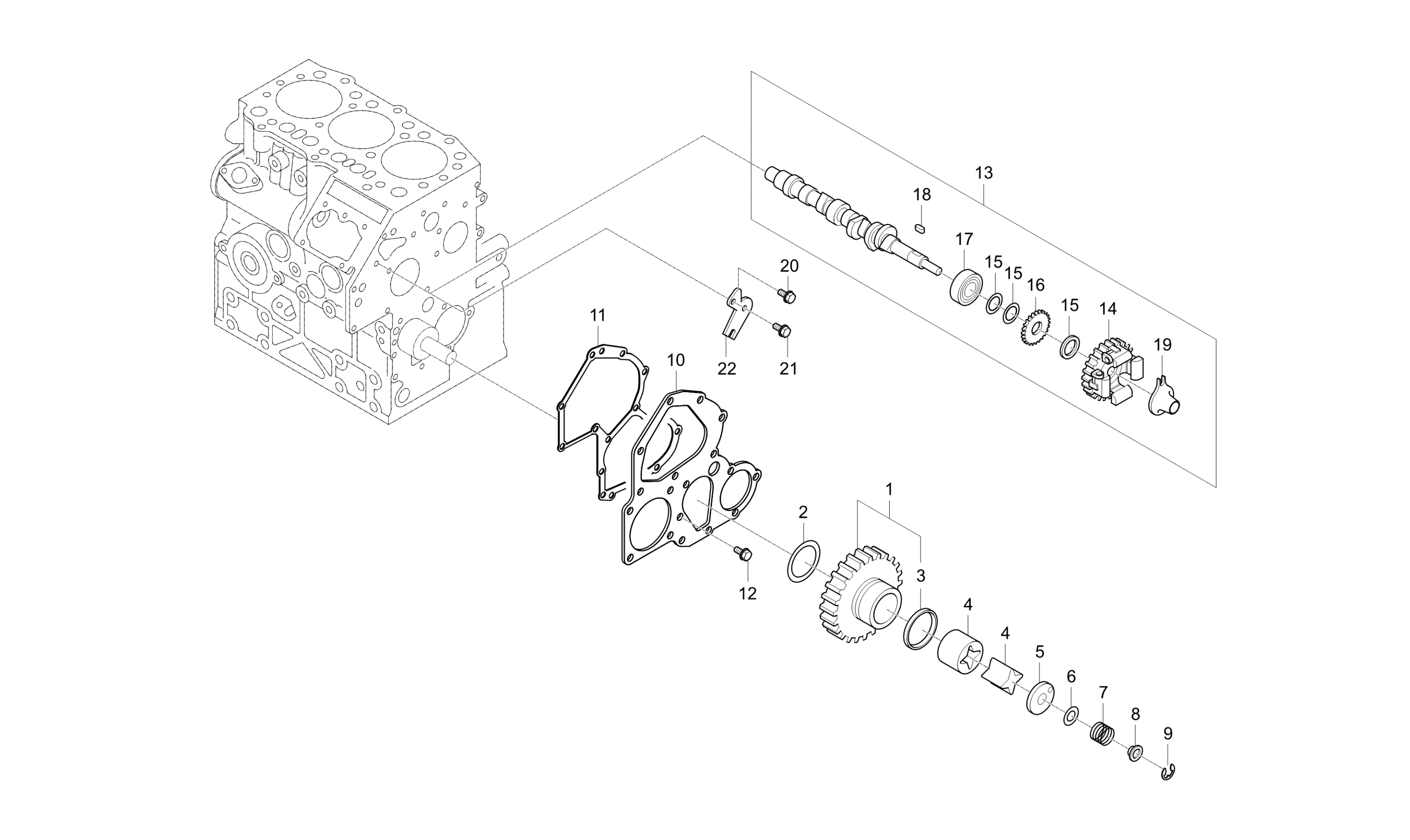

Diagram for CAMSFAFT,OIL PUMP GROUP - S773-E070
  • 1

    IDLE GEAR ASSY

    • Part No. 165026100
    • 1 shown on diagram
    $299.99
  • 2

    WASHER, THRUST .

    • Part No. 199266180
    • 1 shown on diagram
    $4.99
  • 3

    WASHER, THRUST .

    • Part No. 198216821
    • 1 shown on diagram
    $7.49
  • 4

    ROTOR

    • Part No. 140166130
    • 1 shown on diagram
    $62.99
  • 5

    COVER, OIL PUMP

    • Part No. 140116140
    • 1 shown on diagram
    $49.99
  • 6

    SHIM SET

    • Part No. 199286340
    • 1 shown on diagram
    $16.99
  • 7

    SPRING

    • Part No. 198216720
    • 1 shown on diagram
    $5.99
  • 8

    COLLAR

    • Part No. 199236540
    • 1 shown on diagram
    $7.49
  • 9

    RING, SNAP

    • Part No. 36800010
    • 1 shown on diagram
    $1.79
  • 10

    PLATE, FRONT

    • Part No. 165166181
    • 1 shown on diagram
    $209.99
  • 11

    GASKET

    • Part No. 165996520
    • 1 shown on diagram
    $44.99
  • 12

    BOLT

    • Part No. 11310612
    • 3 shown on diagram
    $0.86
  • 13

    CAM SHAFT ASSY

    • Part No. 120026620
    • 1 shown on diagram
    $1209.99
  • 14

    CAM GEAR

    • Part No. 120016040
    • 1 shown on diagram
    $454.99
  • 15

    SPACER

    • Part No. 199216230
    • 3 shown on diagram
    $3.49
  • 16

    GEAR

    • Part No. 120736081
    • 1 shown on diagram
    $45.99
  • 17

    BEARING, BALL

    • Part No. 40109059
    • 1 shown on diagram
    $41.99
  • 18

    KEY

    • Part No. 34100508
    • 1 shown on diagram
    $5.49
  • 19

    SLIDER

    • Part No. 125256120
    • 1 shown on diagram
    $49.99
  • 20

    BOLT

    • Part No. 11310612
    • 1 shown on diagram
    $0.86
  • 21

    BOLT

    • Part No. 10700610
    • 1 shown on diagram
    $1.79
  • 22

    PLATE

    • Part No. 199566651
    • 1 shown on diagram
    $11.99
