INJECTION PUMP&NOZZLE GROUP - S773-E080

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

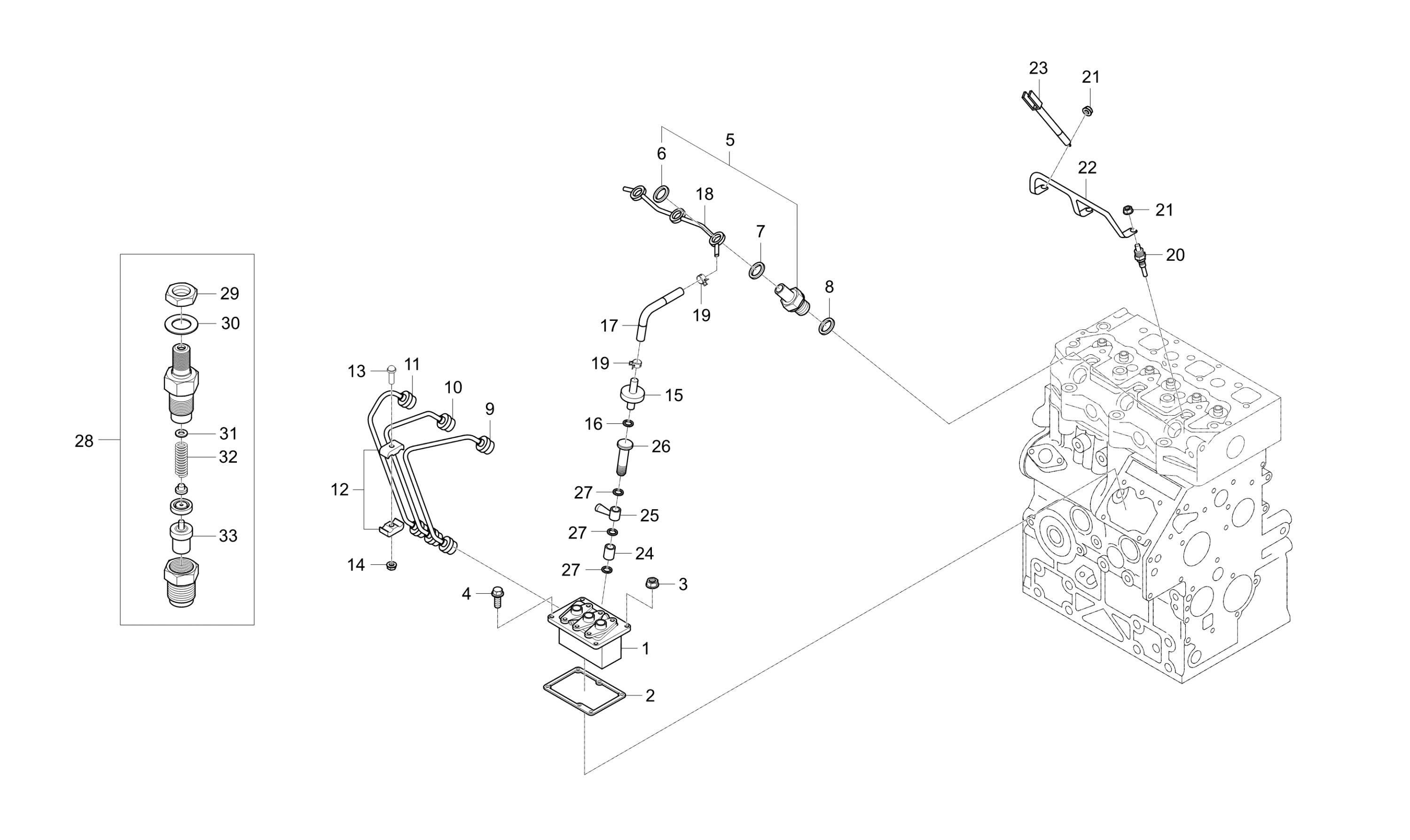

Diagram for INJECTION PUMP&NOZZLE GROUP - S773-E080
  • 1

    INJECTION PUMP ASSY

    • Part No. 131011111
    • 1 shown on diagram
    $1639.99
  • 2

    ADJUSTING SHIM KIT

    • Part No. 131426300
    • 1 shown on diagram
    $169.99
  • 3

    NUT

    • Part No. 131136460
    • 2 shown on diagram
    $13.99
  • 4

    BOLT

    • Part No. 10700620
    • 2 shown on diagram
    $17.99
  • 5

    INJECTOR ASSY

    • Part No. 131406510
    • 3 shown on diagram
    $219.99
  • 6

    NUT

    • Part No. 131446006
    • 3 shown on diagram
    $26.99
  • 7

    GASKET

    • Part No. 131426230
    • 3 shown on diagram
    $31.99
  • 8

    GASKET

    • Part No. 131426200
    • 3 shown on diagram
    $5.49
  • 9

    INJECTION PIPE1

    • Part No. 131507740
    • 1 shown on diagram
    $114.99
  • 10

    INJECTION PIPE2

    • Part No. 131507750
    • 1 shown on diagram
    $114.99
  • 11

    INJECTION PIPE3

    • Part No. 131507760
    • 1 shown on diagram
    $129.99
  • 12

    CLAMP

    • Part No. 199106021
    • 4 shown on diagram
    $14.99
  • 13

    BOLT

    • Part No. 10110625
    • 2 shown on diagram
    $15.99
  • 14

    NUT

    • Part No. 23100006
    • 2 shown on diagram
    $3.49
  • 15

    CONNECTOR

    • Part No. 131246280
    • 1 shown on diagram
    $23.99
  • 16

    WASHER

    • Part No. 25100006
    • 1 shown on diagram
    $11.99
  • 17

    HOSE

    • Part No. 68204071
    • 1 shown on diagram
    $8.49
  • 18

    RETURN PIPE

    • Part No. 131606920
    • 1 shown on diagram
    $234.99
  • 19

    CLAMP

    • Part No. 67200078
    • 2 shown on diagram
    $16.99
  • 20

    PLUG, GLOW NGK 2649 M8 P1.0

    • Part No. 185366220
    • 3 shown on diagram
    $109.99
  • 21

    NUT

    • Part No. 23100004
    • 4 shown on diagram
    $16.99
  • 22

    CONNECTOR

    • Part No. 185376372
    • 1 shown on diagram
    $23.99
  • 23

    WIRE HARNESS

    • Part No. 185606170
    • 1 shown on diagram
    $9.99
  • 24

    COLLAR

    • Part No. 131986270
    • 1 shown on diagram
    $179.99
  • 25

    EYE

    • Part No. 131246310
    • 1 shown on diagram
    $49.99
  • 26

    BOLT, JOINT

    • Part No. 131236290
    • 1 shown on diagram
    $234.99
  • 27

    GASKET

    • Part No. 131426070
    • 3 shown on diagram
    $8.99
  • 28

    INJECTOR ASSY

    • Part No. 131406510
    • 1 shown on diagram
    $219.99
  • 29

    NUT

    • Part No. 131446006
    • 1 shown on diagram
    $26.99
  • 30

    GASKET

    • Part No. 131426230
    • 1 shown on diagram
    $31.99
  • 31

    SHIM KIT

    • Part No. 131437360
    • 1 shown on diagram
    $324.99
  • 32

    SPRING

    • Part No. 131446989
    • 1 shown on diagram
    $84.99
  • 33

    NOZZLE

    • Part No. 131416270
    • 1 shown on diagram
    $354.99
