OIL PAN & STARTING MOTOR GROUP - S773-E090

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

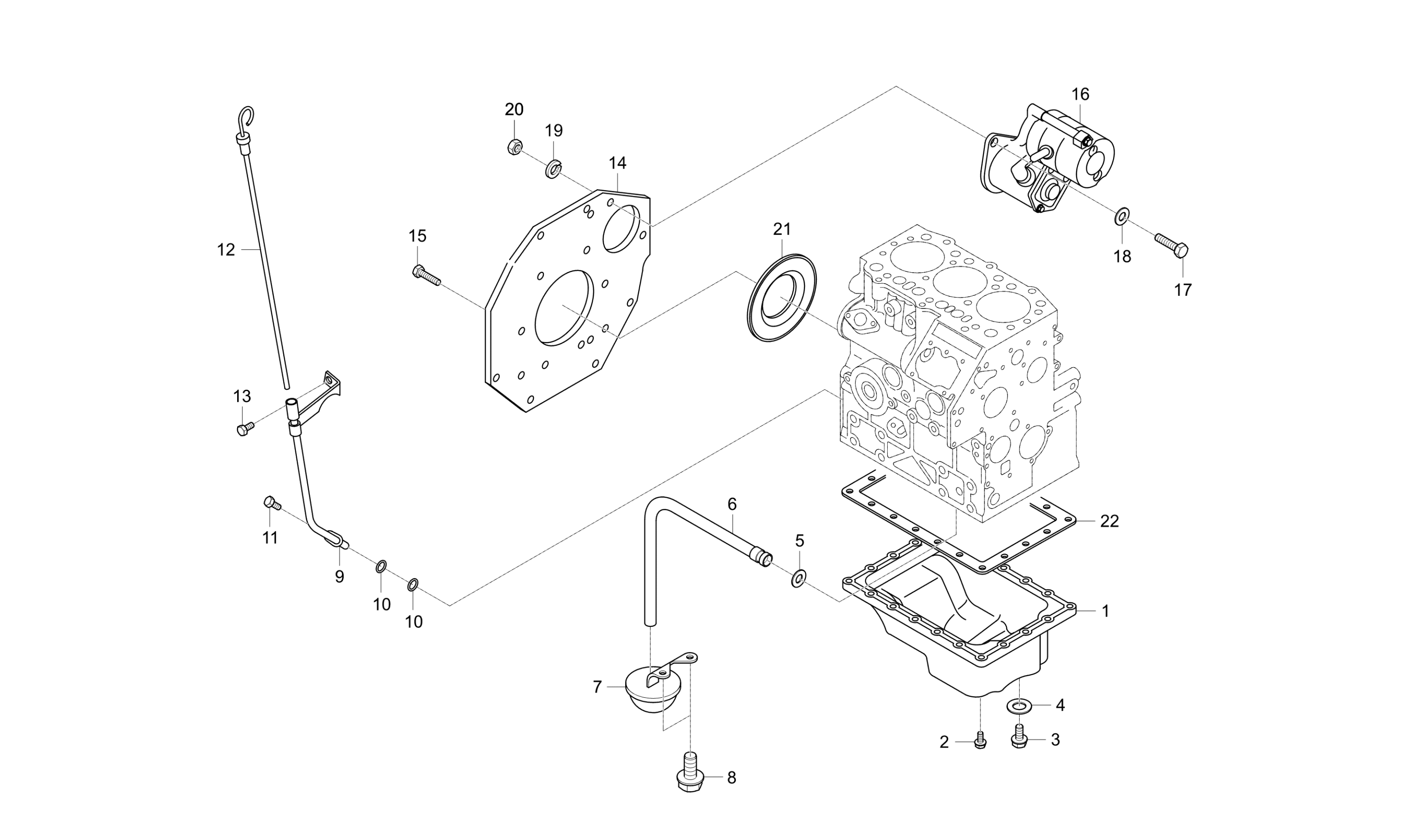

Diagram for OIL PAN & STARTING MOTOR GROUP - S773-E090
  • 1

    PAN, OIL

    • Part No. 110708340
    • 1 shown on diagram
    $319.99
  • 2

    BOLT

    • Part No. 10109235
    • 20 shown on diagram
    $3.49
  • 3

    BOLT

    • Part No. 10411212
    • 1 shown on diagram
    $13.99
  • 4

    WASHER, SEAL

    • Part No. 25100012
    • 1 shown on diagram
    $6.99
  • 5

    O RING

    • Part No. 52109076
    • 1 shown on diagram
    $6.49
  • 6

    PIPE, OIL

    • Part No. 140986480
    • 1 shown on diagram
    $55.99
  • 7

    SUCTION FILTER

    • Part No. 140406270
    • 1 shown on diagram
    $48.99
  • 8

    BOLT

    • Part No. 11310612
    • 2 shown on diagram
    $0.86
  • 9

    GUIDE ASSY

    • Part No. 110756740
    • 1 shown on diagram
    $84.99
  • 10

    O RING

    • Part No. 52109113
    • 2 shown on diagram
    $17.99
  • 11

    BOLT

    • Part No. 11310612
    • 1 shown on diagram
    $0.86
  • 12

    GAUGE ASSY

    • Part No. 198416371
    • 1 shown on diagram
    $83.99
  • 13

    BOLT

    • Part No. 11510812
    • 1 shown on diagram
    $11.99
  • 14

    PLATE, REAR

    • Part No. 110361160
    • 1 shown on diagram
    $299.99
  • 15

    BOLT

    • Part No. 11511020
    • 8 shown on diagram
    $3.49
  • 16

    Starting Motor Assy (1.2kW)

    • Part No. 185086670
    • 1 shown on diagram
    $1299.99
  • 17

    BOLT

    • Part No. 10311040
    • 2 shown on diagram
    $5.99
  • 18

    WASHER

    • Part No. 26100010
    • 2 shown on diagram
    $0.7
  • 19

    WASHER, SPRING

    • Part No. 27100010
    • 2 shown on diagram
    $0.7
  • 20

    NUT ] kioti

    • Part No. 20900010
    • 2 shown on diagram
    $0.7
  • 21

    SEAL, OIL

    • Part No. 50209107
    • 1 shown on diagram
    $114.99
  • 22

    GASKET

    • Part No. 110996800
    • 1 shown on diagram
    $83.99
