ENGINE GROUP - T2555-G130

Kioti TRACTOR | CS Series | CS2510S (SY6500001 to XY6500036)

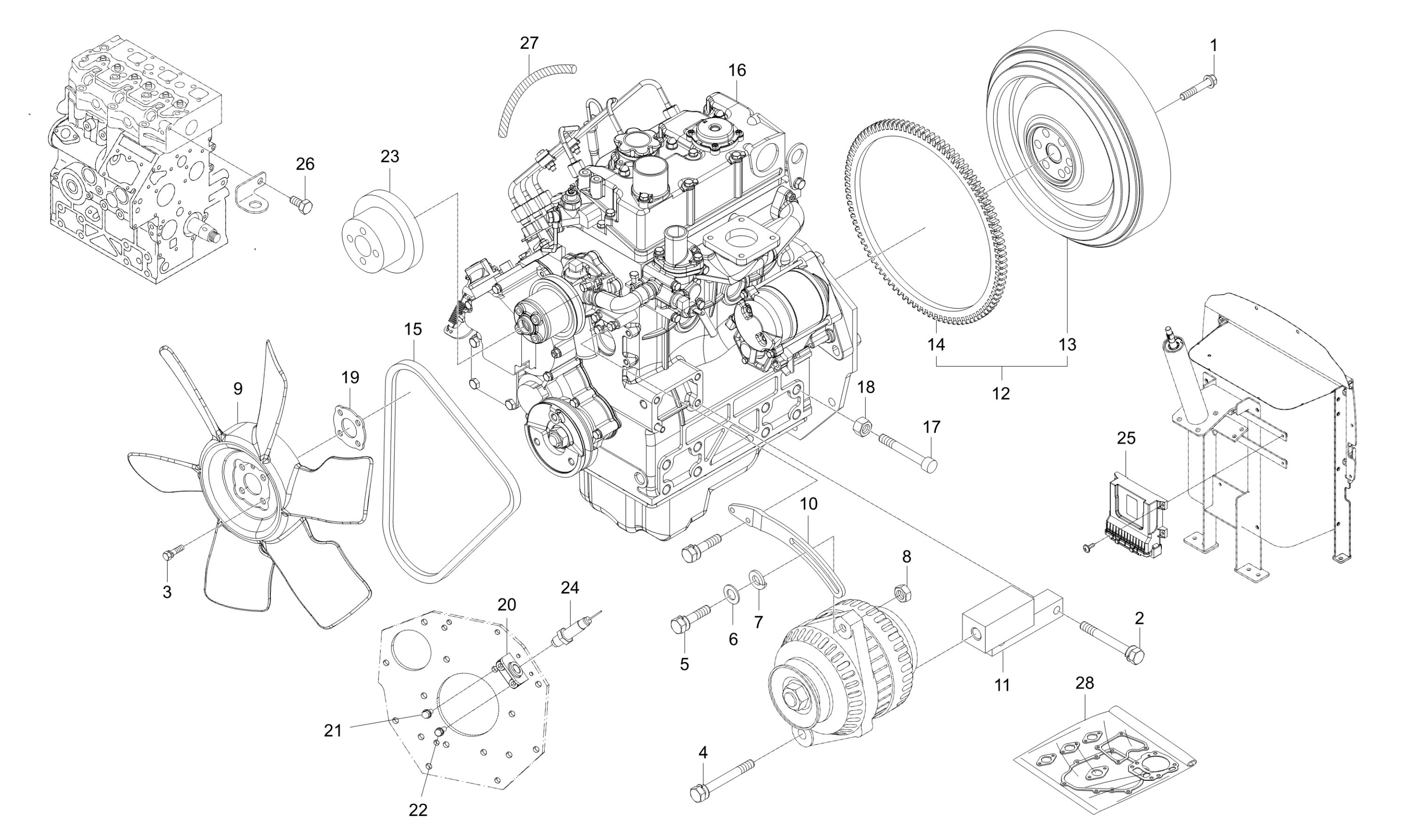

Diagram for ENGINE GROUP - T2555-G130
  • 1 BOLT, FLYWHEEL

    BOLT, FLYWHEEL

    • Part No. E5743-25161
    • 6 shown on diagram
    $14.99
  • 2 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 3

    BOLT, WASHER

    • Part No. 01023-50616
    • M6XP1.0
    • 6 shown on diagram
    $1.19
  • 4

    BOLT

    • Part No. 01173-51005
    • 1 shown on diagram
    $7.49
  • 5

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 6 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
  • 7 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 8 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 9 COOLING FAN

    COOLING FAN

    • Part No. E7400-74111
    • * multiple options for #9
    • 1 shown on diagram
    $58.99
  • 9 COOLING FAN v

    COOLING FAN v

    • Part No. E7400-74112
    • Compatibility Interchngable
    • * multiple options for #9
    • 1 shown on diagram
    $59.99
  • 10

    SUPPORT, ALTERNATOR

    • Part No. E7400-64422
    • 1 shown on diagram
    $12.99
  • 11

    SUPPORT 3, ALTERNATOR

    • Part No. E7400-64312
    • 1 shown on diagram
    $47.99
  • 12

    ASS’Y FLYWHEEL v

    • Part No. E7400-25013
    • 1 shown on diagram
    $559.99
  • 13

    FLYWHEEL v

    • Part No. E7400-25113
    • 1 shown on diagram
    $579.99
  • 14

    GEAR RING dnr v

    • Part No. E7400-63823
    • 1 shown on diagram
    $92.99
  • 15 BELT,FAN HM-32

    BELT,FAN HM-32

    • Part No. E7400-72532
    • 1 shown on diagram
    $17.99
  • 16

    TRK T4 ENGINE CS2210 v

    • Part No. S773L-F
    • 1 shown on diagram
    $4264.99
  • 17

    BOLT, CUSHION

    • Part No. T2555-51221
    • 1 shown on diagram
    $9.99
  • 18 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 19

    COLLAR,FAN

    • Part No. E7400-74151
    • * multiple options for #19
    • 1 shown on diagram
    $5.99
  • 19

    COLLOR, FAN

    • Part No. E7400-74152
    • Compatibility Interchngable
    • * multiple options for #19
    • 1 shown on diagram
    $6.49
  • 20

    PLATE

    • Part No. E7400-41272
    • A3
    • 1 shown on diagram
    $79.99
  • 21 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 22 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 23

    PULLEY, FAN

    • Part No. 145336490
    • 1 shown on diagram
    $179.99
  • 24

    SENSOR SPEED

    • Part No. U85746200
    • 1 shown on diagram
    $354.99
  • 25

    333 CONTROLLER, ENGINE v

    • Part No. 185186210
    • 1 shown on diagram
    $2174.99
  • 26 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 27

    TUBE

    • Part No. E7400-59211
    • 1 shown on diagram
    $1.59
  • 28

    GASKET KIT obs v

    • Part No. 195907570
    • 1 shown on diagram
    $914.99
