STEERING CYLINDER GROUP - EX45H-T595AS

Kioti TRACTOR | DK Series | DK50HSE

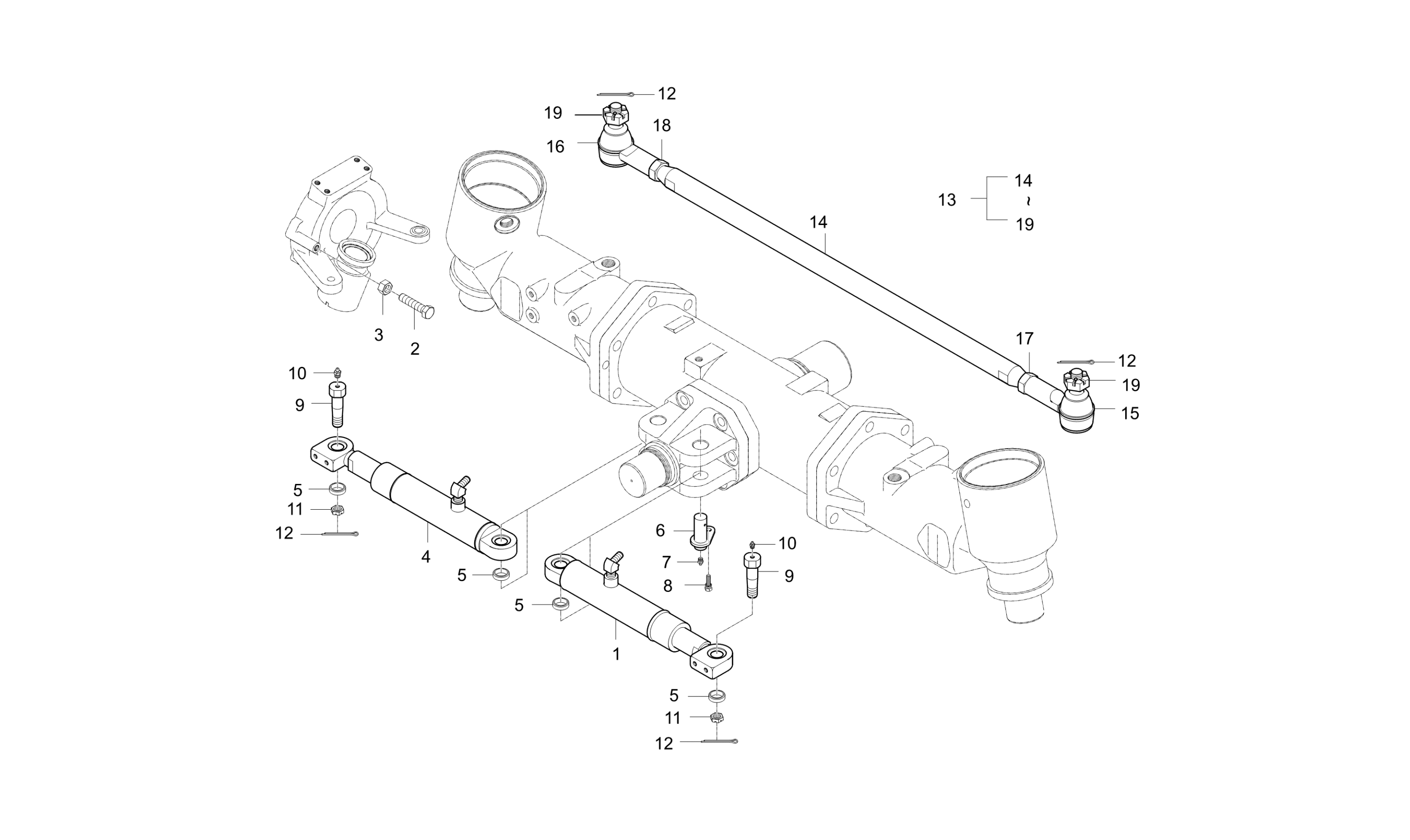

Diagram for STEERING CYLINDER GROUP - EX45H-T595AS
  • 1

    CYL. ASS’Y-STEERING

    • Part No. T4125-31201
    • 1 shown on diagram
    $1,519.99
  • 2

    BOLT,SET

    • Part No. T4520-43941
    • 2 shown on diagram
    $4.49
  • 3 NUT

    NUT

    • Part No. 02076-50140
    • M14XP1.5
    • 2 shown on diagram
    $1.79
  • 4

    CYL. ASSY-STEERING

    • Part No. T4125-31301
    • 1 shown on diagram
    $614.99
  • 5

    SPACER

    • Part No. T4625-31151
    • 4 shown on diagram
    $8.99
  • 6

    PIN

    • Part No. T4625-31163
    • 2 shown on diagram
    $46.99
  • 7 Grease Zerk 45� 1/8″ BSPT

    Grease Zerk 45� 1/8″ BSPT

    • Part No. 06613-20010
    • 2 shown on diagram
    $4.49
  • 8

    BOLT, Replaced by 01123-50814

    • Part No. 01120-50814
    • 2 shown on diagram
    $0.00
  • 9

    PIN,STAY v

    • Part No. T2620-31182
    • *multiple options for # 9
    • 2 shown on diagram
    $22.99
  • 9

    PIN,STAY v

    • Part No. T2620-31183
    • Compatibility New Replaces Old
    • *multiple options for # 9
    • 2 shown on diagram
    $38.99
  • 10 NIPPLE, GREASE M6 P1.0

    NIPPLE, GREASE M6 P1.0

    • Part No. 06611-15675
    • A-M6F
    • 2 shown on diagram
    $1.69
  • 11 Nut, Castle M18 P1.50

    Nut, Castle M18 P1.50

    • Part No. T2610-31311
    • 2 shown on diagram
    $4.49
  • 12

    PIN, SPLIT

    • Part No. 05511-50335
    • DIA3*35
    • 4 shown on diagram
    $0.68

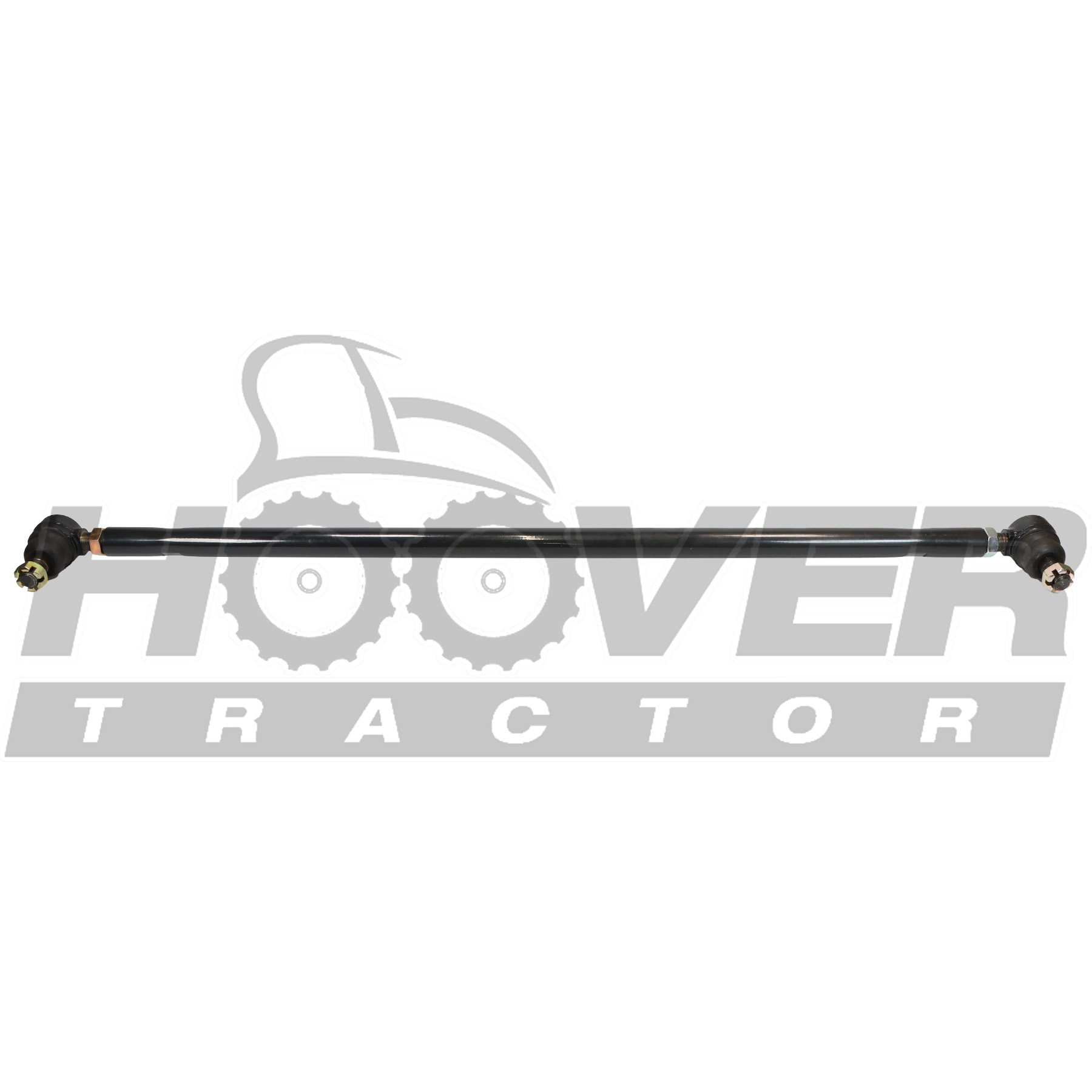

  • 13 TIE ROD ASSY v, Replaced by T2630-31131BB

    TIE ROD ASSY v, Replaced by T2630-31131BB

    • Part No. T2630-31131
    • *multiple options for # 13
    • 1 shown on diagram
    $429.99
  • 13

    TIE ROD ASSEMBLY v

    • Part No. T2630-31131BB
    • Compatibility No Interchange
    • *multiple options for # 13
    • 1 shown on diagram
    $429.99

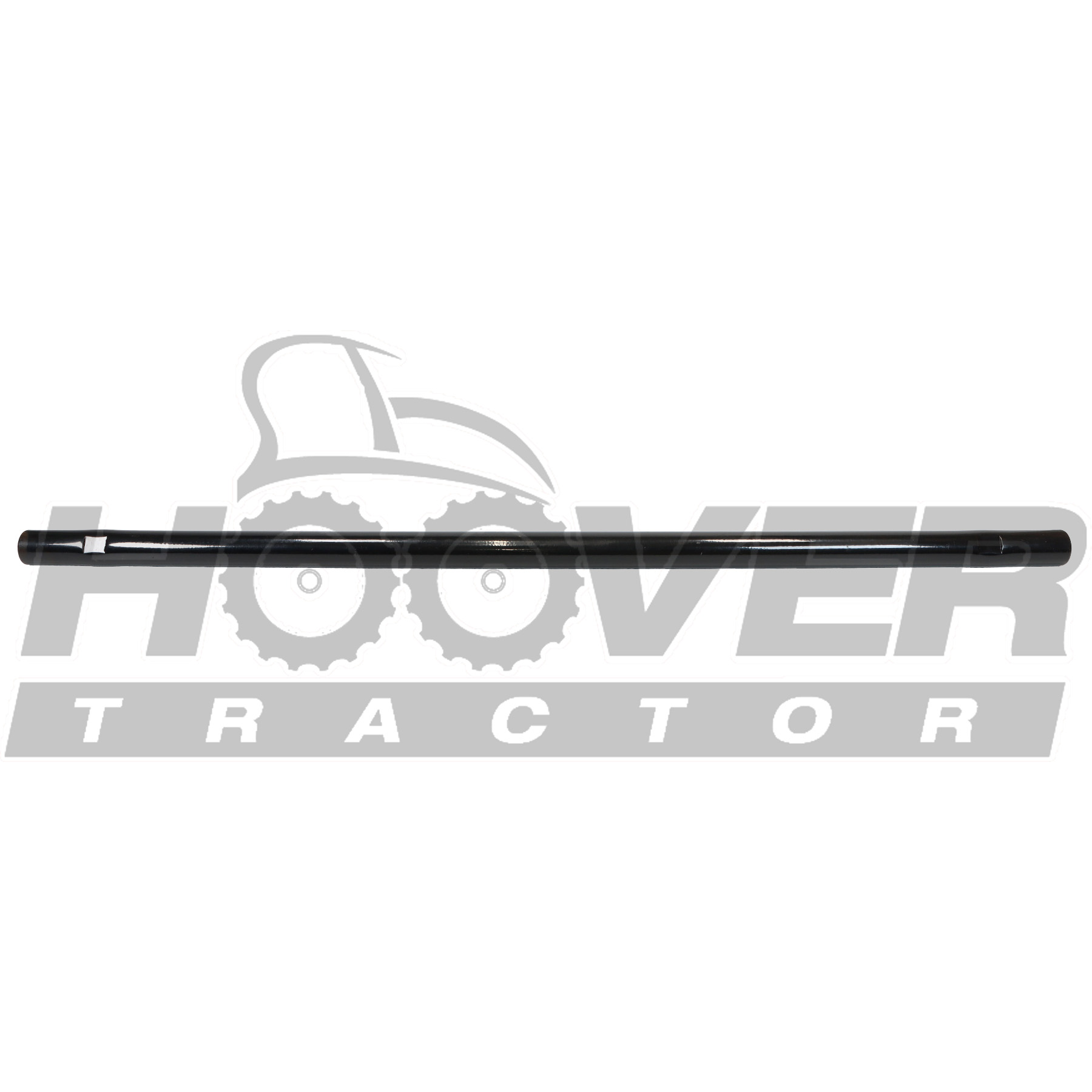

  • 14 TIE ROD

    TIE ROD

    • Part No. T2630-31141
    • OD30*T7
    • 1 shown on diagram
    $184.99
  • 15

    ASSY,TIE ROD END

    • Part No. T4625-31191
    • 1 shown on diagram
    $149.99
  • 16

    TIE ROD END ASS Y

    • Part No. T4620-31051
    • 1 shown on diagram
    $149.99
  • 17

    NUT

    • Part No. T4520-63771
    • M18*1.5
    • 1 shown on diagram
    $9.49
  • 18

    NUT(LH)

    • Part No. T4625-63701
    • HEX27
    • 1 shown on diagram
    $6.99
  • 19

    NUT v

    • Part No. T4520-63701
    • M20*1.5
    • 1 shown on diagram
    $7.49
