REMOTE HYDRAULIC VALVE 1 GROUP - EX45H-T705-1A

Kioti TRACTOR | DK Series | DK50HSE

Diagram for REMOTE HYDRAULIC VALVE 1 GROUP - EX45H-T705-1A
  • 1

    DOUBLE ACTING VALVE D, Replaced by T5710-39031

    • Part No. T2610-39031
    • 1 shown on diagram
    $0.00
  • 2

    STUD(M10x91MM)

    • Part No. T2610-37862
    • 2 shown on diagram
    $29.99
  • 3 O RING

    O RING

    • Part No. 04810-00100
    • Applied Dates 2006-06-25 to 2007-10-04
    • 2 shown on diagram
    $0.68
  • 4 O RING

    O RING

    • Part No. 04810-00160
    • Applied Dates 2006-06-25 to 2007-10-04
    • P16
    • 2 shown on diagram
    $0.68
  • 5

    NUT, REMOVE CHECK V

    • Part No. 41182-5151-1
    • DIA10
    • 2 shown on diagram
    $1.49
  • 6

    LEVER

    • Part No. T4125-68403
    • Applied Dates 2009-05-26 and up
    • 1 shown on diagram
    $21.99
  • 7

    SCREW, SET

    • Part No. T2610-39572
    • Applied Dates 2009-05-09 and up
    • M8*P1.25
    • 1 shown on diagram
    $2.99
  • 8

    TUBE HYD v, Replaced by T4125-90012BB

    • Part No. T4125-90012
    • Applied Dates Up to 2006-12-31
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 8

    HYD. TUBE

    • Part No. T4125-90013
    • Compatibility Call for compatibility
    • Applied Dates Up to 2007-11-12
    • *multiple options for # 8
    • 1 shown on diagram
    $79.99
  • 8
    • Part No. T4125-90014
    • Compatibility Call for compatibility
    • Applied Dates 2007-11-26 to 2008-01-08
    • *multiple options for # 8
    • 1 shown on diagram
  • 8

    HYD. TUBE, Replaced by T4125-90016

    • Part No. T4125-90015
    • Compatibility Interchngable
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00

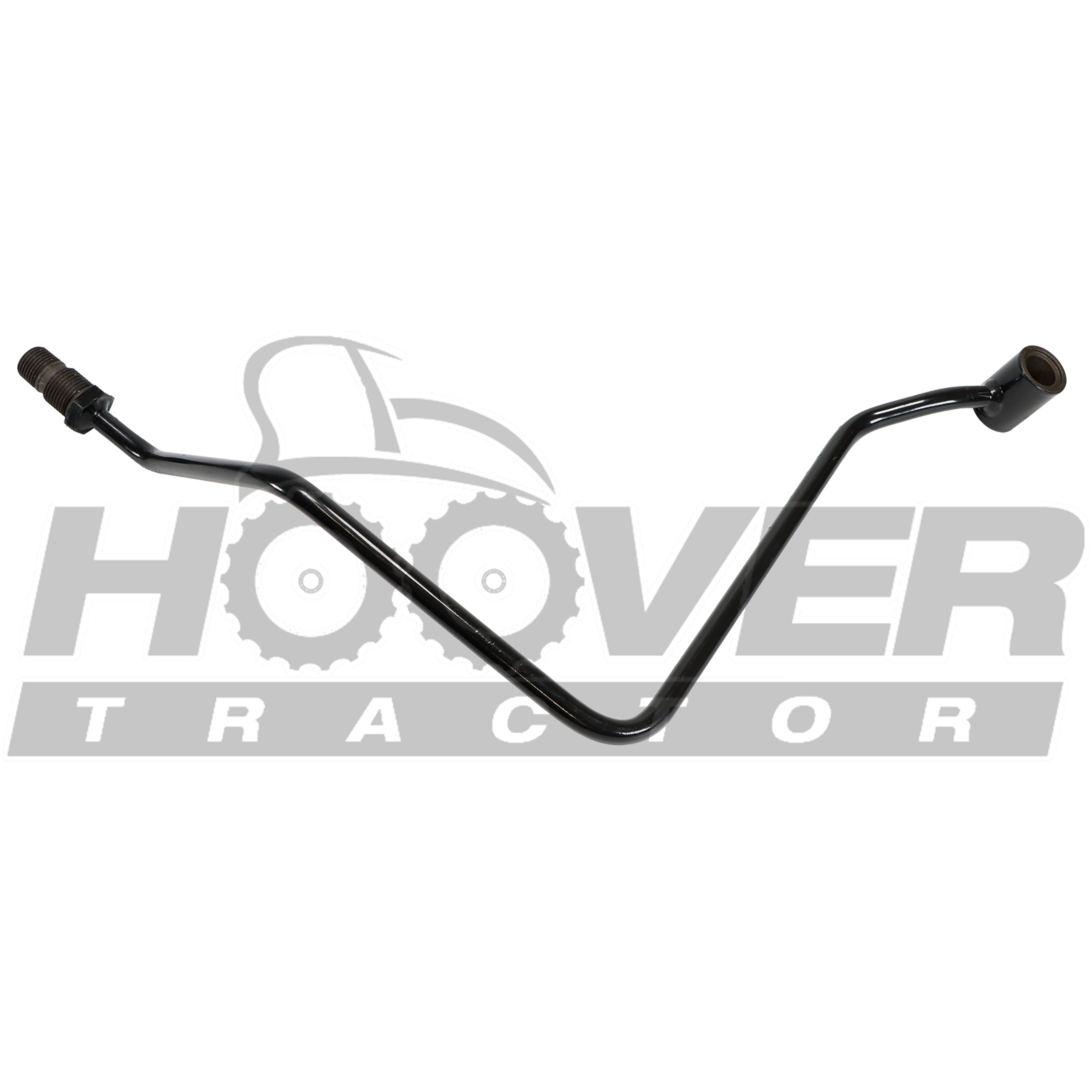

  • 8 TUBE A, HYDRAULIC

    TUBE A, HYDRAULIC

    • Part No. T4125-90016
    • Compatibility Call for compatibility
    • *multiple options for # 8
    • 1 shown on diagram
    $129.99
  • 9

    TUBE HYD v

    • Part No. T4125-90022
    • Applied Dates Up to 2006-12-31
    • *multiple options for # 9
    • 1 shown on diagram
    $99.99
  • 9

    HYD. TUBE

    • Part No. T4125-90023
    • Compatibility Call for compatibility
    • Applied Dates Up to 2007-11-12
    • *multiple options for # 9
    • 1 shown on diagram
    $99.99
  • 9

    HYD. TUBE dnr v

    • Part No. T4125-90024
    • Compatibility Call for compatibility
    • Applied Dates 2007-11-26 to 2008-03-25
    • *multiple options for # 9
    • 1 shown on diagram
    $61.99
  • 9

    HYD. TUBE, Replaced by T4125-90026

    • Part No. T4125-90025
    • Compatibility Interchngable
    • *multiple options for # 9
    • 1 shown on diagram
    $0.00
  • 9

    TUBE B, HYDRAULIC

    • Part No. T4125-90026
    • Compatibility Call for compatibility
    • *multiple options for # 9
    • 1 shown on diagram
    $144.99
  • 10

    BOLT 2, JOINT

    • Part No. T4520-37372
    • M18*1.5
    • 1 shown on diagram
    $29.99
  • 11

    BOLT,JOINT

    • Part No. T2360-37081
    • 1 shown on diagram
    $26.99
  • 12

    COUPLER

    • Part No. T4720-90091
    • *multiple options for # 12
    • 2 shown on diagram
    $76.99
  • 12

    COUPLER, QUICK-PT1/2

    • Part No. TB14-0015A
    • Compatibility Interchngable
    • *multiple options for # 12
    • 2 shown on diagram
    $53.99
  • 13 BOLT

    BOLT

    • Part No. 01133-51018
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 14

    CONNECTOR obs v.

    • Part No. T4125-37581
    • Applied Dates 2006-08-24 to 2007-07-23
    • 2 shown on diagram
    $34.99
  • 15

    SUPPORT, SOCKET v

    • Part No. T4125-90072
    • Applied Dates Up to 2006-12-31
    • *multiple options for # 15
    • 1 shown on diagram
    $36.99
  • 15

    SUPPORT, SOCKET v

    • Part No. T4125-90073
    • Compatibility Call for compatibility
    • Applied Dates 2007-05-11 and up
    • *multiple options for # 15
    • 1 shown on diagram
    $57.99
  • 15

    SUPPORT, SOKET v

    • Part No. T4125-90074
    • Compatibility Call for compatibility
    • Applied Dates Up to 2008-03-25
    • *multiple options for # 15
    • 1 shown on diagram
    $23.99

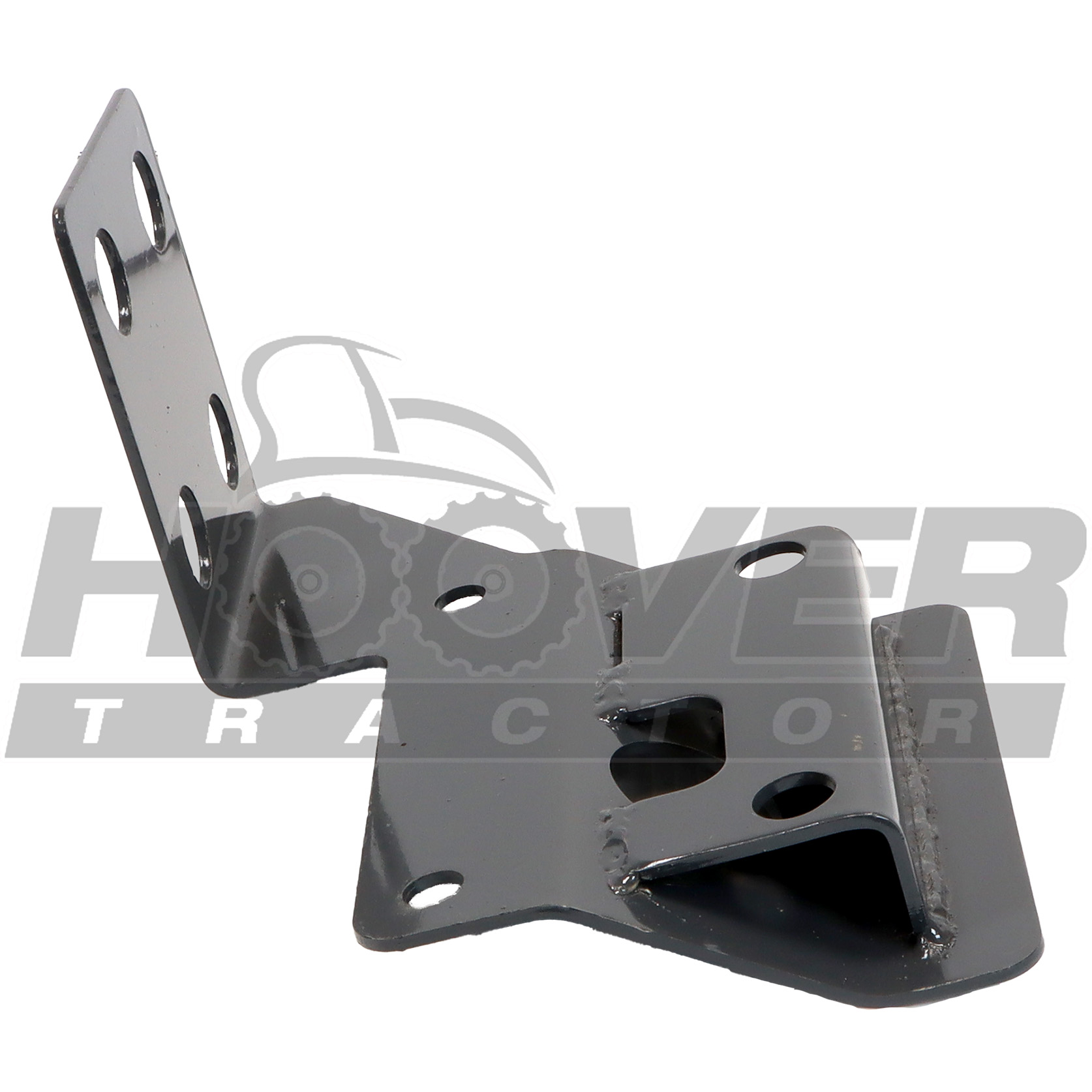

  • 15 SUPPORT, SOCKET dnr v

    SUPPORT, SOCKET dnr v

    • Part No. T4125-90075
    • Compatibility Interchngable
    • *multiple options for # 15
    • 1 shown on diagram
    $39.99
  • 15

    SUPPORT, SOCKET v

    • Part No. T4125-90076
    • Compatibility Call for compatibility
    • *multiple options for # 15
    • 1 shown on diagram
    $114.99
  • 16

    COVER v

    • Part No. T2610-37482
    • 1 shown on diagram
    $61.99

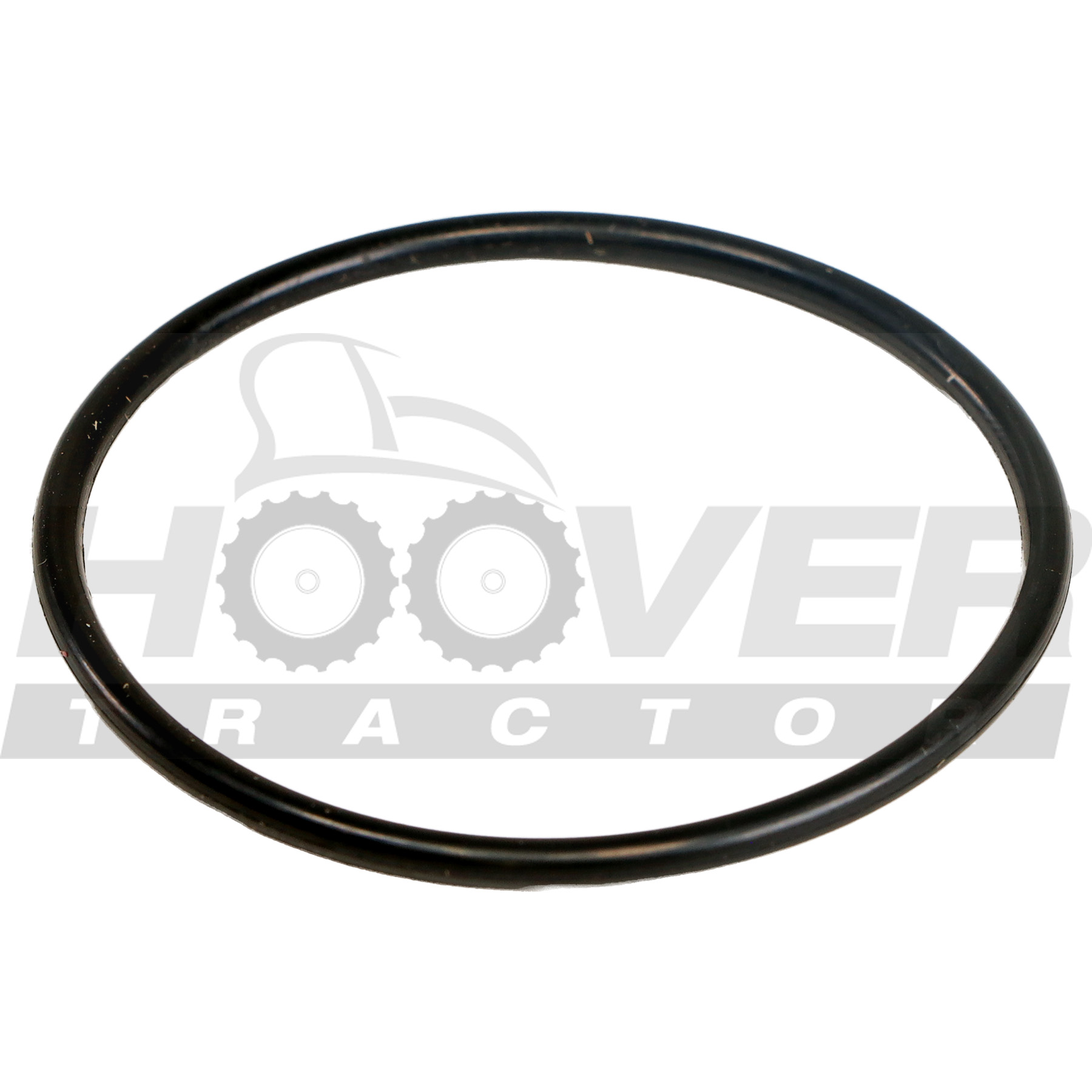

  • 17 O-RING

    O-RING

    • Part No. 04811-10380
    • DIA37.5
    • 1 shown on diagram
    $1.19
  • 18 O RING

    O RING

    • Part No. 04811-00100
    • DIA9.8
    • 2 shown on diagram
    $0.68
  • 19 O RING

    O RING

    • Part No. 04810-00200
    • Applied Dates 2010-02-21 and up
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 20

    DUST-CAP

    • Part No. T4720-90081
    • Applied Dates 2006-04-04 to 2007-10-04
    • 2 shown on diagram
    $5.49
  • 21 WASHER,SEAL

    WASHER,SEAL

    • Part No. 04717-02150
    • Applied Dates Up to 2007-11-12
    • PS1/2
    • *multiple options for # 21
    • 2 shown on diagram
    $2.49
  • 21

    CIR-CLIP

    • Part No. 04612-00220
    • Compatibility Call for compatibility
    • Applied Dates Up to 2007-11-12
    • *multiple options for # 21
    • 2 shown on diagram
    $0.59
  • 21

    Nut M24*P2.0

    • Part No. C7210-24861
    • Compatibility Call for compatibility
    • M24*P2.0
    • *multiple options for # 21
    • 2 shown on diagram
    $9.99
  • 22

    CLAMP,CORD

    • Part No. 37155-3447-1
    • Applied Dates 2010-09-17 and up
    • 1 shown on diagram
    $4.99
