POSITION DRAFT CONTROL LEVER GROUP - EX45H-T785A

Kioti TRACTOR | DK Series | DK50HSE

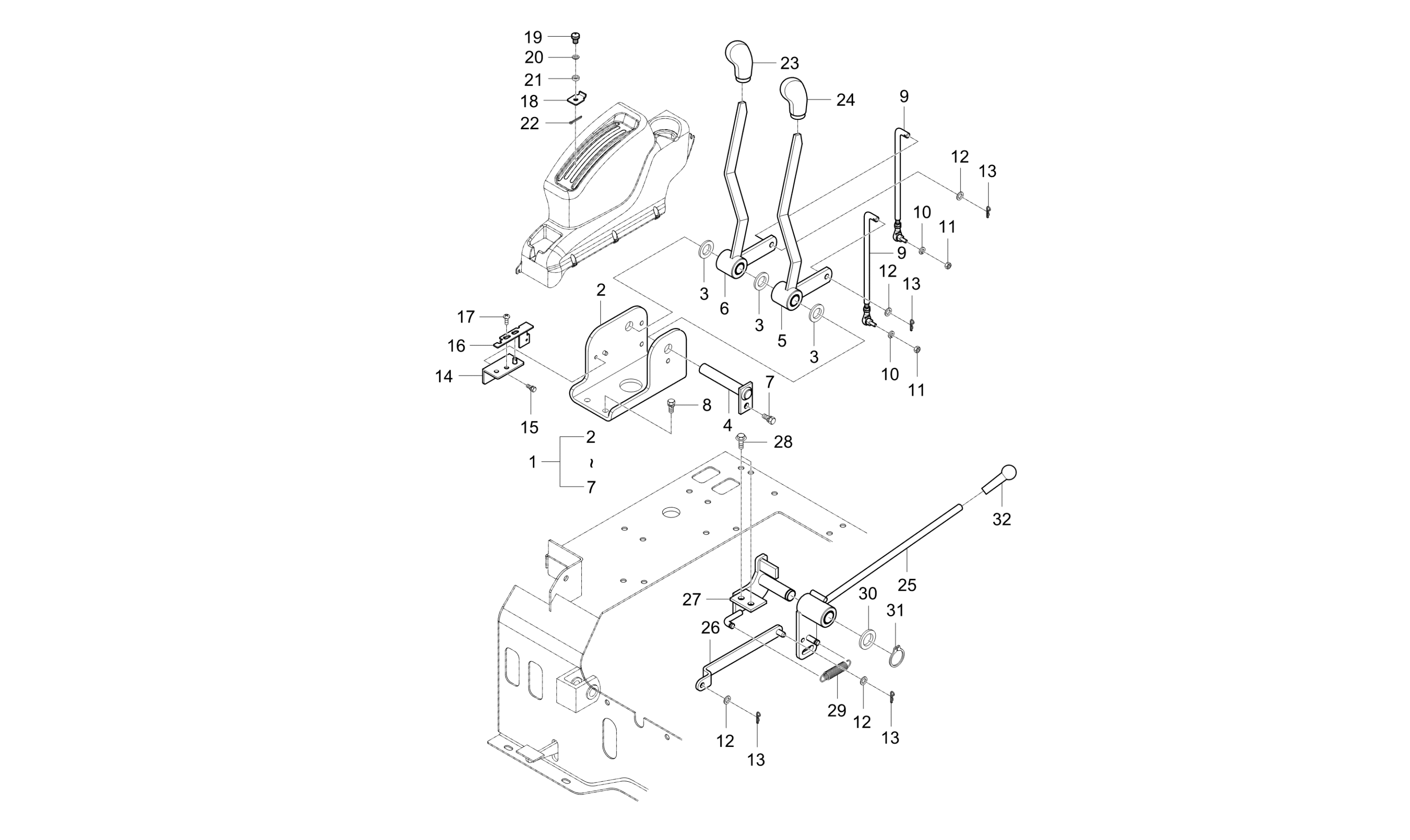

Diagram for POSITION DRAFT CONTROL LEVER GROUP - EX45H-T785A
  • 1

    LEVER-HYD ASSY v

    • Part No. T4125-65234
    • Applied Dates 2007-01-26 to 2008-11-18
    • Serial No. GS2800001 to GS2800002
    • *multiple options for # 1
    • 1 shown on diagram
    $124.99
  • 1

    LEVER ASSY, HYDRAULIC

    • Part No. T4125-65234BB
    • Compatibility No Interchange
    • Applied Dates 2007-02-12 to 2008-11-18
    • Serial No. HS2800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $124.99
  • 1

    HYDRAULIC LEVER ASSY

    • Part No. T4125-65235
    • Compatibility Interchngable
    • Applied Dates 2010-12-26 and up
    • Serial No. KS2800061 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $179.99
  • 1

    HYDRAULIC LEVER ASSY

    • Part No. T4125-65236
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $179.99
  • 1

    HYDRAULIC LEVER ASSY

    • Part No. T4125-65237
    • Compatibility Interchngable
    • *multiple options for # 1
    • 1 shown on diagram
    $139.99
  • 2

    BRACKET

    • Part No. T4125-65411
    • Serial No. Up to GS2800002
    • *multiple options for # 2
    • 1 shown on diagram
    $46.99
  • 2

    BRACKET, POSITION TRACTION

    • Part No. T4125-65411BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $46.99
  • 2

    BRACKET, POSITION TRACTION

    • Part No. T4125-65412
    • Compatibility Interchngable
    • *multiple options for # 2
    • 1 shown on diagram
    $124.99
  • 2

    BRACKET, POSITION TRACTION

    • Part No. T4125-65413
    • Compatibility Interchngable
    • *multiple options for # 2
    • 1 shown on diagram
    $99.99
  • 3 WASHER

    WASHER

    • Part No. T4810-66721
    • Applied Dates 2007-01-26 and up
    • 3 shown on diagram
    $1.39
  • 4

    SHAFT v

    • Part No. T4835-66532
    • 1 shown on diagram
    $13.99
  • 5

    LEVER, DRAFT CONTROL

    • Part No. T4125-65423
    • Applied Dates 2007-01-26 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $53.99
  • 5

    LEVER, DRAWER CONTROL

    • Part No. T4125-65424
    • Compatibility Interchngable
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 6

    LEVER ADJ v

    • Part No. T4125-65434
    • Applied Dates 2007-01-26 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $53.99
  • 6

    LEVER, POSITING CONTROL

    • Part No. T4125-65435
    • Compatibility Interchngable
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 8 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 9

    ROD

    • Part No. T4125-65482
    • Applied Dates 2006-02-03 and up
    • 2 shown on diagram
    $62.99
  • 10 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 2 shown on diagram
    $0.61
  • 11 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 12 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • Applied Dates 2006-02-03 and up
    • M8
    • 4 shown on diagram
    $0.67
  • 13

    PIN, SNAP

    • Part No. 05515-50800
    • Applied Dates 2006-02-03 and up
    • DIA8
    • 4 shown on diagram
    $1.29
  • 14

    BRACKET 1

    • Part No. T4835-65391
    • 1 shown on diagram
    $6.49
  • 15

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 1 shown on diagram
    $2.49
  • 16

    BRACKET 2

    • Part No. T4835-65411
    • T2.0
    • 1 shown on diagram
    $6.49
  • 17

    BOLT

    • Part No. 01202-50616
    • Applied Dates 2006-02-03 and up
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 18

    Lever Stopper (T2350-95472)

    • Part No. T2350-95472
    • 2 shown on diagram
    $3.49
  • 19

    BOLT, Replaced by 55571-32381

    • Part No. 55571-3238-1
    • 2 shown on diagram
    $0.00
  • 20 Flat Washer M6, Replaced by 04012-50060

    Flat Washer M6, Replaced by 04012-50060

    • Part No. 04015-50060
    • M6
    • 2 shown on diagram
    $0.00
  • 21

    SPACER

    • Part No. T4520-83301
    • DIA10.5*T2.0
    • 2 shown on diagram
    $4.99
  • 22 Split Pin (05511-50215)

    Split Pin (05511-50215)

    • Part No. 05511-50215
    • DIA1.8XL15
    • 2 shown on diagram
    $0.62
  • 23

    GRIP

    • Part No. T2610-24471
    • Applied Dates Up to 2011-07-04
    • Serial No. Up to LS2800028
    • *multiple options for # 23
    • 1 shown on diagram
    $11.99
  • 23

    GRIP

    • Part No. T2198-24461
    • Compatibility New Replaces Old
    • Applied Dates 2011-07-05 to 2011-08-31
    • Serial No. LS2800029 and up
    • *multiple options for # 23
    • 1 shown on diagram
    $9.99
  • 24 GRIP

    GRIP

    • Part No. T2610-24461
    • Applied Dates Up to 2011-06-30
    • Serial No. Up to LS2800028
    • *multiple options for # 24
    • 1 shown on diagram
    $12.99
  • 24

    Grip

    • Part No. T2185-24461
    • Compatibility New Replaces Old
    • Applied Dates 2011-09-01 and up
    • Serial No. LS2800029 and up
    • *multiple options for # 24
    • 1 shown on diagram
    $8.49
  • 25

    LEVER, POSITION CONTROL 2 v, Replaced by T4125-65512BB

    • Part No. T4125-65512
    • Applied Dates 2006-09-19 to 2009-01-04
    • Serial No. FS2800001 to GS2800002
    • *multiple options for # 25
    • 1 shown on diagram
    $0.00
  • 25

    LEVER 2, POSITION CONTROL

    • Part No. T4125-65512BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 25
    • 1 shown on diagram
    $71.99
  • 25

    LEVER 2, POSITION CONTROL

    • Part No. T4125-65513
    • Compatibility Interchngable
    • *multiple options for # 25
    • 1 shown on diagram
    $71.99
  • 26

    ARM, FEEDBACK

    • Part No. T4125-65521
    • Applied Dates 2006-02-03 and up
    • 1 shown on diagram
    $13.99
  • 27

    BRACKET v

    • Part No. T4125-65532
    • Applied Dates 2006-09-19 to 2008-10-22
    • Serial No. Up to GS2800002
    • *multiple options for # 27
    • 1 shown on diagram
    $31.99
  • 27

    BRACKET (POSITION)

    • Part No. T4125-65532BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 27
    • 1 shown on diagram
    $39.99
  • 27

    BRACKET, POSITION

    • Part No. T4125-65533
    • Compatibility New Replaces Old
    • *multiple options for # 27
    • 1 shown on diagram
    $61.99
  • 28 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Applied Dates 2006-02-03 and up
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 29 SPRING, DIFF.LOCK PEDAL

    SPRING, DIFF.LOCK PEDAL

    • Part No. T2305-26641
    • Applied Dates 2006-02-03 and up
    • DIA1.2
    • 1 shown on diagram
    $5.99
  • 30 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • Applied Dates 2006-06-13 to 2006-09-18
    • M18
    • 1 shown on diagram
    $1.59
  • 31 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • Applied Dates 2006-06-13 and up
    • DIA18
    • 1 shown on diagram
    $1.09
  • 32

    GRIP

    • Part No. T4818-71221
    • Applied Dates 2006-06-13 and up
    • 1 shown on diagram
    $8.49
