POWER STEERING UNIT GROUP - EX45H-T605A

Kioti TRACTOR | DK Series | DK50HSE

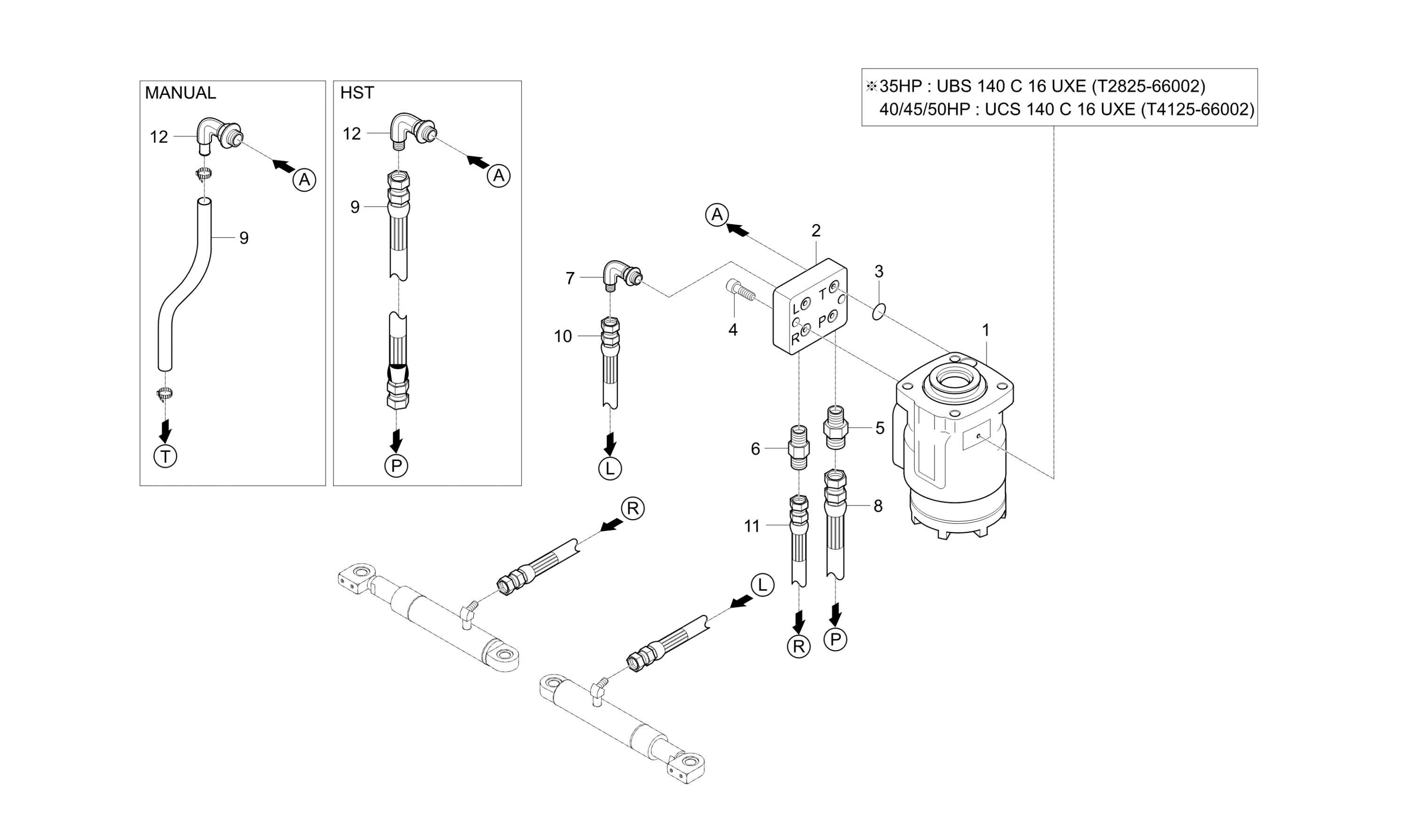

Diagram for POWER STEERING UNIT GROUP - EX45H-T605A
  • 1

    UNIT, POWER STEERING, Replaced by T4125-62101

    • Part No. T4125-66002
    • Applied Dates 2006-06-09 to 2012-04-30
    • Serial No. Up to MS2800044
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    UNIT, POWER STEERING

    • Part No. T4125-62101
    • Compatibility Interchngable
    • Applied Dates 2012-05-01 and up
    • Serial No. MS2800045 and up
    • 96cc/rev
    • *multiple options for # 1
    • 1 shown on diagram
    $1,714.99
  • 2

    ASSY BLOCK, HYD dnr v, Replaced by T4125-66021BB

    • Part No. T4125-66021
    • Serial No. Up to GS2800002
    • *multiple options for # 2
    • 1 shown on diagram
    $0.00
  • 2

    BLOCK, HYDRAULIC

    • Part No. T4125-66021BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $139.99
  • 3 O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    • Part No. 04810-00220
    • DIA21.8
    • 4 shown on diagram
    $1.19
  • 4

    BOLT, HEXAGON SOCKET

    • Part No. T2185-66221
    • M10*1.5
    • 2 shown on diagram
    $7.49
  • 5 CONNECTOR

    CONNECTOR

    • Part No. T4810-46971
    • 1 shown on diagram
    $15.99
  • 6

    CONNECTOR

    • Part No. T4620-66161
    • PF1/4
    • 1 shown on diagram
    $13.99
  • 7

    ELBOW

    • Part No. T2185-66231
    • 1 shown on diagram
    $28.99
  • 8

    HOSE P, STEERING

    • Part No. T4125-45003
    • Applied Dates 2006-04-11 and up
    • 1 shown on diagram
    $144.99
  • 9

    HOSE T, STEERING

    • Part No. T4125-45011
    • 1 shown on diagram
    $134.99
  • 10

    HOSE ASS’Y L, STEERING

    • Part No. T4125-45021
    • 1 shown on diagram
    $134.99
  • 11

    HOSE R, STEERING

    • Part No. T4125-45032
    • Applied Dates 2006-04-11 and up
    • 1 shown on diagram
    $129.99
  • 12

    ELBOW

    • Part No. T4850-45161
    • 1 shown on diagram
    $36.99
