MODULATE VALVE GROUP - EX45H-T750A

Kioti TRACTOR | DK Series | DK50HSE

Diagram for MODULATE VALVE GROUP - EX45H-T750A
  • 1

    TUBE

    • Part No. T4115-25921
    • 1 shown on diagram
    $14.99
  • 2 O RING

    O RING

    • Part No. 04811-00090
    • DIA8.8
    • 2 shown on diagram
    $0.73

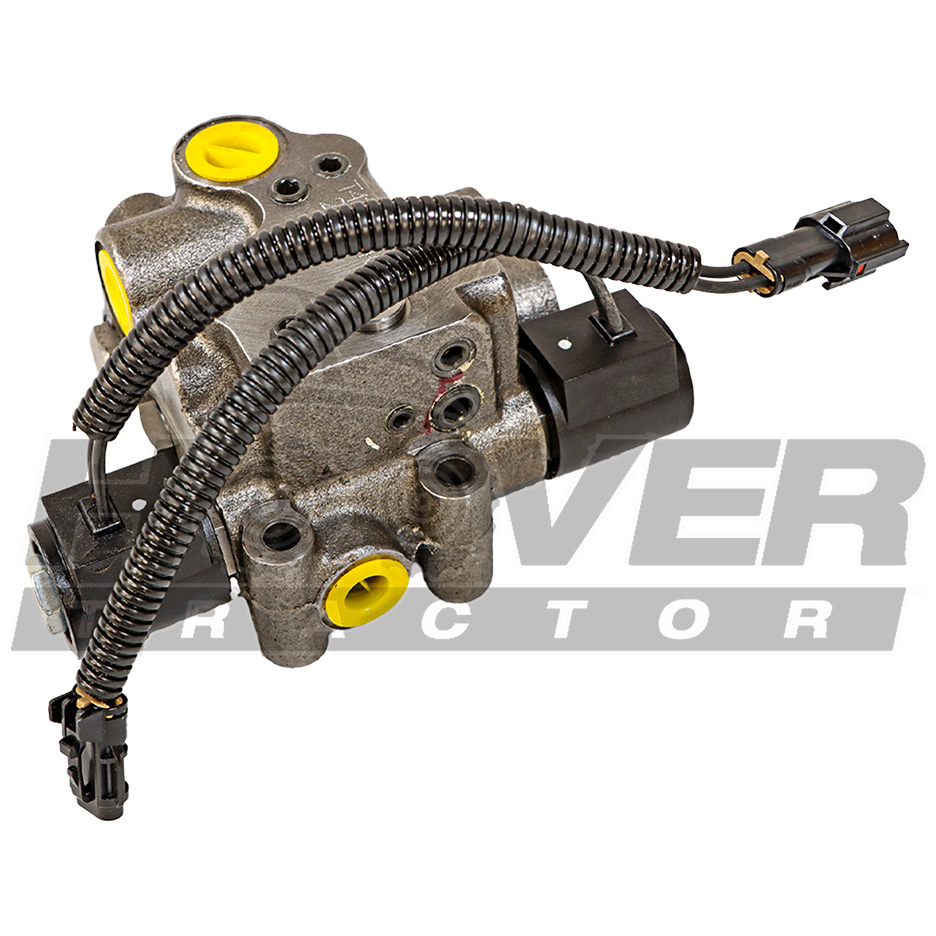

  • 3 ASS Y, MOD. VALVE

    ASS Y, MOD. VALVE

    • Part No. T4125-34103
    • Applied Dates 2008-08-06 and up
    • 1 shown on diagram
    $1,484.99
  • 4

    Bolt With Washer, M8 P1.25 x 50mm

    • Part No. 01123-50850
    • M8XP1.25
    • 3 shown on diagram
    $2.99
  • 5

    CONNECTION

    • Part No. T4125-37231
    • Applied Dates 2008-07-03 and up
    • 1 shown on diagram
    $23.99
  • 6

    ELBOW

    • Part No. T4850-45161
    • 1 shown on diagram
    $36.99
  • 7

    TUBE 4WD, HYDRAULIC, Replaced by T4125-32964BB

    • Part No. T4125-32964
    • Serial No. Up to GS2800002
    • *multiple options for # 7
    • 1 shown on diagram
    $85.14
  • 7

    HYD. TUBE

    • Part No. T4125-32964BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $114.99
  • 8

    ELBOW

    • Part No. T4420-37361
    • 2 shown on diagram
    $38.99
  • 9

    COIL,SOLENOID dnr v

    • Part No. VS-B3-12AB-150
    • 1 shown on diagram
    $119.99
  • 10 4WD SOLENOID, Replaced by M301220

    4WD SOLENOID, Replaced by M301220

    • Part No. VS-B3-12AC-150
    • 1 shown on diagram
    $0.00
