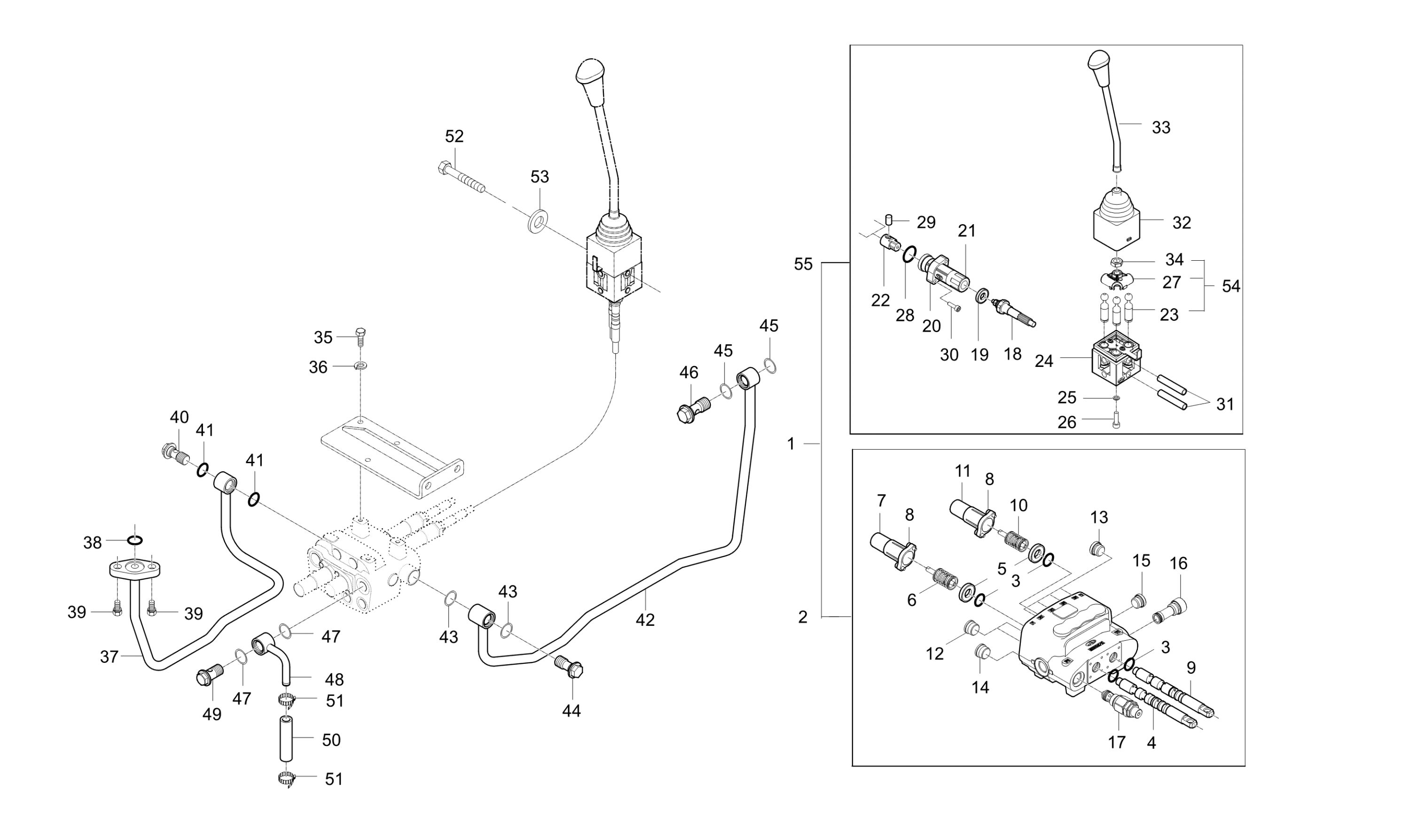

JOYSTICK VALVE GROUP - EX45H-T770A

Kioti TRACTOR | DK Series | DK50HSE

1
JOYSTICK VALVE ASSY
- Part No. T4121-90111
- 1 shown on diagram
$1,749.99

JOYSTICK VALVE ASSY quantity
2
ASSY VALVE v obs
- Part No. 26002-0001
- 1 shown on diagram
$1,499.99

ASSY VALVE v obs quantity
3
ORING v
- Part No. 36001-0042
- 4 shown on diagram
$5.99

ORING v quantity
4
SPOOL, 1
- Part No. 36001-0041
- 1 shown on diagram
$129.99

SPOOL, 1 quantity
5
COLLAR v
- Part No. 36001-0062
- 2 shown on diagram
$24.99

COLLAR v quantity
6
ASSY 1 SPRING KIT
- Part No. 36001-0049
- 1 shown on diagram
$36.99

ASSY 1 SPRING KIT quantity
7
ASSY 1 END CAP, Replaced by V001-104
- Part No. 36001-0043
- 1 shown on diagram
$0.00

ASSY 1 END CAP, Replaced by V001-104 quantity
8
BOLT HEXAGEN
- Part No. 36001-0097
- 4 shown on diagram
$0.85

BOLT HEXAGEN quantity
9
SPOOL, 2 v
- Part No. 36001-0054
- 1 shown on diagram
$134.99

SPOOL, 2 v quantity
10
ASSY 2 SPRING KIT
- Part No. 36001-0058
- 1 shown on diagram
$36.99

ASSY 2 SPRING KIT quantity
11

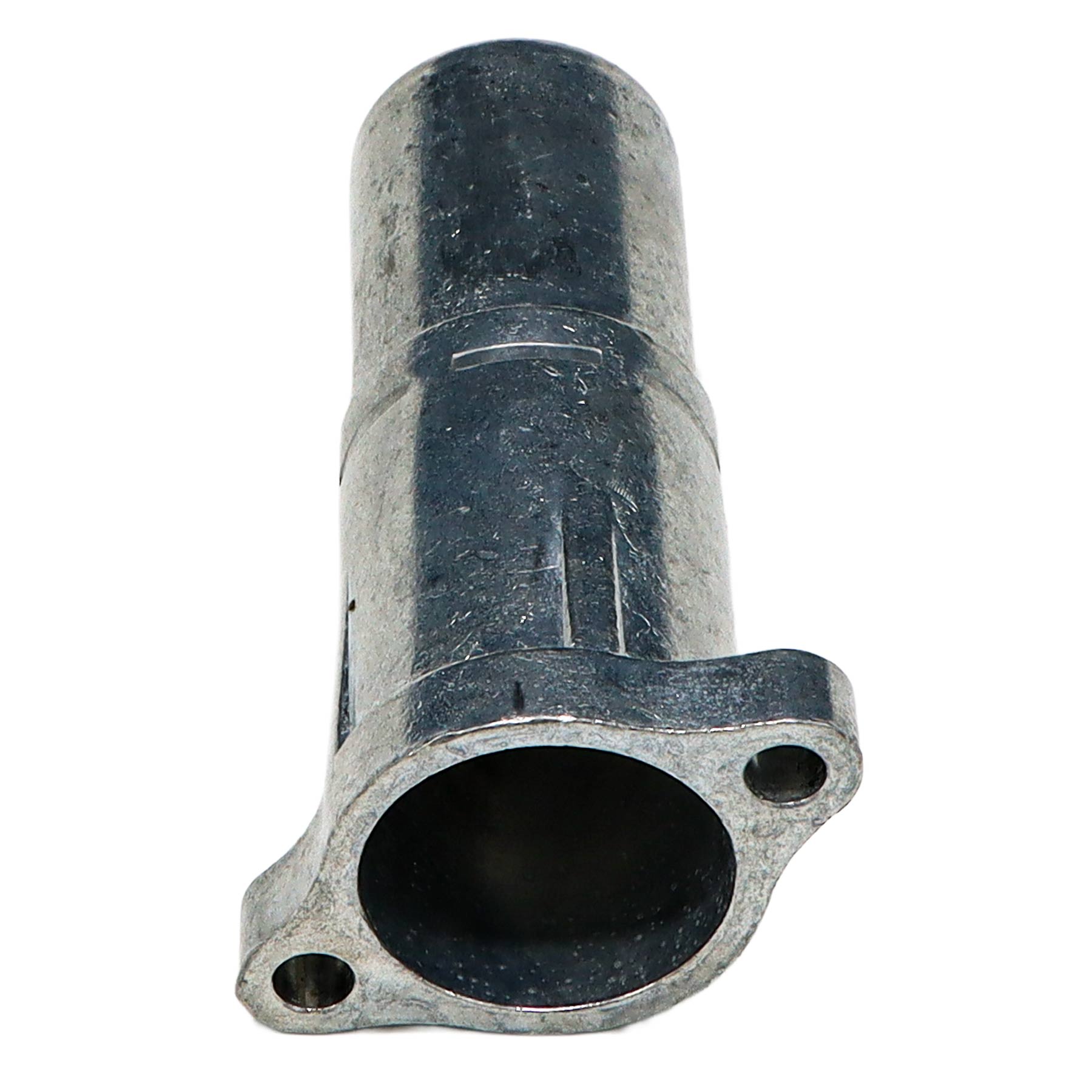

ASSY 2 END CAP
- Part No. 36001-0055
- 1 shown on diagram
$37.99

ASSY 2 END CAP quantity
12
CHECK VAVLE ASSY
- Part No. 36001-0077
- 2 shown on diagram
$49.99

CHECK VAVLE ASSY quantity
13
PLUG ASSY, 9X16 18UNF
- Part No. 36001-0063
- 4 shown on diagram
$19.99

PLUG ASSY, 9X16 18UNF quantity
14
PLUG ASSY, M18XP1.5
- Part No. 36001-0066
- 1 shown on diagram
$15.99

PLUG ASSY, M18XP1.5 quantity
15
PLUG ASSY, 3X4 16UNF
- Part No. 36001-0069
- 1 shown on diagram
$16.99

PLUG ASSY, 3X4 16UNF quantity
16
JOINT ASSY,
- Part No. 36001-0072
- 1 shown on diagram
$24.99

JOINT ASSY, quantity
17
LEVER, MAIN SHIFT obs v
- Part No. 36002-0082
- 1 shown on diagram
$199.99

LEVER, MAIN SHIFT obs v quantity
18
CABLE PUSH-PULL
- Part No. 36001-0220
- 2 shown on diagram
$144.99

CABLE PUSH-PULL quantity
19
WASHER, SEAL
- Part No. 04717-01600
- 2 shown on diagram
$1.99

WASHER, SEAL quantity
20
FLANGE
- Part No. 36001-0130
- 2 shown on diagram
$12.99

FLANGE quantity
21
ENDCAP
- Part No. 36001-0120
- 2 shown on diagram
$22.99

ENDCAP quantity
22
JOINT
- Part No. 36001-0150
- 2 shown on diagram
$13.99

JOINT quantity
23
Ball End, Replaced by 36001-0170
- Part No. 36001-0160
- 3 shown on diagram
$0.00

Ball End, Replaced by 36001-0170 quantity
24
BODY ASS’Y v
- Part No. 26001-0050
- 1 shown on diagram
$72.99

BODY ASS'Y v quantity
25
WASHER, SPRING v
- Part No. 36001-0100
- 1 shown on diagram
$1.09

WASHER, SPRING v quantity
26
BOLT SHCS M6 P1.00×20 v
- Part No. 36001-0080
- (M6x20)
- 1 shown on diagram
$1.09

BOLT SHCS M6 P1.00x20 v quantity
27
Selector, 3 Socket
- Part No. 36001-0140
- 1 shown on diagram
$24.99

Selector, 3 Socket quantity
28
O RING v
- Part No. 36001-0030
- 21.95x1.78
- 2 shown on diagram
$1.19

O RING v quantity
29
PIN, CONNECT V
- Part No. 36001-0010
- 2 shown on diagram
$8.99

PIN, CONNECT V quantity
30
SOCKET HEAD CAP SCREW M5 P.80×18
- Part No. 36001-0060
- M5x18
- 4 shown on diagram
$0.85

SOCKET HEAD CAP SCREW M5 P.80x18 quantity
31
Tube
- Part No. 36001-0050
- 2 shown on diagram
$8.99

Tube quantity
32
Rubber Boot
- Part No. 36001-0180
- 1 shown on diagram
$22.99

Rubber Boot quantity
33
ASSY HANDLE
- Part No. 26001-0020
- 1 shown on diagram
$52.99

ASSY HANDLE quantity
34
NUT
- Part No. 02072-50140
- 1 shown on diagram
$1.29

NUT quantity
35
Bolt, Replaced by T2350-90331
- Part No. T2350-90311
- 3 shown on diagram
$2.49

Bolt, Replaced by T2350-90331 quantity
36
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 3 shown on diagram
$0.61

Spring Lock Washer M8 quantity
37
TUBE J1 HYD V, Replaced by T4125-90254BB
- Part No. T4125-90253
- Applied Dates 2007-12-31 to 2008-10-16
- Serial No. GS2800003 to HS2800016
- *multiple options for # 37
- 1 shown on diagram
$0.00

TUBE J1 HYD V, Replaced by T4125-90254BB quantity
37
TUBE J1, HYD V, Replaced by T4125-90254BB
- Part No. T4125-90254
- Compatibility Interchngable
- Applied Dates 2008-10-17 to 2008-12-15
- Serial No. Up to GS2800002
- *multiple options for # 37
- 1 shown on diagram
$0.00

TUBE J1, HYD V, Replaced by T4125-90254BB quantity
37
TUBE J1 HYD
- Part No. T4125-90254BB
- Compatibility No Interchange
- Applied Dates 2008-12-16 to 2011-05-31
- Serial No. HS2800001 to LS2800012
- *multiple options for # 37
- 1 shown on diagram
$329.99

TUBE J1 HYD quantity
37
TUBE J1 , HYD, Replaced by T4125-90255BB
- Part No. T4125-90255
- Compatibility New Replaces Old
- *multiple options for # 37
- 1 shown on diagram
$0.00

TUBE J1 , HYD, Replaced by T4125-90255BB quantity
38
O RING
- Part No. 04810-00180
- 1 shown on diagram
$1.09

O RING quantity
39
Bolt With Washer, M8 P1.25 x 25mm
- Part No. 01123-50825
- M8XP1.25
- 2 shown on diagram
$1.99

Bolt With Washer, M8 P1.25 x 25mm quantity
40
JOINT BOLT M18 P1.5 V
- Part No. T4620-37092
- 1 shown on diagram
$21.99

JOINT BOLT M18 P1.5 V quantity
41
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19

O RING quantity
42
TUBE J2 HYD V, Replaced by T4125-90262BB
- Part No. T4125-90261
- Applied Dates Up to 2008-10-16
- Serial No. Up to HS2800016
- *multiple options for # 42
- 1 shown on diagram
$0.00

TUBE J2 HYD V, Replaced by T4125-90262BB quantity
42
TUBE J2, HYD, Replaced by T4125-90262BB
- Part No. T4125-90262
- Compatibility Interchngable
- Applied Dates 2008-10-17 to 2008-12-15
- Serial No. Up to GS2800002
- *multiple options for # 42
- 1 shown on diagram
$0.00

TUBE J2, HYD, Replaced by T4125-90262BB quantity
42
HYD. TUBE v
- Part No. T4125-90262BB
- Compatibility No Interchange
- Applied Dates 2008-12-16 and up
- Serial No. HS2800001 and up
- *multiple options for # 42
- 1 shown on diagram
$174.99

HYD. TUBE v quantity
43
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19

O RING quantity
44
JOINT BOLT M18 P1.5 V
- Part No. T4620-37092
- 1 shown on diagram
$21.99

JOINT BOLT M18 P1.5 V quantity
45
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19

O RING quantity
46
JOINT BOLT M18 P1.5 V
- Part No. T4620-37092
- 1 shown on diagram
$21.99

JOINT BOLT M18 P1.5 V quantity
47
O RING
- Part No. 04810-00200
- DIA19.8
- 2 shown on diagram
$1.19

O RING quantity
48
TUBE- RETURN v
- Part No. T4125-90211
- Serial No. Up to GS2800002
- *multiple options for # 48
- 1 shown on diagram
$55.99

TUBE- RETURN v quantity
48
TUBE, RETURN, Replaced by T4125-90211
- Part No. T4125-90211BB
- Compatibility No Interchange
- Serial No. HS2800001 and up
- *multiple options for # 48
- 1 shown on diagram
$0.00

TUBE, RETURN, Replaced by T4125-90211 quantity
49
BOLT, JOINT
- Part No. T4520-90042
- 1 shown on diagram
$26.99

BOLT, JOINT quantity
50
RETURN HOSE 1
- Part No. T2185-38404
- 1 shown on diagram
$9.99

RETURN HOSE 1 quantity
51
CLAMP, HOSE
- Part No. 09318-89022
- 2 shown on diagram
$2.99

CLAMP, HOSE quantity
52
Bolt With Washer, M8 P1.25 x 80mm
- Part No. 01123-50880
- M8XP1.25
- 2 shown on diagram
$3.99

Bolt With Washer, M8 P1.25 x 80mm quantity
53
Flat Washer M8
- Part No. 04013-50080
- 2 shown on diagram
$0.79

Flat Washer M8 quantity
54
Cinematic Loader Valve repl. ball-socket kit [NLA]
- Part No. 26001-0090
- 1 shown on diagram
$0.00

Cinematic Loader Valve repl. ball-socket kit [NLA] quantity
55
JOYSTICK CABLE ASSY v
- Part No. 26001-0070
- 1 shown on diagram
$864.99

JOYSTICK CABLE ASSY v quantity

JOYSTICK VALVE GROUP - EX45H-T770A

Kioti TRACTOR | DK Series | DK50HSE
