HST EXTERNAL HYDRAULIC LINE GROUP - EX45H-T775A

Kioti TRACTOR | DK Series | DK50HSE

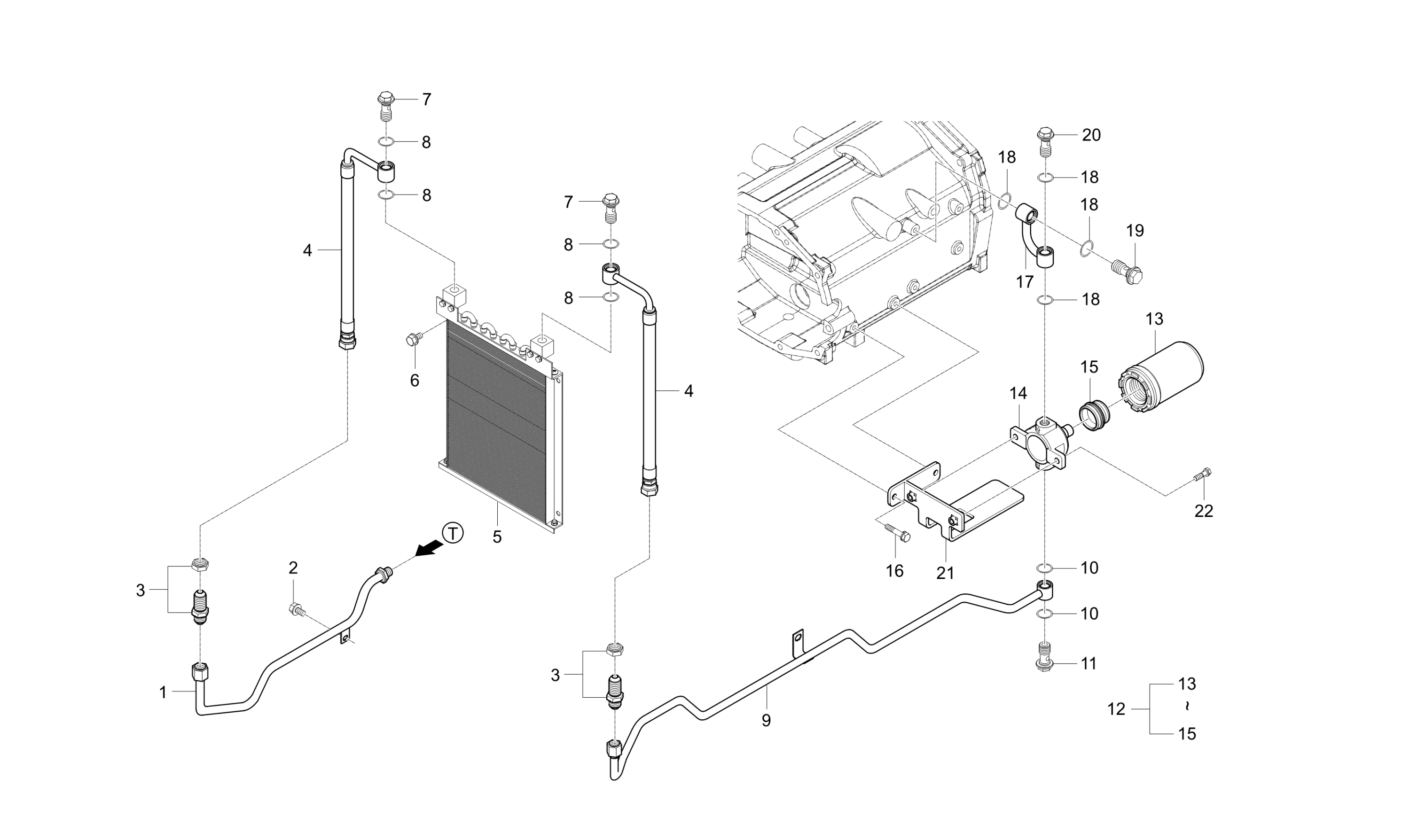

Diagram for HST EXTERNAL HYDRAULIC LINE GROUP - EX45H-T775A
  • 1

    TUBE, COOLING-1 dnr v, Replaced by T4125-37113BB

    • Part No. T4125-37113
    • Applied Dates 2006-11-01 to 2008-11-10
    • Serial No. Up to GS2800002
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    TUBE1, COOLING

    • Part No. T4125-37113BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $114.99
  • 2 Bolt With Washers, M8 P1.25 x 14mm

    Bolt With Washers, M8 P1.25 x 14mm

    • Part No. 01125-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49

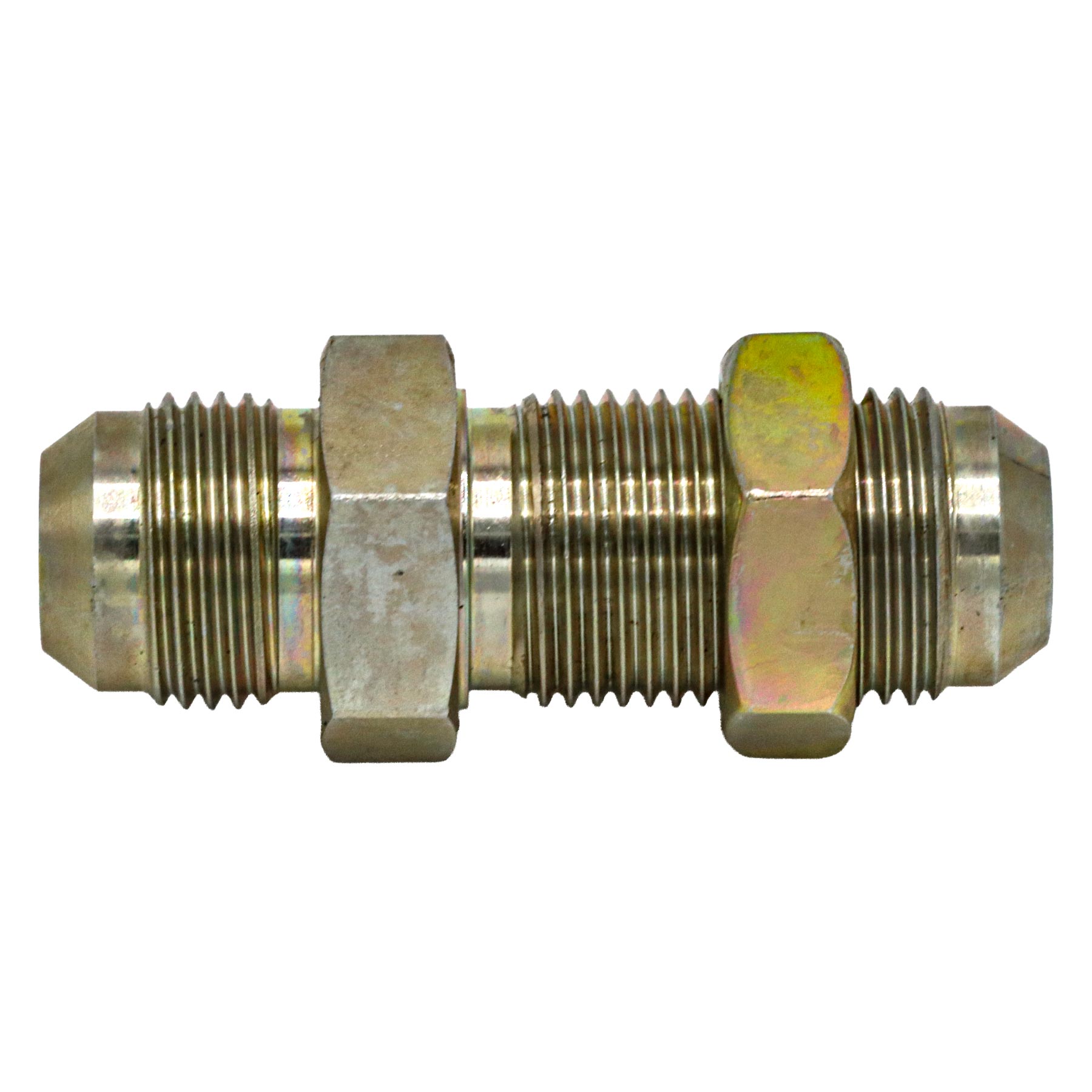

  • 3 CONNECTION

    CONNECTION

    • Part No. T2185-37161
    • 2 shown on diagram
    $39.99
  • 4

    COOLING HOSE v

    • Part No. T4125-37122
    • 2 shown on diagram
    $144.99
  • 5

    ASSY,OIL COOLER v

    • Part No. T4125-37011
    • Applied Dates Up to 2007-07-21
    • *multiple options for # 5
    • 1 shown on diagram
    $794.99
  • 5

    ASSY,OIL COOLER

    • Part No. T2825-37011
    • Compatibility Interchngable
    • Applied Dates 2008-02-19 to 2008-02-19
    • *multiple options for # 5
    • 1 shown on diagram
    $369.99
  • 5

    ASSY,OIL COOLER v

    • Part No. T2825-37012
    • Compatibility New Replaces Old
    • Applied Dates 2008-04-06 to 2010-10-18
    • Serial No. HS2800001 to KS2800052
    • *multiple options for # 5
    • 1 shown on diagram
    $399.99
  • 5

    ASSY, OIL COOLER, Replaced by TE14-0024A

    • Part No. T2825-37021
    • Compatibility Interchngable
    • Applied Dates 2010-10-19 and up
    • Serial No. KS2800053 and up
    • Fin&tube
    • *multiple options for # 5
    • 1 shown on diagram
    $321.73
  • 5

    COOLER, OIL

    • Part No. TE14-0024A
    • Compatibility Interchngable
    • *multiple options for # 5
    • 1 shown on diagram
    $374.99
  • 6 Bolt With Washers, M8 P1.25 x 14mm

    Bolt With Washers, M8 P1.25 x 14mm

    • Part No. 01125-50814
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 7 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 2 shown on diagram
    $21.99
  • 8 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 9

    COOLING TUBE v

    • Part No. T4125-37143
    • Applied Dates Up to 2007-02-27
    • *multiple options for # 9
    • 1 shown on diagram
    $129.99
  • 9

    COOLING TUBE 2 dnr v

    • Part No. T4125-37144
    • Compatibility New Replaces Old
    • Applied Dates 2007-01-16 to 2007-02-27
    • Serial No. GS2800001 to GS2800002
    • *multiple options for # 9
    • 1 shown on diagram
    $159.99
  • 9

    TUBE 2 COOLING v

    • Part No. T4125-37145
    • Compatibility Interchngable
    • *multiple options for # 9
    • 1 shown on diagram
    $149.99
  • 9

    TUBE 2 COOLING v, Replaced by T4125-37146BB

    • Part No. T4125-37146
    • Compatibility Interchngable
    • *multiple options for # 9
    • 1 shown on diagram
    $0.00
  • 10 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 11 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 1 shown on diagram
    $21.99
  • 12

    FILTER ASSY, HYD. dnr v, Replaced by T4125-38123

    • Part No. T4125-38122
    • Applied Dates Up to 2007-02-27
    • *multiple options for # 12
    • 1 shown on diagram
    $0.00
  • 12

    FILTER ASS’Y-HYD.

    • Part No. T4125-38123
    • Compatibility Interchngable
    • Applied Dates 2007-10-06 to 2010-11-15
    • Serial No. GS2800001 to KS2800052
    • *multiple options for # 12
    • 1 shown on diagram
    $284.99
  • 13 Hydrostatic Transmission Filter (6″ yellow)

    Hydrostatic Transmission Filter (6″ yellow)

    • Part No. T4125-38021
    • 1 shown on diagram
    $84.99
  • 14 Bracket, HST Filter

    Bracket, HST Filter

    • Part No. T4125-38032
    • 1 shown on diagram
    $98.99
  • 15

    CONNECTION, Replaced by T4125-38052

    • Part No. T4125-38051
    • *multiple options for # 15
    • 1 shown on diagram
    $0.00
  • 15

    CONNECTION

    • Part No. T4125-38052
    • Compatibility Interchngable
    • *multiple options for # 15
    • 1 shown on diagram
    $42.99
  • 16 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 17

    TUBE-HST INLET CHARGE dnr v, Replaced by T4125-37043BB

    • Part No. T4125-37043
    • Compatibility New Replaces Old
    • Serial No. Up to GS2800002
    • *multiple options for # 17
    • 1 shown on diagram
    $0.00
  • 17

    HST Inlet Charge Tube

    • Part No. T4125-37043BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $159.99
  • 18 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 19 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • 1 shown on diagram
    $21.99
  • 20 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • 1 shown on diagram
    $26.99
  • 21

    FILTER SUPPORT, HST, Replaced by T4125-38091ED

    • Part No. T4125-38091
    • Serial No. Up to GS2800002
    • *multiple options for # 21
    • 1 shown on diagram
    $0.00
  • 21

    FILTER SUPPORT, HST v

    • Part No. T4125-38091ED
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 21
    • 1 shown on diagram
    $64.99
  • 22 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
