INLET TUBE GROUP - EX45H-T736A

Kioti TRACTOR | DK Series | DK50HSE

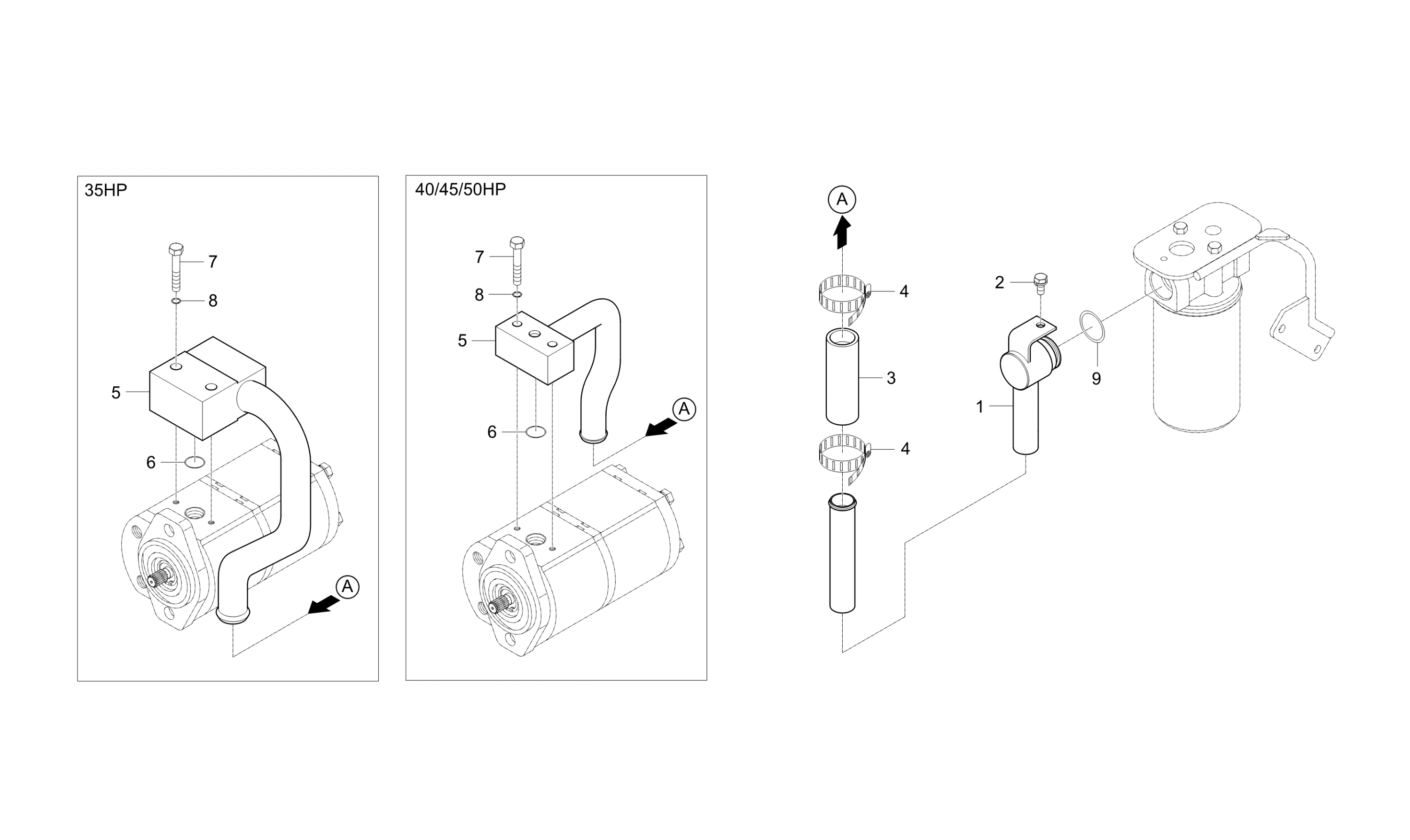

Diagram for INLET TUBE GROUP - EX45H-T736A
  • 1

    TUBE 2- INLET v, Replaced by T4125-38014BB

    • Part No. T4125-38014
    • Applied Dates 2007-05-01 to 2008-11-10
    • Serial No. GS2800001 to GS2800002
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    TUBE 2, INLET

    • Part No. T4125-38014BB
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $209.99
  • 2 Bolt With Washers, M8 P1.25 x 14mm

    Bolt With Washers, M8 P1.25 x 14mm

    • Part No. 01125-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 3 HOSE,RUBBER 28mm ID

    HOSE,RUBBER 28mm ID

    • Part No. T4125-38151
    • Applied Dates 2008-02-27 and up
    • 1 shown on diagram
    $6.49
  • 4

    HOSE BAND v

    • Part No. 31355-3819-1
    • Applied Dates Up to 2007-02-27
    • ??40#
    • *multiple options for # 4
    • 2 shown on diagram
    $4.99
  • 4

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchngable
    • 25-40mm
    • *multiple options for # 4
    • 2 shown on diagram
    $2.99
  • 5

    HOSE 3 INLET v

    • Part No. T4620-38073
    • Applied Dates 2007-05-01 to 2008-11-10
    • Serial No. GS2800001 to GS2800002
    • *multiple options for # 5
    • 1 shown on diagram
    $119.99
  • 5

    HOSE 3, INLET

    • Part No. T4620-38073BB
    • Compatibility No Interchange
    • Applied Dates 2008-11-11 and up
    • Serial No. HS2800001 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $129.99
  • 6 O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    • Part No. 04810-00220
    • DIA21.8
    • 1 shown on diagram
    $1.19
  • 7

    Bolt With Washer, M8 P1.25 x 50mm

    • Part No. 01123-50850
    • M8XP1.25
    • 2 shown on diagram
    $2.99
  • 8 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates Up to 2008-04-09
    • M08
    • 2 shown on diagram
    $0.61
  • 9 O-ring

    O-ring

    • Part No. 04810-00320
    • 1 shown on diagram
    $1.39
