RADIATOR GROUP - T5710-G504A

Kioti TRACTOR | DK Series | DK5010HS

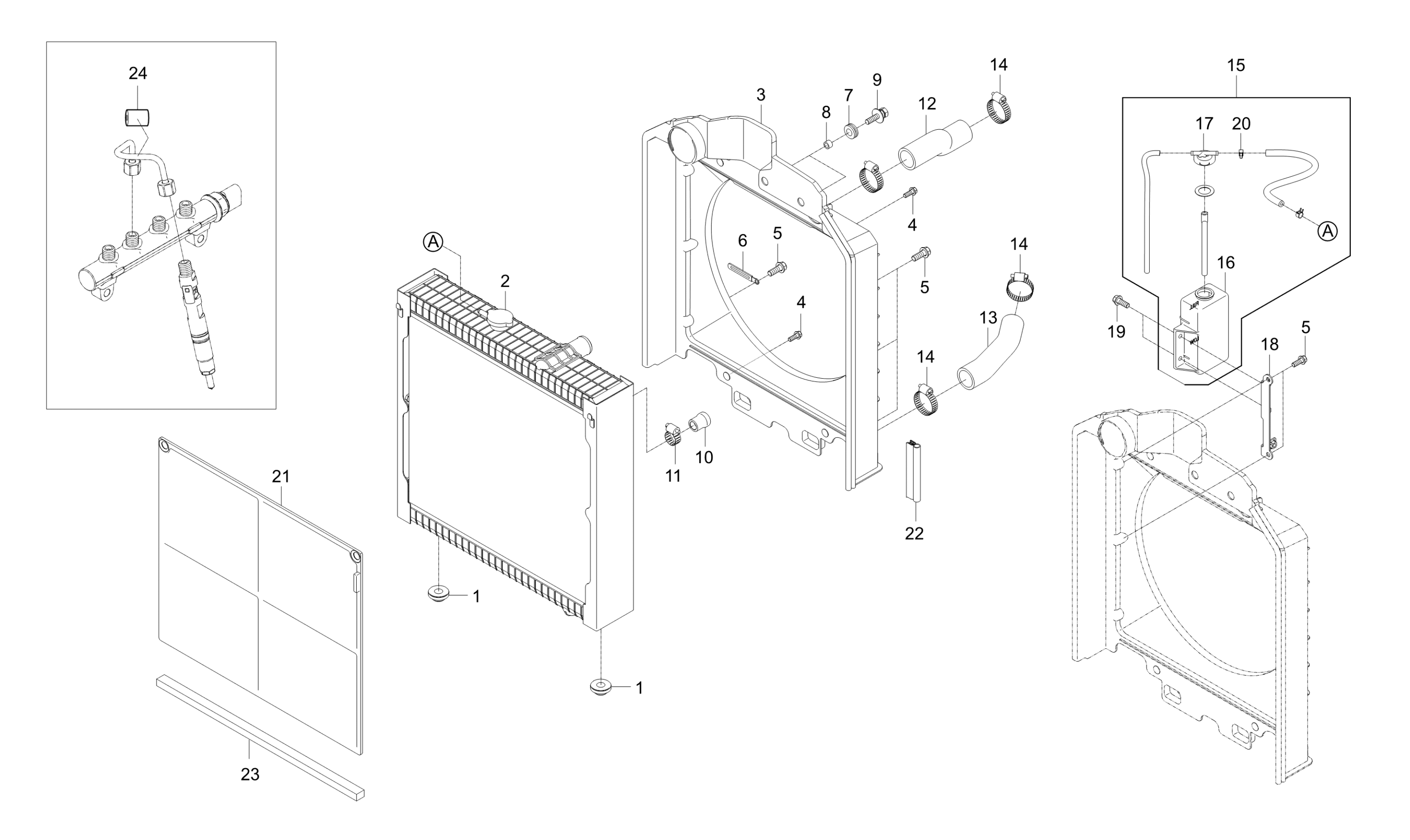

Diagram for RADIATOR GROUP - T5710-G504A
  • 1

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 2 RADIATOR ASSY v, Replaced by TD26-1188A

    RADIATOR ASSY v, Replaced by TD26-1188A

    • Part No. T5710-50411
    • 1 shown on diagram
    $0.00
  • 3

    SHROUD, Replaced by T5710-50423

    • Part No. T5710-50421
    • 1 shown on diagram
    $0.00
  • 4

    BOLT FLANGE

    • Part No. T4625-55441
    • 4 shown on diagram
    $2.49
  • 5

    Bolt

    • Part No. T2185-70491
    • 6 shown on diagram
    $1.59
  • 6

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 7

    GROMMET

    • Part No. T2350-50431
    • 2 shown on diagram
    $4.99
  • 8

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 2 shown on diagram
    $4.49
  • 9

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 10 CAP, SEALING

    CAP, SEALING

    • Part No. T5535-50451
    • 1 shown on diagram
    $4.49
  • 11

    BAND, HOSE

    • Part No. 66204-3623-1
    • 1 shown on diagram
    $3.99
  • 12

    HOSE, COOLING WATER UPR

    • Part No. T5710-50472
    • OD44XT5.0
    • 1 shown on diagram
    $39.99
  • 13

    HOSE, COOLING WATER LWR

    • Part No. T5710-50481
    • OD44XT5.0
    • 1 shown on diagram
    $37.99
  • 14

    CLAMP BAND

    • Part No. E1500-18411
    • 4 shown on diagram
    $4.49
  • 15

    RESERVOIR ASSY

    • Part No. T5710-50451
    • 1 shown on diagram
    $73.99
  • 16 TANK, WATER

    TANK, WATER

    • Part No. T2350-13612
    • 1 shown on diagram
    $37.99
  • 17 CAP, DOUBLE BARB

    CAP, DOUBLE BARB

    • Part No. T5525-50721
    • 1 shown on diagram
    $7.99
  • 18

    BRACKET, RESERVOIR SUPPORT, Replaced by T5710-50461BB

    • Part No. T5710-50461
    • 1 shown on diagram
    $0.00
  • 19 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 20

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 1 shown on diagram
    $1.49
  • 21 Net-Radiator

    Net-Radiator

    • Part No. T5525-50435
    • 1 shown on diagram
    $99.99
  • 22

    RUBBER RADIATOR, Replaced by T5710-50492

    • Part No. T5710-50491
    • *multiple options for # 22
    • 2 shown on diagram
    $0.00
  • 22

    RUBBER(RADIATOR)

    • Part No. T5710-50492
    • Compatibility New Replaces Old
    • Applied Dates 2014-12-31 and up
    • Serial No. PR8100241 and up
    • *multiple options for # 22
    • 2 shown on diagram
    $26.99
  • 23

    SPONGE. RADIATOR, Replaced by T5710-50502

    • Part No. T5710-50501
    • *multiple options for # 23
    • 1 shown on diagram
    $0.00
  • 23

    SPONGE.RADIATOR

    • Part No. T5710-50502
    • Compatibility New Replaces Old
    • Applied Dates 2014-11-23 and up
    • Serial No. PR8100127 and up
    • *multiple options for # 23
    • 1 shown on diagram
    $19.99
  • 24

    RING,RUBBER

    • Part No. TD26-0008A
    • 1 shown on diagram
    $6.49
