BRAKE PEDAL GROUP - T5710-G804A

Kioti TRACTOR | DK Series | DK5010HS

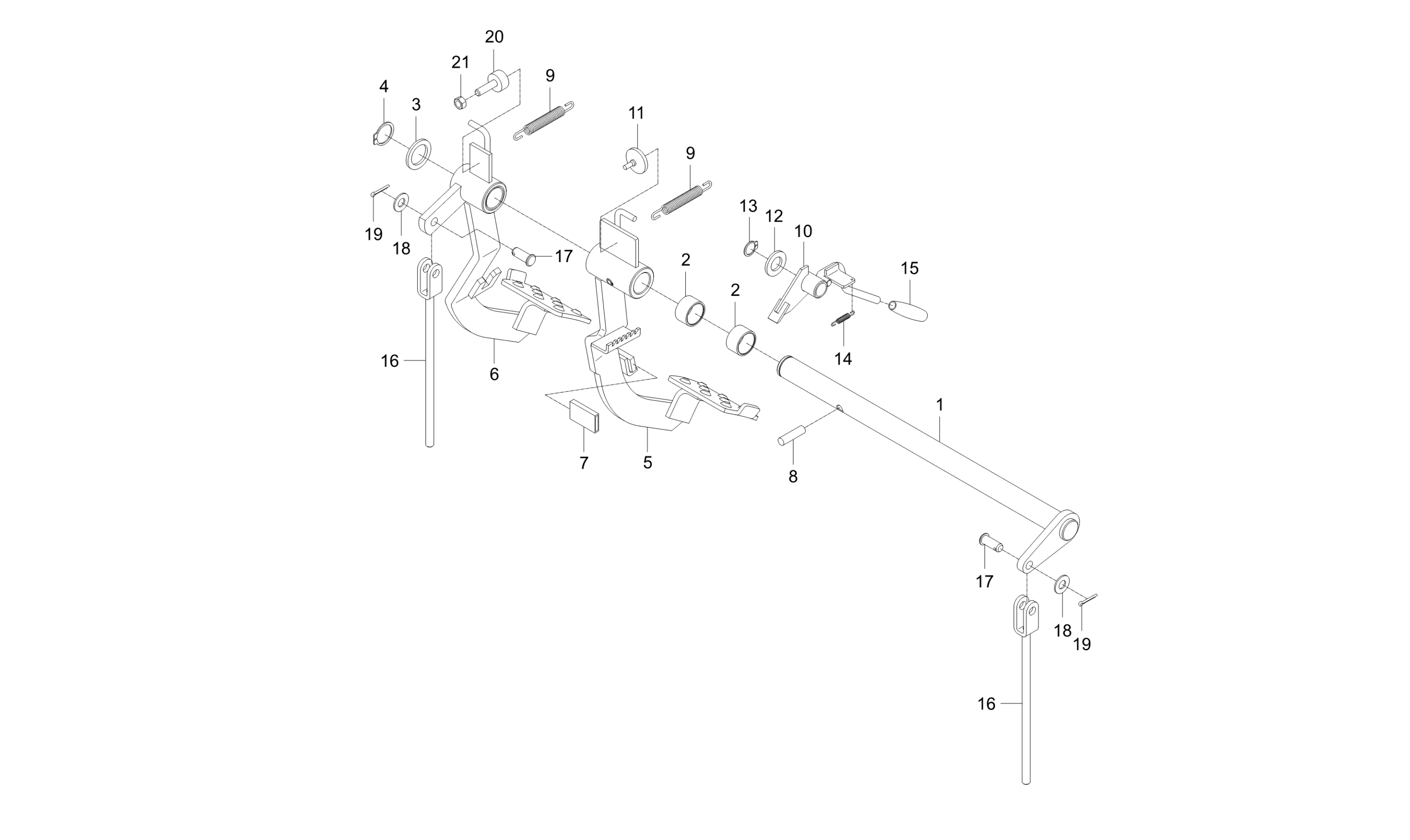

Diagram for BRAKE PEDAL GROUP - T5710-G804A
  • 1

    SHAFT, PEDAL

    • Part No. T2610-55731
    • 1 shown on diagram
    $82.99
  • 2

    NEEDLE BEARING

    • Part No. 08822-53017
    • ??DIA25
    • 2 shown on diagram
    $19.99
  • 3

    COLLAR dnr v

    • Part No. 84612-1445-0
    • DIA36*8
    • 1 shown on diagram
    $11.99
  • 4 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 5

    PEDAL, BRAKE, Replaced by T5710-80413BB

    • Part No. T5710-80413
    • 1 shown on diagram
    $102.01
  • 6

    PEDAL, BRAKE dnr v

    • Part No. T5710-80422
    • 1 shown on diagram
    $144.99
  • 7

    VYNIL TUBE

    • Part No. T2612-24921
    • Ø18x1.5T
    • 1 shown on diagram
    $3.99
  • 8 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 9

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 2 shown on diagram
    $6.49
  • 10

    BRAKE PARKING

    • Part No. T4620-55912
    • 1 shown on diagram
    $48.99
  • 11

    CUSHION v

    • Part No. T4520-26931
    • 1 shown on diagram
    $6.49
  • 12 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 1 shown on diagram
    $1.19
  • 13

    RING,SNAP

    • Part No. 04612-50160
    • DIA16
    • 1 shown on diagram
    $0.73
  • 14

    SPRING, RETURN

    • Part No. T4157-51211
    • 1 shown on diagram
    $4.99
  • 15

    GRIP

    • Part No. T2350-55922
    • 1 shown on diagram
    $5.49
  • 16

    ROD2,BRAKE

    • Part No. T4620-55762
    • 2 shown on diagram
    $18.99
  • 17

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
    $2.99
  • 18 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 19

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 20

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 1 shown on diagram
    $8.49
  • 21 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
