MUFFLLER GROUP - T5715-G502A

Kioti TRACTOR | DK Series | DK5010HS

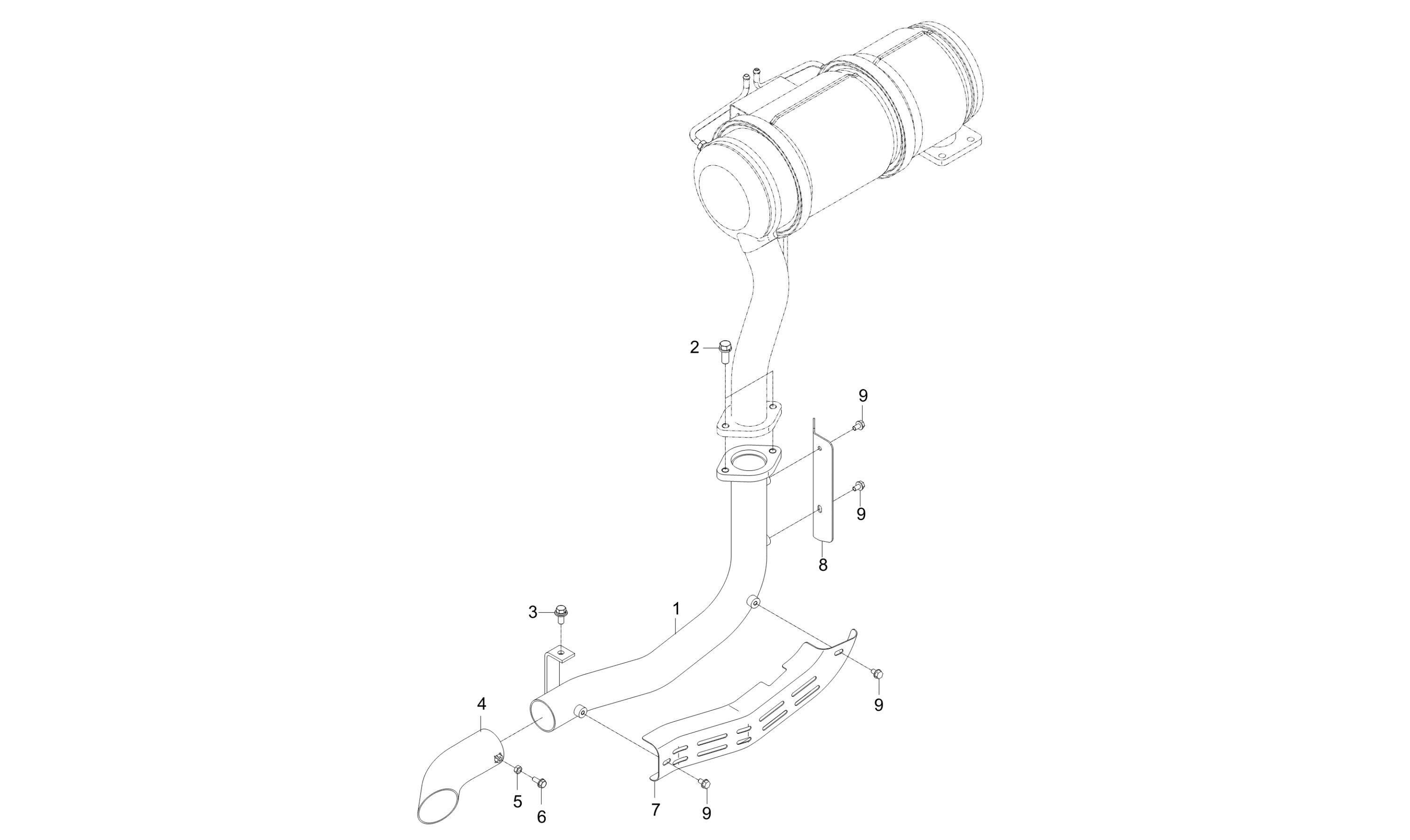

Diagram for MUFFLLER GROUP - T5715-G502A
  • 1

    TUBE, EXHAUST

    • Part No. T5710-50221
    • 1 shown on diagram
    $174.99
  • 2 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 3

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 4

    TUBE 2, EXHAUST

    • Part No. T5710-50231
    • 1 shown on diagram
    $49.99
  • 5 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 6 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 1 shown on diagram
    $1.09
  • 7

    PROTECTION COVER

    • Part No. T5710-50252
    • T1.2
    • 1 shown on diagram
    $46.99
  • 8

    PROTECTION COVER

    • Part No. T5710-50263
    • T2.0
    • 1 shown on diagram
    $25.99
  • 9

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 4 shown on diagram
    $2.49
