FUEL COOLER GROUP - TD2-G614503 - VR8100001 and up

Kioti TRACTOR | DK Series | DK5010HS

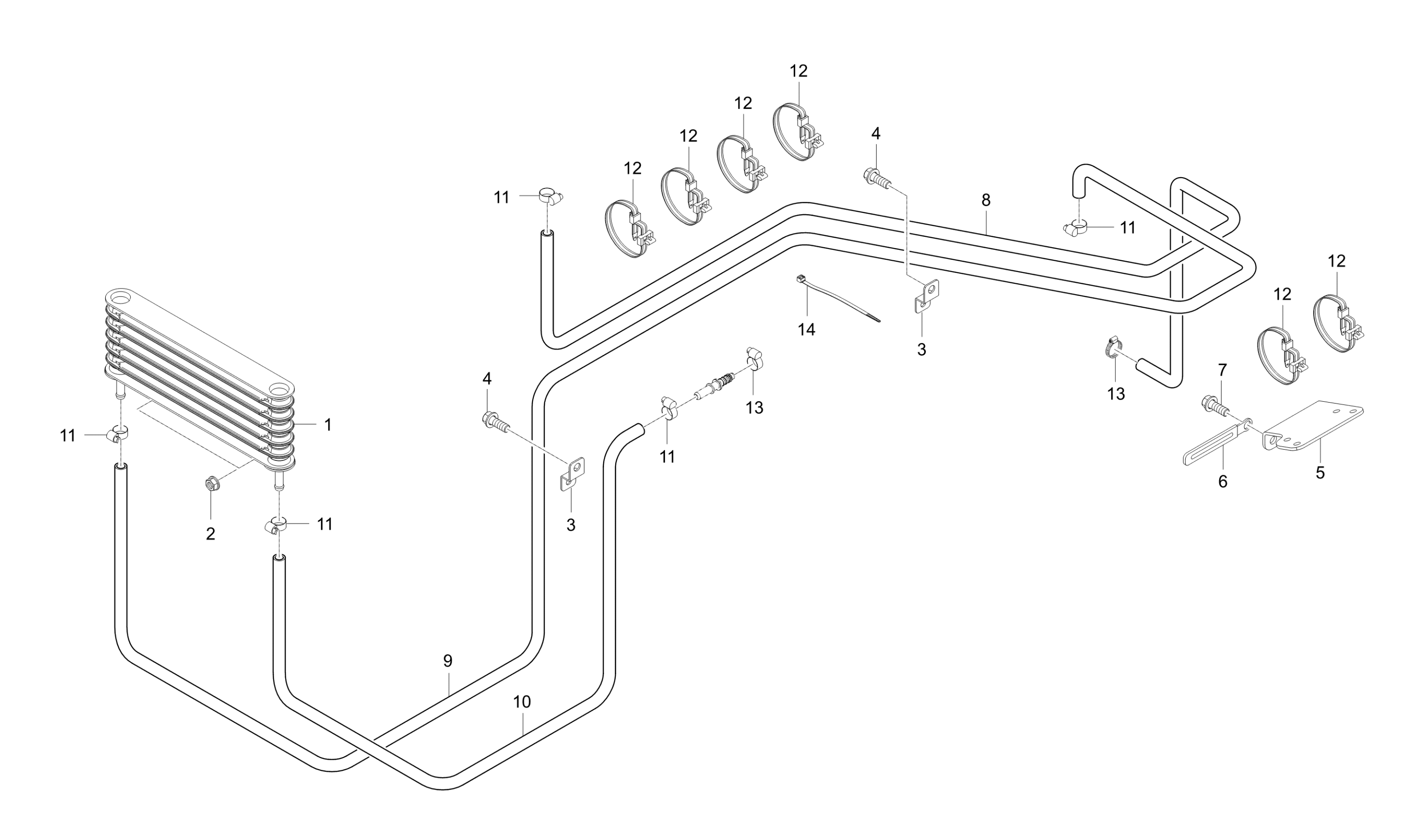

Diagram for FUEL COOLER GROUP - TD2-G614503 - VR8100001 and up
  • 1

    COOLER, FUEL v

    • Part No. T5315-81251
    • 1 shown on diagram
    $169.99
  • 2 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 3

    BRACKET

    • Part No. T5250-68771
    • t1.6
    • 2 shown on diagram
    $9.49
  • 4 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 5

    HOSE GUIDE, RH, Replaced by T5710-50853BB

    • Part No. T5710-50853
    • T3.0
    • 1 shown on diagram
    $0.00
  • 6

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 8

    HOSE, FUEL v

    • Part No. T5710-50812
    • 1 shown on diagram
    $57.99
  • 9

    HOSE 2, FUEL

    • Part No. T5710-50831
    • OD14XID8
    • 1 shown on diagram
    $65.99
  • 10

    HOSE, FUEL-4

    • Part No. TD26-1088A
    • Applied Dates 2019-07-08 and up
    • OD14XID8
    • 1 shown on diagram
    $36.99
  • 11

    CLAMP, HOSE

    • Part No. 09318-88130
    • DIA13
    • 6 shown on diagram
    $1.09
  • 12

    BAND, CABLE

    • Part No. P5370-82551
    • 4 shown on diagram
    $1.89
  • 13

    CLAMP

    • Part No. T4810-67832
    • 1 shown on diagram
    $4.49
  • 14

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 1 shown on diagram
    $1.29
