BRAKE PEDAL GROUP - TD2-G646501

Kioti TRACTOR | DK Series | DK5010HS

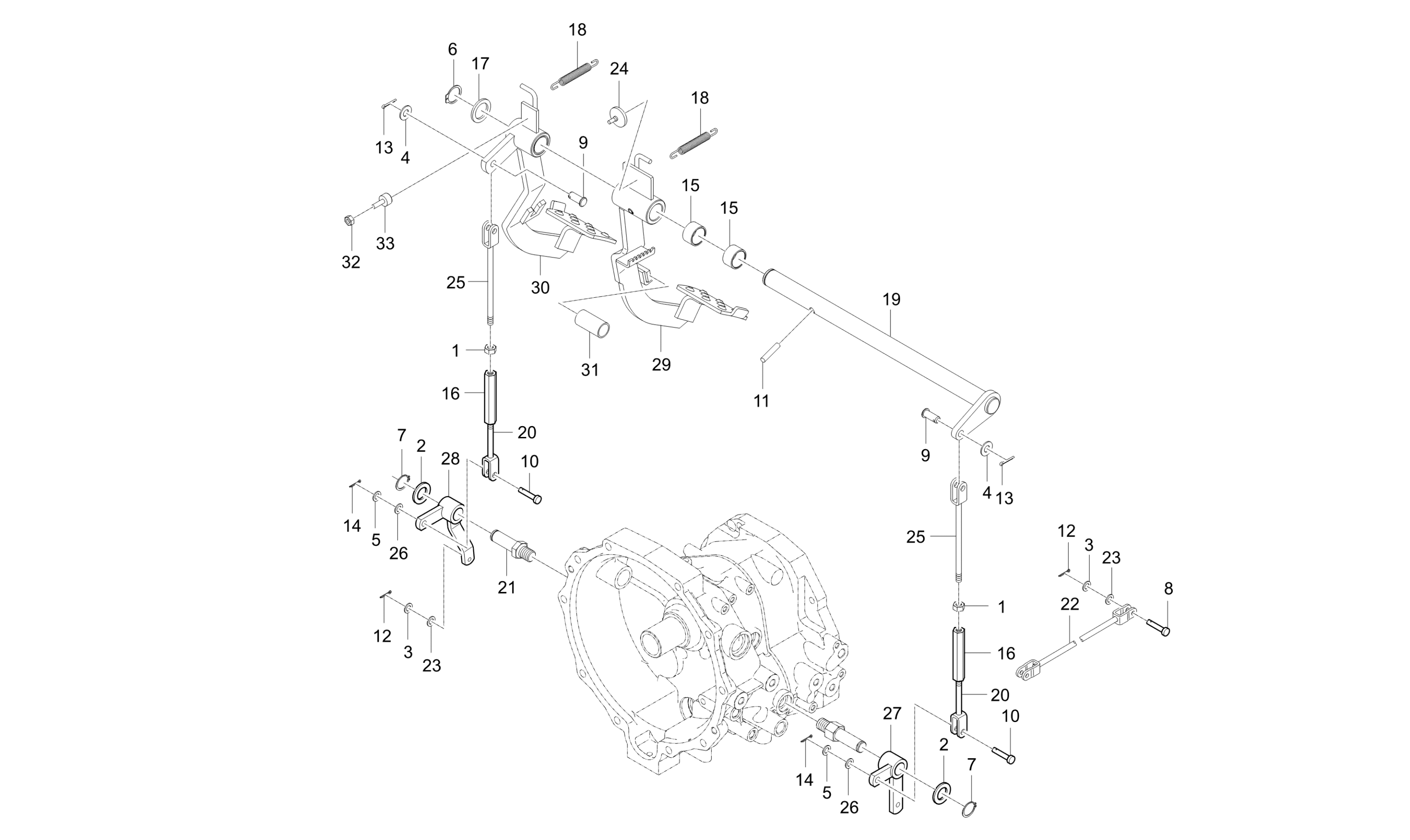

Diagram for BRAKE PEDAL GROUP - TD2-G646501
  • 1 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 2

    Flat Washer M20

    • Part No. 04011-50200
    • Applied Dates Up to 2016-12-16
    • M20
    • 2 shown on diagram
    $1.59
  • 3 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 4 shown on diagram
    $0.67
  • 4 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 5 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 7

    RING,SNAP

    • Part No. 04612-50200
    • Applied Dates Up to 2016-12-16
    • DIA20
    • 2 shown on diagram
    $0.73
  • 8 Pin, Joint M8x28mm

    Pin, Joint M8x28mm

    • Part No. 05122-50828
    • Applied Dates Up to 2016-12-16
    • DIA8XL28
    • 4 shown on diagram
    $3.49
  • 9

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10XL25
    • 2 shown on diagram
    $2.99
  • 10

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
    $3.49
  • 11 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 12 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 4 shown on diagram
    $0.56
  • 13

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • Applied Dates 2014-08-04 to 2014-08-03
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 14

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 15

    NEEDLE BEARING

    • Part No. 08822-53017
    • ??DIA25
    • 2 shown on diagram
    $19.99
  • 16

    TURNBUCKLE

    • Part No. 32350-2898-4
    • Applied Dates 2014-04-23 and up
    • HEX14
    • 2 shown on diagram
    $28.99
  • 17

    COLLAR dnr v

    • Part No. 84612-1445-0
    • DIA36*8
    • 1 shown on diagram
    $11.99
  • 18

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 2 shown on diagram
    $6.49
  • 19

    SHAFT, PEDAL

    • Part No. T2610-55731
    • 1 shown on diagram
    $82.99
  • 20

    ROD 1,BRAKE

    • Part No. T2610-55751
    • Applied Dates 2014-08-04 to 2016-12-16
    • 2 shown on diagram
    $24.99
  • 21

    SHAFT, BRAKE(LH)

    • Part No. T2610-55802
    • 2 shown on diagram
    $25.99
  • 22

    ROD, BRAKE-3 dnr v, Replaced by T2660-55771BB

    • Part No. T2660-55771
    • 2 shown on diagram
    $0.00
  • 23

    CUSHION

    • Part No. T4145-55791
    • Applied Dates Up to 2016-12-16
    • DIA18X2.5T
    • 4 shown on diagram
    $1.89
  • 24

    CUSHION v

    • Part No. T4520-26931
    • Applied Dates 2019-08-12 and up
    • 22Xø30
    • 1 shown on diagram
    $6.49
  • 25

    ROD2,BRAKE

    • Part No. T4620-55762
    • 2 shown on diagram
    $18.99
  • 26

    WASHER 3

    • Part No. T4682-65311
    • Applied Dates 2014-08-04 to 2016-12-16
    • 2 shown on diagram
    $0.79
  • 27

    LEVER, BRAKE LH

    • Part No. T5710-51611
    • 1 shown on diagram
    $64.99
  • 28

    LEVER, BRAKE RH

    • Part No. T5710-51621
    • 1 shown on diagram
    $65.99
  • 29

    PEDAL, BRAKE, Replaced by T5710-80413BB

    • Part No. T5710-80413
    • Applied Dates 2019-08-12 and up
    • 1 shown on diagram
    $102.01
  • 30

    PEDAL, BRAKE dnr v

    • Part No. T5710-80422
    • Applied Dates 2019-08-12 and up
    • 1 shown on diagram
    $144.99
  • 31

    VINYL TUBE

    • Part No. T5815-55291
    • OD17XT2.0
    • 1 shown on diagram
    $1.59
  • 32 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 33

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 35.5XDIA22
    • 1 shown on diagram
    $8.49
