DOWN SPEED CONTROL GROUP - T5710-G650A

Kioti TRACTOR | DK Series | DK5010HS

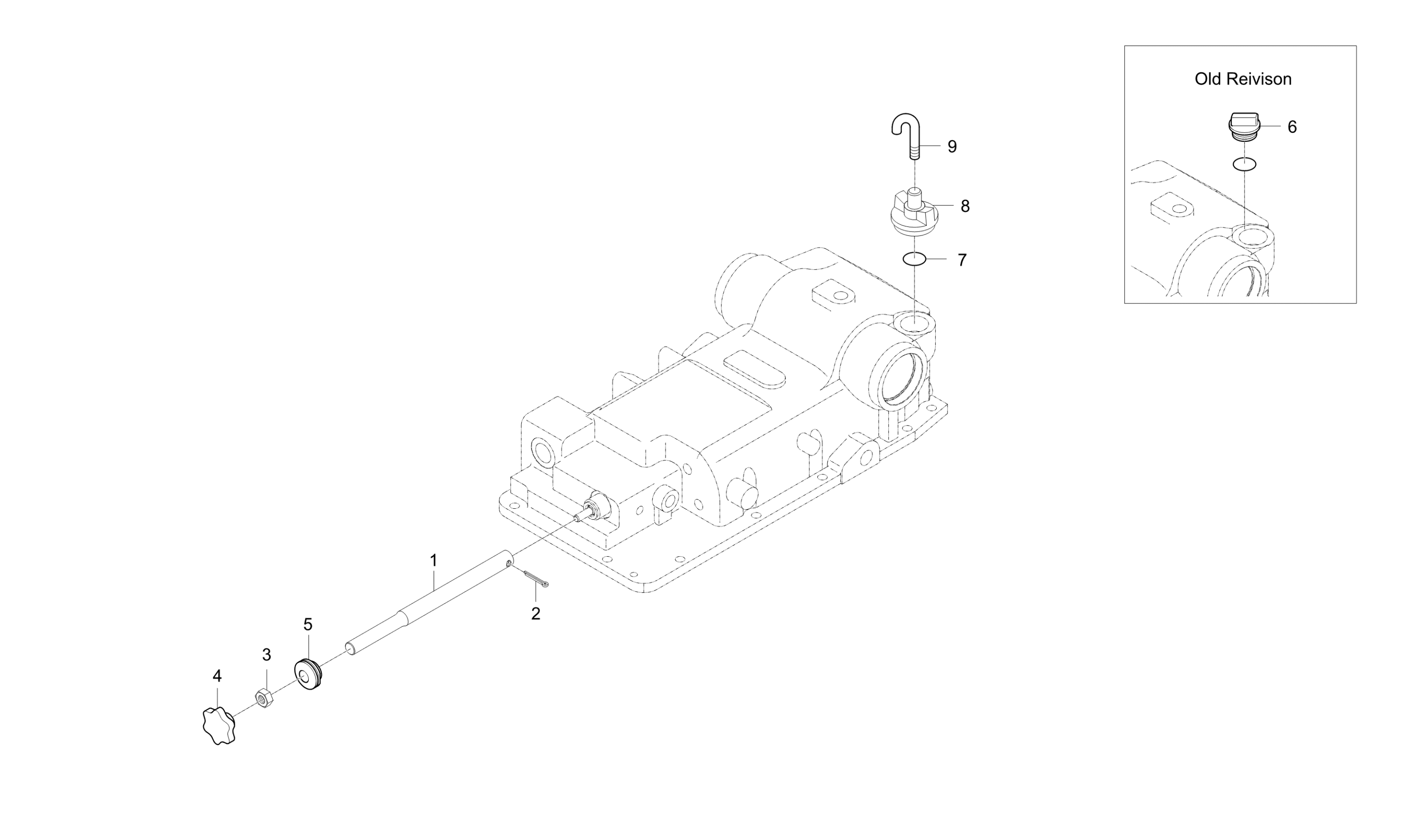

Diagram for DOWN SPEED CONTROL GROUP - T5710-G650A
  • 1

    ROD

    • Part No. T5710-38131
    • DIA12
    • 1 shown on diagram
    $19.99
  • 2

    PIN, SPLIT

    • Part No. 05511-50420
    • DIA4*20
    • 1 shown on diagram
    $0.56
  • 3 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 4

    GRIP

    • Part No. T2610-39882
    • 1 shown on diagram
    $12.99
  • 5

    GROMMET

    • Part No. 31355-2949-1
    • 1 shown on diagram
    $4.99
  • 6 COVER, OIL FILLER dnr v, Replaced by 38240-2141-2BK

    COVER, OIL FILLER dnr v, Replaced by 38240-2141-2BK

    • Part No. 38240-2141-2
    • 1 shown on diagram
    $0.00
  • 7 O Ring 29.4mm (04811-50300)

    O Ring 29.4mm (04811-50300)

    • Part No. 04811-50300
    • DIA29.4
    • 1 shown on diagram
    $1.29
  • 8 AIR BREATHER, 1″ BSPP

    AIR BREATHER, 1″ BSPP

    • Part No. 38245-2142-1
    • 1 shown on diagram
    $4.99
  • 9 BREATHER 2

    BREATHER 2

    • Part No. 31351-3714-2
    • 1 shown on diagram
    $6.99
