POSITION DRAFT LEVER GROUP - T5715-G534A

Kioti TRACTOR | DK Series | DK5010HS

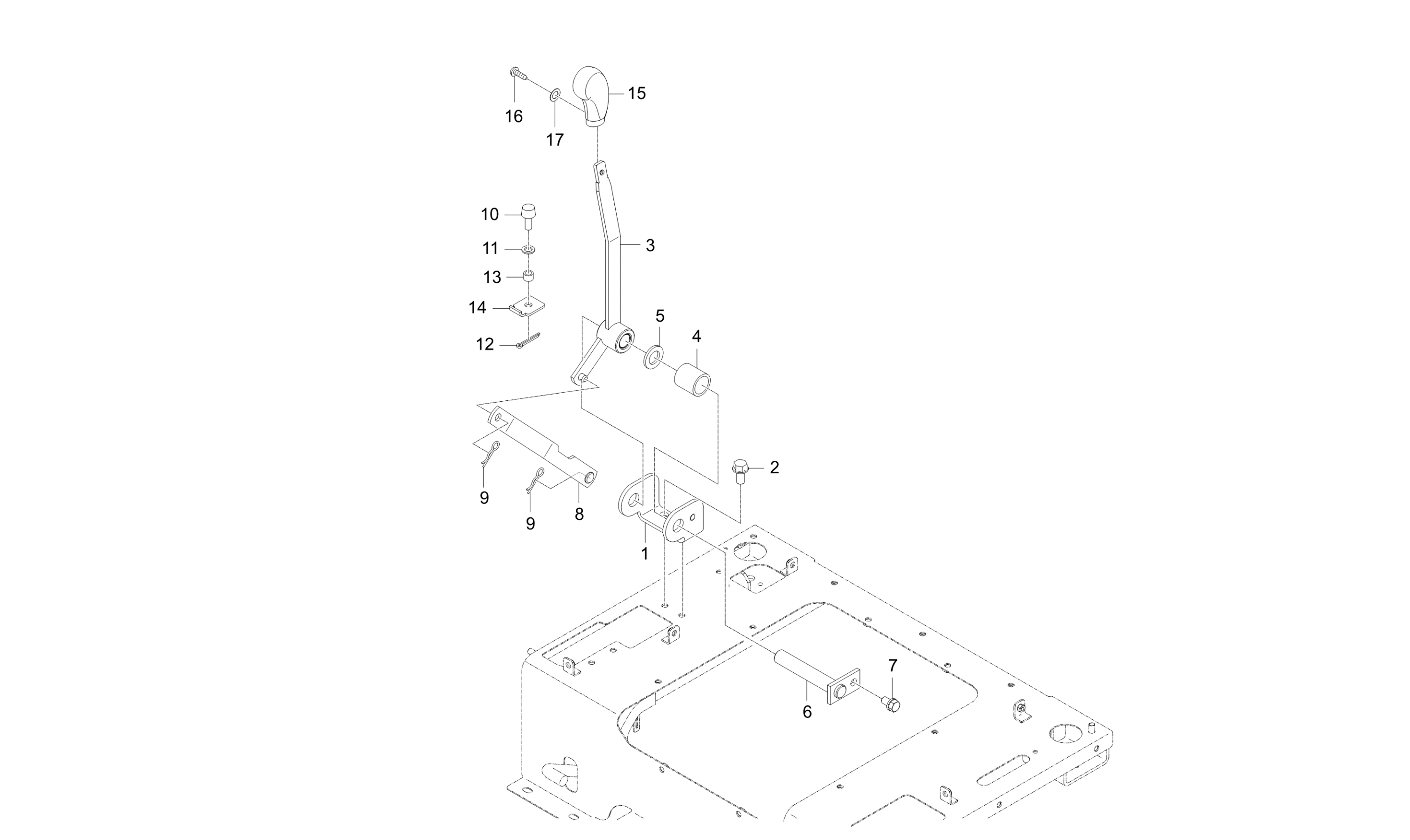

Diagram for POSITION DRAFT LEVER GROUP - T5715-G534A
  • 1

    BRACKET

    • Part No. T5710-53412
    • T4.5
    • 1 shown on diagram
    $15.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 3

    LEVER, ADJUSTING v

    • Part No. T5710-53434
    • 1 shown on diagram
    $64.99
  • 4

    BUSHING

    • Part No. T5715-53471
    • OD28,ID16.5
    • 1 shown on diagram
    $4.99
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
  • 6

    SHAFT v

    • Part No. T4835-66532
    • 1 shown on diagram
    $13.99
  • 7

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 8 ROD

    ROD

    • Part No. T5715-53571
    • 1 shown on diagram
    $9.99
  • 9

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 10

    BOLT, Replaced by 55571-32381

    • Part No. 55571-3238-1
    • 1 shown on diagram
    $0.00
  • 11 Flat Washer M6, Replaced by 04012-50060

    Flat Washer M6, Replaced by 04012-50060

    • Part No. 04015-50060
    • M6
    • 1 shown on diagram
    $0.00
  • 12 Split Pin (05511-50215)

    Split Pin (05511-50215)

    • Part No. 05511-50215
    • DIA1.8XL15
    • 1 shown on diagram
    $0.62
  • 13

    SPACER

    • Part No. T4520-83301
    • DIA10.5*T2.0
    • 1 shown on diagram
    $4.99
  • 14

    Lever Stopper (T2350-95472)

    • Part No. T2350-95472
    • 1 shown on diagram
    $3.49
  • 15

    GRIP

    • Part No. T5710-53471
    • 1 shown on diagram
    $19.99
  • 16 SCREW

    SCREW

    • Part No. 03056-50510
    • M5XP0.8
    • 1 shown on diagram
    $0.62
  • 17 WASHER

    WASHER

    • Part No. T4810-66721
    • 1 shown on diagram
    $1.39
