BRAKE ROD GROUP - T5710-G516A

Kioti TRACTOR | DK Series | DK5010HS

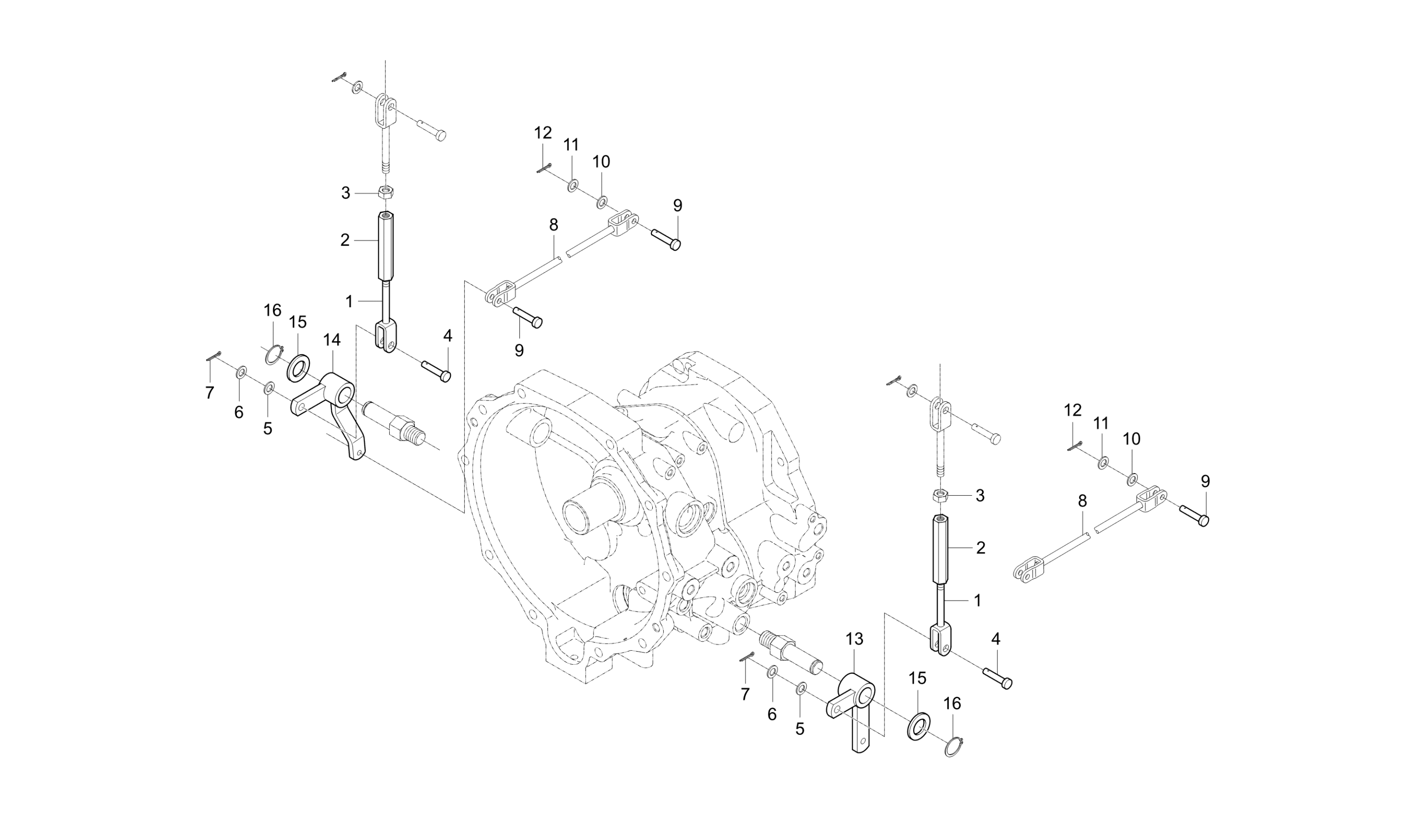

Diagram for BRAKE ROD GROUP - T5710-G516A
  • 1

    ROD 1,BRAKE

    • Part No. T2610-55751
    • 2 shown on diagram
    $24.99
  • 2

    TURNBUCKLE

    • Part No. 32350-2898-4
    • HEX14
    • 2 shown on diagram
    $28.99
  • 3 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 4

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
    $3.49
  • 5

    WASHER 3

    • Part No. T4682-65311
    • 2 shown on diagram
    $0.79
  • 6 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 7

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 8

    ROD, BRAKE-3 dnr v, Replaced by T2660-55771BB

    • Part No. T2660-55771
    • 2 shown on diagram
    $0.00
  • 9 Pin, Joint M8x28mm

    Pin, Joint M8x28mm

    • Part No. 05122-50828
    • DIA8XL28
    • 4 shown on diagram
    $3.49
  • 10

    CUSHION

    • Part No. T4145-55791
    • 4 shown on diagram
    $1.89
  • 11 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 4 shown on diagram
    $0.67
  • 12 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 4 shown on diagram
    $0.56
  • 13

    LEVER, BRAKE LH

    • Part No. T5710-51611
    • 1 shown on diagram
    $64.99
  • 14

    LEVER, BRAKE RH

    • Part No. T5710-51621
    • 1 shown on diagram
    $65.99
  • 15

    Flat Washer M20

    • Part No. 04011-50200
    • M20
    • 2 shown on diagram
    $1.59
  • 16

    RING,SNAP

    • Part No. 04612-50200
    • 2 shown on diagram
    $0.73
