MID CASE GROUP - TC2-G223003

Kioti TRACTOR | CK Series | CK3520CHSEB

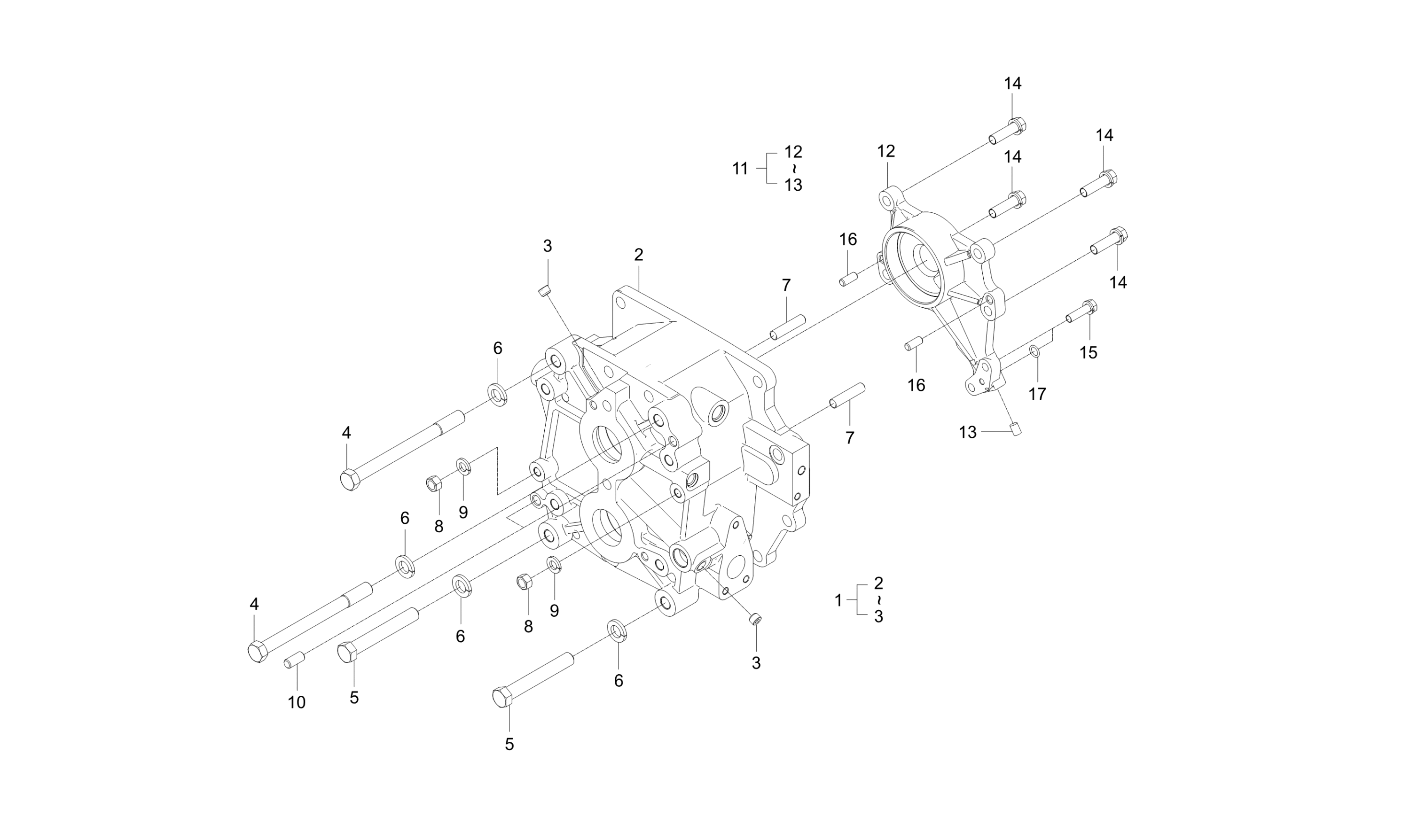

Diagram for MID CASE GROUP - TC2-G223003
  • 1

    CASE, HST v

    • Part No. TC22-0038D
    • 1 shown on diagram
    $399.99
  • 2

    CASE, HST dnr v

    • Part No. TC22-0036D
    • 1 shown on diagram
    $899.99
  • 3

    PLUG

    • Part No. E5900-96032
    • 2 shown on diagram
    $2.49
  • 4

    BOLT

    • Part No. T4850-26501
    • 2 shown on diagram
    $25.99
  • 5

    BOLT

    • Part No. 01173-51495
    • 2 shown on diagram
    $4.99
  • 6

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 4 shown on diagram
    $0.9
  • 7

    STUD

    • Part No. 01517-51030
    • 2 shown on diagram
    $4.99
  • 8 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 9 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 10

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 11

    COVER, PTO BEARING

    • Part No. TC22-0039B
    • 1 shown on diagram
    $134.99
  • 12

    COVER, PTO BEARING

    • Part No. TC22-0037B
    • * multiple options for #12
    • 1 shown on diagram
    $184.99
  • 12

    COVER, PTO BEARING

    • Part No. TC22-0037C
    • Compatibility Interchngable
    • * multiple options for #12
    • 1 shown on diagram
    $.00
  • 13

    PLUG v

    • Part No. 06350-00607
    • 1 shown on diagram
    $6.49
  • 14

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 15 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • 2 shown on diagram
    $2.49
  • 16 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 17 O RING

    O RING

    • Part No. 04811-00100
    • DIA9.8
    • 1 shown on diagram
    $0.68
