PTO SHAFT GROUP - TC2-G2C4007

Kioti TRACTOR | CK Series | CK3520CHSEB

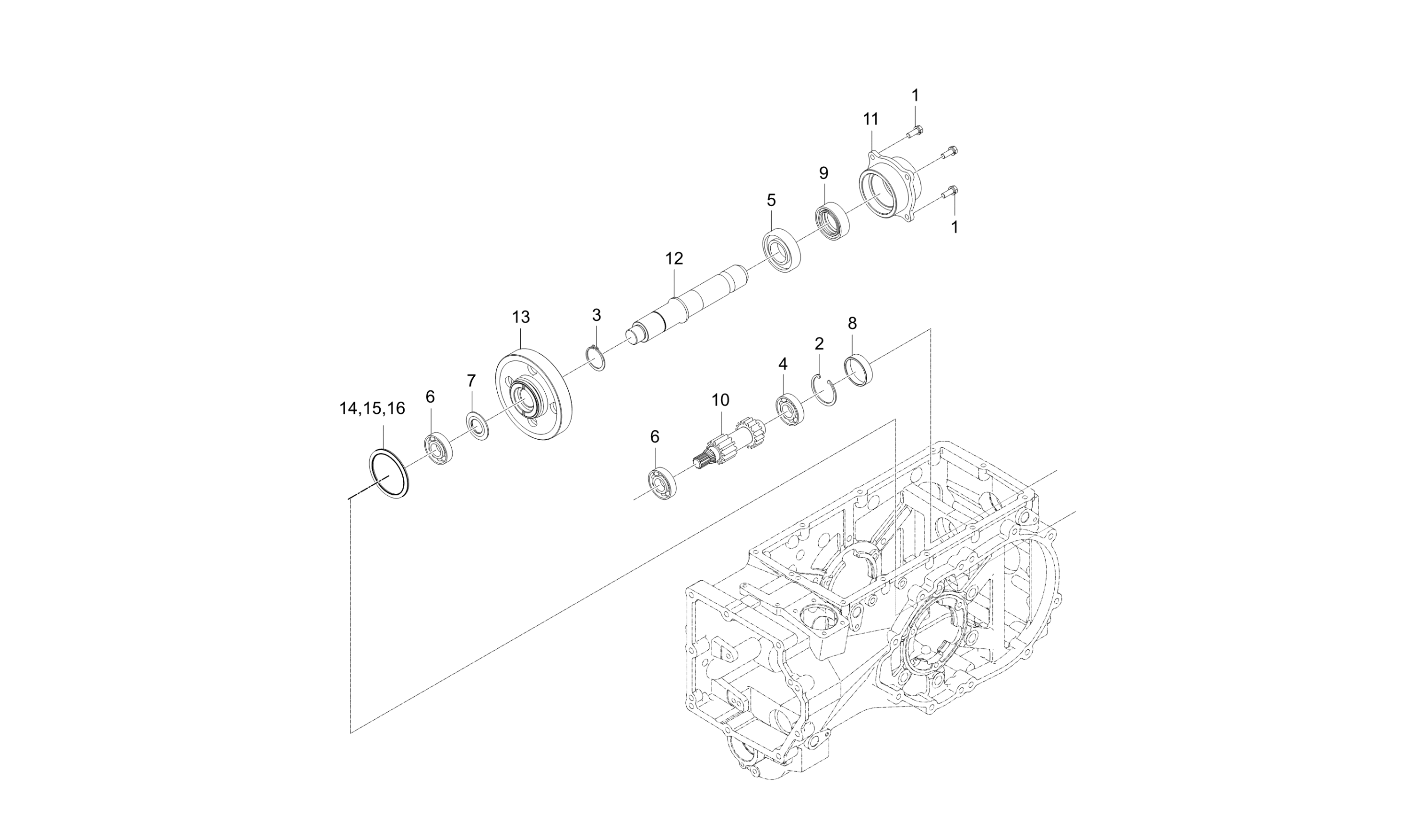

Diagram for PTO SHAFT GROUP - TC2-G2C4007

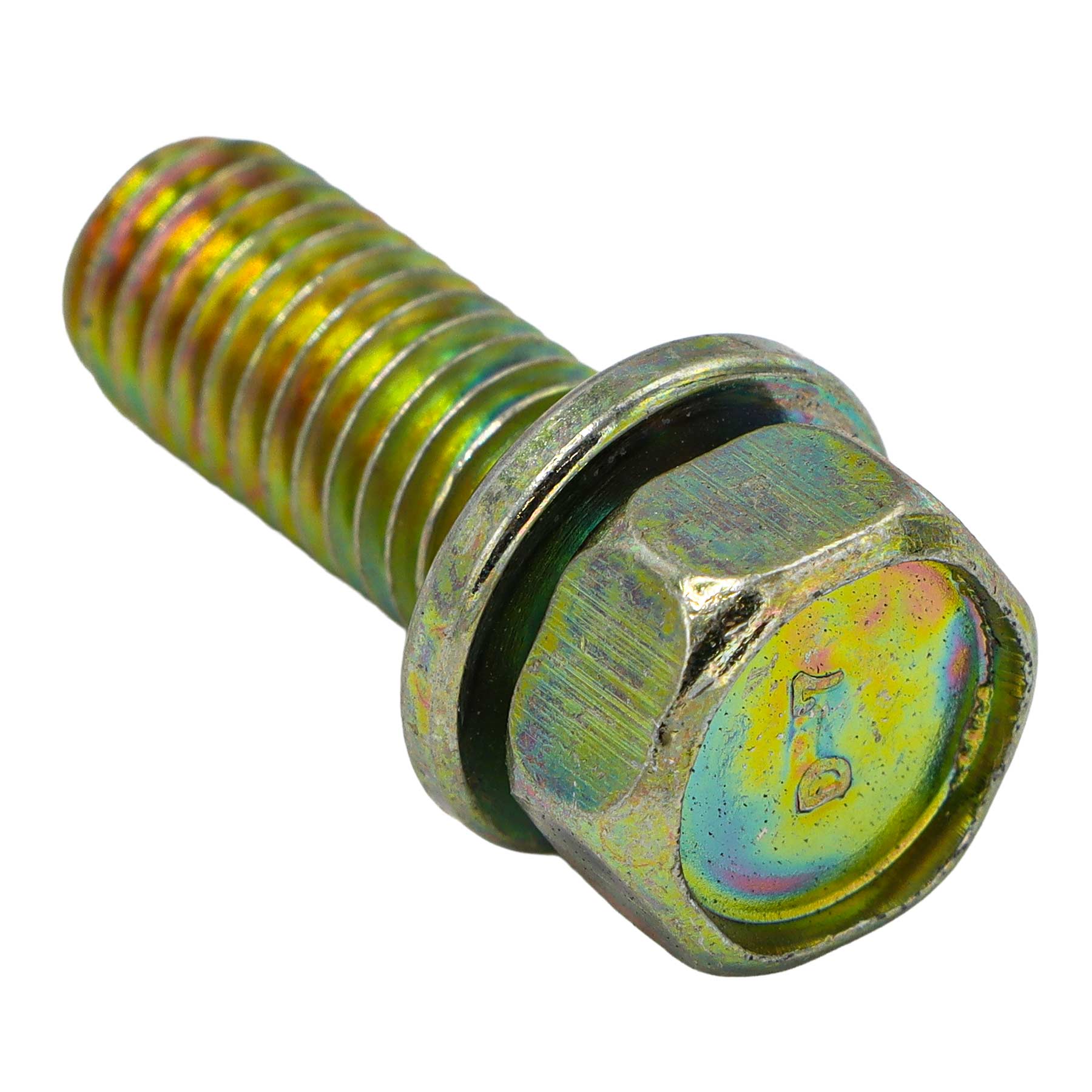

  • 1 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49
  • 3 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 1 shown on diagram
    $1.89
  • 4 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 1 shown on diagram
    $17.99
  • 5 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 6

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 2 shown on diagram
    $24.99
  • 7

    COLLAR, THRUST v

    • Part No. T2305-21762
    • T3.2
    • 1 shown on diagram
    $18.99
  • 8 SEAL CAP 52

    SEAL CAP 52

    • Part No. T2350-25421
    • 1 shown on diagram
    $7.99
  • 9 OIL SEAL

    OIL SEAL

    • Part No. T2555-29111
    • 1 shown on diagram
    $28.99
  • 10

    SHAFT, GEAR 13

    • Part No. T5815-25231
    • 1 shown on diagram
    $179.99
  • 11
    • Part No. T5815-25412
    • 1 shown on diagram
  • 12

    SHAFT, PTO

    • Part No. TC22-0057B
    • 1 shown on diagram
    $189.99
  • 13

    GEAR 58

    • Part No. TC22-0058B
    • 1 shown on diagram
    $209.99
  • 14
    • Part No. K5400-14592
    • T0.5
    • 1 shown on diagram
  • 15
    • Part No. K5400-14582
    • T0.2
    • 1 shown on diagram
  • 16

    SHIM obs v

    • Part No. K5400-14572
    • T0.1
    • 1 shown on diagram
    $3.49
