REAR DIFF LOCK GROUP - TC2-G283004

Kioti TRACTOR | CK Series | CK3520CHSEB

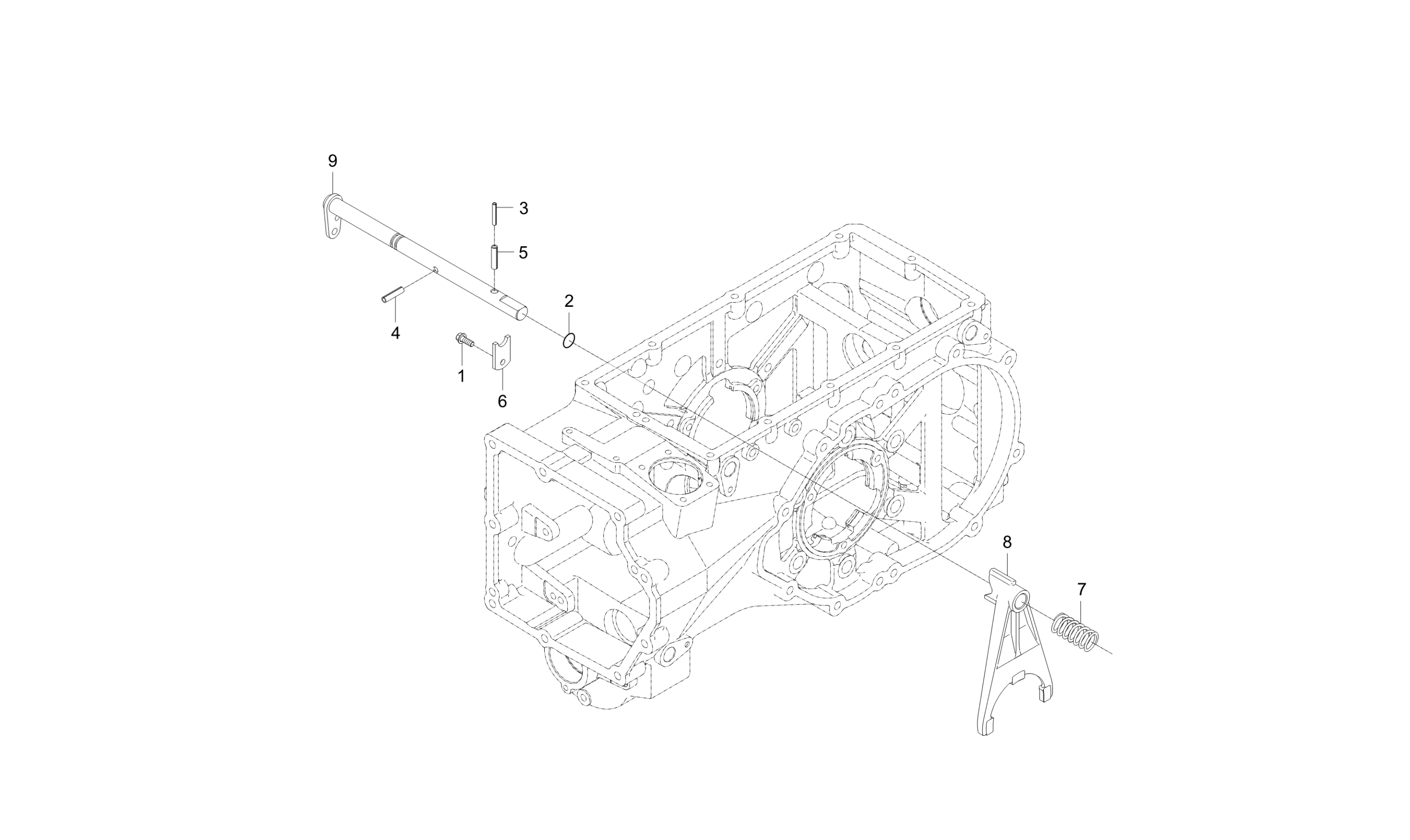

Diagram for REAR DIFF LOCK GROUP - TC2-G283004
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 2 O RING

    O RING

    • Part No. 04811-00140
    • 2 shown on diagram
    $.90

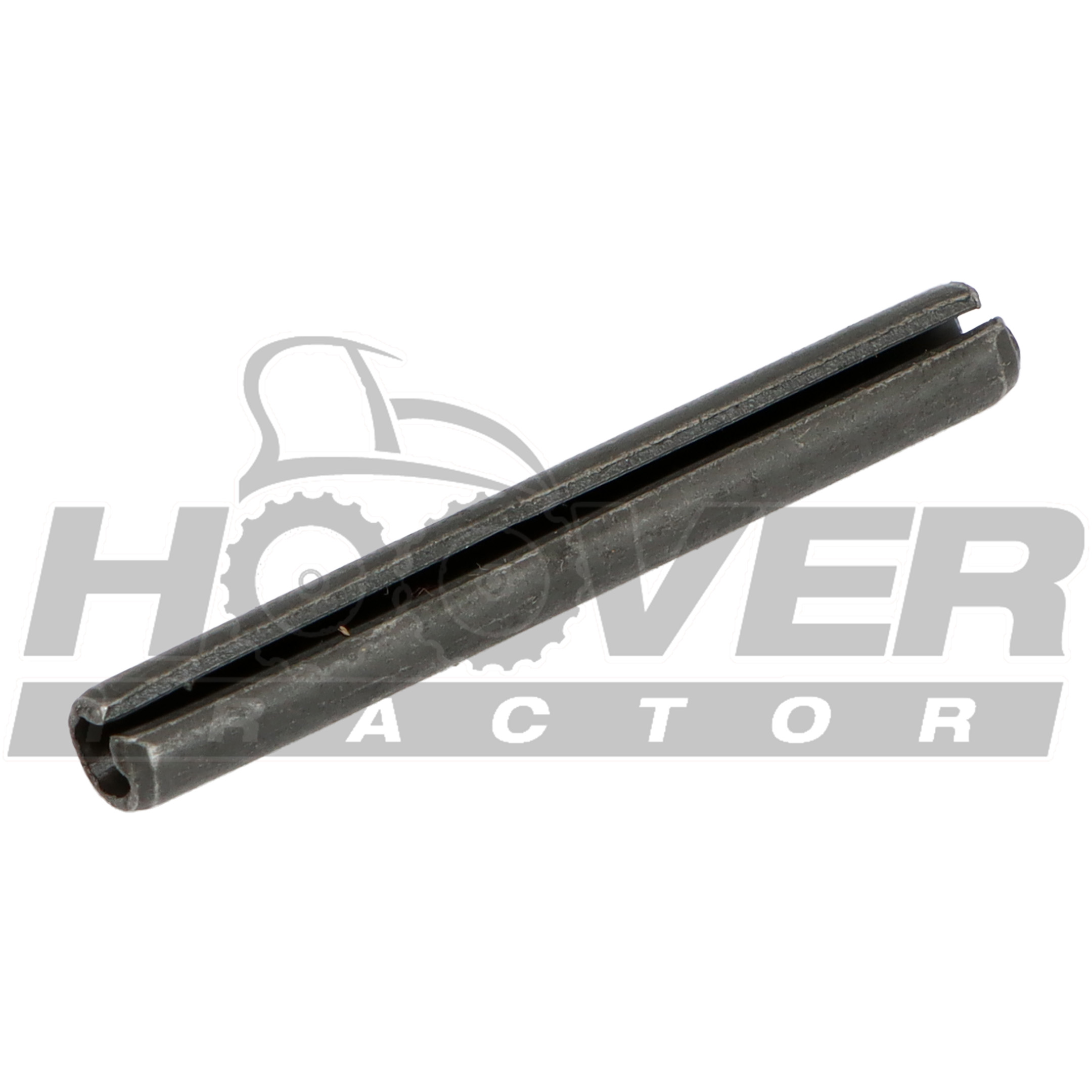

  • 3 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00540
    • 1 shown on diagram
    $0.79
  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 5 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 6

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 7

    FRICTION SPRING

    • Part No. T2555-26641
    • 1 shown on diagram
    $9.99

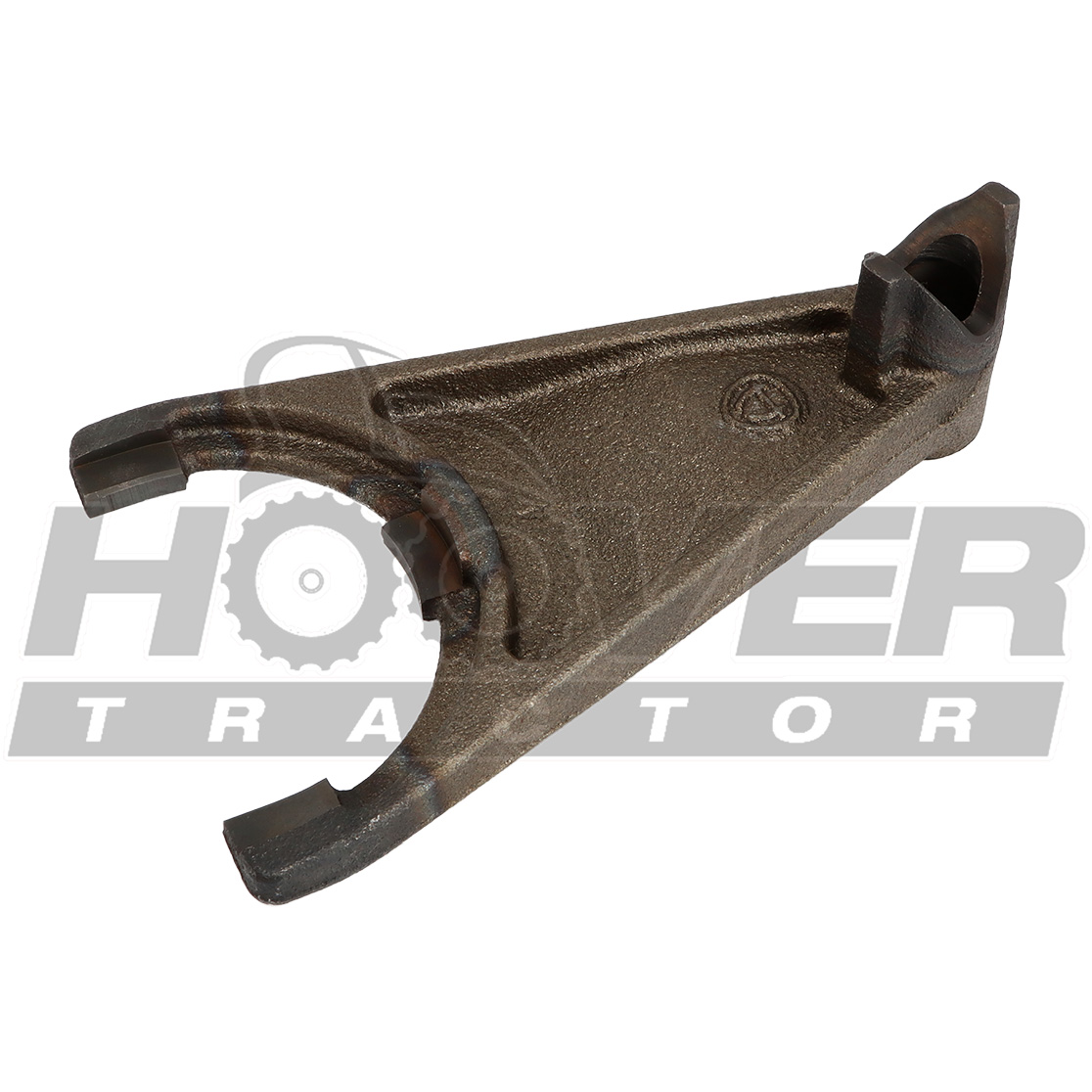

  • 8 FORK,SHAFT

    FORK,SHAFT

    • Part No. T5715-26631
    • 1 shown on diagram
    $124.99
  • 9
    • Part No. TC21-0001B
    • 1 shown on diagram
