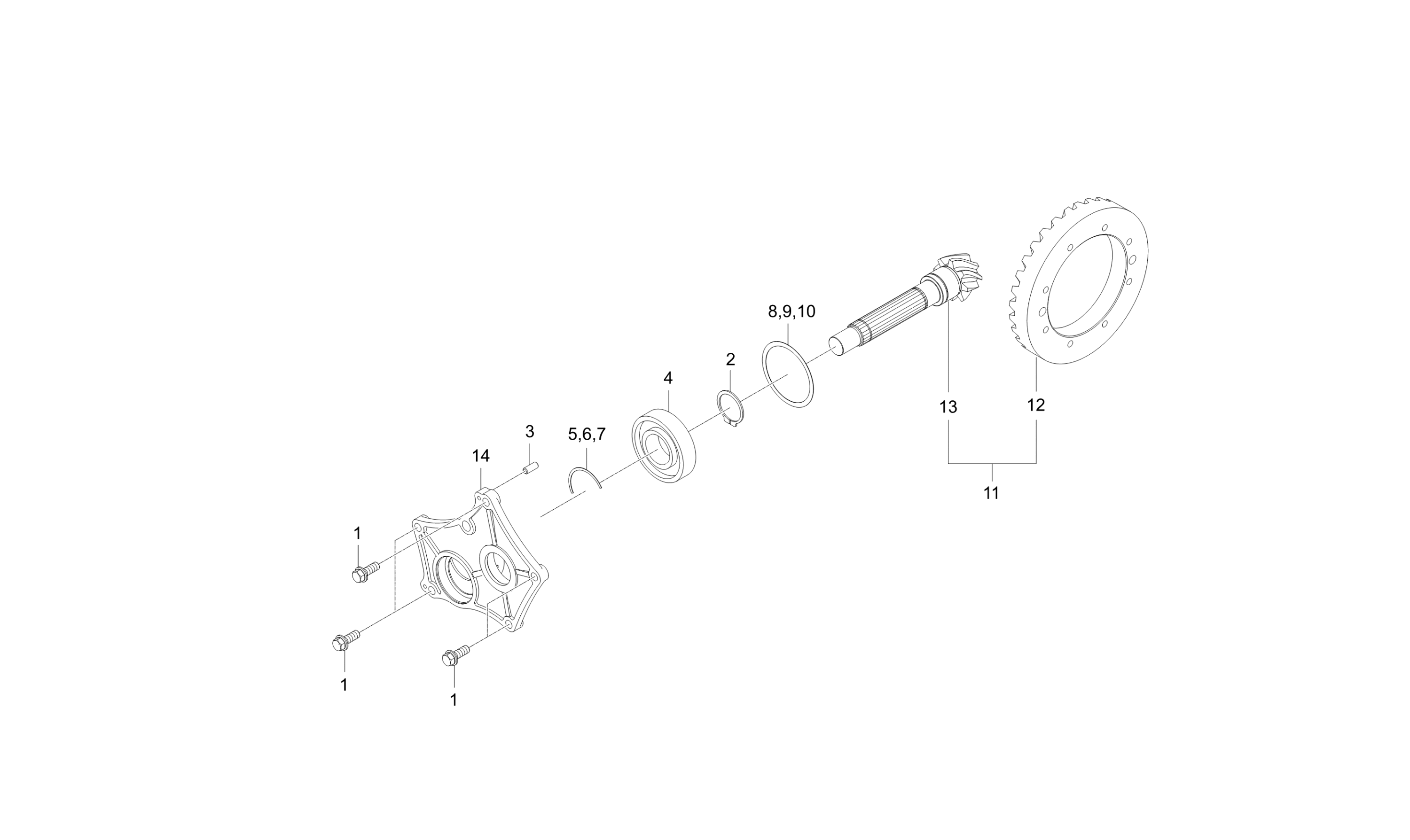

SPIRAL BEVEL PINION SHAFT GROUP - TC2-G281002

BOLT, WASHER

• Part No. 01133-51030
• M10XP1.25
• 5 shown on diagram

• Part No. 04612-00400
• 1 shown on diagram

PIN, PARALLEL

• Part No. 05012-00818
• DIA8XL18
• 2 shown on diagram

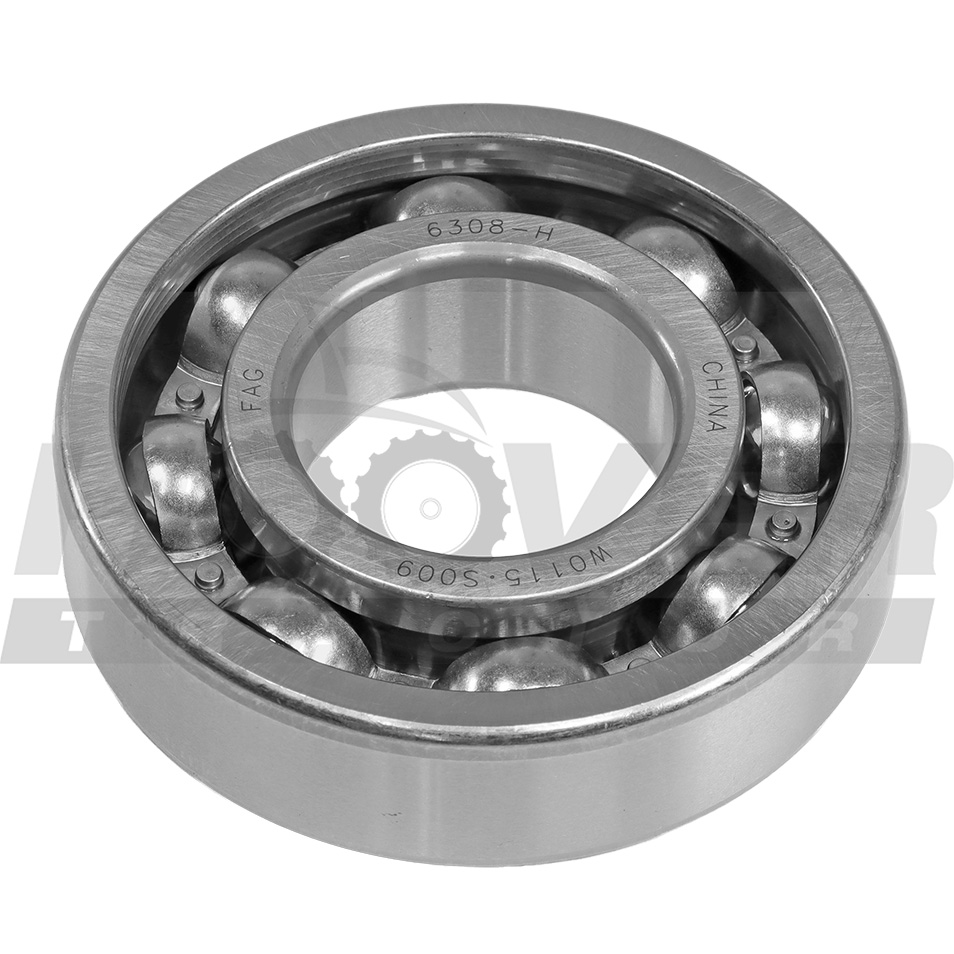

BALL BEARING #6308 40x90x23

• Part No. 08101-06308
• DIA40
• 1 shown on diagram

SHIM obs v

• Part No. K5400-14572
• T0.1
• 1 shown on diagram

• Part No. K5400-14582
• T0.2
• 1 shown on diagram

• Part No. K5400-14592
• T0.5
• 1 shown on diagram

SHIM 0.1

• Part No. T4520-44081
• T0.1
• 1 shown on diagram

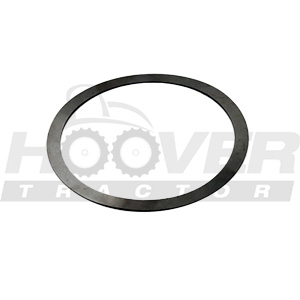

SHIM 0.2

• Part No. T4520-44091
• T0.2
• 1 shown on diagram

SHIM 0.4, Replaced by T4520-44081

• Part No. T4520-44101
• T0.4
• 1 shown on diagram

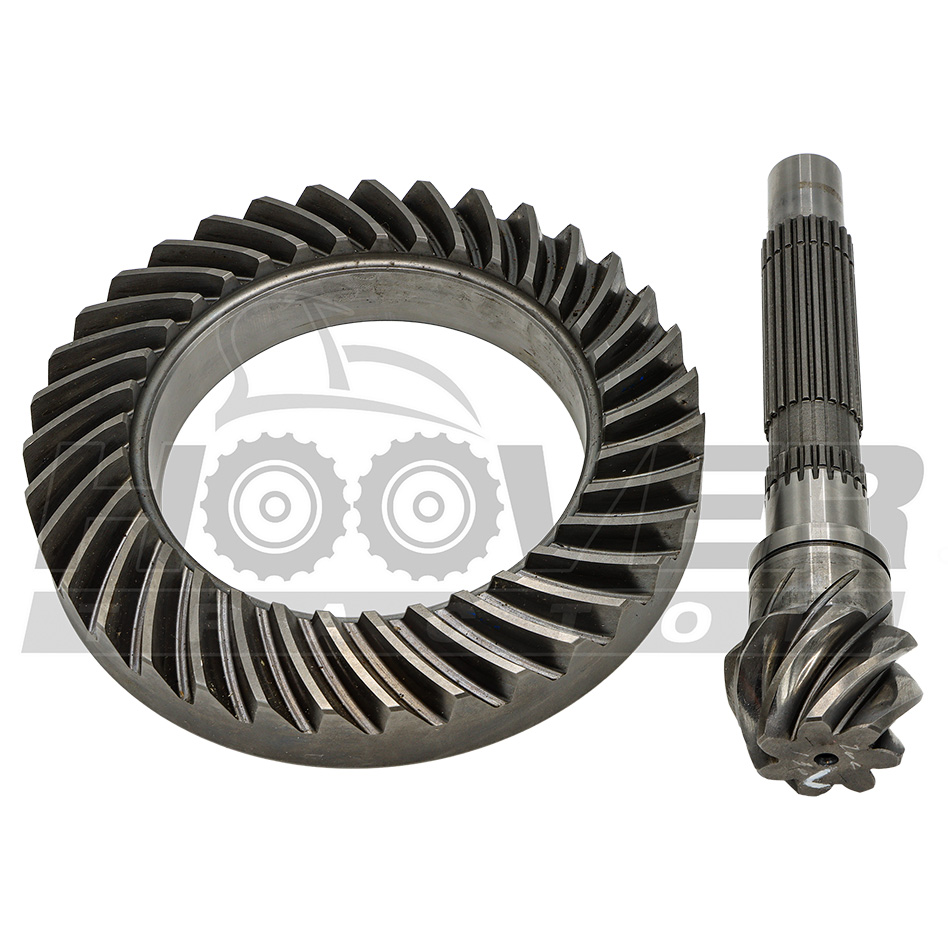

SPIRAL BEVEL GEAR ASSEMBLY

• Part No. T5815-26112
• 1 shown on diagram

GEAR,SPRIAL BEVEL 35 v

• Part No. T2185-26121
• 1 shown on diagram

PINION, SPIRAL BEVEL dnr v

• Part No. T5815-22112
• 1 shown on diagram

COVER, BEARING

• Part No. T5855-21123
• 1 shown on diagram
