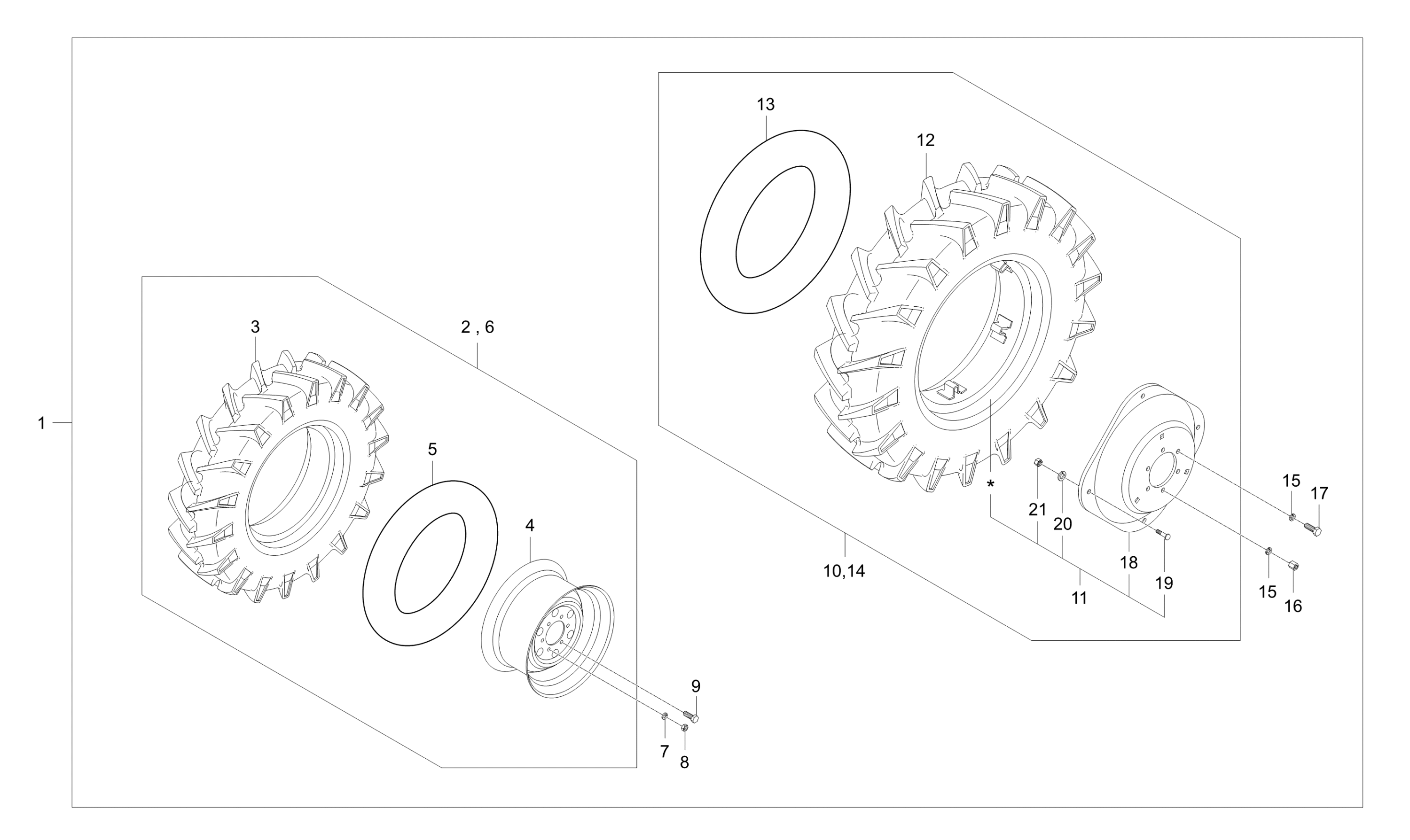

TIRE GROUP(OPTION) - TC2-G2M1001

• Part No. T5855-A3001
• 1 shown on diagram

FRONT TIER ASSY

• Part No. T5815-49401
• 45489
• 1 shown on diagram

TIRE, 7 16 7PLY FR

• Part No. T2825-43741
• 1 shown on diagram

ASSY, RIM

• Part No. T5815-49281
• 1 shown on diagram

TUBE, 8X16

• Part No. 35225-4375-2
• 38580
• 1 shown on diagram

FRONT TIER ASSY

• Part No. T5815-49451
• 45489
• 1 shown on diagram

• Part No. 04512-50120
• M12
• 4 shown on diagram

NUT M12 P1.25

• Part No. 02176-50120
• M12XP1.25
• 4 shown on diagram

BOLT, WASHER M12P1.25 X 25

• Part No. 01133-51225
• M12XP1.25
• 8 shown on diagram

ASSY WHEEL, REAR LH dnr v

• Part No. T2540-27611
• 11.2-24 4
• 1 shown on diagram

WHEEL ASSY, RR

• Part No. T2540-27722
• 1 shown on diagram

TIRE, 11.2X24 4H

• Part No. T2540-27621
• 11.2-24 4P FM2
• 1 shown on diagram

OB TUBE (11.2 x 24) obs v

• Part No. T2540-27631
• 11.2-24
• 1 shown on diagram

• Part No. T2540-27711
• 11.2-24 4
• 1 shown on diagram

WASHER, SPRING

• Part No. 04512-50160
• M16
• 12 shown on diagram

NUT M16 P1.5

• Part No. 02076-50160
• 4 shown on diagram

SCREW, M16 P1.5×30

• Part No. 01073-51630
• M16XP1.5
• 8 shown on diagram

DISK

• Part No. T4240-27672
• T8.0
• 1 shown on diagram

• Part No. 31220-2768-4
• M16P1.5*40
• 4 shown on diagram

WASHER(PLATE)

• Part No. T4620-49371
• 4 shown on diagram

NUT, LOCK

• Part No. T4260-27691
• 4 shown on diagram
