LIFT ROD GROUP(OPTION) - TC2-G6G2501

Kioti TRACTOR | CK Series | CK3520H

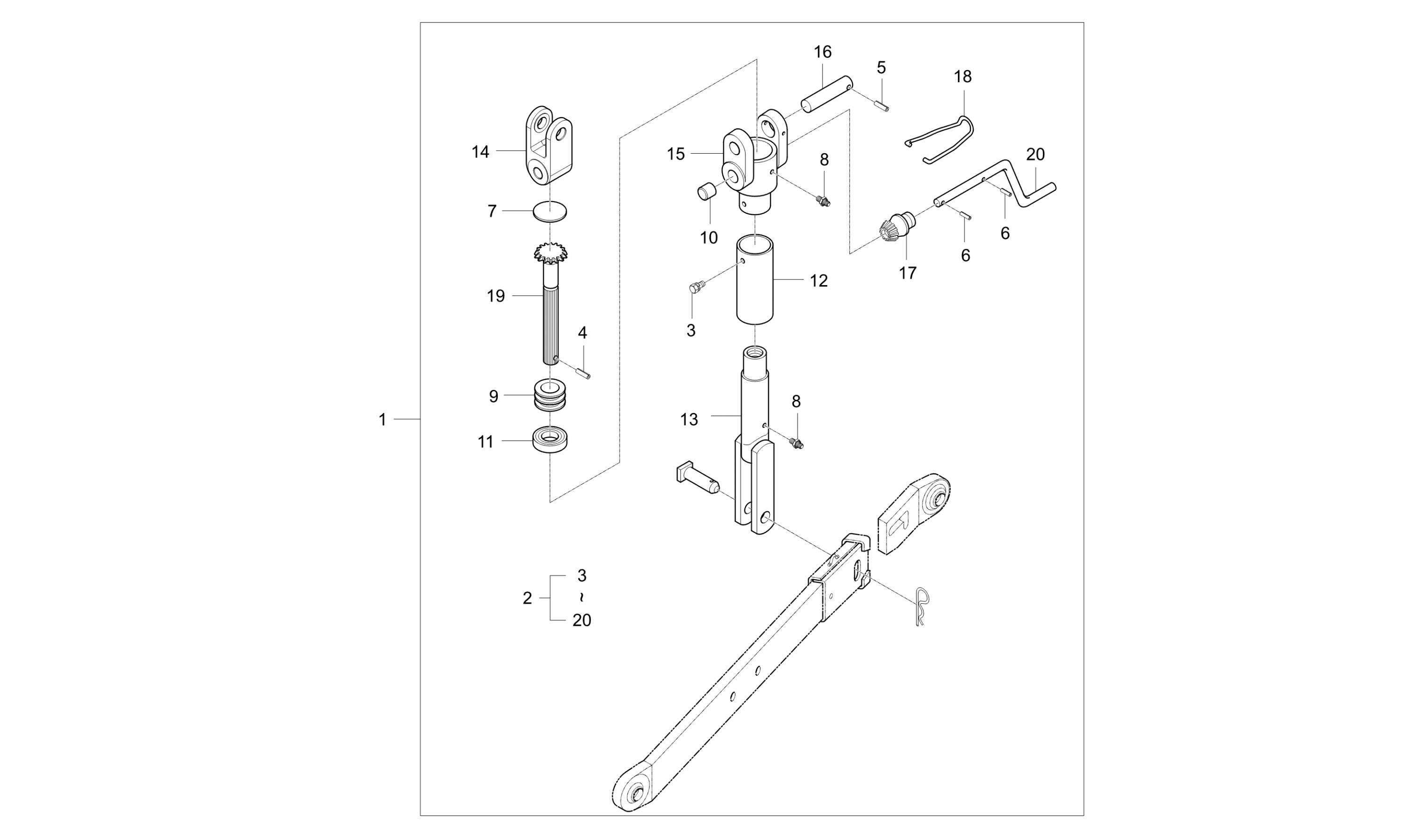

Diagram for LIFT ROD GROUP(OPTION) - TC2-G6G2501
  • 1

    LIFT ROD KIT

    • Part No. TC26-A0002A
    • 1 shown on diagram
    $209.99
  • 2

    LIFT ROD ASSY RH V

    • Part No. T2185-71613
    • 1 shown on diagram
    $389.99
  • 3
    • Part No. 01202-50612
    • 1 shown on diagram

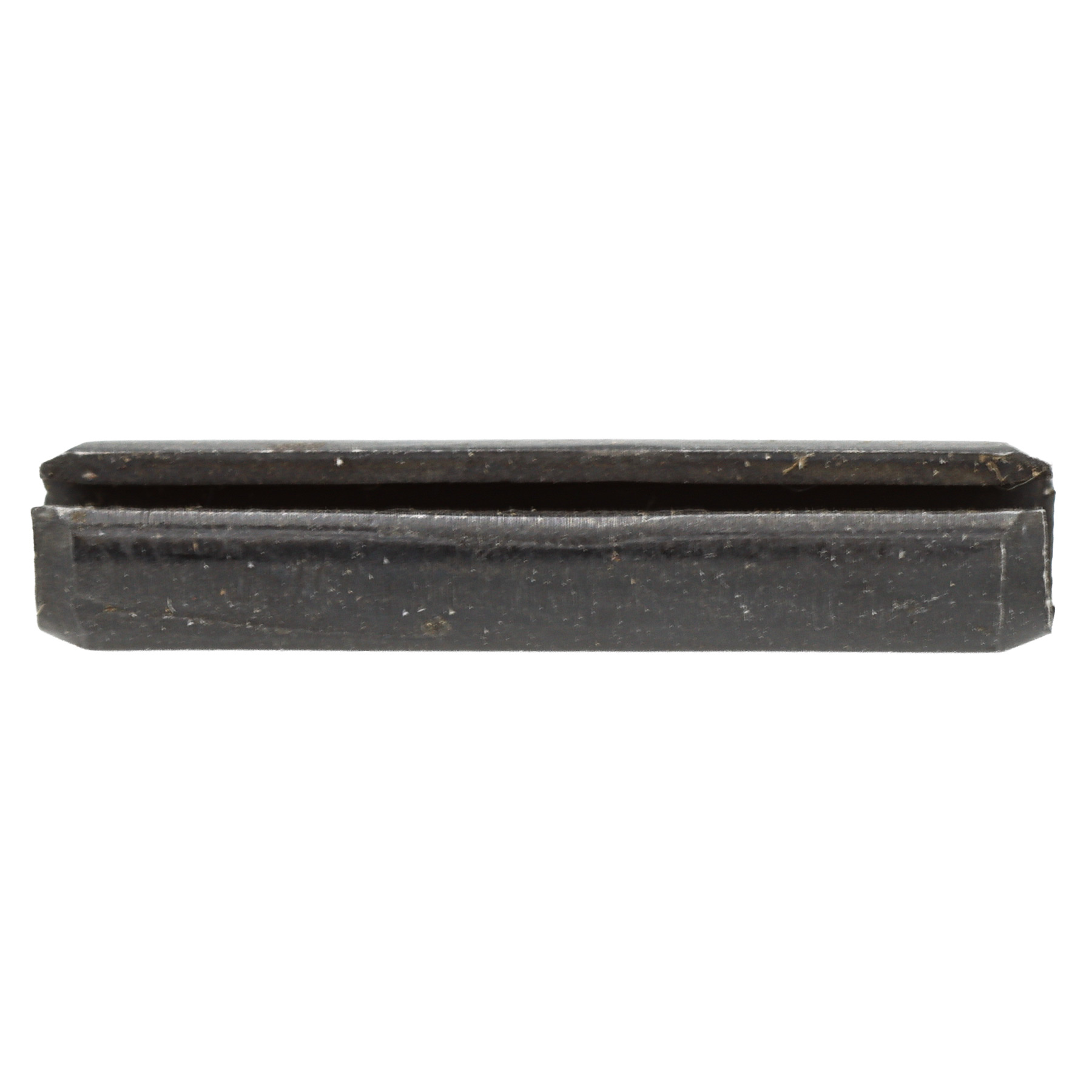

  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00420
    • DIA4.4XL20
    • 1 shown on diagram
    $0.68
  • 5

    PIN,SPRING

    • Part No. 05411-00532
    • 1 shown on diagram
    $0.79
  • 6

    PIN,SPRING

    • Part No. 05411-00622
    • 2 shown on diagram
    $0.96
  • 7

    PLUG

    • Part No. 06311-75045
    • DIA45
    • 1 shown on diagram
    $3.49
  • 8 Grease Nipple M6 P0.75

    Grease Nipple M6 P0.75

    • Part No. 06613-10675
    • M6XP0.75
    • 2 shown on diagram
    $2.49
  • 9

    SHIM (LIFT ROD CONTROL)

    • Part No. 31220-7172-1
    • T0.2
    • 3 shown on diagram
    $13.99
  • 10
    • Part No. 32244-7167-1
    • DIA21.7X17
    • 1 shown on diagram
  • 11

    THRUST BALL BEARING

    • Part No. 32294-7177-1
    • 1 shown on diagram
    $44.99
  • 12
    • Part No. 34265-7170-1
    • DIA42.7*3.5
    • 1 shown on diagram
  • 13
    • Part No. T2185-71621
    • 1 shown on diagram
  • 14
    • Part No. T2185-71631
    • 1 shown on diagram
  • 15

    GEAR CASE, LIFT ROD

    • Part No. T2185-71641
    • 1 shown on diagram
    $109.99
  • 16

    PIN, LIFT ROD

    • Part No. T2185-71651
    • 1 shown on diagram
    $56.99
  • 17

    ADJUST GEAR 2, LIFT ROD

    • Part No. T2185-71661
    • 1 shown on diagram
    $49.99
  • 18
    • Part No. T2185-71671
    • 1 shown on diagram
  • 19

    GEAR, 1 LIFT ROD ADJUST

    • Part No. T2185-71691
    • 1 shown on diagram
    $83.99
  • 20

    HANDLE

    • Part No. T4340-71661
    • DIA12
    • 1 shown on diagram
    $19.99
