DOUBLE ACTING VALVE GROUP - TC2-G446021

Kioti TRACTOR | CK Series | CK3520H

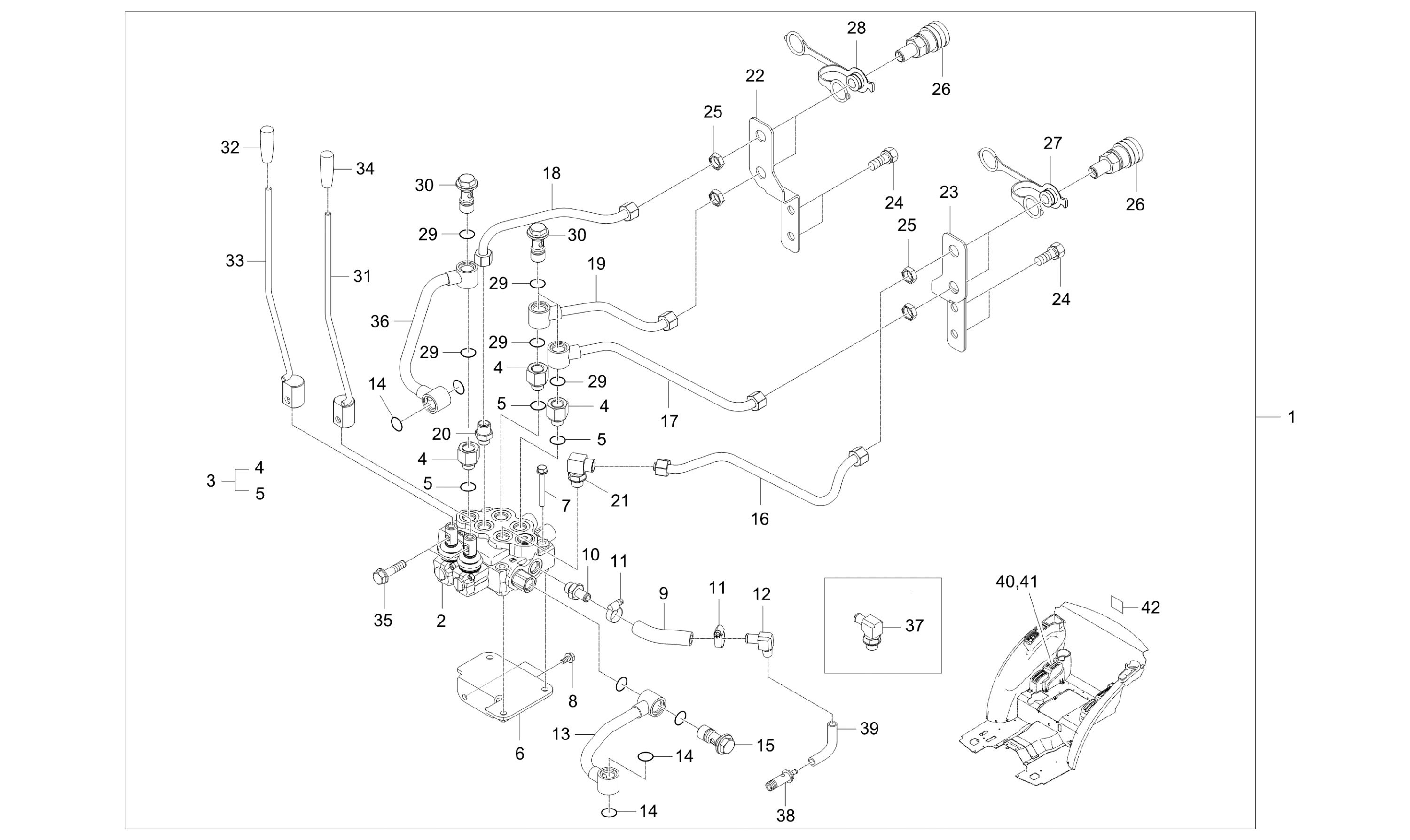

Diagram for DOUBLE ACTING VALVE GROUP - TC2-G446021
  • 1

    DOUBLE ACTING VALVE KIT(DETENT&SPRING)

    • Part No. TC24-A0022D
    • 1 shown on diagram
    $.00
  • 2

    ASSY VALVE, DOUBLE ACTING DS v

    • Part No. TC24-0241B
    • 1 shown on diagram
    $619.99
  • 3 CONNECTION

    CONNECTION

    • Part No. T5855-47091
    • 3 shown on diagram
    $27.99
  • 4

    BODY

    • Part No. T5855-47091001
    • 1 shown on diagram
    $.00
  • 5 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $.90
  • 6

    BRACKET, VALVE

    • Part No. T5810-48013
    • 1 shown on diagram
    $89.99
  • 7

    Bolt With Washer, M8 P1.25 x 60mm

    • Part No. 01123-50860
    • M8XP1.25
    • 3 shown on diagram
    $3.49
  • 8 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09

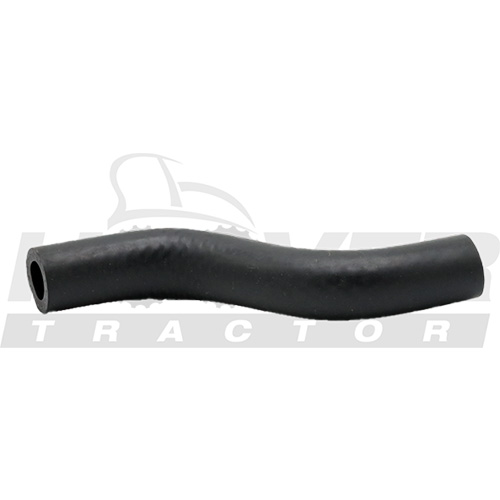

  • 9 DRAIN HOSE

    DRAIN HOSE

    • Part No. TC24-0078A
    • 1 shown on diagram
    $8.49
  • 10

    CONNECTOR

    • Part No. T4715-47071
    • 1 shown on diagram
    $17.99
  • 11

    BAND, HOSE

    • Part No. F6800-91851
    • 12-22mm
    • 2 shown on diagram
    $1.89
  • 12

    ELBOW

    • Part No. T2185-66151
    • 1 shown on diagram
    $17.99
  • 13

    AUX HYD TUBE

    • Part No. T5810-48053
    • 1 shown on diagram
    $134.99
  • 14 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 4 shown on diagram
    $3.99
  • 15 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • 1 shown on diagram
    $21.99
  • 16

    AUX HYD TUBE

    • Part No. T5810-48062
    • 1 shown on diagram
    $96.99

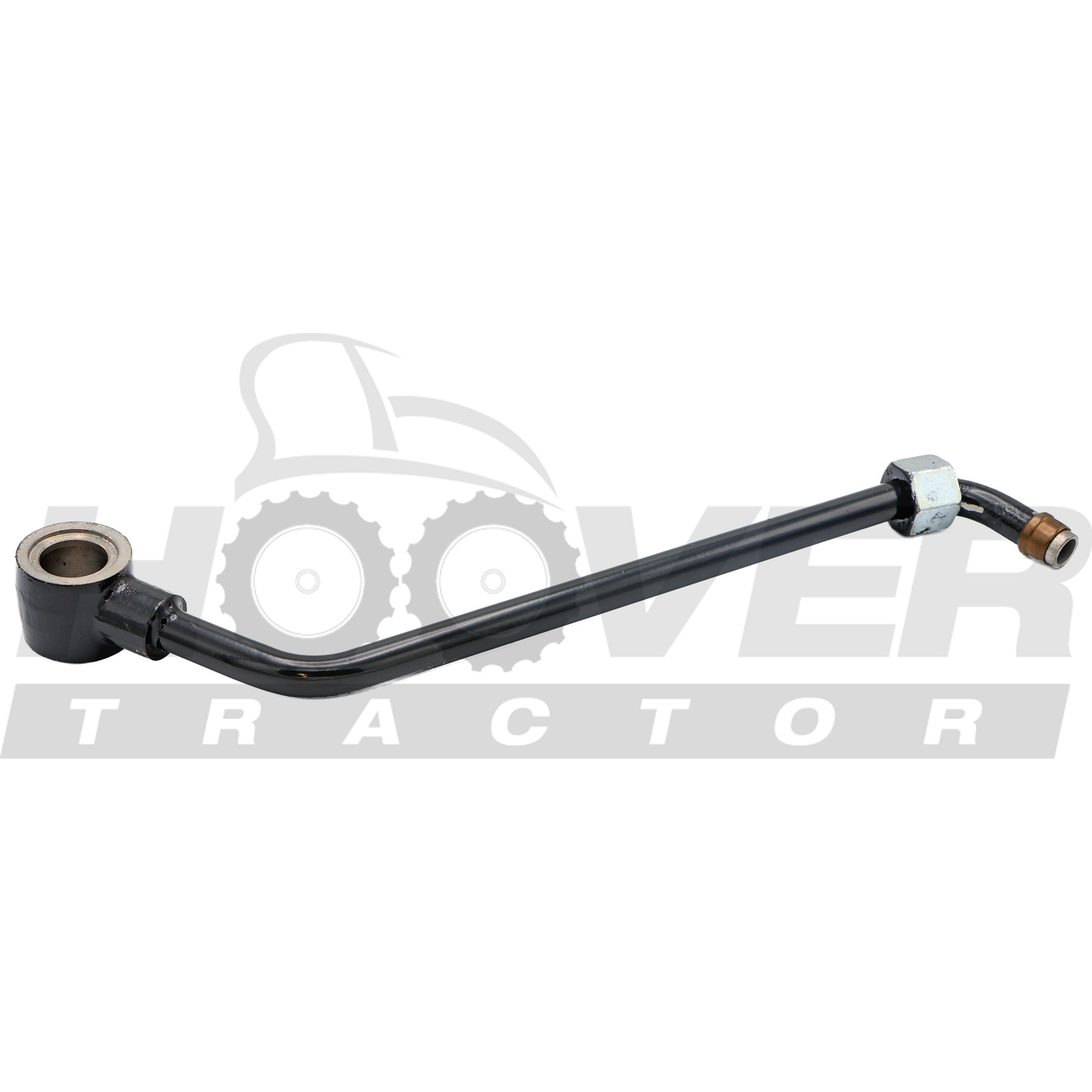

  • 17 AUX HYD TUBE

    AUX HYD TUBE

    • Part No. T5810-48072
    • 1 shown on diagram
    $114.99
  • 18 AUX HYD TUBE

    AUX HYD TUBE

    • Part No. T5810-48082
    • 1 shown on diagram
    $85.99

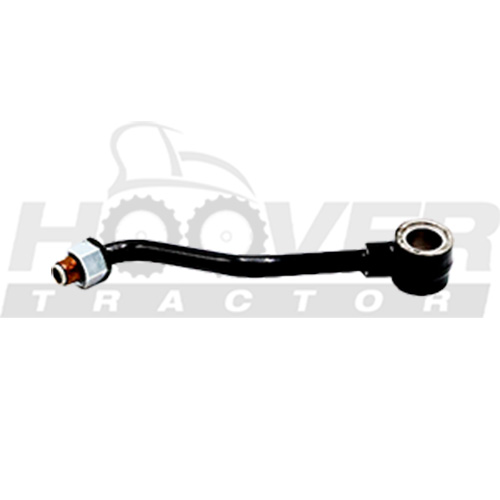

  • 19 AUX HYD TUBE

    AUX HYD TUBE

    • Part No. T5810-48092
    • 1 shown on diagram
    $109.99
  • 20

    CONNECTOR v

    • Part No. T4810-47131
    • 1 shown on diagram
    $23.99
  • 21

    ELBOW

    • Part No. T4810-45761
    • 1 shown on diagram
    $42.99
  • 22
    • Part No. T5810-48022
    • 1 shown on diagram
  • 23
    • Part No. T5810-48121
    • 3.2T
    • 1 shown on diagram
  • 24 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 4 shown on diagram
    $3.49

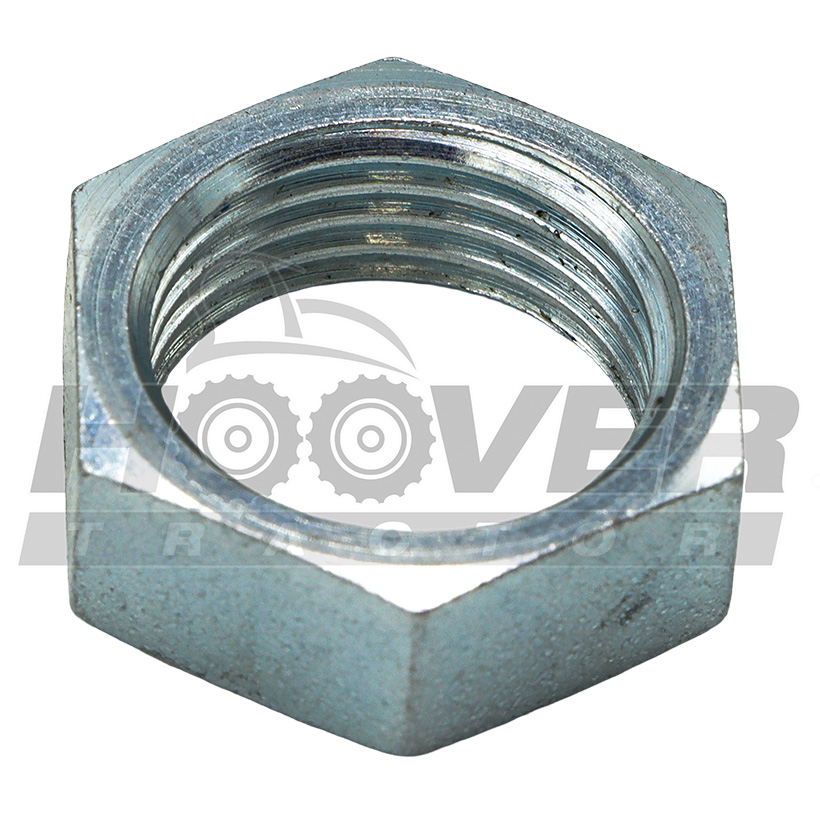

  • 25 NUT

    NUT

    • Part No. T4930-47071
    • M18XP1.5
    • 4 shown on diagram
    $3.49

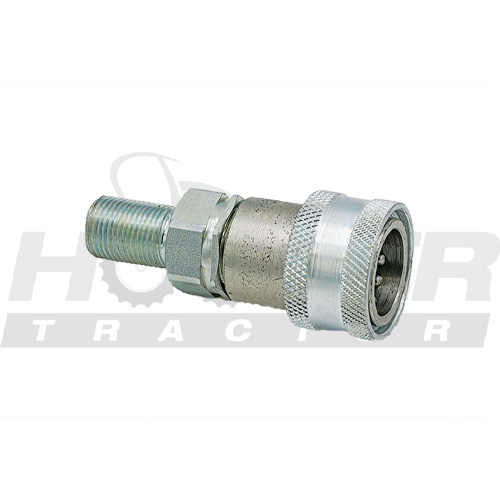

  • 26 COUPLER, QUICK

    COUPLER, QUICK

    • Part No. TD24-0159A
    • 4 shown on diagram
    $59.99
  • 27

    CAP, COUPLER SOCKET-1/2

    • Part No. TF14-0122A
    • 45293
    • 2 shown on diagram
    $4.49
  • 28

    CAP, COUPLER SOCKET-1/2

    • Part No. TF14-0123A
    • 45293
    • 2 shown on diagram
    $4.99
  • 29 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 6 shown on diagram
    $3.99
  • 30 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • 3 shown on diagram
    $21.99
  • 31

    LEVER, DOUBLE ACTING

    • Part No. T5855-57012
    • 1 shown on diagram
    $46.99

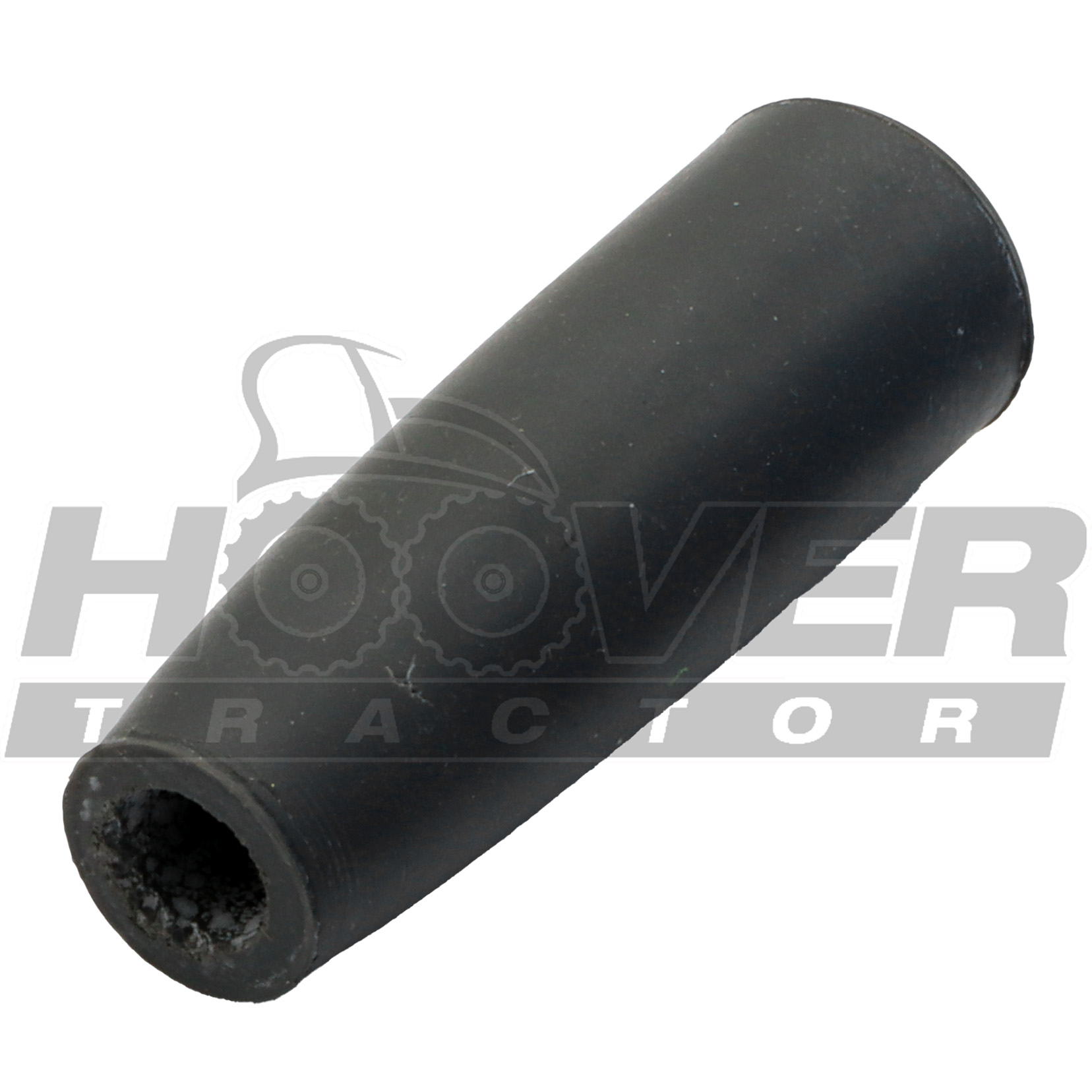

  • 32 GRIP, GRAY v

    GRIP, GRAY v

    • Part No. T2660-71222
    • 1 shown on diagram
    $5.99
  • 33

    LEVER, DOUBLE ACTING

    • Part No. T5855-57022
    • 1 shown on diagram
    $46.99
  • 34 GRIP, DARK BLUE CK2610

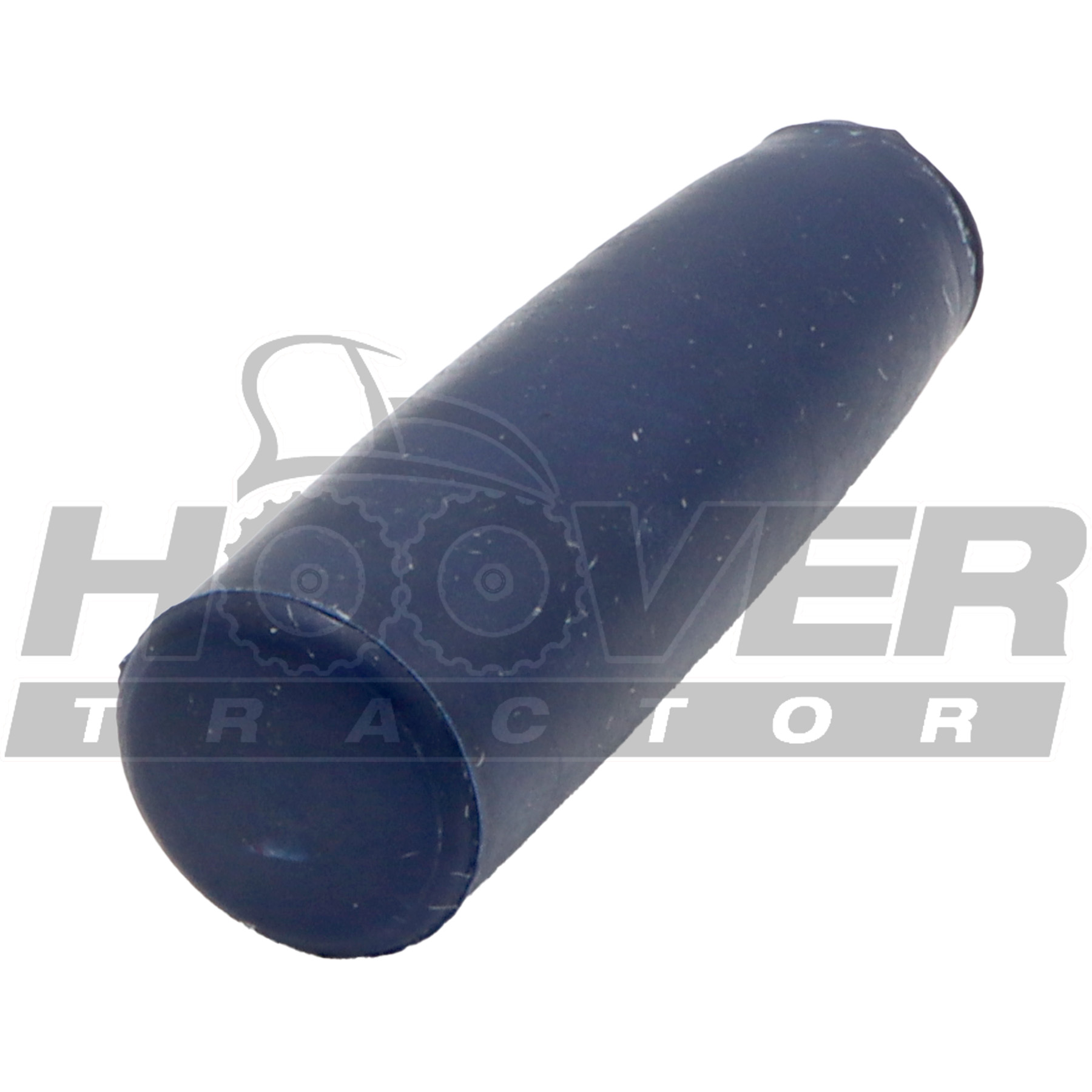

    GRIP, DARK BLUE CK2610

    • Part No. T2660-71242
    • 1 shown on diagram
    $5.99
  • 35

    Bolt With Washer, M10 P1.50 x 30mm

    • Part No. 01123-51030
    • M10*1.5
    • 2 shown on diagram
    $3.49
  • 36

    AUX HYD TUBE

    • Part No. T5857-48522
    • 1 shown on diagram
    $124.99

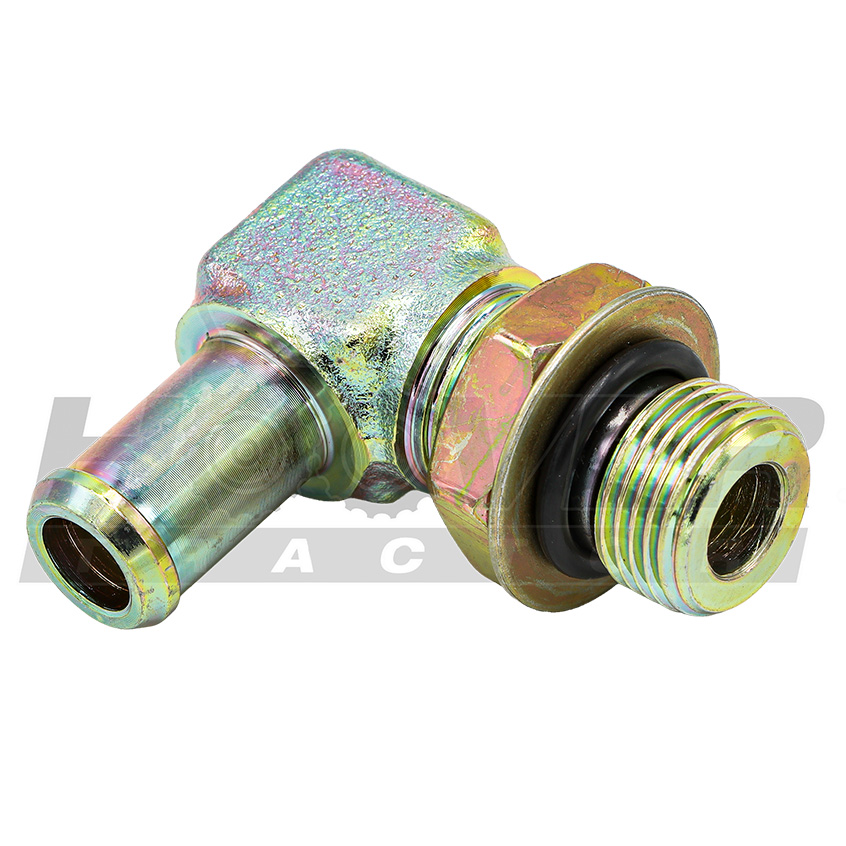

  • 37 ELBOW

    ELBOW

    • Part No. T4876-45162
    • 1 shown on diagram
    $26.99
  • 38
    • Part No. TC24-0075A
    • 1 shown on diagram

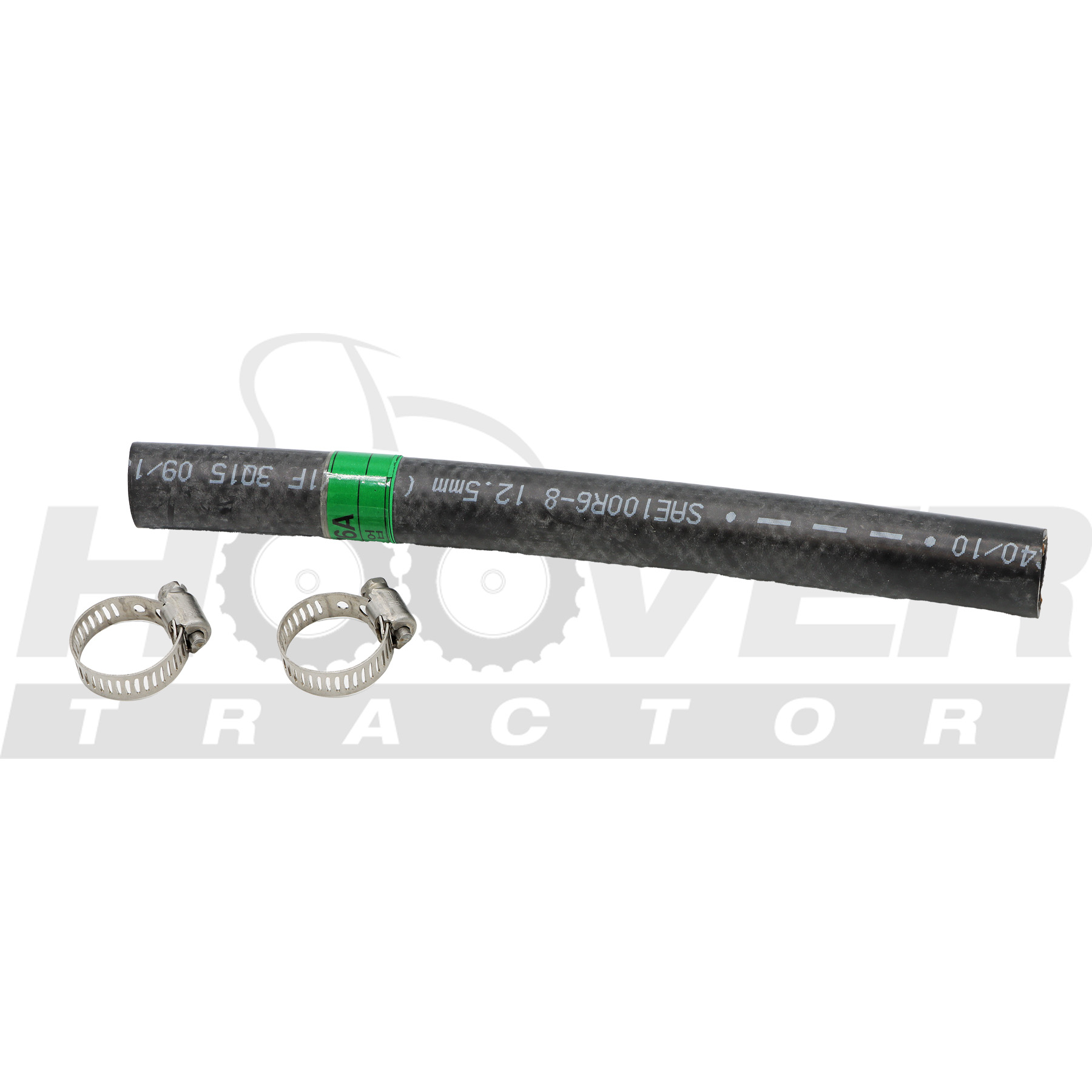

  • 39 HOSE, HYD-T v

    HOSE, HYD-T v

    • Part No. TC24-0076A
    • 1 shown on diagram
    $13.99
  • 40 LABEL, DOUBLE ACTING LEVER v

    LABEL, DOUBLE ACTING LEVER v

    • Part No. TC26-1090A
    • 1 shown on diagram
    $2.49
  • 41

    LABEL, DOUBLE ACTING LEVER

    • Part No. TC26-1091A
    • 1 shown on diagram
    $2.49
  • 42
    • Part No. T2615-52131
    • 1 shown on diagram
