DOUBLE ACTING VALVE GROUP (SPRING) - TC2-G446006

Kioti TRACTOR | CK Series | CK3520H

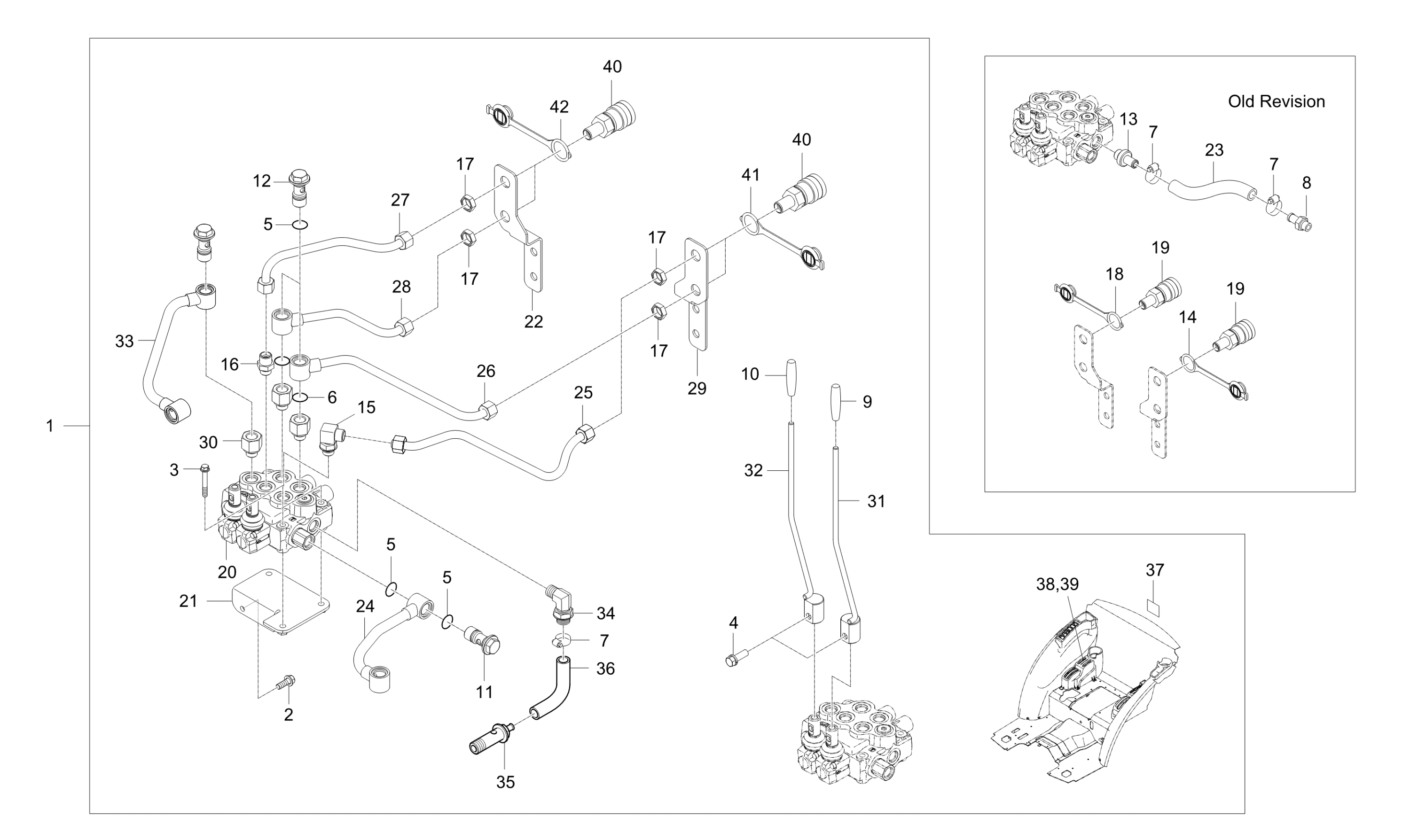

Diagram for DOUBLE ACTING VALVE GROUP (SPRING) - TC2-G446006
  • 1

    DOUBLE ACTING VALVE KIT(SPRING)

    • Part No. TC24-A0004M
    • 1 shown on diagram
    $.00
  • 2 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 3

    Bolt With Washer, M8 P1.25 x 60mm

    • Part No. 01123-50860
    • M8XP1.25
    • 3 shown on diagram
    $3.49
  • 4

    Bolt With Washer, M10 P1.50 x 30mm

    • Part No. 01123-51030
    • M10*1.5
    • 2 shown on diagram
    $3.49
  • 5 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 4 shown on diagram
    $3.99
  • 6 O-RING

    O-RING

    • Part No. 04817-00200
    • DIA19.8
    • 6 shown on diagram
    $3.99
  • 7

    BAND, HOSE

    • Part No. F6800-91851
    • 12-22mm
    • 2 shown on diagram
    $1.89
  • 8

    ELBOW

    • Part No. T2185-66151
    • 1 shown on diagram
    $17.99
  • 9

    GRIP GRAY dnr v

    • Part No. T2660-71221
    • 1 shown on diagram
    $3.99
  • 10

    GRIP, DARK BLUE

    • Part No. T2660-71241
    • 1 shown on diagram
    $3.99
  • 11 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • 1 shown on diagram
    $21.99
  • 12 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • 3 shown on diagram
    $21.99
  • 13

    CONNECTOR

    • Part No. T4715-47071
    • 1 shown on diagram
    $17.99
  • 14

    DUST-CAP

    • Part No. T4720-90081
    • 2 shown on diagram
    $5.49
  • 15

    ELBOW

    • Part No. T4810-45761
    • 1 shown on diagram
    $42.99
  • 16

    CONNECTOR v

    • Part No. T4810-47131
    • 1 shown on diagram
    $23.99
  • 17 NUT

    NUT

    • Part No. T4930-47071
    • M18XP1.5
    • 4 shown on diagram
    $3.49
  • 18

    CAP, SOCKET

    • Part No. T5520-90071
    • 45293
    • 2 shown on diagram
    $4.49
  • 19

    COUPLER,SELF-SEALING,AC,1-1-4 v

    • Part No. T5710-30091
    • 4 shown on diagram
    $86.99
  • 20

    Double Acting Valve

    • Part No. T5810-48003
    • 1 shown on diagram
    $844.99
  • 21

    BRACKET, VALVE

    • Part No. T5810-48013
    • 1 shown on diagram
    $89.99

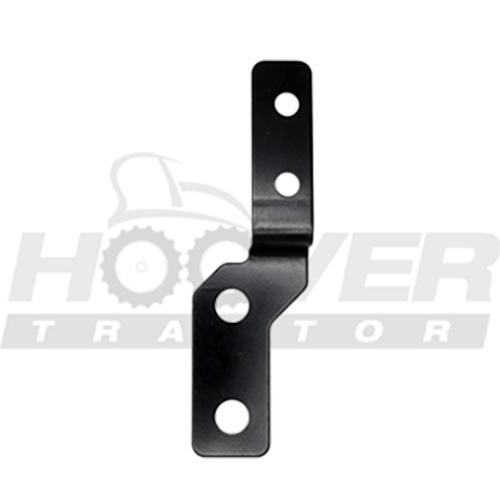

  • 22 SUPPORT, SOCKET LEFT SIDE

    SUPPORT, SOCKET LEFT SIDE

    • Part No. T5810-48022
    • 1 shown on diagram
    $29.99
  • 23 DRAIN HOSE

    DRAIN HOSE

    • Part No. TC24-0078A
    • 1 shown on diagram
    $8.49
  • 24

    AUX HYD TUBE

    • Part No. T5810-48053
    • 1 shown on diagram
    $134.99
  • 25

    AUX HYD TUBE

    • Part No. T5810-48062
    • 1 shown on diagram
    $96.99
  • 26 AUX HYD TUBE

    AUX HYD TUBE

    • Part No. T5810-48072
    • 1 shown on diagram
    $114.99
  • 27 AUX HYD TUBE

    AUX HYD TUBE

    • Part No. T5810-48082
    • 1 shown on diagram
    $85.99
  • 28 AUX HYD TUBE

    AUX HYD TUBE

    • Part No. T5810-48092
    • 1 shown on diagram
    $109.99
  • 29

    SUPPORT, SOCKET RIGHT SIDE, Replaced by T5810-48121BB

    • Part No. T5810-48121
    • 3.2T
    • 1 shown on diagram
    $26.99
  • 30 CONNECTION

    CONNECTION

    • Part No. T5855-47091
    • 3 shown on diagram
    $27.99
  • 31

    LEVER, DOUBLE ACTING

    • Part No. T5855-57012BB
    • 1 shown on diagram
    $.00
  • 32

    LEVER, DOUBLE ACTING

    • Part No. T5855-57022BB
    • 1 shown on diagram
    $.00
  • 33

    AUX HYD TUBE

    • Part No. T5857-48522
    • 1 shown on diagram
    $124.99
  • 34 ELBOW

    ELBOW

    • Part No. T4876-45162
    • 1 shown on diagram
    $26.99
  • 35 BOLT, JOINT-T v

    BOLT, JOINT-T v

    • Part No. TC24-0075A
    • 1 shown on diagram
    $39.99
  • 36 HOSE, HYD-T v

    HOSE, HYD-T v

    • Part No. TC24-0076A
    • 1 shown on diagram
    $13.99
  • 37

    LABEL COUPLER SOCKET

    • Part No. T2615-52131
    • 1 shown on diagram
    $3.99
  • 38 LABEL, DOUBLE ACTING LEVER v

    LABEL, DOUBLE ACTING LEVER v

    • Part No. TC26-1090A
    • 1 shown on diagram
    $2.49
  • 39

    LABEL, DOUBLE ACTING LEVER

    • Part No. TC26-1091A
    • 1 shown on diagram
    $2.49
  • 40 COUPLER, QUICK

    COUPLER, QUICK

    • Part No. TD24-0159A
    • 4 shown on diagram
    $59.99
  • 41

    CAP, COUPLER SOCKET-1/2

    • Part No. TF14-0122A
    • 45293
    • 2 shown on diagram
    $4.49
  • 42

    CAP, COUPLER SOCKET-1/2

    • Part No. TF14-0123A
    • 45293
    • 2 shown on diagram
    $4.99
