RPM LINKED GROUP(OPTION) - TC2-G6G2704

Kioti TRACTOR | CK Series | CK3520H

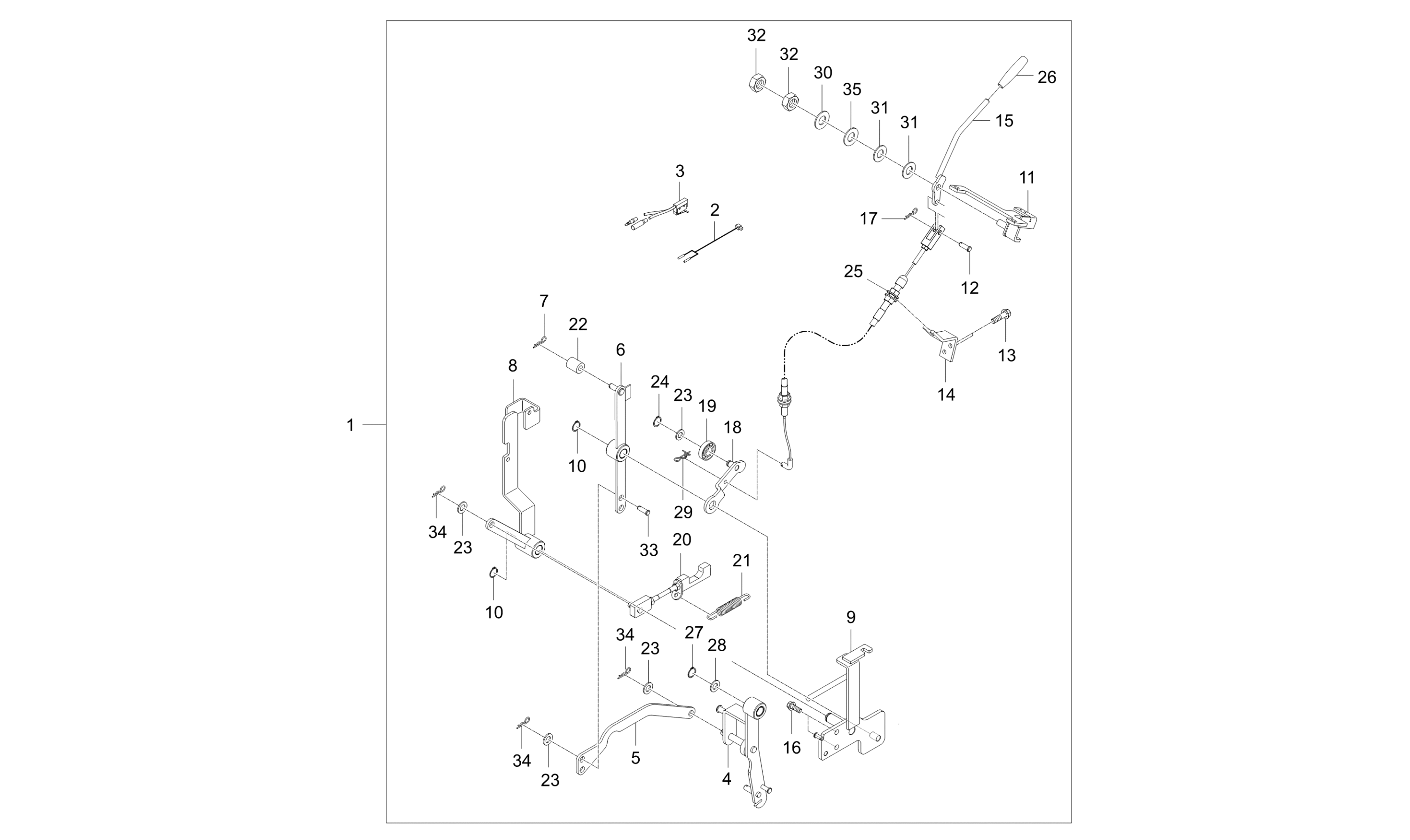

Diagram for RPM LINKED GROUP(OPTION) - TC2-G6G2704
  • 1
    • Part No. T5855-A5026
    • 1 shown on diagram
  • 2

    WIRE, CONNECTION

    • Part No. T5855-69461
    • 1 shown on diagram
    $13.99
  • 3 MICRO SWITCH N/C

    MICRO SWITCH N/C

    • Part No. T2198-68811
    • DC30V 3A
    • 1 shown on diagram
    $64.99
  • 4

    BRACKET, HST BEARING HOLDER

    • Part No. T5855-91416
    • 1 shown on diagram
    $109.99
  • 5
    • Part No. T5855-91422
    • T4.5
    • 1 shown on diagram
  • 6

    CONNECTING LEVER v

    • Part No. T5855-91433BB
    • 1 shown on diagram
    $72.99
  • 7
    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
  • 8

    ARM, CONNECTING

    • Part No. T5855-91442BB
    • 1 shown on diagram
    $88.99
  • 9

    BRACKE, HINGE

    • Part No. T5855-91452BB
    • 1 shown on diagram
    $89.99
  • 10

    CIR CLIP, EXTERNAL

    • Part No. 04612-00150
    • DIA15
    • 2 shown on diagram
    $0.73
  • 11

    BRACKET, LEVER

    • Part No. T5855-91472
    • 1 shown on diagram
    $72.99
  • 12

    Pin, Joint M6x16mm

    • Part No. 05122-50616
    • DIA6XL16
    • 1 shown on diagram
    $2.49
  • 13

    BOLT, FLANGE

    • Part No. 01754-50620
    • M6XP1.0
    • 2 shown on diagram
    $1.29
  • 14
    • Part No. T5855-91481
    • T4.5
    • 1 shown on diagram
  • 15

    LEVER v

    • Part No. T5855-91492
    • 1 shown on diagram
    $29.99
  • 16

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 17

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 18

    LEVER

    • Part No. T5855-91462
    • 1 shown on diagram
    $27.99
  • 19 BEARING(NCX)

    BEARING(NCX)

    • Part No. 08141-06200
    • 1 shown on diagram
    $15.99
  • 20

    CONNECTING ROD

    • Part No. T5855-91503
    • 1 shown on diagram
    $144.99
  • 21 SPRING, DIFF.LOCK PEDAL

    SPRING, DIFF.LOCK PEDAL

    • Part No. T2305-26641
    • DIA1.2
    • 1 shown on diagram
    $5.99
  • 22

    SPACER

    • Part No. T5710-81071002
    • DIA14 / L=15
    • 1 shown on diagram
    $5.99
  • 23

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 4 shown on diagram
    $.67
  • 24

    RING,SNAP

    • Part No. 04612-00100
    • DIA10
    • 1 shown on diagram
    $0.67
  • 25

    CABLE

    • Part No. T5855-91511
    • 1 shown on diagram
    $67.99
  • 26

    GRIP

    • Part No. T2368-33192
    • 1 shown on diagram
    $4.49

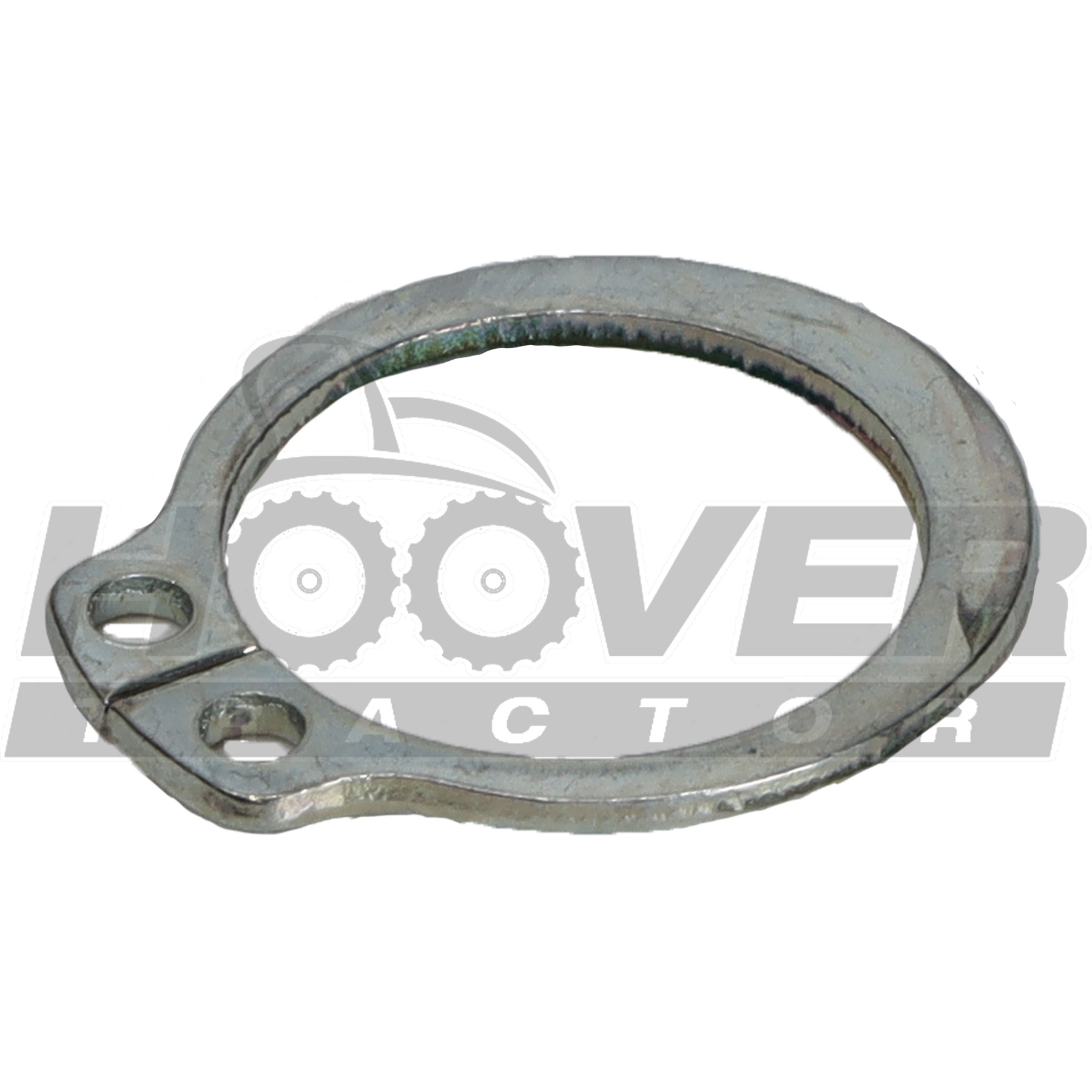

  • 27 RING,SNAP

    RING,SNAP

    • Part No. 04612-00140
    • DIA14
    • 1 shown on diagram
    $0.55
  • 28 Flat Washer M14

    Flat Washer M14

    • Part No. 04011-50140
    • M14
    • 1 shown on diagram
    $1.19
  • 29

    CIR CLIP

    • Part No. 52300-3411-1
    • DIA1.2
    • 1 shown on diagram
    $1.49
  • 30 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
  • 31 SPRING WASHER

    SPRING WASHER

    • Part No. T4668-83301
    • 2 shown on diagram
    $1.69
  • 32 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 33

    Pin, Joint M10x18mm

    • Part No. 05122-51018
    • DIA10XL18
    • 1 shown on diagram
    $2.99
  • 34

    PIN, SNAP

    • Part No. 05525-51000
    • DIA10
    • 3 shown on diagram
    $1.29
  • 35 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
