MID PTO LEVER GROUP - TC2-G643403

Kioti TRACTOR | CK Series | CK3520H

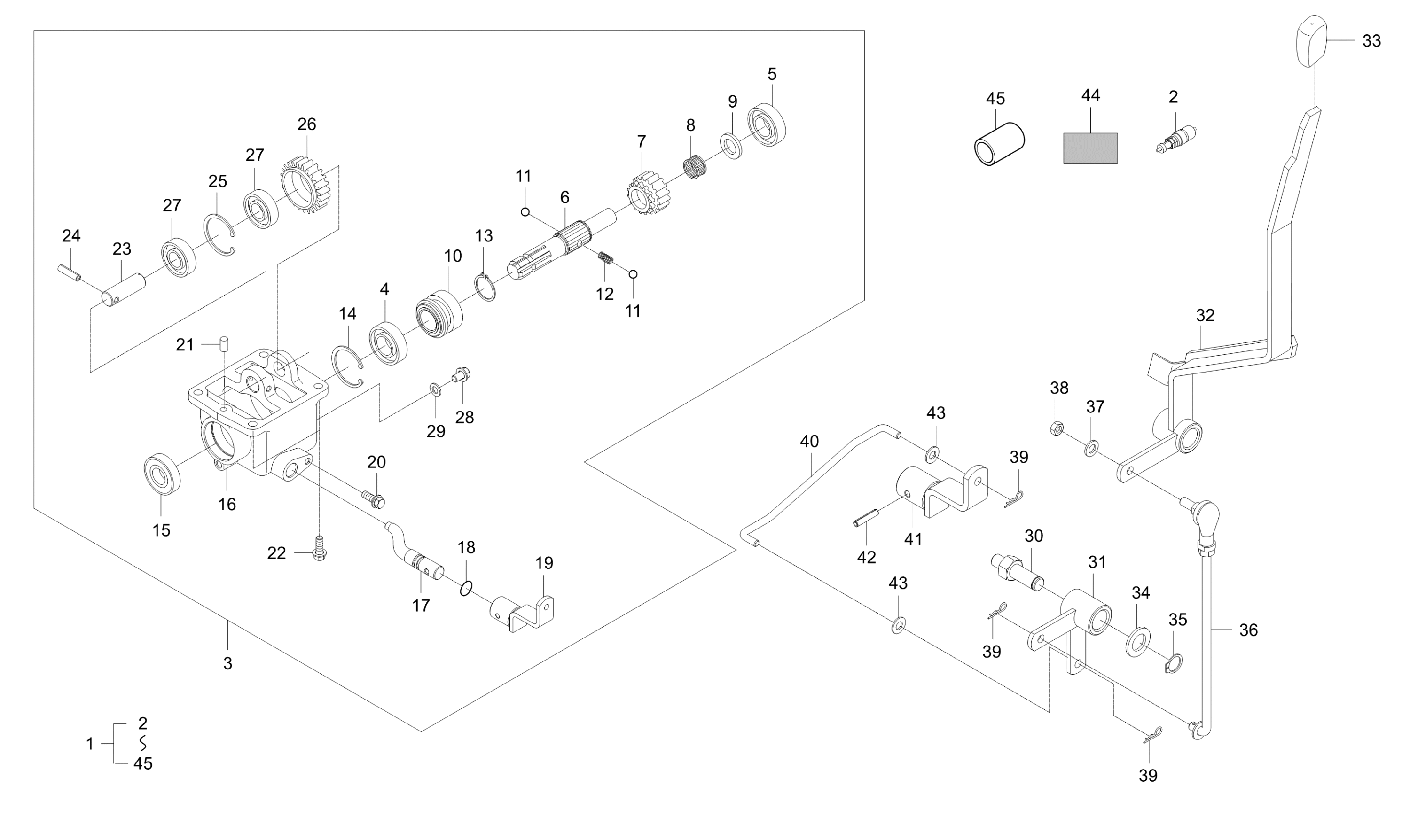

Diagram for MID PTO LEVER GROUP - TC2-G643403
  • 1

    KIT, MID PTO

    • Part No. T5855-A5006
    • 1 shown on diagram
    $.00

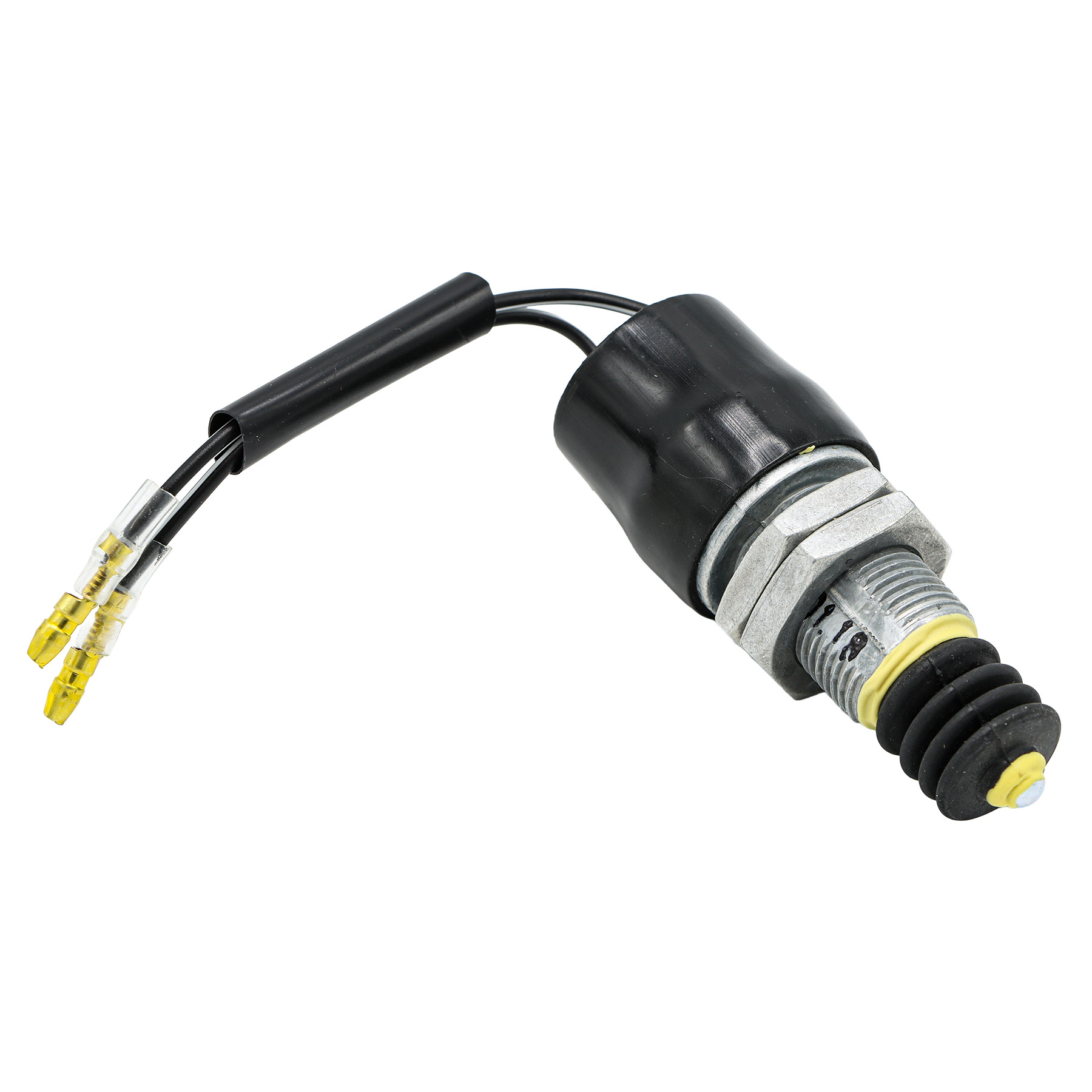

  • 2 SWITCH, SAFETY STARTER

    SWITCH, SAFETY STARTER

    • Part No. T4930-69881
    • 1 shown on diagram
    $59.99
  • 3

    MID PTO KIT

    • Part No. T5815-24103
    • 2 shown on diagram
    $719.99
  • 4 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 1 shown on diagram
    $17.99
  • 5

    BALL BEARING

    • Part No. 08101-06304
    • #6304
    • 1 shown on diagram
    $18.99
  • 6

    SHAFT, MID PTO

    • Part No. T5815-24121
    • 1 shown on diagram
    $96.99
  • 7

    GEAR 17

    • Part No. T5815-24161
    • 1 shown on diagram
    $99.99
  • 8

    NEEDLE BEARING

    • Part No. 08822-53017
    • Inner diameter 25
    • 1 shown on diagram
    $19.99
  • 9

    COLLAR

    • Part No. 31365-2278-1
    • 1 shown on diagram
    $15.99
  • 10

    SHIFTER

    • Part No. T5815-24142
    • 1 shown on diagram
    $119.99
  • 11 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 2 shown on diagram
    $0.56
  • 12

    SPRING

    • Part No. T2440-44251
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 13

    RING, SNAP v

    • Part No. 38430-2554-1
    • 1 shown on diagram
    $7.49
  • 14 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49
  • 15 Oil Seal 25x52x10

    Oil Seal 25x52x10

    • Part No. 09502-55210
    • DIA25
    • 1 shown on diagram
    $3.49
  • 16

    CASE, MID PTO

    • Part No. T5815-24114
    • 1 shown on diagram
    $299.99
  • 17

    ARM, SHIFT MID PTO

    • Part No. T5815-24232
    • 1 shown on diagram
    $49.99
  • 18 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $.90
  • 19

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 20 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 21 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 22 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 23

    SHAFT, COUNTER MID PTO

    • Part No. T5815-24131
    • 1 shown on diagram
    $37.99
  • 24

    PIN,SPRING

    • Part No. 05411-00645
    • 1 shown on diagram
    $0.96
  • 25

    RING,SNAP

    • Part No. 04611-00470
    • DIA47
    • 1 shown on diagram
    $2.99
  • 26

    GEAR 24

    • Part No. T5815-24151
    • 1 shown on diagram
    $86.99
  • 27

    BALL BEARING v

    • Part No. U3210-06204
    • 6204
    • 2 shown on diagram
    $15.99

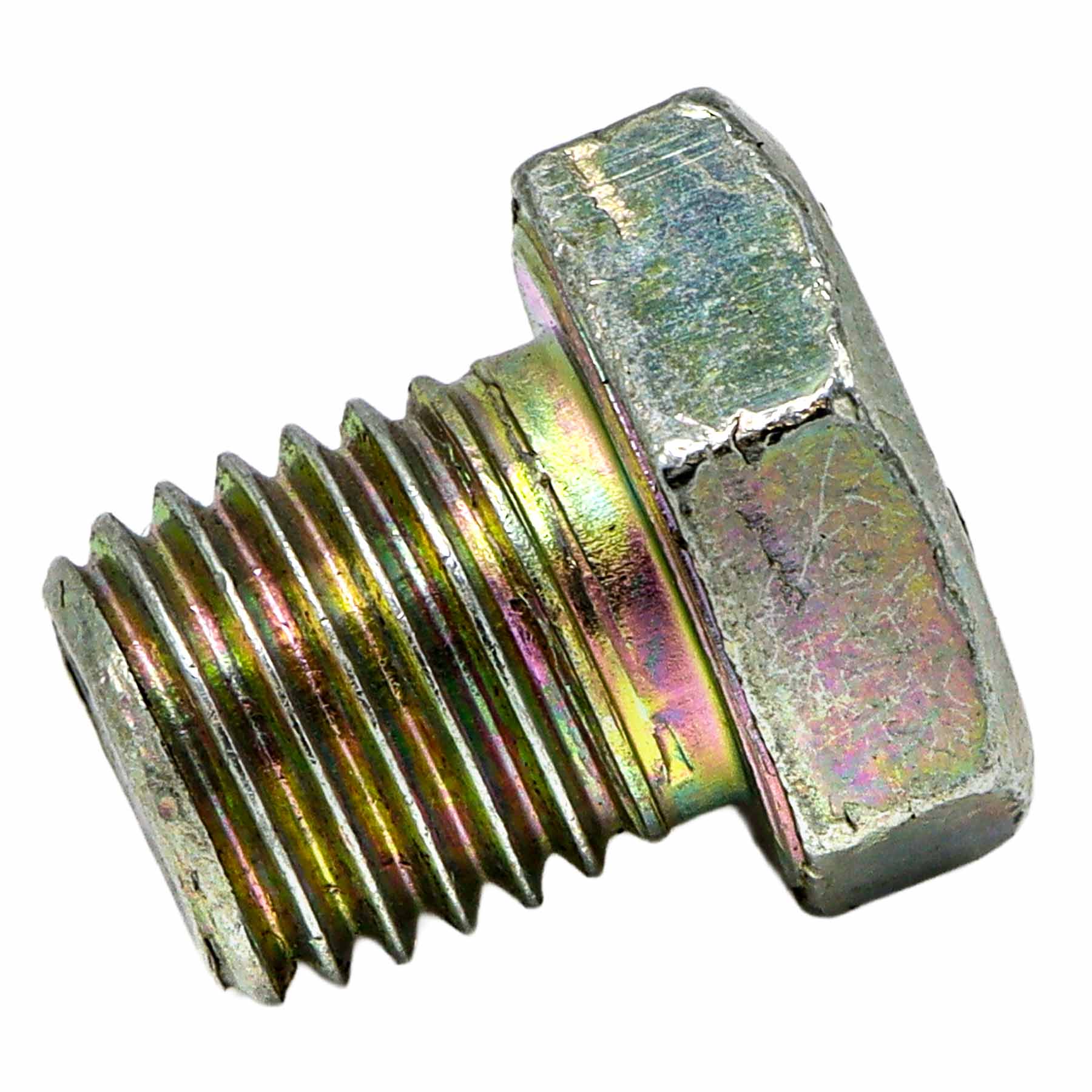

  • 28 PLUG M10XP1.25

    PLUG M10XP1.25

    • Part No. 06331-35010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 29 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 30

    SHAFT, PTO

    • Part No. T5855-58411
    • HEX27
    • 1 shown on diagram
    $28.99
  • 31

    ARM 2, PTO

    • Part No. T5855-58461BB
    • 1 shown on diagram
    $52.99
  • 32

    LEVER, PTO

    • Part No. T5855-58422BB
    • 1 shown on diagram
    $89.99

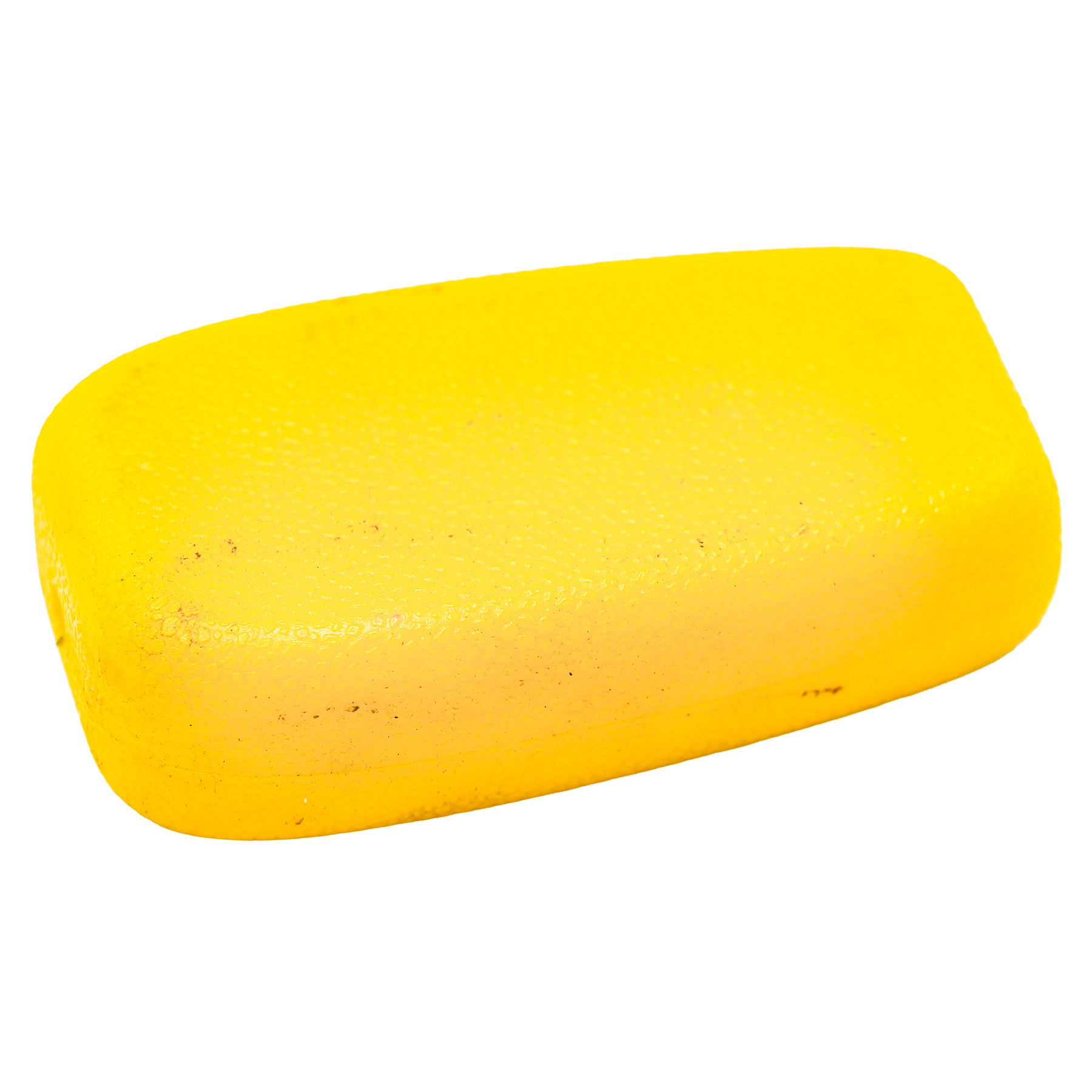

  • 33 GRIP A

    GRIP A

    • Part No. T2350-25871
    • 1 shown on diagram
    $9.49
  • 34 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • M18
    • 1 shown on diagram
    $1.59
  • 35 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
    $1.09
  • 36

    ROD, MID PTO

    • Part No. T5855-58433
    • 1 shown on diagram
    $69.99
  • 37 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $.61
  • 38 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $.85
  • 39 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 5 shown on diagram
    $1.29
  • 40

    ROD 2, MID PTO

    • Part No. T5855-58441
    • DIA 8
    • 1 shown on diagram
    $25.99
  • 41

    ARM, MID PTO v

    • Part No. T5855-58451BB
    • 1 shown on diagram
    $54.99
  • 42 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
    $0.9
  • 43

    Flat Washer M8

    • Part No. 04014-50080
    • 5 shown on diagram
    $.67

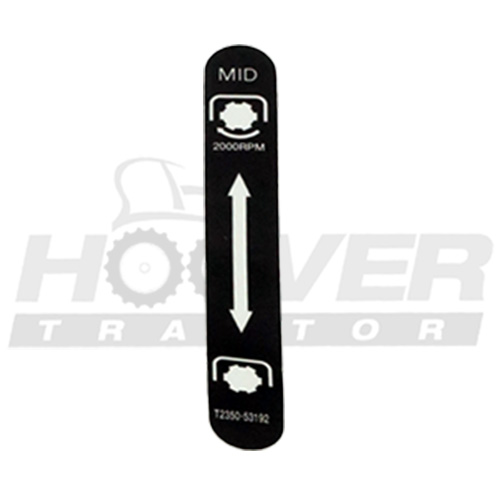

  • 44 LABEL

    LABEL

    • Part No. T2350-53192
    • 1 shown on diagram
    $1.59
  • 45

    COVER, MID PTO

    • Part No. T2555-60991
    • 1 shown on diagram
    $11.99
