SUNSHADE GROUP - TC2-G6G1001

Kioti TRACTOR | CK Series | CK3520H

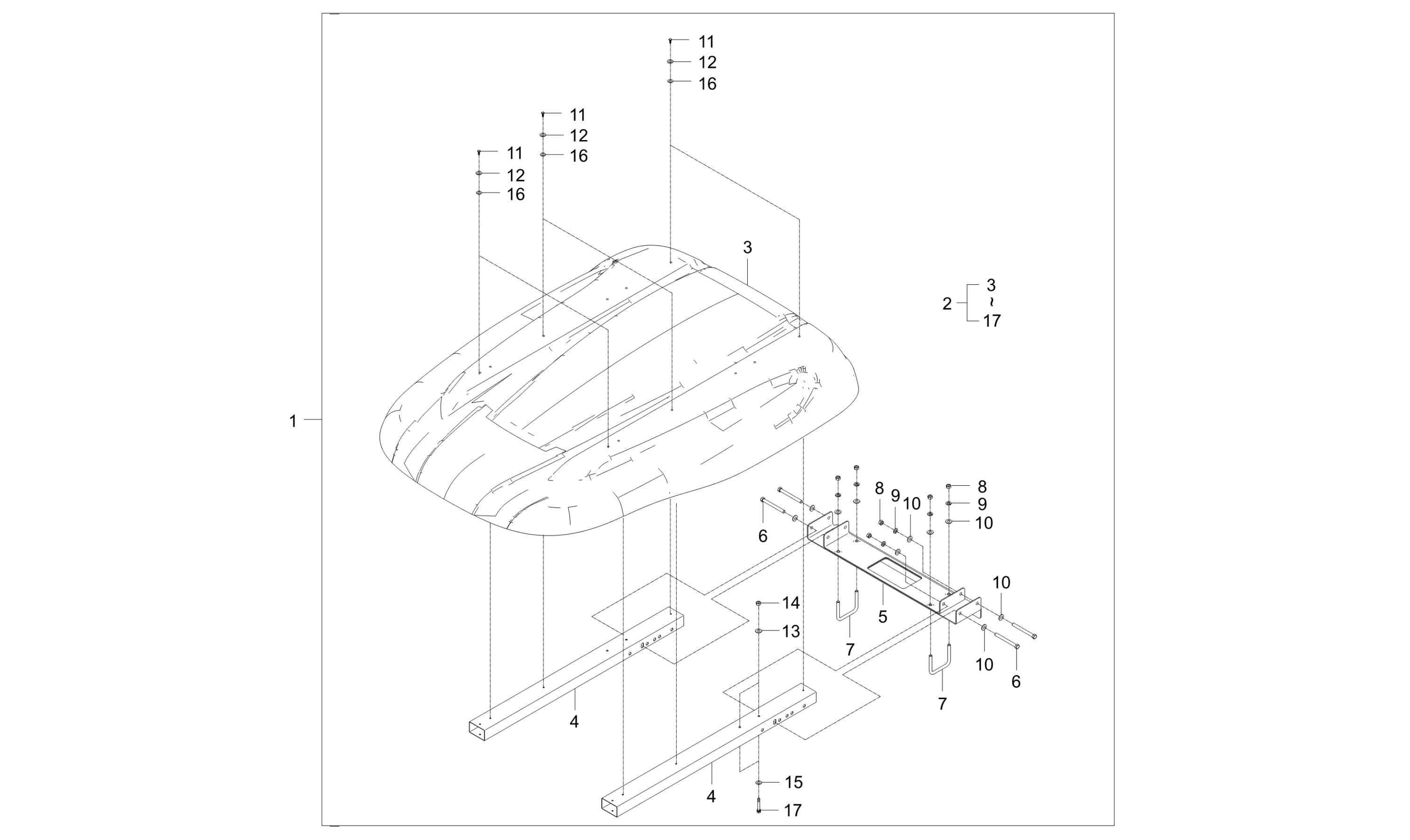

Diagram for SUNSHADE GROUP - TC2-G6G1001
  • 1

    SUN VISOR KIT ASSY

    • Part No. T5710-A5083
    • 1 shown on diagram
    $.00
  • 2

    ASSY SUNSHADE dnr v

    • Part No. T5710-59603
    • 1 shown on diagram
    $2609.99
  • 3

    SUNSHADE dnr v

    • Part No. T5710-59612
    • T5.0
    • 1 shown on diagram
    $1374.99
  • 4

    PIPE

    • Part No. T5710-59622
    • 75x45xT1.6
    • 2 shown on diagram
    $209.99
  • 5

    ASSY, SUPPORT

    • Part No. T5710-59633
    • 1 shown on diagram
    $329.99
  • 6

    BOLT dnr v

    • Part No. T2185-85101004
    • M10XP1.5
    • 4 shown on diagram
    $1.79
  • 7

    U BOLT v

    • Part No. T2185-85101005
    • M10XP1.5
    • 2 shown on diagram
    $13.99
  • 8

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 8 shown on diagram
    $0.79
  • 9 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 12 shown on diagram
    $.73
  • 10 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 8 shown on diagram
    $0.79
  • 11 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 8 shown on diagram
    $0.79
  • 12 Flat Washer M5

    Flat Washer M5

    • Part No. 04015-50050
    • M5
    • 8 shown on diagram
    $.73
  • 13 Flat Washer M6, Replaced by 04012-50060

    Flat Washer M6, Replaced by 04012-50060

    • Part No. 04015-50060
    • M6
    • 4 shown on diagram
    $.00
  • 14
    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
  • 15 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 4 shown on diagram
    $.73
  • 16

    WASHER 2

    • Part No. T4682-65301
    • 12 shown on diagram
    $0.73
  • 17

    BOLT, WASHER

    • Part No. 01023-50665
    • MEX10*76
    • 4 shown on diagram
    $2.49
