SUNSHADE GROUP - TC2-G6G1006

Kioti TRACTOR | CK Series | CK3520H

Diagram for SUNSHADE GROUP - TC2-G6G1006
  • 1

    OPTION KIT, SUNSHADE ASSY KIT

    • Part No. TC26-F0017A
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1

    OPTION KIT, SUNSHADE ASSY KIT

    • Part No. TC26-F0017B
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1

    OPTION KIT, SUNSHADE ASSY KIT

    • Part No. TC26-F0026A
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1

    OPTION KIT, SUNSHADE ASSY KIT

    • Part No. TC26-F0026B
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 2

    SUNSHADE

    • Part No. TC26-2078A
    • T5.0
    • 1 shown on diagram
    $.00
  • 3

    SUN VISOR ASSY

    • Part No. TC26-2156A
    • 1 shown on diagram
    $96.99
  • 4

    SUN VISOR

    • Part No. TC26-2157A
    • 1 shown on diagram
    $.00
  • 5

    BRACKET, SUN VISOR FIXING

    • Part No. TC26-2158A
    • 2 shown on diagram
    $.00
  • 6

    PLATE, FIXING-UPR

    • Part No. TC26-2159A
    • 1 shown on diagram
    $.00
  • 7

    PLATE, FIXING-LWR

    • Part No. TC26-2160A
    • 1 shown on diagram
    $.00
  • 8

    POLE1

    • Part No. T4930-80153004
    • 1 shown on diagram
    $.00
  • 9

    SCREW BOLT-M6

    • Part No. TC26-2161A
    • 3 shown on diagram
    $.00
  • 10

    BOLT, WRENCH-M4

    • Part No. TC26-2162A
    • 2 shown on diagram
    $.00
  • 11

    NUT, CAP-M6

    • Part No. TC26-2163A
    • 3 shown on diagram
    $.00
  • 12

    NUT, CAP-M4

    • Part No. TC26-2164A
    • 2 shown on diagram
    $.00
  • 13

    BUSH

    • Part No. TC26-2165A
    • 3 shown on diagram
    $.00
  • 14

    ASSY SUPPORT, FRAME

    • Part No. TC26-2103A
    • 1 shown on diagram
    $.00
  • 15

    ASSY PIPE, SQUARE-RH

    • Part No. TC26-2108A
    • 1 shown on diagram
    $.00
  • 16

    ASSY PIPE, SQUARE-LH

    • Part No. TC26-2107A
    • 1 shown on diagram
    $.00

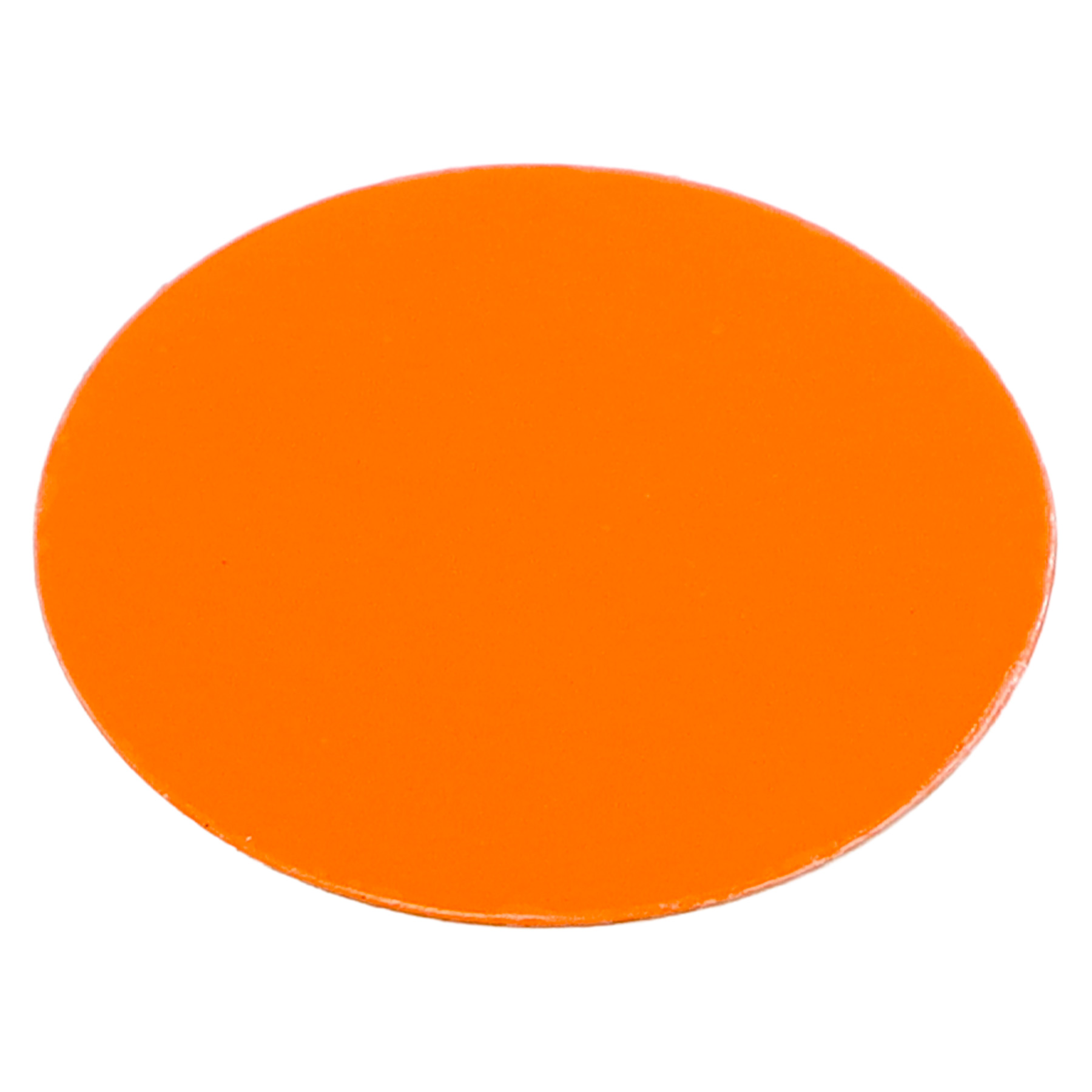

  • 17 HOLE COVER

    HOLE COVER

    • Part No. T4260-87511
    • 6 shown on diagram
    $0.71
  • 18

    U BOLT v

    • Part No. T2185-85101005
    • M10XP1.5
    • 2 shown on diagram
    $13.99
  • 19

    BOLT dnr v

    • Part No. T2185-85101004
    • M10XP1.5
    • 4 shown on diagram
    $1.79
  • 20 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 8 shown on diagram
    $0.79
  • 21 Flat Washer M6, Replaced by 04012-50060

    Flat Washer M6, Replaced by 04012-50060

    • Part No. 04015-50060
    • M6
    • * multiple options for #21
    • 4 shown on diagram
    $.00
  • 21

    SCREW

    • Part No. T4810-82911
    • Compatibility New repl old
    • * multiple options for #21
    • 8 shown on diagram
    $1.09
  • 22 Flat Washer M5

    Flat Washer M5

    • Part No. 04015-50050
    • M5
    • 8 shown on diagram
    $.73
  • 23 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 4 shown on diagram
    $.73
  • 24

    WASHER 2

    • Part No. T4682-65301
    • 12 shown on diagram
    $0.73
  • 25 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 4 shown on diagram
    $.73
  • 26

    SCREW

    • Part No. 03004-50620
    • 2 shown on diagram
    $0.73
  • 27 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.73
  • 28

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 12 shown on diagram
    $0.79
  • 29

    BOLT, WASHER

    • Part No. 01023-50665
    • MEX10*76
    • 4 shown on diagram
    $2.49
  • 30 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 8 shown on diagram
    $0.79
  • 31

    DECAL-LH

    • Part No. TC26-2166A
    • 1 shown on diagram
    $.00
  • 32

    DECAL-RH

    • Part No. TC26-2167A
    • 1 shown on diagram
    $.00
  • 33

    ASSY SUNSHADE

    • Part No. TC26-2199A
    • 1 shown on diagram
    $.00
  • 34

    BOLT, FLANGE

    • Part No. 01754-50620
    • M6XP1.0
    • 12 shown on diagram
    $1.29
