CLUTCH GROUP - TD2-G211001

Kioti TRACTOR | DK Series | DK5010

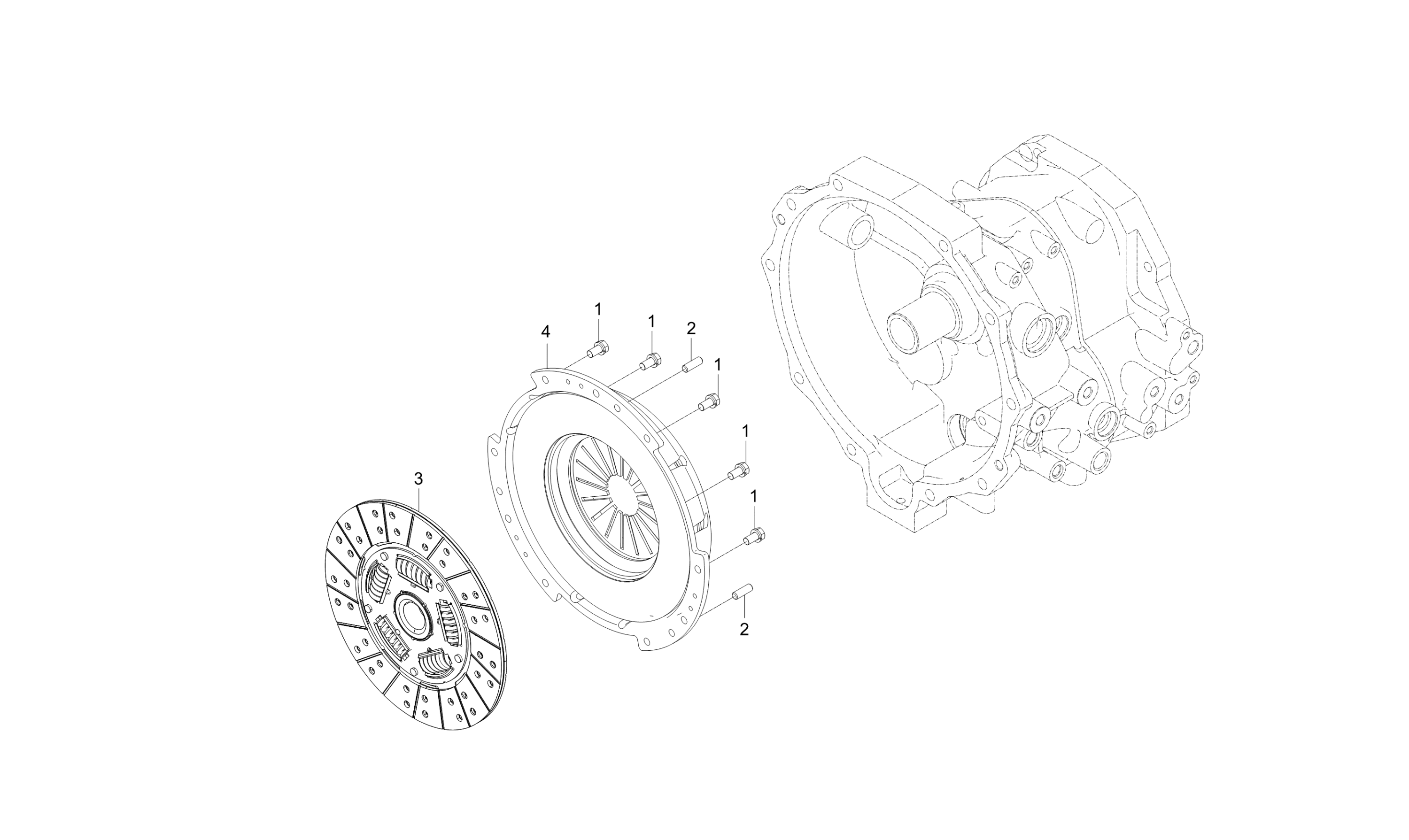

Diagram for CLUTCH GROUP - TD2-G211001

1
Bolt With Washer, M8 P1.25 x 16mm 01123-50816
- Part No. 01123-50816
- Applied Dates 2014-08-04 to 2014-05-05
- M8XP1.25
- 9 shown on diagram
$1.09

Bolt With Washer, M8 P1.25 x 16mm 01123-50816 quantity
2
PIN, STRAIHGT
- Part No. 05012-00822
- Applied Dates Up to 2016-12-16
- DIA8XL22
- 3 shown on diagram
$1.59

PIN, STRAIHGT quantity
3
COMP DISK,CLUTCH 10-1/4″ V, Replaced by T2610-14303ED
- Part No. T2610-14303
- Applied Dates Up to 2016-12-16
- 1 shown on diagram
$0.00

COMP DISK,CLUTCH 10-1/4" V, Replaced by T2610-14303ED quantity
4
ASSY,CLUTCH COVER V
- Part No. T4620-14503
- Applied Dates Up to 2016-12-16
- 1 shown on diagram
$419.99

ASSY,CLUTCH COVER V quantity
