MAIN SHIFT FORK GROUP - TD2-G242001

Kioti TRACTOR | DK Series | DK5010

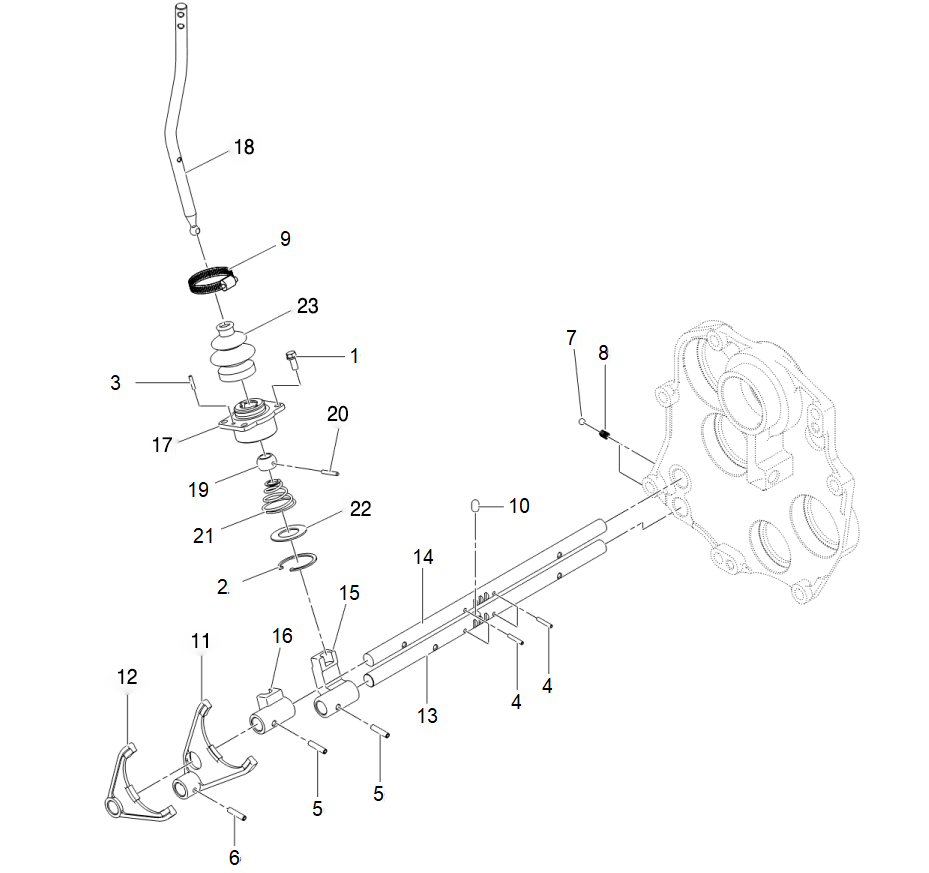

Diagram for MAIN SHIFT FORK GROUP - TD2-G242001
  • 1 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates 2014-08-04 to 2018-06-17
    • M8XP1.25
    • 8 shown on diagram
    $2.49
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 2 shown on diagram
    $2.49
  • 3

    OB PIN,SPRING

    • Part No. 05411-00412
    • DIA4.4XL12
    • 2 shown on diagram
    $0.90
  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00425
    • DIA4.4XL25
    • 8 shown on diagram
    $0.68
  • 5 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00628
    • DIA6.4XL28
    • 4 shown on diagram
    $0.90
  • 6 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00628
    • DIA6.4XL28
    • 4 shown on diagram
    $0.90
  • 7 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 4 shown on diagram
    $0.56
  • 8 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 4 shown on diagram
    $3.49
  • 9

    CLAMP, HOSE

    • Part No. E7300-11781
    • DIA65??65#
    • 2 shown on diagram
    $6.49

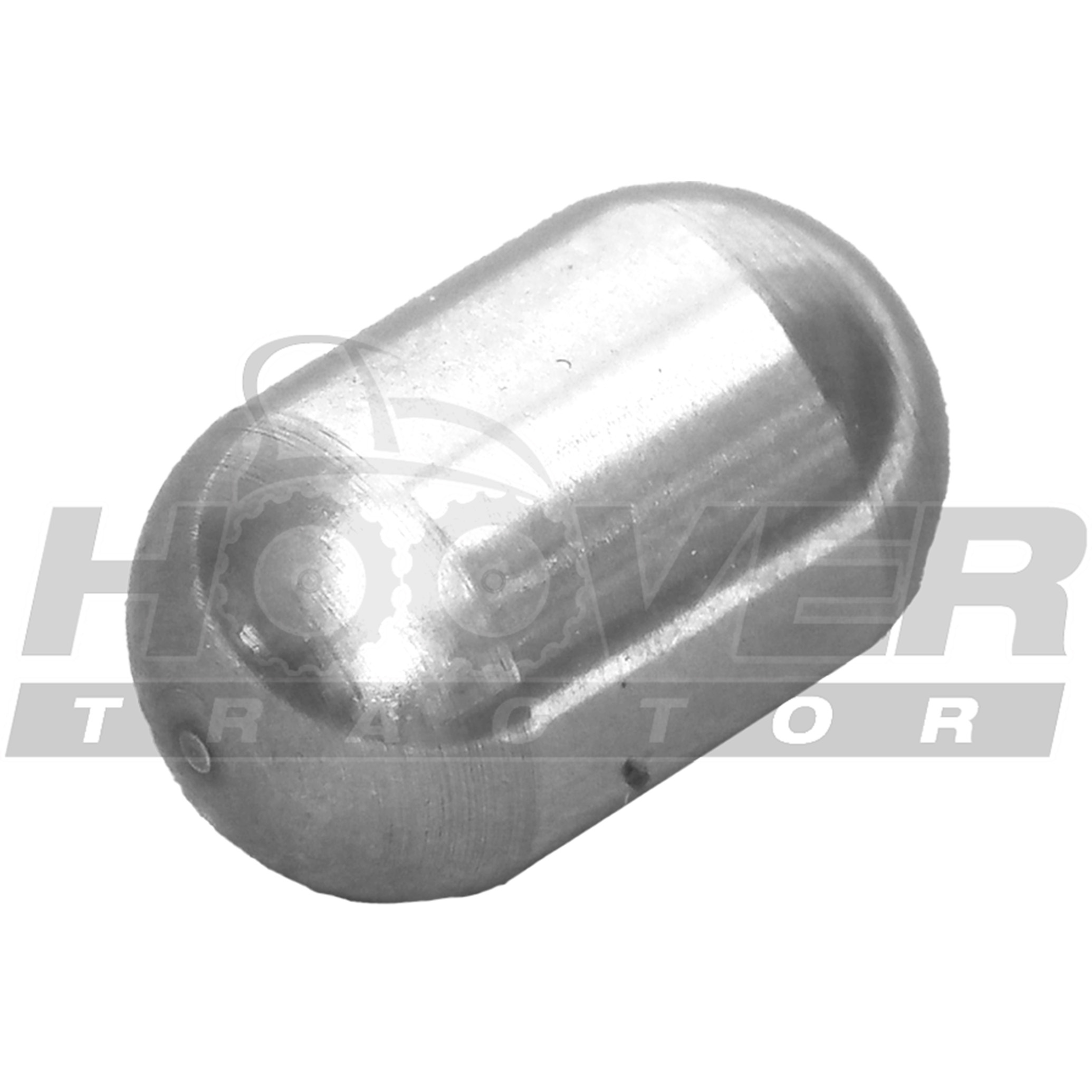

  • 10 PIN

    PIN

    • Part No. T4810-21283
    • 2 shown on diagram
    $11.99

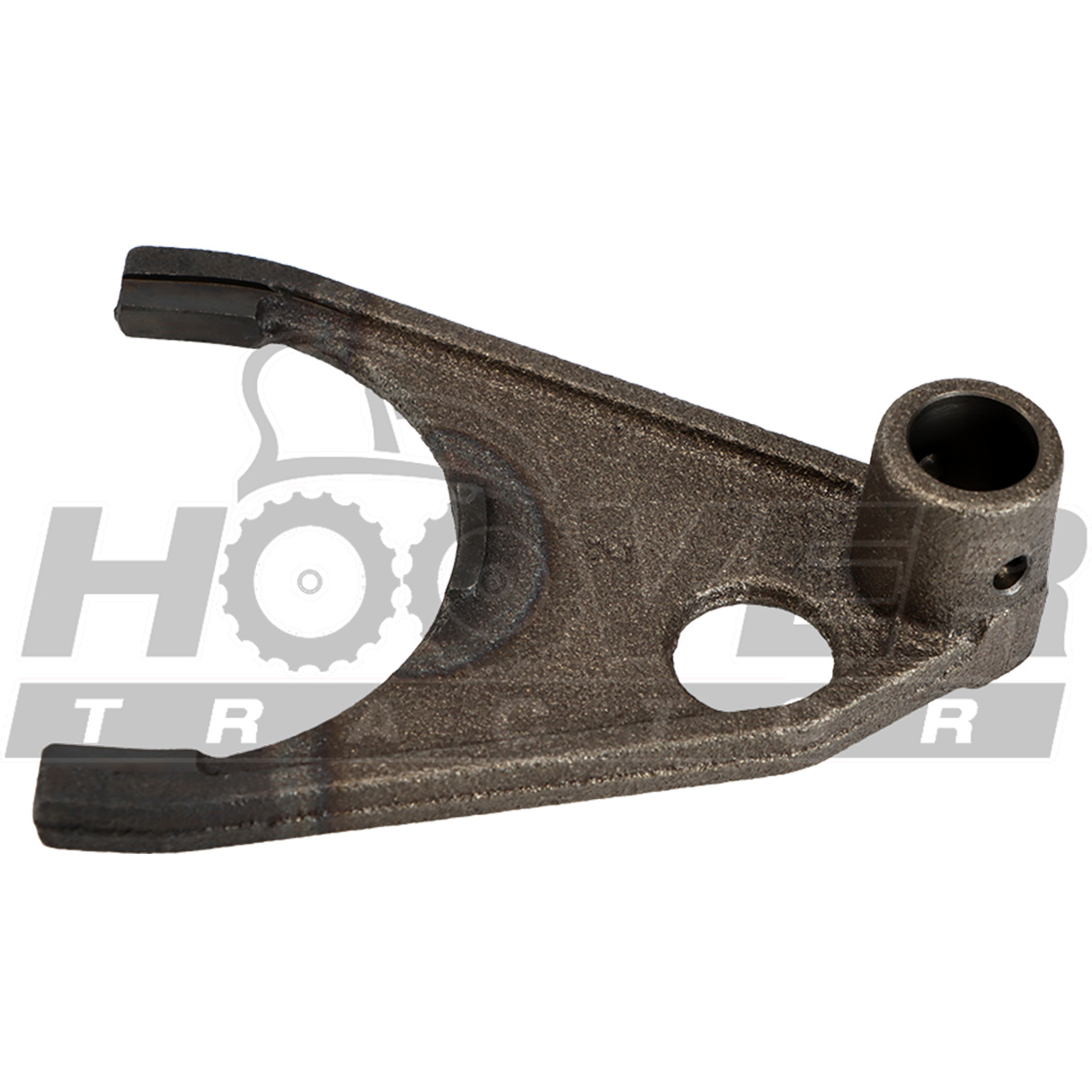

  • 11 FORK

    FORK

    • Part No. T5715-21211
    • *multiple options for # 11
    • 2 shown on diagram
    $87.99
  • 11

    FORK

    • Part No. T5715-21212
    • Compatibility Call for compatibility
    • *multiple options for # 11
    • 2 shown on diagram
    $87.99
  • 12 FORK

    FORK

    • Part No. T5715-21221
    • *multiple options for # 12
    • 2 shown on diagram
    $84.99
  • 12

    FORK

    • Part No. T5715-21222
    • Compatibility Call for compatibility
    • *multiple options for # 12
    • 2 shown on diagram
    $84.99

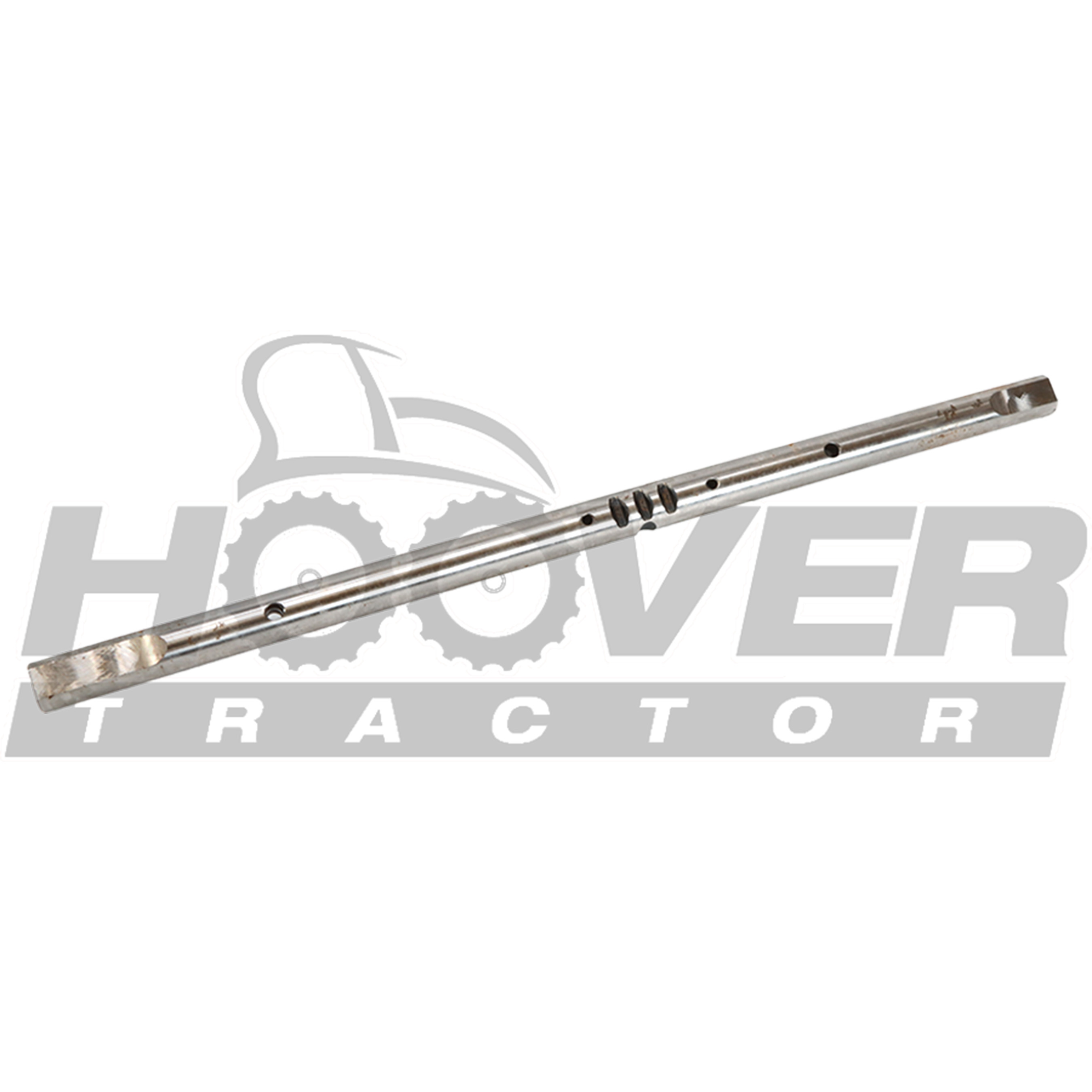

  • 13 FORK ROD

    FORK ROD

    • Part No. T5715-21241
    • 2 shown on diagram
    $119.99

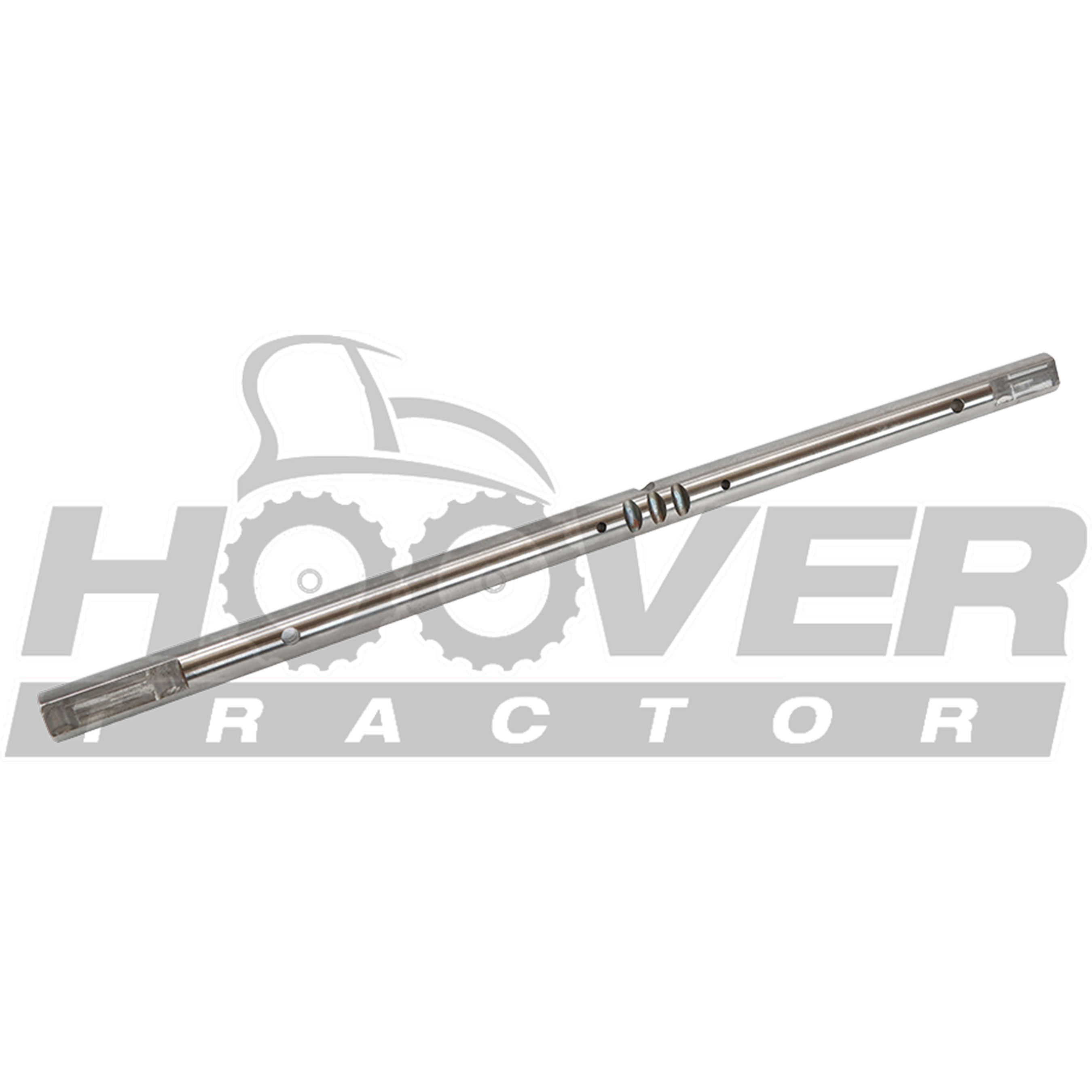

  • 14 FORK ROD

    FORK ROD

    • Part No. T5715-21251
    • 2 shown on diagram
    $119.99

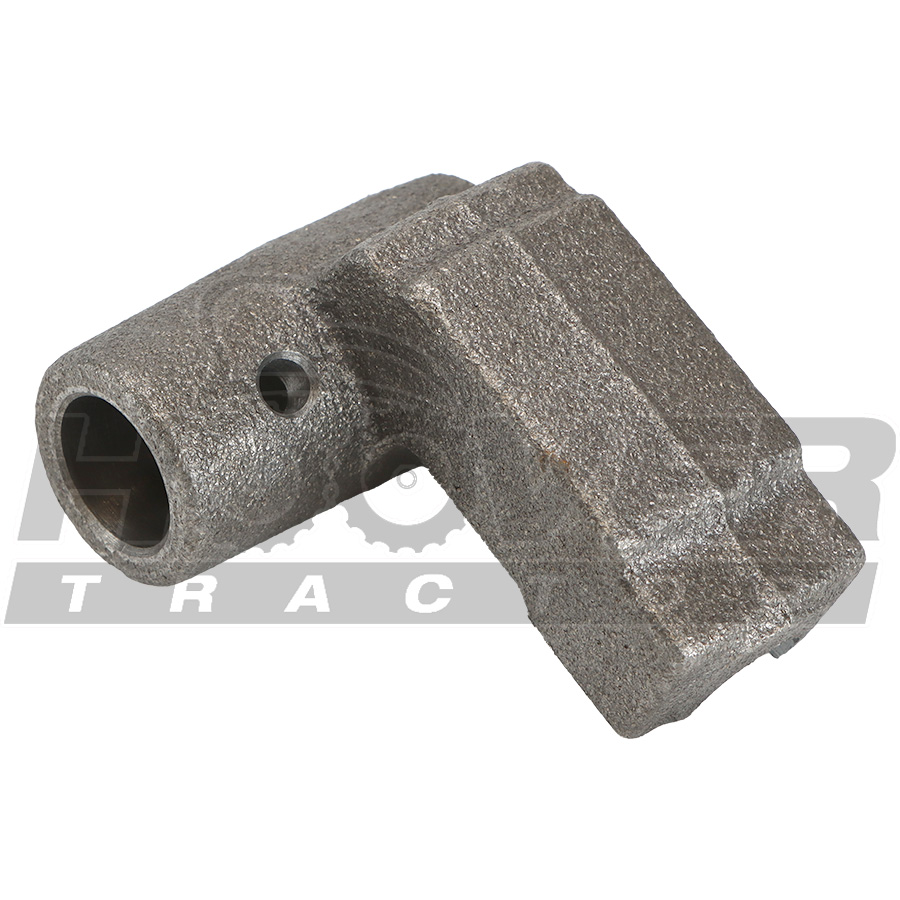

  • 15 CONNECT FORK 1,2

    CONNECT FORK 1,2

    • Part No. T5715-21261
    • 2 shown on diagram
    $67.99

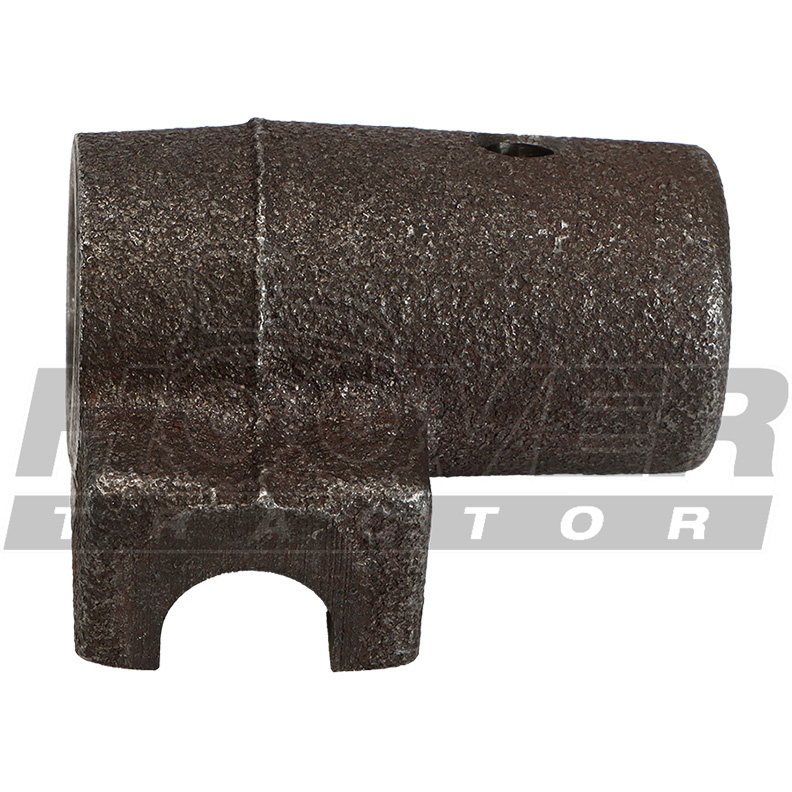

  • 16 CONNECT FORK 3,4

    CONNECT FORK 3,4

    • Part No. T5715-21271
    • 2 shown on diagram
    $71.99
  • 17

    Main Shift Cover

    • Part No. T5715-21312
    • *multiple options for # 17
    • 2 shown on diagram
    $83.99
  • 17

    COVER, MAIN SHIFT

    • Part No. T5715-21313
    • Compatibility New Replaces Old
    • *multiple options for # 17
    • 2 shown on diagram
    $83.99
  • 18

    LEVER, MAIN SHIFT, Replaced by T5715-21323BB

    • Part No. T5715-21322
    • *multiple options for # 18
    • 2 shown on diagram
    $0.00
  • 18

    LEVER, MAIN SHIFT v, Replaced by T5715-21323BB

    • Part No. T5715-21323
    • Compatibility Interchangeable
    • *multiple options for # 18
    • 2 shown on diagram
    $0.00
  • 19

    BALL

    • Part No. T5715-21331
    • 2 shown on diagram
    $94.99
  • 20 PIN

    PIN

    • Part No. T5715-21341
    • *multiple options for # 20
    • 2 shown on diagram
    $11.99
  • 20

    PIN dnr v

    • Part No. T5715-21342
    • Compatibility Interchangeable
    • *multiple options for # 20
    • 2 shown on diagram
    $8.49
  • 21

    SPRING,CONE

    • Part No. T5715-21361
    • 2 shown on diagram
    $89.99
  • 22

    WASHER

    • Part No. T5715-21371
    • *multiple options for # 22
    • 2 shown on diagram
    $14.99
  • 22

    Washer, Plain

    • Part No. T5715-21372
    • Compatibility New Replaces Old
    • *multiple options for # 22
    • 1 shown on diagram
    $13.99
  • 23 JABARA v, Replaced by T5715-21383

    JABARA v, Replaced by T5715-21383

    • Part No. T5715-21382
    • *multiple options for # 23
    • 1 shown on diagram
    $0.00
  • 23 JABARA (Rubber boot cover)

    JABARA (Rubber boot cover)

    • Part No. T5715-21383
    • Compatibility New Replaces Old
    • *multiple options for # 23
    • 1 shown on diagram
    $36.99
