DRIVE SHAFT GROUP - TD2-G232001

Kioti TRACTOR | DK Series | DK5010

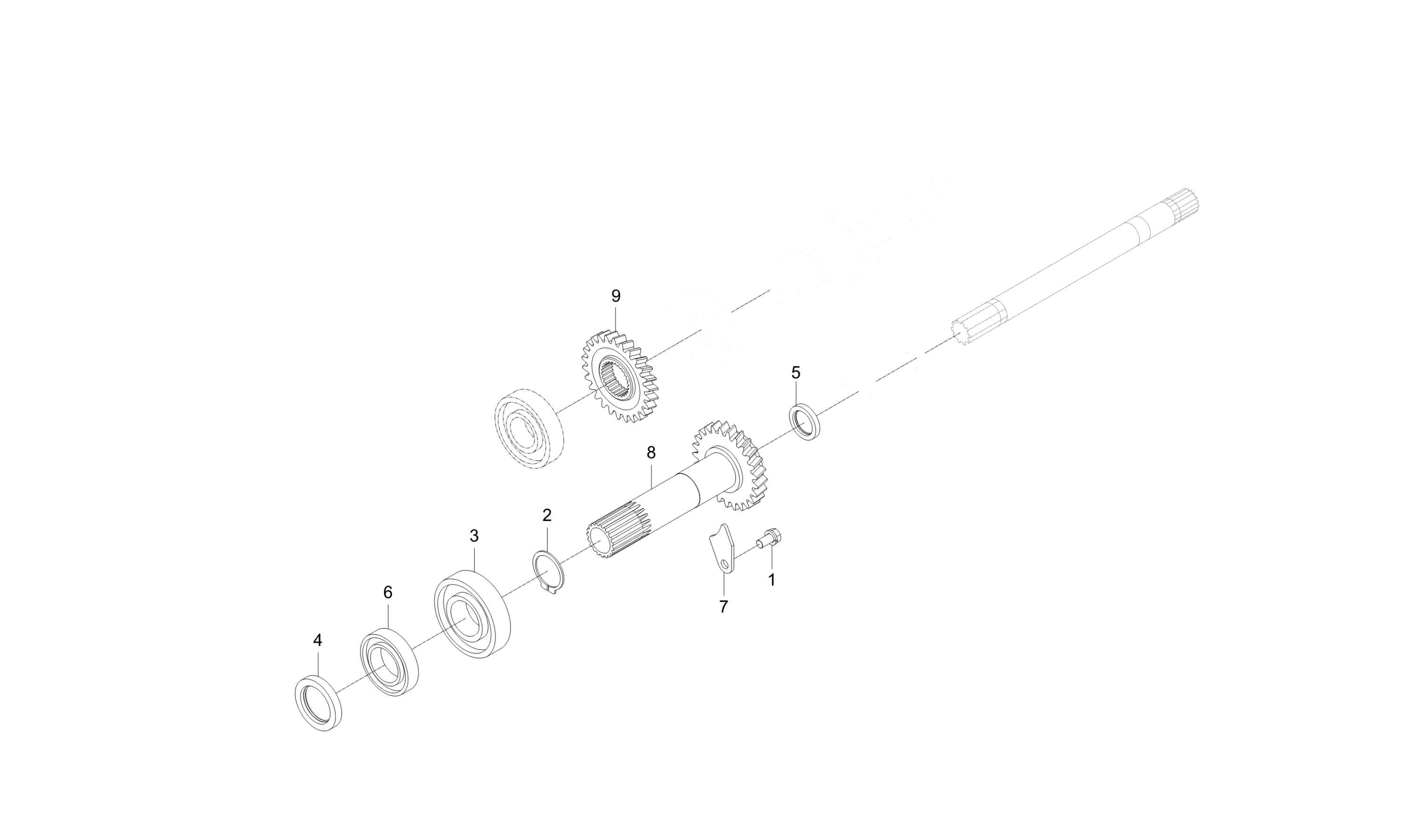

Diagram for DRIVE SHAFT GROUP - TD2-G232001
  • 1 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates Up to 2018-12-31
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 2 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 1 shown on diagram
    $1.89
  • 3 BEARING, BALL 35x80x21

    BEARING, BALL 35x80x21

    • Part No. 08101-06307
    • DIA35
    • 1 shown on diagram
    $41.99
  • 4 SEAL,OIL 35x52x8

    SEAL,OIL 35x52x8

    • Part No. 09500-35528
    • DIA35
    • 1 shown on diagram
    $3.49
  • 5 SEAL, OIL

    SEAL, OIL

    • Part No. T2440-21361
    • 1 shown on diagram
    $5.99
  • 6 BALL BEARING

    BALL BEARING

    • Part No. T2555-06007
    • #6007, GMB CHINA
    • 1 shown on diagram
    $23.99
  • 7

    PLATE, FIXED

    • Part No. T4710-22242
    • 1 shown on diagram
    $2.49
  • 8

    SHAFT, GEAR 25

    • Part No. T5715-21511
    • 1 shown on diagram
    $314.99
  • 9

    GEAR 26

    • Part No. T5715-21551
    • 1 shown on diagram
    $78.99
