MAIN SHIFT SHAFT GROUP - TD2-G241001

Kioti TRACTOR | DK Series | DK5010

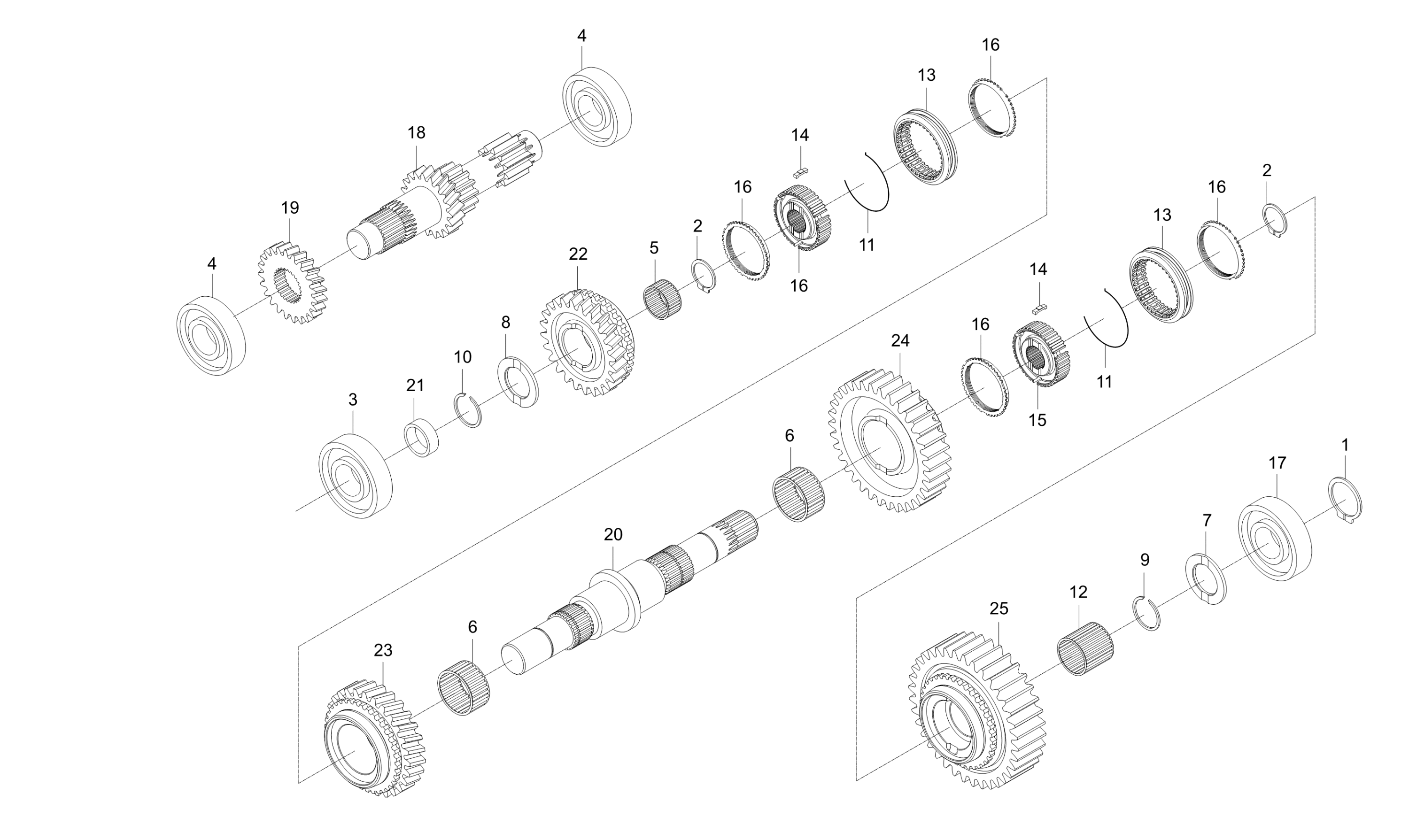

Diagram for MAIN SHIFT SHAFT GROUP - TD2-G241001
  • 1 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Applied Dates 2020-07-17 and up
    • DIA25
    • 1 shown on diagram
    $1.09
  • 2 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • Applied Dates 2020-07-17 and up
    • DIA30
    • 2 shown on diagram
    $1.59
  • 3

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
  • 4 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 2 shown on diagram
    $29.99
  • 5 BEARING, NEEDLE

    BEARING, NEEDLE

    • Part No. 08822-53020
    • ??DIA25
    • 1 shown on diagram
    $16.99
  • 6

    BEARING,NEEDLE

    • Part No. 08823-54027
    • ??DIA35
    • 2 shown on diagram
    $39.99
  • 7

    COLLAR, THRUST

    • Part No. 37150-2176-1
    • T3.2*47*47
    • 1 shown on diagram
    $12.99
  • 8

    COLLAR, THRUST

    • Part No. 37150-2176-1
    • T3.2*47*47
    • 1 shown on diagram
    $12.99
  • 9

    SNAP RING v

    • Part No. 37150-2179-1
    • T1.2
    • 1 shown on diagram
    $2.99
  • 10

    SNAP RING v

    • Part No. 37150-2179-1
    • T1.2
    • 1 shown on diagram
    $2.99
  • 11

    SYNCHRONIZER SPRING [NLA]

    • Part No. 38360-2178-1
    • DIA1.2
    • 4 shown on diagram
    $3.99
  • 12

    BEARING, NIDDLE

    • Part No. T2555-53025
    • 25x30x25, GMB CHINA
    • 1 shown on diagram
    $21.99
  • 13

    SHIFTER

    • Part No. T2610-21754
    • 2 shown on diagram
    $144.99
  • 14 SYNCHRONIZER KEY

    SYNCHRONIZER KEY

    • Part No. T2610-21812
    • 6 shown on diagram
    $6.99
  • 15

    GEAR

    • Part No. T4115-21771
    • 2 shown on diagram
    $119.99
  • 16 RING, SYNCHRONIZER

    RING, SYNCHRONIZER

    • Part No. T4240-21792
    • 4 shown on diagram
    $52.99
  • 17

    BALL BEARING

    • Part No. T5210-96305
    • HC6305T2
    • 1 shown on diagram
    $44.99
  • 18

    GEAR,MAIN SHAFT

    • Part No. T5715-21531
    • 1 shown on diagram
    $329.99
  • 19

    GEAR,23

    • Part No. T5715-21561
    • 1 shown on diagram
    $81.99
  • 20

    SHAFT, COUNTER

    • Part No. T5715-21612
    • *multiple options for # 20
    • 1 shown on diagram
    $224.99
  • 20

    SHAFT,COUNTER

    • Part No. T5715-21613
    • Compatibility New Replaces Old
    • *multiple options for # 20
    • 1 shown on diagram
    $0.00
  • 21

    BUSHING

    • Part No. T5715-21631
    • 1 shown on diagram
    $14.99
  • 22

    GEAR 24

    • Part No. T5715-21711
    • 1 shown on diagram
    $159.99
  • 23

    GEAR,27

    • Part No. T5715-21721
    • 1 shown on diagram
    $169.99
  • 24

    GEAR, SPUR 34

    • Part No. T5715-21732
    • 1 shown on diagram
    $199.99
  • 25

    GEAR,SPUR 36

    • Part No. T5715-21741
    • 1 shown on diagram
    $244.99
