REAR AXLE GROUP - TD2-G2A1001

Kioti TRACTOR | DK Series | DK5010

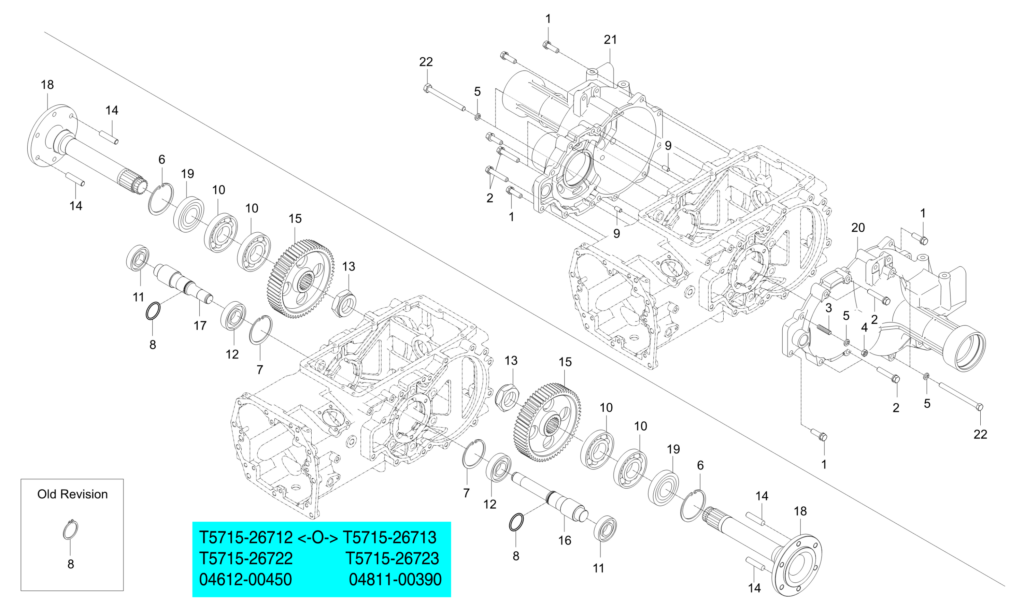

Diagram for REAR AXLE GROUP - TD2-G2A1001

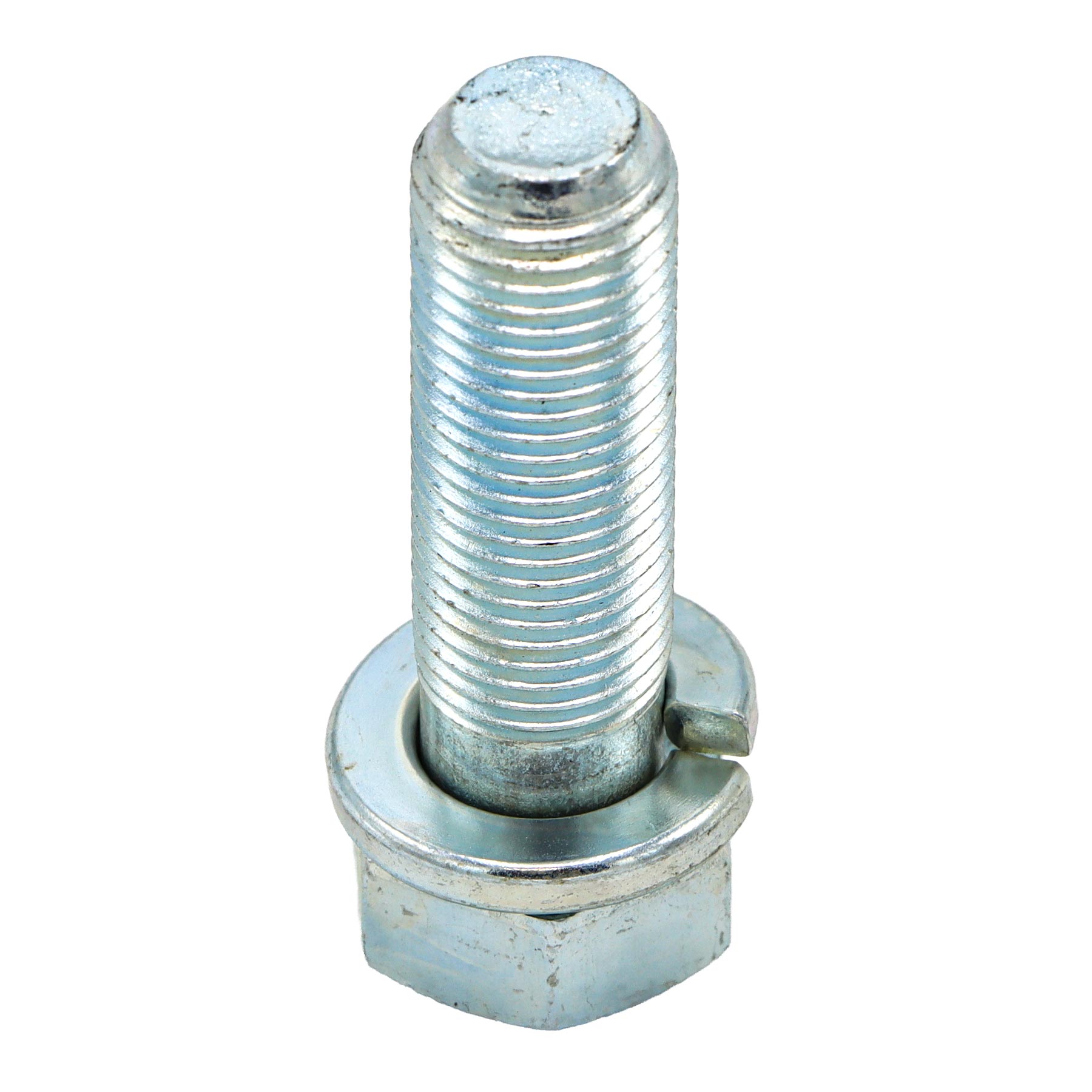

  • 1 Bolt With Washer, M12 P1.25×40

    Bolt With Washer, M12 P1.25×40

    • Part No. 01133-51240
    • M12XP1.25
    • 6 shown on diagram
    $4.49
  • 2

    BOLT, WITH WASHER obs

    • Part No. 01133-51265
    • M12XP1.25
    • 8 shown on diagram
    $5.99

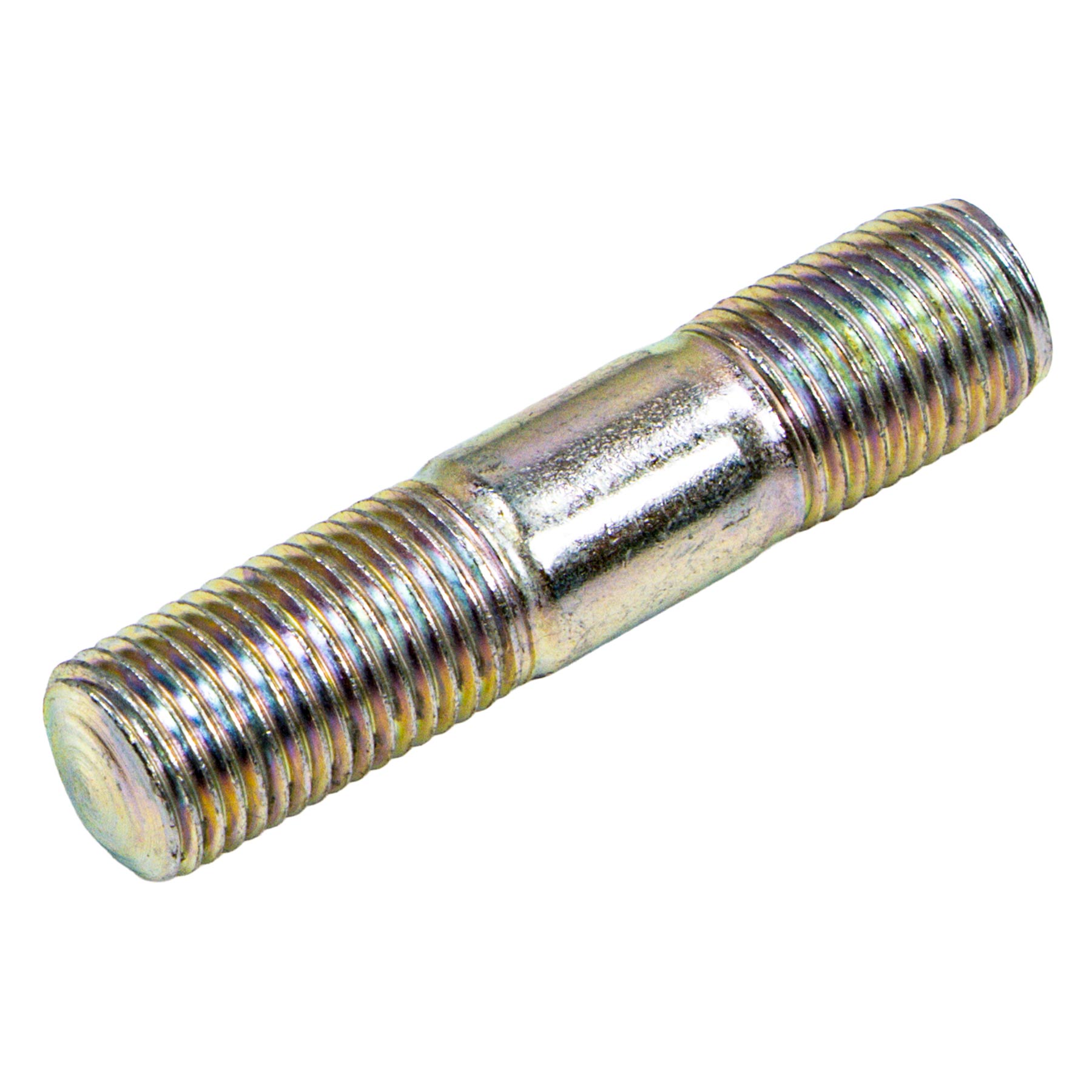

  • 3 STUD

    STUD

    • Part No. 01574-51235
    • M12XP1.25
    • 4 shown on diagram
    $6.49
  • 4 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • Applied Dates 2019-12-10 and up
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 5 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates 2018-05-21 and up
    • M12
    • 10 shown on diagram
    $0.95
  • 6

    RING,SNAP

    • Part No. 04611-01000
    • Applied Dates 2019-09-17 and up
    • DIA100
    • 2 shown on diagram
    $13.99
  • 7

    RING,SNAP

    • Part No. 04611-01000
    • Applied Dates 2019-09-17 and up
    • DIA100
    • 2 shown on diagram
    $13.99
  • 8 RING,SNAP

    RING,SNAP

    • Part No. 04612-00450
    • Applied Dates Up to 2019-05-29
    • DIA45
    • *multiple options for # 8
    • 2 shown on diagram
    $2.99
  • 8

    O RING

    • Part No. 04811-00390
    • Compatibility Call for compatibility
    • Applied Dates 2019-09-17 and up
    • Serial No. VR8000001 and up
    • DIA38.7
    • *multiple options for # 8
    • 2 shown on diagram
    $2.99
  • 9 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • DIA10XL18
    • 4 shown on diagram
    $1.79
  • 10 BEARING,BALL 55x100x21

    BEARING,BALL 55x100x21

    • Part No. 08101-06211
    • DIA55
    • 4 shown on diagram
    $69.99
  • 11 BALL BEARING #6308 40x90x23

    BALL BEARING #6308 40x90x23

    • Part No. 08101-06308
    • Applied Dates 2019-09-17 and up
    • DIA40
    • 2 shown on diagram
    $58.99
  • 12 BALL BEARING #6309 45x100x25

    BALL BEARING #6309 45x100x25

    • Part No. 08101-06309
    • Applied Dates 2019-09-17 and up
    • DIA45
    • 2 shown on diagram
    $34.99
  • 13 NUT

    NUT

    • Part No. T4125-27202
    • 2 shown on diagram
    $41.99
  • 14 STUD M16 P1.5

    STUD M16 P1.5

    • Part No. T4340-27122
    • 4 shown on diagram
    $13.99
  • 15

    GEAR 60, Replaced by T5715-26672

    • Part No. T5715-26671
    • *multiple options for # 15
    • 2 shown on diagram
    $0.00
  • 15

    GEAR60

    • Part No. T5715-26672
    • Compatibility New Replaces Old
    • *multiple options for # 15
    • 2 shown on diagram
    $514.99
  • 16

    SHAFT, 11 GEAR LH

    • Part No. T5715-26712
    • Applied Dates Up to 2018-09-12
    • *multiple options for # 16
    • 1 shown on diagram
    $344.99
  • 16

    SHAFT, 11 GEAR(LH)

    • Part No. T5715-26713
    • Compatibility Call for compatibility
    • Applied Dates 2019-09-09 and up
    • Serial No. VR8000001 and up
    • *multiple options for # 16
    • 1 shown on diagram
    $344.99
  • 17

    SHAFT, 11 GEAR RH

    • Part No. T5715-26722
    • Applied Dates Up to 2018-09-12
    • *multiple options for # 17
    • 1 shown on diagram
    $339.99
  • 17

    SHAFT, 11 GEAR (RH)

    • Part No. T5715-26723
    • Compatibility Call for compatibility
    • Applied Dates 2019-09-09 and up
    • Serial No. VR8000001 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $339.99
  • 18

    WHEEL SHAFT, Replaced by T5715-27112

    • Part No. T5715-27111
    • *multiple options for # 18
    • 2 shown on diagram
    $566.83
  • 18

    WHEELSHAFT

    • Part No. T5715-27112
    • Compatibility Interchangeable
    • Applied Dates 2017-11-23 and up
    • Serial No. TR8000071 to WR8000028
    • *multiple options for # 18
    • 2 shown on diagram
    $399.99
  • 19 Oil Seal

    Oil Seal

    • Part No. T5715-27131
    • 2 shown on diagram
    $56.99
  • 20

    CASE, REAR AXLE LH dnr v

    • Part No. T5715-28133
    • *multiple options for # 20
    • 1 shown on diagram
    $1,544.99
  • 20

    CRANKSHAFT ASSY

    • Part No. T5715-28134
    • Compatibility New Replaces Old
    • *multiple options for # 20
    • 1 shown on diagram
    $1,179.99
  • 20

    ASSY SEAT

    • Part No. T5715-28135
    • Compatibility New Replaces Old
    • Applied Dates Up to 2019-12-31
    • *multiple options for # 20
    • 1 shown on diagram
    $1,544.99
  • 20

    CASE, REAR AXLE-LH

    • Part No. T5715-28136
    • Compatibility Interchangeable
    • Applied Dates 2020-07-17 and up
    • *multiple options for # 20
    • 1 shown on diagram
    $1,544.99
  • 21

    CASE, REAR AXLE-RH dnr v

    • Part No. T5715-28143
    • *multiple options for # 21
    • 1 shown on diagram
    $919.99
  • 21

    CASE, REAR AXLE RH, Replaced by T5715-28146

    • Part No. T5715-28144
    • Compatibility New Replaces Old
    • *multiple options for # 21
    • 1 shown on diagram
    $0.00
  • 21

    CASE, REAR AXLE RH, Replaced by T5715-28146

    • Part No. T5715-28145
    • Compatibility New Replaces Old
    • Applied Dates Up to 2019-12-31
    • *multiple options for # 21
    • 1 shown on diagram
    $0.00
  • 21

    CASE, REAR AXLE-RH

    • Part No. T5715-28146
    • Compatibility Interchangeable
    • Applied Dates 2020-07-17 and up
    • *multiple options for # 21
    • 1 shown on diagram
    $1,599.99
  • 22

    BOLT

    • Part No. T5715-28321
    • 6 shown on diagram
    $9.99
