CLUTCH HOUSING GROUP - TD2-G222005

Kioti TRACTOR | DK Series | DK5010

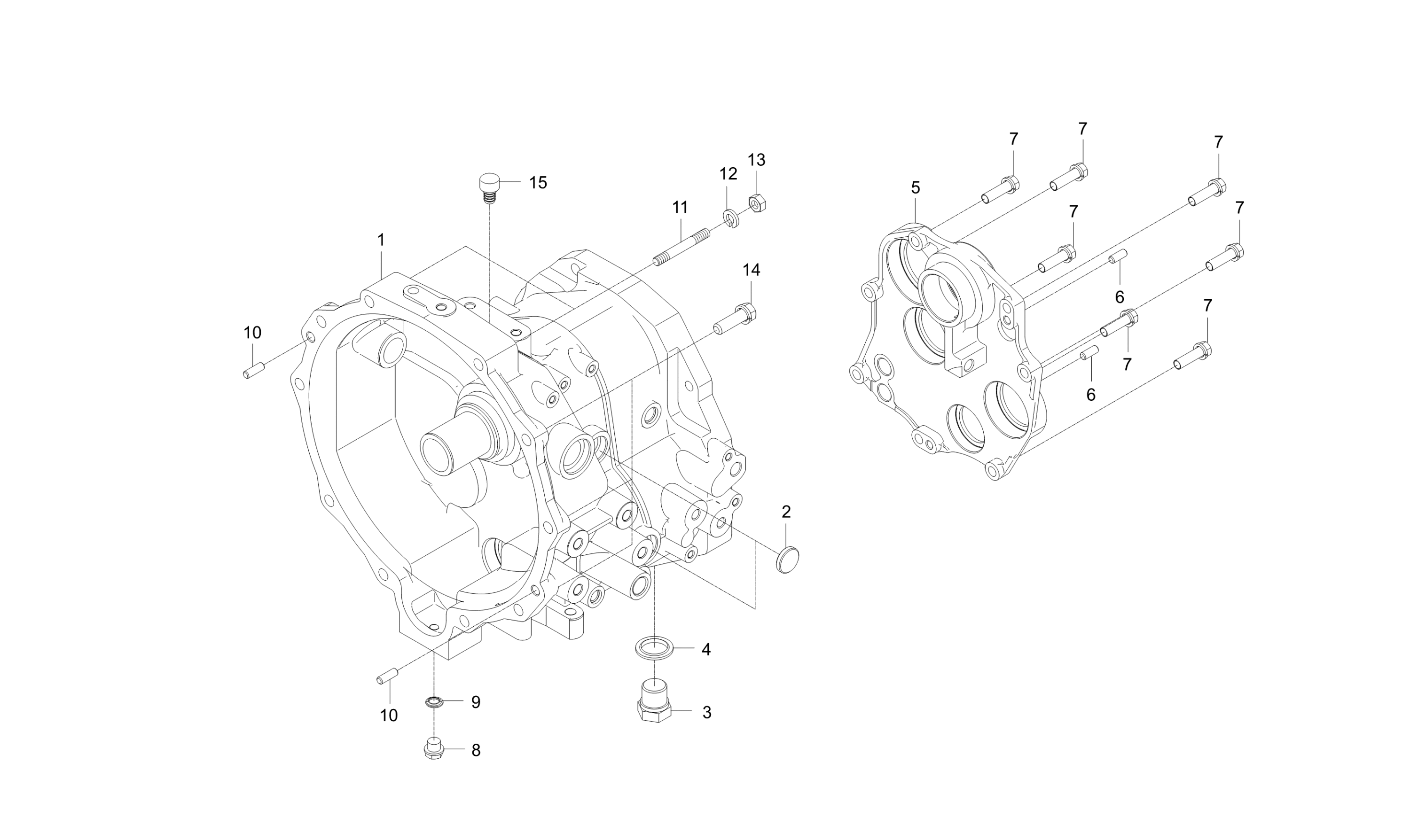

Diagram for CLUTCH HOUSING GROUP - TD2-G222005
  • 1

    HOUSING, CLUTCH

    • Part No. TD22-0108A
    • Applied Dates 2019-07-03 and up
    • 1 shown on diagram
    $1,529.99
  • 2 CAP SEAL

    CAP SEAL

    • Part No. T4520-14872
    • *multiple options for # 2
    • 2 shown on diagram
    $6.49
  • 2
    • Part No. TD22-0156A
    • Compatibility New Replaces Old
    • *multiple options for # 2
    • 2 shown on diagram
  • 3

    PLUG v

    • Part No. 06311-55060
    • PS3/4
    • 1 shown on diagram
    $15.99
  • 4 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 5

    COVER, BEARING

    • Part No. T5715-14121
    • 1 shown on diagram
    $294.99
  • 6 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 7

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 7 shown on diagram
    $3.49
  • 8 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 9 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 10

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 11

    STUD

    • Part No. 01574-51265
    • M12XP1.25
    • 2 shown on diagram
    $7.49
  • 12 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
    $0.95
  • 13 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 14 BOLT M12P1.25×40 v

    BOLT M12P1.25×40 v

    • Part No. 01177-51240
    • M12XP1.25
    • 8 shown on diagram
    $2.99
  • 15

    PLUG v

    • Part No. T2305-43883
    • 1 shown on diagram
    $7.49
