REAR DIFFERENTIAL GROUP - TD2-G282001

Kioti TRACTOR | DK Series | DK5010

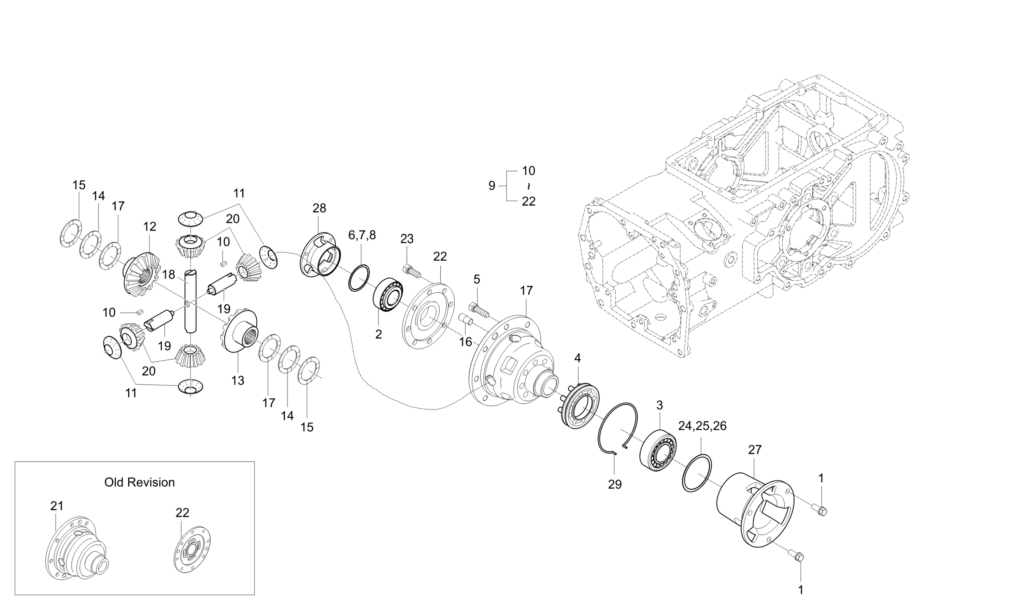

Diagram for REAR DIFFERENTIAL GROUP - TD2-G282001
  • 1 BOLT

    BOLT

    • Part No. 01133-51025
    • Applied Dates Up to 2014-07-06
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 2

    BEARING,TAPER ROLLER

    • Part No. 08711-30209
    • ??DIA45
    • 1 shown on diagram
    $79.99
  • 3

    BEARING,TAPER ROLLER

    • Part No. 08711-32011
    • ??DIA55
    • 1 shown on diagram
    $89.99
  • 4

    SHAFT, DIFF. LOCK

    • Part No. 37300-2661-4
    • 1 shown on diagram
    $96.99
  • 5

    BOLT dnr v

    • Part No. T4115-43871
    • *multiple options for # 5
    • 8 shown on diagram
    $2.49
  • 5

    BOLT

    • Part No. 37800-4387-1
    • Compatibility Call for compatibility
    • M10xP1.25
    • *multiple options for # 5
    • 8 shown on diagram
    $3.49
  • 6 SHIM 0.1

    SHIM 0.1

    • Part No. T4520-44081
    • T0.1
    • 1 shown on diagram
    $3.99
  • 7 SHIM 0.2

    SHIM 0.2

    • Part No. T4520-44091
    • T0.2
    • 1 shown on diagram
    $3.99
  • 8 SHIM 0.4, Replaced by T4520-44081

    SHIM 0.4, Replaced by T4520-44081

    • Part No. T4520-44101
    • T0.4
    • 1 shown on diagram
    $3.99
  • 9

    DIFF SYSTEM ASSY dnr v

    • Part No. T4620-26104
    • *multiple options for # 9
    • 1 shown on diagram
    $974.99
  • 9

    DIFF SYSTEM ASSY

    • Part No. T4620-26105
    • Compatibility New Replaces Old
    • *multiple options for # 9
    • 1 shown on diagram
    $974.99
  • 9

    DIFF SYSTEM ASSY

    • Part No. T4620-26106
    • Compatibility New Replaces Old
    • *multiple options for # 9
    • 1 shown on diagram
    $0.00
  • 9

    ASSYDIFFRENTIAL

    • Part No. T4115-26101
    • Compatibility New Replaces Old
    • Applied Dates 2020-07-17 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $769.99
  • 9

    ASSY DIFFRENTIAL

    • Part No. T4115-26102
    • Compatibility Call for compatibility
    • *multiple options for # 9
    • 1 shown on diagram
    $769.99
  • 9

    ASSY DIFF DEVICE, REAR

    • Part No. T4115-26103
    • Compatibility Interchangeable
    • *multiple options for # 9
    • 1 shown on diagram
    $0.00
  • 10

    KEY

    • Part No. 31220-2628-1
    • Applied Dates 2020-07-17 and up
    • 2 shown on diagram
    $2.99
  • 11

    WASHER, DIFF PINION

    • Part No. 31220-2639-2
    • Applied Dates 2020-07-17 and up
    • 4 shown on diagram
    $16.99
  • 12

    GEAR, DIFF RH

    • Part No. 37300-2643-2
    • 1 shown on diagram
    $139.99
  • 13

    DIFF GEAR LH

    • Part No. 37300-2644-2
    • 1 shown on diagram
    $154.99
  • 14

    WASHER, DIFF-1 v

    • Part No. 37300-2648-1
    • 2 shown on diagram
    $21.99
  • 15

    WASHER, DIFFERENTIAL-2 dnr v

    • Part No. 37300-2649-1
    • 2 shown on diagram
    $18.99
  • 16

    PIN, DOWEL

    • Part No. 37300-2817-2
    • 2 shown on diagram
    $11.99
  • 17

    WASHER, DIFF-3 obs v, Replaced by 37300-2648-1

    • Part No. 38240-2647-2
    • 2 shown on diagram
    $0.00
  • 18

    DIFF PINION SHAFT 1

    • Part No. 38430-2634-3
    • *multiple options for # 18
    • 1 shown on diagram
    $48.99
  • 18

    SHAFT 1, DIFFERENTIAL PINION

    • Part No. 38430-2634-4
    • Compatibility New Replaces Old
    • *multiple options for # 18
    • 1 shown on diagram
    $59.99
  • 18

    SHAFT,DIFF.PINION 1

    • Part No. T4158-26341
    • Compatibility New Replaces Old
    • *multiple options for # 18
    • 1 shown on diagram
    $76.99
  • 19

    SHAFT,DIFF.PINION 2

    • Part No. T2185-26331
    • *multiple options for # 19
    • 2 shown on diagram
    $41.99
  • 19

    SHAFT2,DIFFERENTIALPINION

    • Part No. T2185-26332
    • Compatibility New Replaces Old
    • *multiple options for # 19
    • 2 shown on diagram
    $31.99
  • 19

    SHAFT,DIFF.PINION 2

    • Part No. T4158-26331
    • Compatibility New Replaces Old
    • *multiple options for # 19
    • 2 shown on diagram
    $45.99
  • 20 PINION, DIFFERENTIAL

    PINION, DIFFERENTIAL

    • Part No. T2240-26354
    • *multiple options for # 20
    • 4 shown on diagram
    $94.99
  • 20

    PINION, DIFF

    • Part No. T2240-26355
    • Compatibility New Replaces Old
    • *multiple options for # 20
    • 4 shown on diagram
    $77.99
  • 20

    PINION,DIFF v

    • Part No. TD22-0089A
    • Compatibility New Replaces Old
    • *multiple options for # 20
    • 4 shown on diagram
    $49.99
  • 20

    PINION v

    • Part No. T4158-26351
    • Compatibility New Replaces Old
    • *multiple options for # 20
    • 4 shown on diagram
    $139.99
  • 21

    CASE, DIFFRENTIAL v

    • Part No. T4115-26511
    • *multiple options for # 21
    • 1 shown on diagram
    $224.99
  • 21

    DIFFERENTIAL SYSTEM CASE

    • Part No. 38240-2651-5
    • Compatibility Call for compatibility
    • *multiple options for # 21
    • 1 shown on diagram
    $399.99
  • 21

    CASE, REAR DIFF

    • Part No. 38240-2651-6
    • Compatibility Interchangeable
    • *multiple options for # 21
    • 1 shown on diagram
    $0.00
  • 22

    COVER,DIFFERENTIAL CASE v

    • Part No. T4115-26521
    • *multiple options for # 22
    • 1 shown on diagram
    $55.99
  • 22

    DIFFERENTIAL CAP

    • Part No. 38240-2652-3
    • Compatibility Call for compatibility
    • *multiple options for # 22
    • 1 shown on diagram
    $71.99
  • 23 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 8 shown on diagram
    $3.49
  • 24

    SHIM 0.1

    • Part No. T5410-26161
    • 1 shown on diagram
    $2.99
  • 25

    SHIM 0.2

    • Part No. T5410-26171
    • 1 shown on diagram
    $3.49
  • 26

    SHIM 0.5T

    • Part No. T5410-26181
    • 1 shown on diagram
    $3.99
  • 27

    CASE,DIFF. BEARING LH

    • Part No. T5715-26561
    • 1 shown on diagram
    $134.99
  • 28

    CASE,DIFF. BEARING RH

    • Part No. T5715-26571
    • 1 shown on diagram
    $134.99
  • 29

    HOLDING, SPRING

    • Part No. T5715-26591
    • 2 shown on diagram
    $12.99
