MID CASE GROUP - TD2-G223001

Kioti TRACTOR | DK Series | DK5010

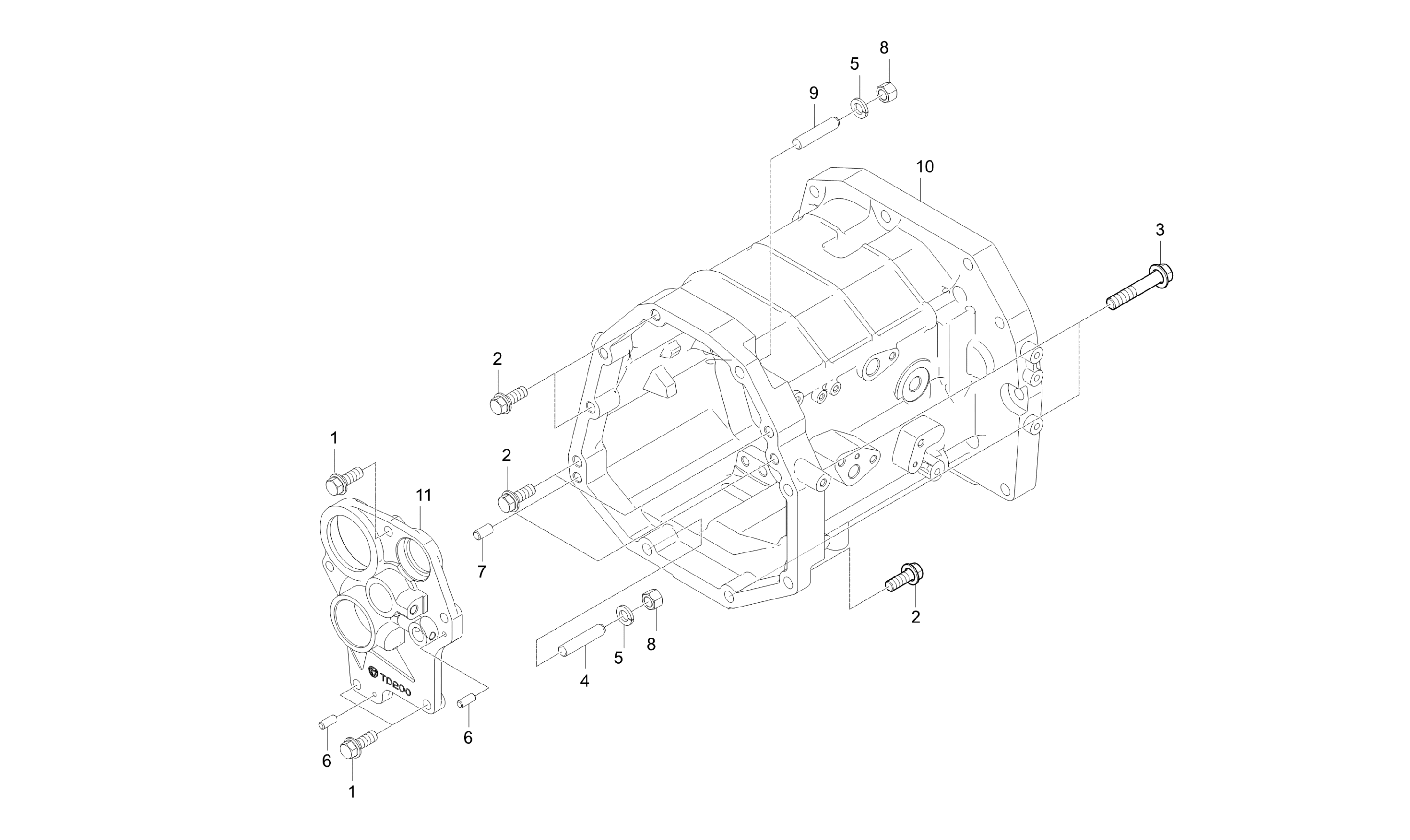

Diagram for MID CASE GROUP - TD2-G223001
  • 1

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 5 shown on diagram
    $3.49
  • 2

    BOLT

    • Part No. 01133-51245
    • Applied Dates Up to 2016-12-31
    • M12XP1.25
    • *multiple options for # 2
    • 6 shown on diagram
    $4.49
  • 2

    Bolt With Washer M12 P1.25

    • Part No. 01177-51245
    • Compatibility New Replaces Old
    • Applied Dates 2017-09-11 and up
    • M12XP1.25
    • *multiple options for # 2
    • 6 shown on diagram
    $0.00
  • 3

    BOLT, WITH WASHER obs

    • Part No. 01133-51265
    • Applied Dates 2017-09-11 and up
    • M12XP1.25
    • *multiple options for # 3
    • 2 shown on diagram
    $5.99
  • 3

    BOLT

    • Part No. 01177-51265
    • Compatibility New Replaces Old
    • Applied Dates 2017-09-11 and up
    • M12XP1.25
    • *multiple options for # 3
    • 2 shown on diagram
    $4.99
  • 4

    STUD

    • Part No. 01574-51260
    • M12XP1.25
    • 1 shown on diagram
    $7.49
  • 5 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates 2017-01-20 and up
    • M12
    • 2 shown on diagram
    $0.95
  • 6 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 7 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • DIA10XL18
    • 2 shown on diagram
    $1.79
  • 8

    NUT

    • Part No. T4240-14081
    • 2 shown on diagram
    $4.99
  • 9

    STUD

    • Part No. T4620-21481
    • 1 shown on diagram
    $9.49
  • 10

    TRK CASE, MIDDLE

    • Part No. T5710-21153
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $1,609.99
  • 11

    COVER, BEARING, Replaced by T5715-21445

    • Part No. T5715-21442
    • Applied Dates Up to 2015-07-27
    • Serial No. Up to PR8000186
    • *multiple options for # 11
    • 1 shown on diagram
    $0.00
  • 11

    COVER, BEARING

    • Part No. T5715-21443
    • Compatibility New Replaces Old
    • Applied Dates Up to 2015-12-31
    • *multiple options for # 11
    • 1 shown on diagram
    $264.99
  • 11

    COVER, BEARING

    • Part No. T5715-21444
    • Compatibility Interchangeable
    • Applied Dates Up to 2016-12-31
    • Serial No. TR8000001 to TR8000040
    • *multiple options for # 11
    • 1 shown on diagram
    $0.00
  • 11

    COVER, BEARING

    • Part No. T5715-21445
    • Compatibility Interchangeable
    • Applied Dates 2017-10-30 and up
    • Serial No. TR8000041 and up
    • *multiple options for # 11
    • 1 shown on diagram
    $254.99
