RADIATOR GROUP - TD2-G612501

Kioti TRACTOR | DK Series | DK5010

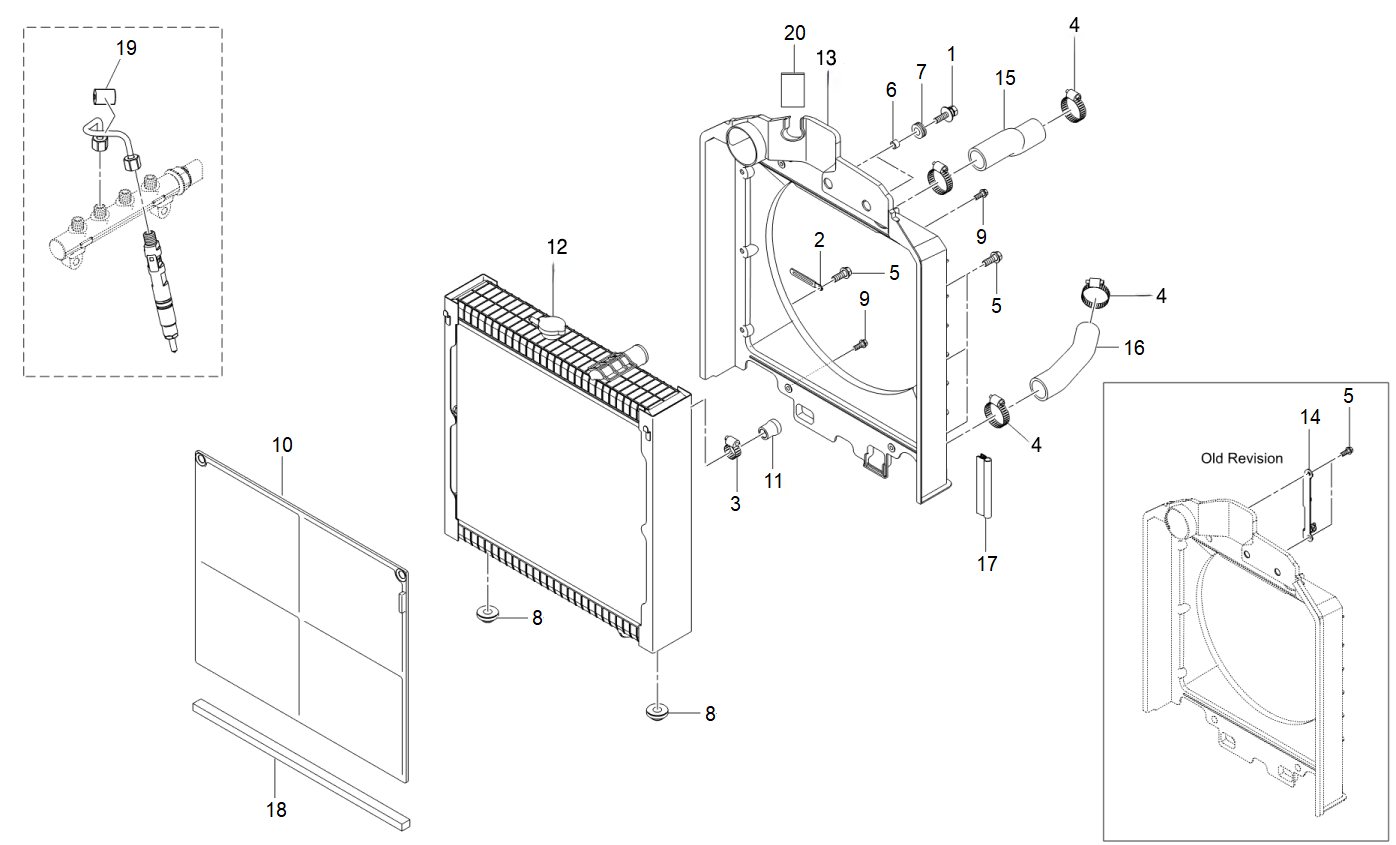

Diagram for RADIATOR GROUP - TD2-G612501
  • 1

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 2

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 3

    BAND, HOSE

    • Part No. 66204-3623-1
    • 1 shown on diagram
    $3.99
  • 4

    CLAMP BAND

    • Part No. E1500-18411
    • *multiple options for # 4
    • 4 shown on diagram
    $4.49
  • 4

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchangeable
    • 25-40mm
    • *multiple options for # 4
    • 1 shown on diagram
    $2.99
  • 5

    Bolt

    • Part No. T2185-70491
    • 6 shown on diagram
    $1.59
  • 6

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 2 shown on diagram
    $4.49
  • 7

    GROMMET

    • Part No. T2350-50431
    • 2 shown on diagram
    $4.99
  • 8

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 9

    BOLT FLANGE

    • Part No. T4625-55441
    • 4 shown on diagram
    $2.49
  • 10 Net-Radiator

    Net-Radiator

    • Part No. T5525-50435
    • 1 shown on diagram
    $99.99
  • 11 CAP, SEALING

    CAP, SEALING

    • Part No. T5535-50451
    • 1 shown on diagram
    $4.49
  • 12 RADIATOR ASSY v, Replaced by TD26-1188A

    RADIATOR ASSY v, Replaced by TD26-1188A

    • Part No. T5710-50411
    • *multiple options for # 12
    • 1 shown on diagram
    $0.00
  • 12 RADIATOR ASSY dnr v

    RADIATOR ASSY dnr v

    • Part No. T5710-50412
    • Compatibility Interchangeable
    • Applied Dates 2020-07-06 to 2020-09-09
    • Serial No. WR8000029 to WR8000044
    • *multiple options for # 12
    • 1 shown on diagram
    $859.99
  • 13

    SHROUD, Replaced by T5710-50423

    • Part No. T5710-50421
    • *multiple options for # 13
    • 1 shown on diagram
    $0.00
  • 13

    SHROUD, Replaced by T5710-50424

    • Part No. T5710-50422
    • Compatibility Call for compatibility
    • Applied Dates 2018-02-11 to 2018-02-12
    • *multiple options for # 13
    • 1 shown on diagram
    $0.00
  • 13

    SHROUD, Replaced by T5710-50424

    • Part No. T5710-50423
    • Compatibility New Replaces Old
    • Applied Dates 2018-02-13 to 2020-02-29
    • Serial No. UR8000001 to WR8000004
    • *multiple options for # 13
    • 1 shown on diagram
    $0.00
  • 13

    SHROUD

    • Part No. T5710-50424
    • Compatibility Interchangeable
    • Applied Dates 2020-03-01 and up
    • Serial No. WR8000005 to WR8000044
    • *multiple options for # 13
    • 1 shown on diagram
    $87.99
  • 14

    BRACKET, RESERVOIR SUPPORT, Replaced by T5710-50461BB

    • Part No. T5710-50461
    • 1 shown on diagram
    $0.00
  • 15

    HOSE, COOLING WATER UPR

    • Part No. T5710-50472
    • OD44XT5.0
    • 1 shown on diagram
    $39.99
  • 16

    HOSE, COOLING WATER LWR

    • Part No. T5710-50481
    • OD44XT5.0
    • 1 shown on diagram
    $37.99
  • 17

    RUBBER(RADIATOR)

    • Part No. T5710-50492
    • Applied Dates 2014-12-31 and up
    • 2 shown on diagram
    $26.99
  • 18

    SPONGE.RADIATOR

    • Part No. T5710-50502
    • 1 shown on diagram
    $19.99
  • 19

    RING,RUBBER

    • Part No. TD26-0008A
    • Applied Dates 2015-05-11 to 2015-05-11
    • 1 shown on diagram
    $6.49
  • 20

    SPONGE

    • Part No. T5245-50231
    • Applied Dates 2018-02-11 and up
    • T5
    • 1 shown on diagram
    $4.99
