SHUTTLE LEVER GROUP - TD2-G644002

Kioti TRACTOR | DK Series | DK5010

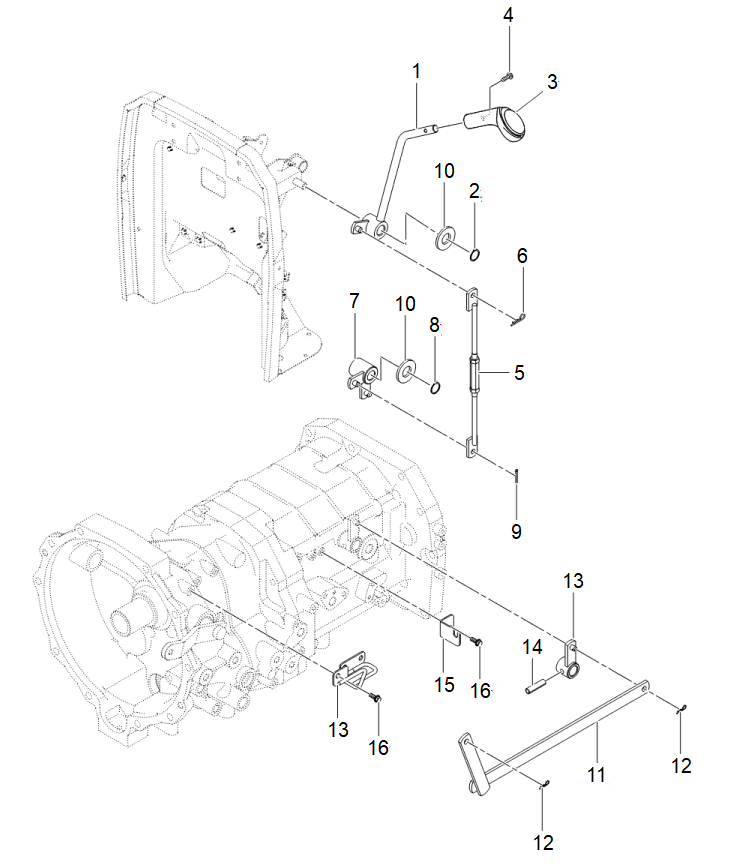

Diagram for SHUTTLE LEVER GROUP - TD2-G644002
  • 1

    LEVER, SHUTTLE dnr v, Replaced by T5710-80212BB

    • Part No. T5715-80211
    • 1 shown on diagram
    $0.00
  • 2 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • DIA16
    • 1 shown on diagram
    $0.85
  • 3

    GRIP

    • Part No. T5750-80251
    • Applied Dates 2020-02-07 and up
    • 1 shown on diagram
    $47.99
  • 4 BOLT,SCREW

    BOLT,SCREW

    • Part No. 03024-50514
    • M5XP0.8
    • 1 shown on diagram
    $0.79

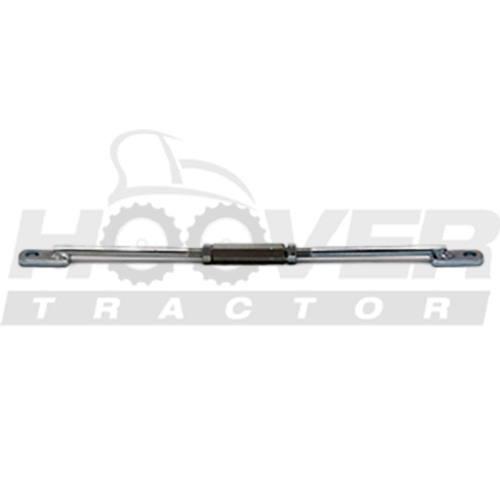

  • 5 ROD 1,SHUTTLE

    ROD 1,SHUTTLE

    • Part No. T5710-80221
    • 1 shown on diagram
    $61.99
  • 6 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 7

    LEVER, SHUTTLE-1 dnr v

    • Part No. T5710-80232
    • Applied Dates 2019-09-03 and up
    • 1 shown on diagram
    $63.99
  • 8 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • DIA16
    • 1 shown on diagram
    $0.85
  • 9 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • Applied Dates 2015-06-17 to 2014-05-05
    • DIA1.8XL18
    • 1 shown on diagram
    $0.56
  • 10

    Flat Washer M16

    • Part No. 04013-50160
    • M16
    • 2 shown on diagram
    $1.59
  • 11

    ROD 2, SHUTTLE, Replaced by T5715-51733BB

    • Part No. T5715-51733
    • Applied Dates 2014-09-13 and up
    • 1 shown on diagram
    $15.70
  • 12 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 2 shown on diagram
    $0.56
  • 13

    ARM, CONNETING

    • Part No. T5710-59001
    • 1 shown on diagram
    $38.99
  • 14 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 15

    HOSE GUIDE, LH

    • Part No. T5710-51742
    • Applied Dates 2014-09-13 to 2014-09-28
    • 1 shown on diagram
    $29.99
  • 16 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 3 shown on diagram
    $1.09
